Ingenico Iwl280 Manuale utente

www.ingenico.com

28-32, boulevard de Grenelle, 75015 Paris - France / (T) +33 (0)1 58 01 80 00 / (F) +33 (0)1 58 01 91 35

Ingenico - SA au capital de 47 656 332 / 317 218 758 RCS Nanterre

iWL280

Wireless Series

User Guide

iWL280 Wireless Series

900004307 R11 000 03/1503

Contents

1_Introduction

2_Présentation

2_1 Content of the box

2_1_1 Terminal

2_1_2 Base (optional)

2_2 Overview of the iWL280

2_3 Keyboard details and functionality

2_4 Touch panel

3_Use of the terminal

3_1 Switching off the terminal

3_2 Reading card

3_3 Signature handling

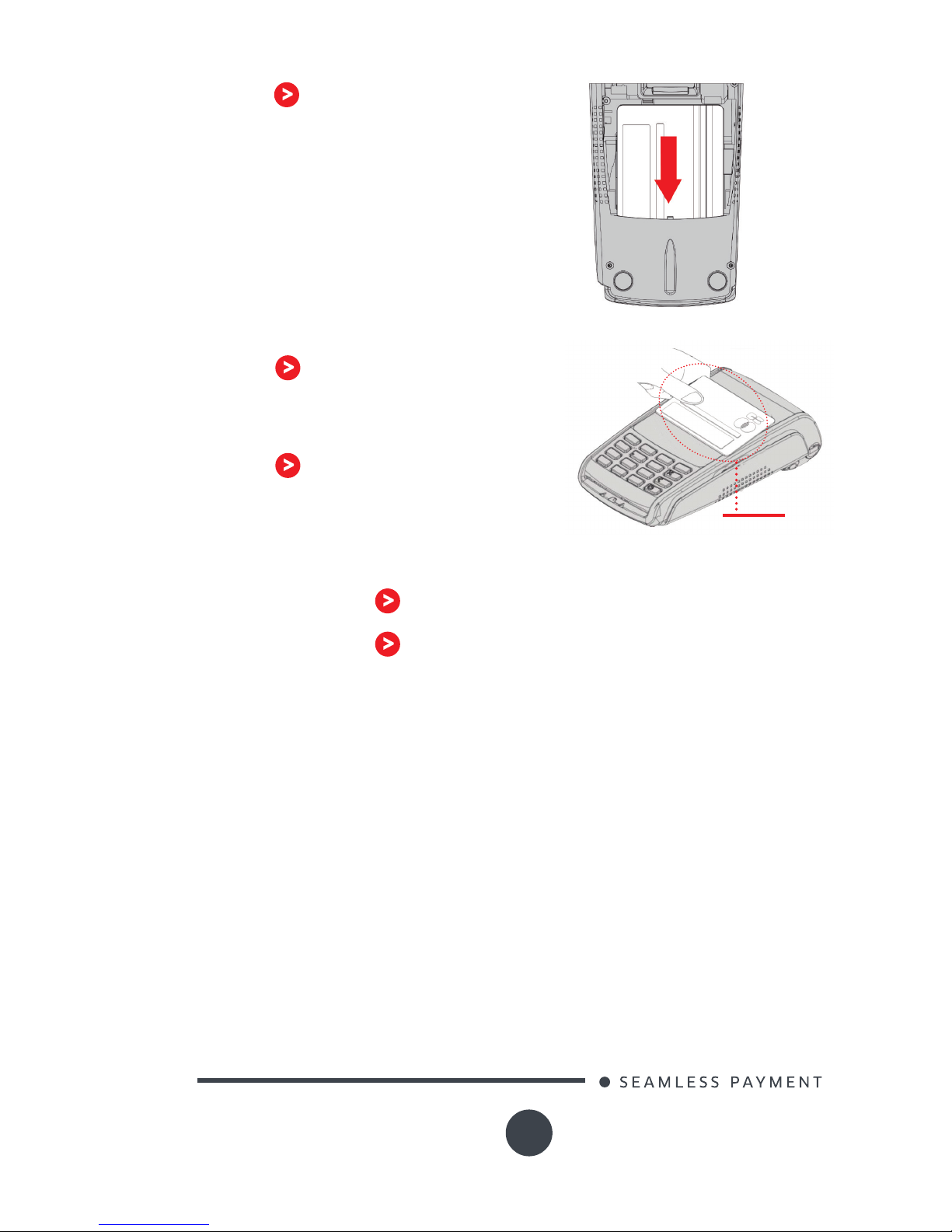

3_4 Installing the terminal on the base

4_Installation

4_1 Recommendation

4_2 Terminal connections

4_3 Installing Modules

4_3_1 SAM1/SAM2/SIM

4_3_2 MicroSD Memory Card

iWL280 Wireless Series

900004307 R11 000 03/1503

4_4 Paper roll

4_4_1 Mains characteristics

of INGENICO paper roll

4_4_2 Installing paper roll

4_5 Battery

4_5_1 Main characteristics

4_5_2 Installing the battery

4_5_3 charging the battery

4_5_4 changing the battery

5_Base

5_1_1 Base rear connections

5_1_2 Base downside connections

5_1_3 Fasten your base on desk

6_Recommendations

6_1 Safety

6_2 Security of your terminal

6_3 Telephone call

7_Standards

8_Environment (WEE, Batteries and Packaging)

9_Troubleshooting

iWL280 Wireless Series

900004307 R11 000 03/1503

1_Introduction

We hope that you will be fully satised with your new terminal iWL280.

This terminal is available in different models. Please select by yourself

in this documentation items related to your model.

Read this guide to understand and make the best use of your terminal.

It presents you the necessary information about use, installation,

maintenance, safety and security recommendations.

WARRANTY / SECURITY

Use only the power supply included with the product to

ensure best performance and safety. Maintenance should

only be provided by Ingenico authorized technician.

Failure to comply with these instructions will void the

manufacturer’s responsibility.

This symbol indicates an important Warning.

This symbol indicates a piece of advice.

iWL280 Wireless Series

900004307 R11 000 03/1503

2_1_1 Terminal

2_Presentation

2_1 Content of the box

Power travel adapter

(when no base)

A battery pack disconnected

A power supply unit that

connect the base top the

mains

A telephone cable

(with base modem)

2_1_2 Base ( optional )

Base

A user’s guide

iWL280 terminal unit

equipped with a paper

roll

iWL280 Wireless Series

900004307 R11 000 03/1503

WARNING

The power supply unit provided with your equipment

is specially designed for Ingenico terminals. Do not use

any other power supply. The use of a power supply with

apparently similar voltage/current characteristics may

damage your terminal.

ADVICE

Keep the packaging. It must be re-used whenever the

terminal is shipped.

2_2 Overview of the iWL280

Terminal unit

3.5” TFT-LCD display

with touch panel

Smart

card reader

Easy loading printer

Magnetic card

reader

Compartment where are located:

the battery pack

the modules SAM1/

SAM2/SIM

the module microSD

the 2nd Smart card

reader (optional)

Backlit

keyboard

iWL280 Wireless Series

900004307 R11 000 03/1503

Weight (without paper roll nor

battery)

290g for the R25 model and 310g

for the R40 model

Dimensions (L x w x h) 150x78x44mmfor the R25 model

and 165x78x54mm for the R40

model

Electrical mains network 100-240VAC / 50-60 Hz - Class II

equipment

Connections on terminal Micro USB AB serial link

External

links

Base

Weight About 150g

Dimensions (L x w x h) 140,7x87,7x45 mm

Power supply unit

Weight About 100g

2 pole sockets 1A (terminal power

supply or base power supply)

Base unit

External

links

Power supply units are specially tted for INGENICO terminals.

iWL280 Wireless Series

900004307 R11 000 03/1503

2_3 Keyboard details and functionality

Some keys can have other functions according to the applications that

are in the terminal.

The function key

accesses the dif-

ferent application

menus

The red key can-

cels the procedure

in progress

The green key validates input

selections and information.

It is also used to switch on the

terminal

The yellow key

cancels the last

character

Feed paper a few centimetres

if pressed for a long time

(more than 2 seconds)

2_4 Touch panel

The iWL280 device is equipped with touch panel that allows you

capture functions and menus by your nger or using a stylus (orderable

separately).

iWL280 Wireless Series

900004307 R11 000 03/1503

3_Use of the terminal

3_1 Switching off the terminal

Before to use the terminal, always check if the roll of paper

is present.

ADVICE

3_2 Reading card

If the battery is empty and the terminal in use is removed from

its base, the terminal automatically shuts off.

It may also be forced stopped by pressing simultaneously

and (yellow key) for one second.

In order to restart the terminal, press (green key) on

the keyboard.

The card can be read either

from bottom to top or from

top to bottom, with the stripe

facing the terminal.

Use a regular movement in

order to ensure a reliable card

reading.

Magnetic stripe card

Card reader: insert the card horizon-

tally with the metal chip facing upward

and leave in position throughout the

transaction.

Smart card

iWL280 Wireless Series

900004307 R11 000 03/1503

2nd card reader (Optional):

is located under terminal

trapdoor (on back of the

terminal). Insert the card up

side down chip facing the

terminal.

Bring the card rmly up to

the active zone. Keep the card

close to the reader during the

transaction

Contactless (optional)

The 4 virtual LEDs are dis-

played during the transaction.

The terminal behavior for the cardholder may depend on:

The terminal environment

Local usage (language…)

Active zone

3_3 Signature handling

The iWL280 can capture an electronic image of a customer’s

signature for transactions that require a signature and transmit

to a host system . The signature area displays on the screen for

transactions requiring a customer signature.
