Ingenico Lane 3000 Manuale utente

What's in the box?

Quick Start Guide

Lane 3000

1.Card Terminal

2.Terminal Cable

3.Power Supply Unit

4.Window Decal

4

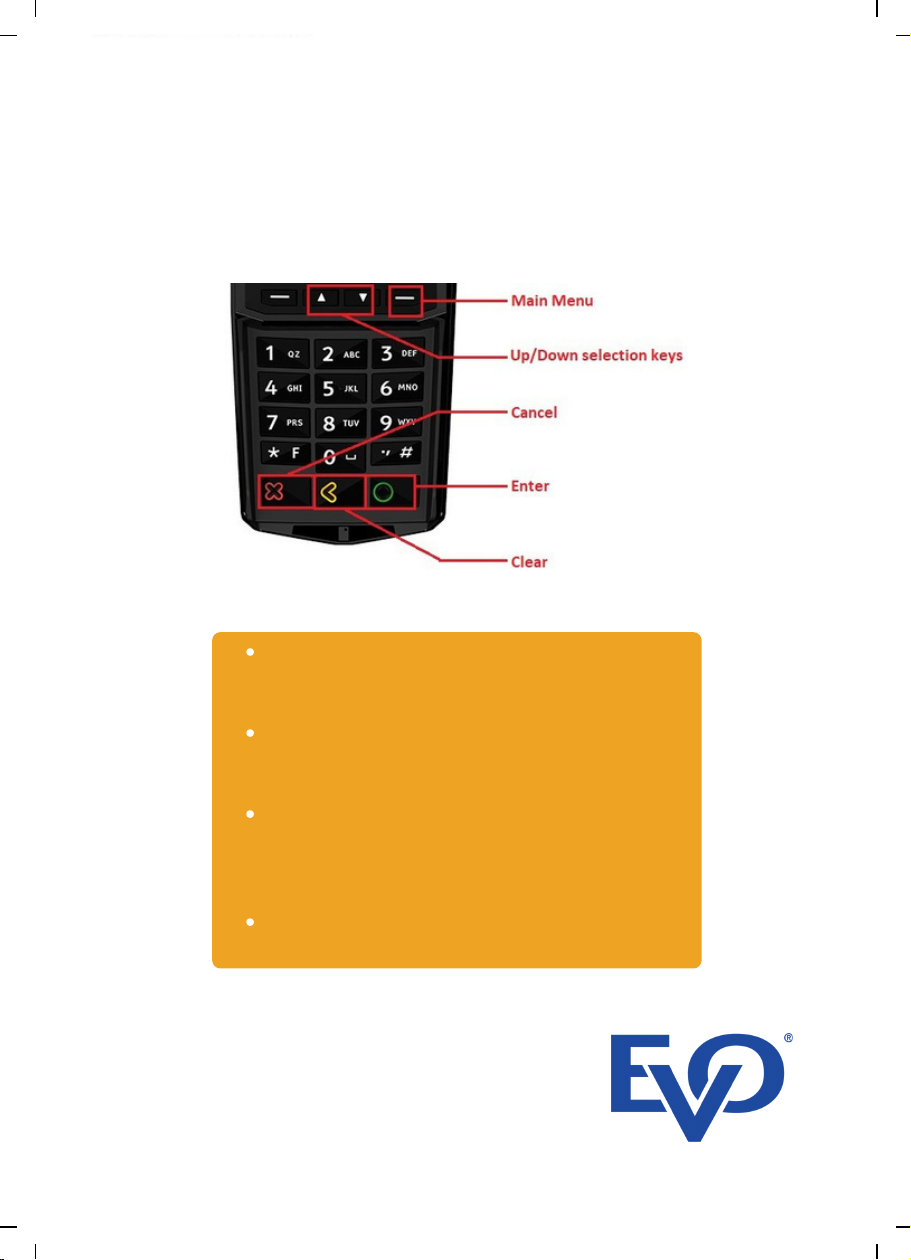

Function keys

Menu - Use this button to access the main

functions menu on the terminal

Cancel - Use this button to cancel and

revert back to the previous screen

Clear - Use this button to clear back or

delete characters when keying in

text/numbers

Enter - Use this button to confirm selection

on the terminal

Getting started

Connect the Terminal cable to the Lane 3000 Kiosk terminal by

connecting the HDMI end to the back of the terminal as shown.

When the terminal is configured, the Menu buttons are

disabled on the device.

To access the admin menu please follow these steps.

1. After reboot press the “F” key followed by “654123” and the

“F” key again.

Connect the Power supply to the Terminal cable, and connect

to an active Ethernet port. *Note the Ethernet extension block

and additional cable can be used to extend the cable if

required.

Setting a static IP address on the

terminal

2. The terminal will request an administrator password which is

123456 and ENTER You are now in the Admin Menu.

Using the Up/Down keys, select “ETH setting”, then press ENTER

Speed change appears on screen select Link Speed 100Mb/s and

press ENTER

Protocol Change will then appear on screen, press the RED button

(cancel)

You can now set the terminal to the desired IP address. Use the

Yellow button to clear the existing IP address, and key in the new IP

address you wish to use. Press ENTER button to save the changes.

The next screen will display the Subnet mask this should not be

changed press ENTER.

The final screen displays the gateway IP address again this should not

need to be changed. Press ENTER.

Terminal will request to save changes, press ENTER. Terminal will

reboot and the new IP address will be set.

The terminal is now set up with the specified IP address and ready for

Integration.
