Inglis IM70000 Manuale utente
1

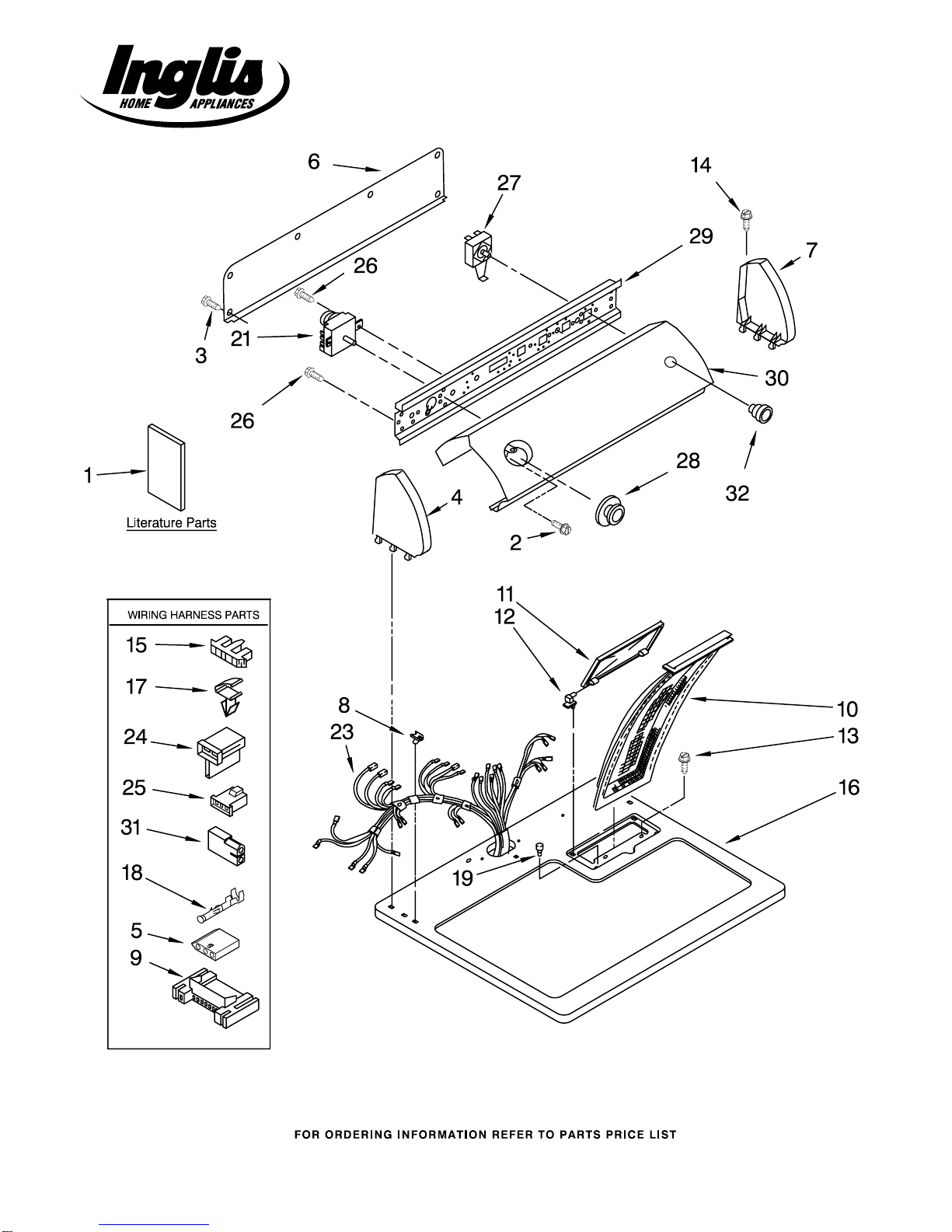

TOP AND CONSOLE PARTS
®
For Model: IM70000
(Designer White)
11−03 Litho in U.S.A. (djc) Part No. 8180170
29" GAS DRYER
TOP AND CONSOLE PARTS
2
OPTIONAL PARTS (NOT INCLUDED)
For Model: IM70000
(Designer White)
8180170
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
LIT8546085
Use & Care Guide
LIT8535915
Installation
Instructions
LIT8546086
Sheet,
Cycle Feature
LIT8528187
Wiring Diagram
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
LIT677818
Dryer
2 3400859 Screw, Grounding
3 693995 Screw, Hex Head
4 8274437 Cap, End (L.H.)
5 3936144 Connector
6 8274261 Panel, Rear
Console
7 8274434 Cap, End (R.H.)
8 357213 Nut, Push−In (2)
9 3395683 Housing, Connector
(Motor)
10 339392 Screen, Lint
11 8283378 Cover, Lint Screen
12 3978605 Hinge, R.H.
3978606 Hinge, L.H.
13 688983 Screw, 8−18 x 5/8
14 388326 Screw, Console
15 3397269 Connector
(Timer)
16 8271390 Top
17 3394427 Clip, Harness
18 94614 Terminal
19 297535 Bumper, Lint Lid
21 3976584 Timer Assembly,
60 Hz.
23 8299875 Harness, Wiring
24 3403499 Connector,
2−Position
(Gas Valve)
25 3403498 Connector,
3−Position
(Gas Valve)
26 3390646 Screw, 8−18 x 5/16
27 3977456 Switch,
Push−To−Start
28 8312687 Timer Knob
Assembly
29 8271418 Bracket, Control
30 8532649 Panel, Control
31 717252 Receptacle,
Latching (2−Way)
32 8271341 Knob,
Push−To−Start
Illus. Part
No. No. DESCRIPTION
ACCESSORY PARTS
279948 Kit,
Dryer Repair
346764 Kit, Hold−Down
(Gas Dryer Mobile
Home Installation)
PAINT, TOUCH−UP (1/2oz.)
72017 White
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
350938 Primer, Gray
PAINT, BULK (1 qt.)
799344 White (Uncut)
3
CABINET PARTS
For Model: IM70000
(Designer White)
8180170
CABINET PARTS
4
For Model: IM70000
(Designer White)
8180170
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 697776 Screw, 10−32 x 5/8
2 343641 Screw, 10−16 x 1/2
3 694091 Screw, 8−18 x 3/8
5 3396795 Cover, Block
6 3394975 Plug, Front Panel
7 3396807 Panel, Rear
8 342055 Screw, 8−18 x 1/2
10 3406102 Door Switch
Assembly
11 697773 Screw, 6−20 x 7/8
15 3394083 Clip, Front Panel
16 3392100 Foot, Dryer
279810 Foot − Optional
(Extended Length
Package Of 2)
(Not Included)
18 8530603 Cabinet
19 98234 Clip, Ground (2)
20 690363 Lock, Front Top (2)
21 3394895 Front Panel
Assembly
23 685203 Clip, Felt Pad
24 3389441 Catch, Door
25 693995 Screw, Hex Head
26 348023 Hinge & Pin
Assembly
27 696144 Strike, Door
28 695656 Door, Rear
29 348205 Door, Front
30 686711 Handle, Door
31 8066123 Seal & Bearing
Assembly
32 3390734 Seal, Door
33 344020 Cord, Power
34 238088 Hinge, Top (2)
35 3394332 Idler & Slide
Assembly
36 8066065 Belt, Drive
37 348780 Base, Motor
38 3400500 Bolt,
5/16−18 x 3/4
39 3394341 Pulley, 60 Hz.
40 8538262 Motor, 60 Hz.
41 660658 Clamp, Motor
42 3404162 Clamp, Motor
(W/Shield)
43 8318272 Burner Assembly,
60 Hz.
(Refer To Pages
5 & 6 For Further
Breakdown)
44 341029 Clamp, Pipe
8318272 BURNER ASSEMBLY
5
For Model: IM70000
(Designer White)
8180170
Illus. Part
No. No. DESCRIPTION
8318272 BURNER ASSEMBLY
1 8318272 Burner Assembly
60 Hz.
(Type 1)
(White Rodgers)
2 688617 Tube, Burner
3 694298 Bracket, Ignitor
4 686590 Ignitor
5 3393909 Screw & Washer
(8−32 x 5/8)
6 343641 Screw, 10−16 x 1/2
7 693986 Base, Burner
8 3387057 Screw, 8−18 x 3/8
9 Orifice, Burner
234826 Type 1
229742 Type 4 (Butane)
234868 Type 4 (Propane)
10 8318277 Valve, 60 Hz.
(Includes Pipe &
Illus. #7)
11 694421 Screw,
8−32 x 1/2 (2)
12 694538 Bracket, Coil
13 694540 Coil, 60 Hz.
(2 Terminal)
(Main)
14 694539 Coil, 60 Hz.
(Split)
(3 Terminal)
(Pilot Position)
15 694424 Leak Limiter
16 694423 Screw, Regulator
Adjustment
17 694422 Spring, Regulator
20 239822 Plug, Pipe
25 341029 Clamp, Pipe
694572 Conversion Kit
(Type 1)
to Type (4) L.P.G.
Following Parts Not Illustrated
6
For Model: IM70000
(Designer White)
8180170
7
BULKHEAD PARTS
For Model: IM70000
(Designer White)
8180170
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 694283 Lint Chute
Assembly
2 343641 Screw, 10−16 x 1/2
3 3406022 Bracket, Bulkhead
4 3388703 Washer, Support
5 90767 Screw, 8−18 x 3/8
6 3392519 Fuse, Thermal
7 347139 Seal, Lint
Chute
8 660039 Thermostat,
Internal−Bias
9 8066086 Drum Hole
Plug
10 694089 Wheel, Blower
(Includes
Illus. 22)
11 3405016 Housing, Blower
12 3398161 Clip
13 489463 Screw, 8−18 x 5/8
14 8530285 Box, Heater
15 3403140 Thermostat,
205 F
(96.1 C)
16 280010 Kit,
Thermal Cut−Off
(Includes
Illus. 15)
17 3401707 Wire, Jumper
18 8066048 Funnel, Burner
19 3390647 Screw, 8−18 x 1/2
20 696302 Shield, Exhaust
21 3392247 Pad, Blower
Housing
22 3394196 Seal, Blower
Shaft
23 690997 Ring, Tri
24 3399506 Shaft, L.H.
25 3399507 Shaft, R.H.
26 3397588 Roller, Support
27 348197 Washer, Support
28 3359452 Nut, 3/8−16
29 8529955 Bulkhead
30 338906 Sensor, Radiant
31 3394508 Ring, Bearing
32 97787 Screw, 11−16 x 3/4
33 8066085 Seal, Rear Drum
34 3396775 Drum Assembly
35 342847 Baffle, Drum
36 3976435 Bracket, Support
37 90296 Clip
38 339956 Seal
