InHand CR200 Series Istruzioni operative e di manutenzione
InHand Networks CR202 Portable 4G Router
Quick Installation Manual
V1.0—2023.2
Contents
Overview.............................................................................................................................................................. 1
1 Packing List ..................................................................................................................................................... 1
2 Panel Introduction........................................................................................................................................ 2
3 Installation....................................................................................................................................................... 2
3.1 SIM card Installation........................................................................................................................ 2
3.2 Antenna Installation......................................................................................................................... 3
4Access to Internet......................................................................................................................................... 3
4.1 Wired to Internet .............................................................................................................................. 4
4.2 SIM Card Dialup ................................................................................................................................ 6
4.3 Wi-Fi to Internet................................................................................................................................ 7
5 Quick-Use Guidance .................................................................................................................................... 9
5.1 Restore to Factory Setting............................................................................................................. 9
5.1.1 Web Setting ............................................................................................................................ 9
5.1.2 Hardware Restore ...............................................................................................................10
5.2 Import/Export Configuration .....................................................................................................10
5.3 Log and Diagnose Record ...........................................................................................................10
5.4 Connect to InHand platform ......................................................................................................10
6 Description of Indicator ...........................................................................................................................12
1
Overview
This manual is a guide for the installation and operation of CR202 routers from InHand
Networks. Please confirm the product model and packaging accessories (cable, antenna),
and purchase SIM cards from local network operators
All statements, information and recommendations in this manual do not constitute any
expressed or implied warranty.
1 Packing List
Each CR202 product includes common accessories, please check carefully when you
receive our products. If there is any missing or damage, please contact InHand sales staff.
InHand can provide customers with optional accessories according to different field.
Please refer to the list of optional accessories for detailed information.
Packing list
Unit
Remarks
CR202
1
CR202 mobile 4G router
Ethernet cable
1
1 meter cable
Power adaptor
1
5V/2A Type-C interface
4G antenna
2
North America models have 2 antennas
Certificate and product
warrant card
1
CR202 has 3 years of warranty period
Battery has 1 year of warranty period
QSG
1
Quick installation guide
Wall mounting lug
1
Support wall mounting
2

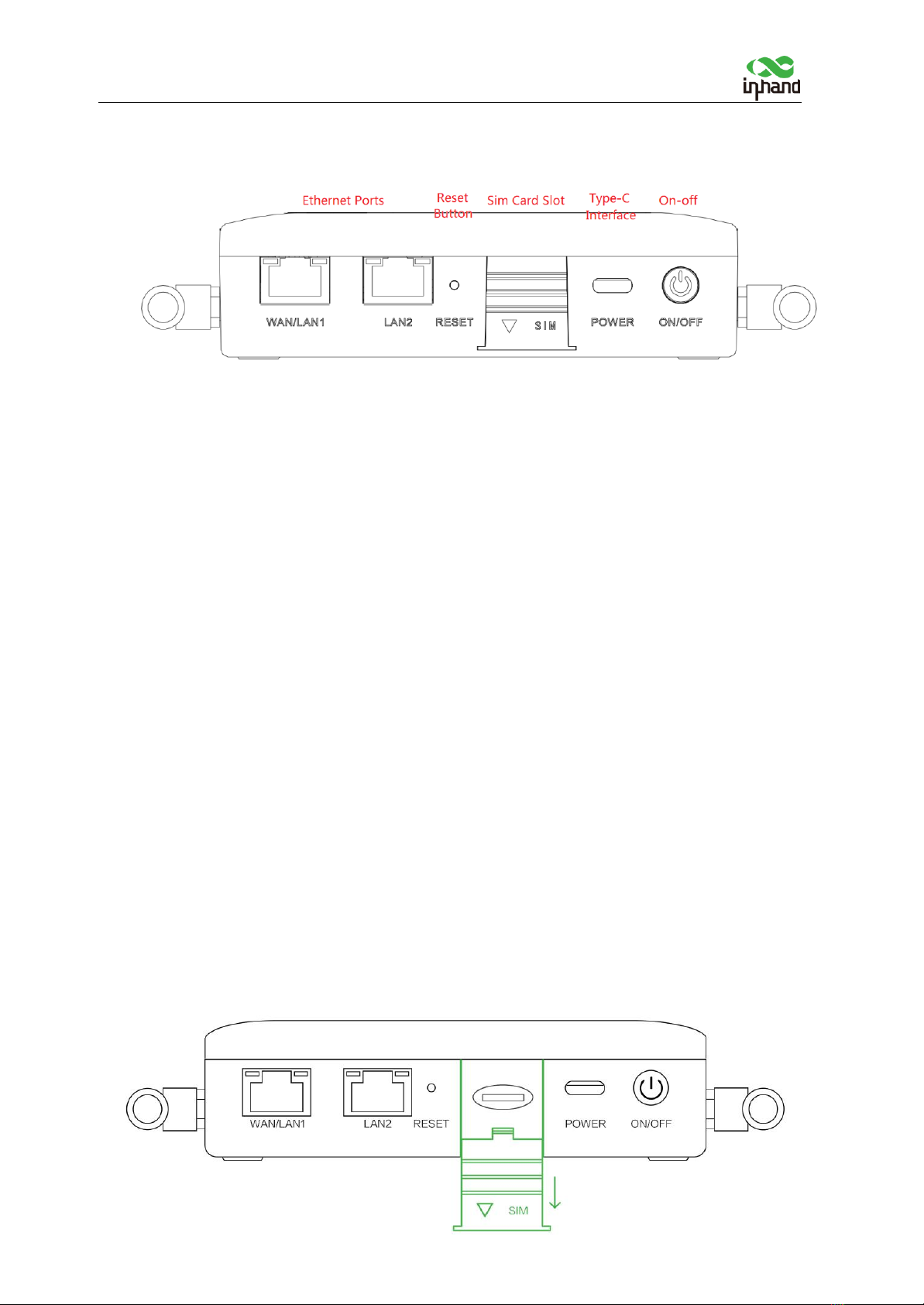

2 Panel Introduction
3 Installation
Precautions for installation:
●Power supply: Internal battery or Type-C interface (5V/2A), please pay attention to
the power voltage level.
●Environment: Working temperature: -10℃～50℃, storage temperature: -20℃～
60℃, equipment surface may be high temperature, please consider the surrounding
environment before installation.
●Support to be mounted with bracket. Avoid direct sunlight, away from heat source
or strong electromagnetic interference
●Check for cables and connectors required for installation.
3.1 SIM card Installation
CR202 supports single nano SIM card or eSIM. Please install the SIM card like below
if use nano SIM card.
3
3.2 Antenna Installation
Rotate the metal interface clockwise until the movable part cannot be rotated, do not
hold the black glue stick to twist the antenna.
4Access to Internet
CR202 supports three ways of accessing to Internet: wired, cellular and Wi-Fi.
When CR202 does not access to Internet via cellular, please disable Cellular in
“Network>>Cellular”, otherwise the device will restart after trying dial up and fail for
several times.
4
4.1 Wired to Internet
Step 1: Connect power and Ethernet cable to CR202, connect WAN/LAN1 port to
public network, and LAN2 to PC.
Step 2: Configure PC to be in the same network segment as the IP address of the
router.
(1) Enable PC to obtain an IP address from DHCP automatically (recommended).
(2) Or configure a fixed IP address in the same network segment as the router for
PC. The IP address should be one of the address in 192.168.2.2~192.168.2.254,
Subnet mask should be 255.255.255.0, and Default gateway should be 192.168.2.1.
DNS server should be 8.8.8.8 or the address of ISP’s DNS server.

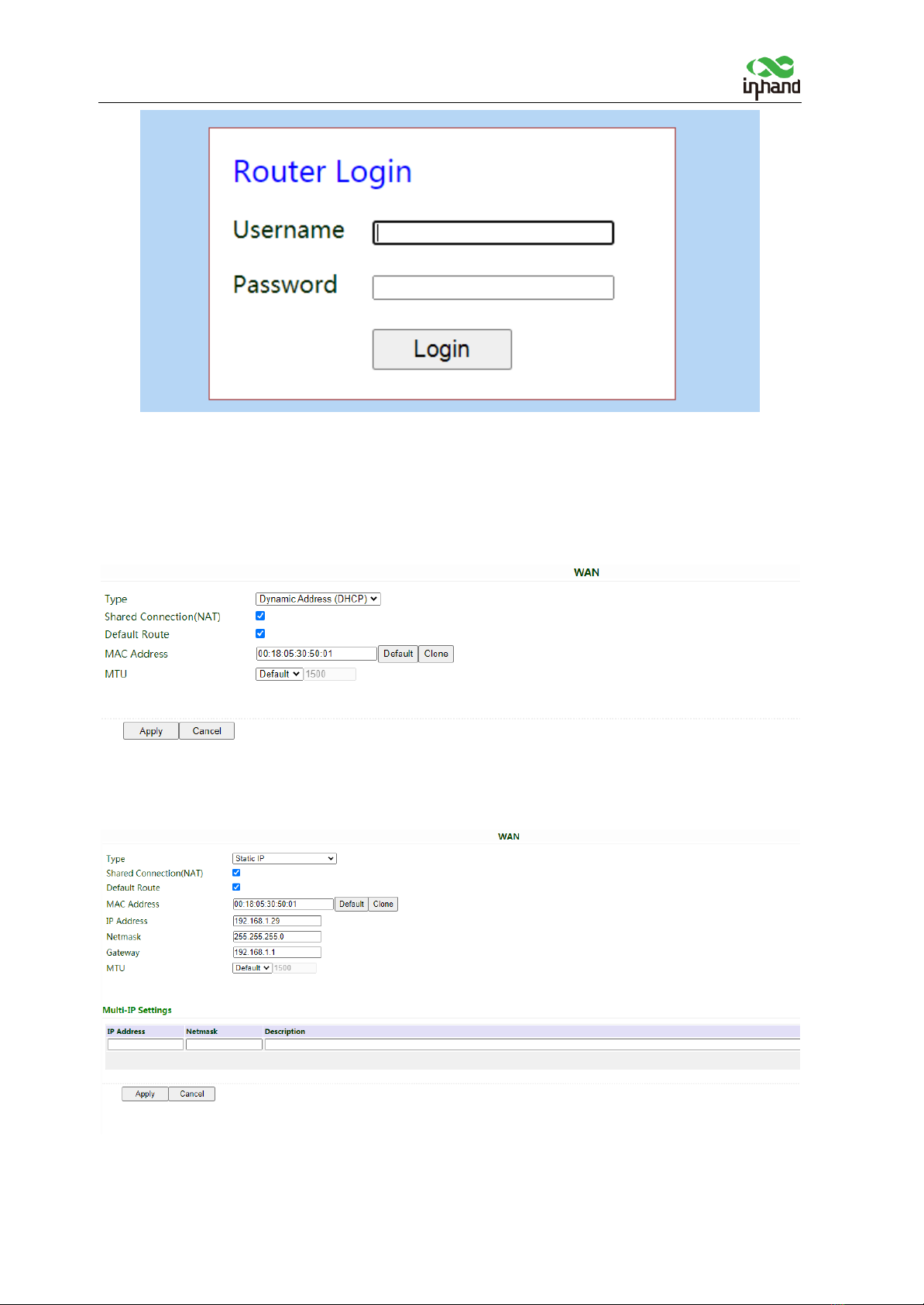

Step 3: Access to the default IP address 192.168.2.1 in a browser, enter username and
password (adm/123456 by default) in pop-up window and then access to router’s
WEB management page. If the browser alarms the connection is not private, show
advanced, and proceed to access to the address.
5
Step 4: Create a WAN port in “Network >> WAN” in the left menu. Configure an IP
address for WAN port and let the router connect to Internet.
There are there methods to obtain IP address: Dynamic DHCP (recommend).
Static IP (Click Apply & Save after configure manually) and ADLS Dialup (Click Apply
& Save after configure manually).
Obtain IP address by Dynamic Address (DHCP)
Obtain IP address by Static IP
6

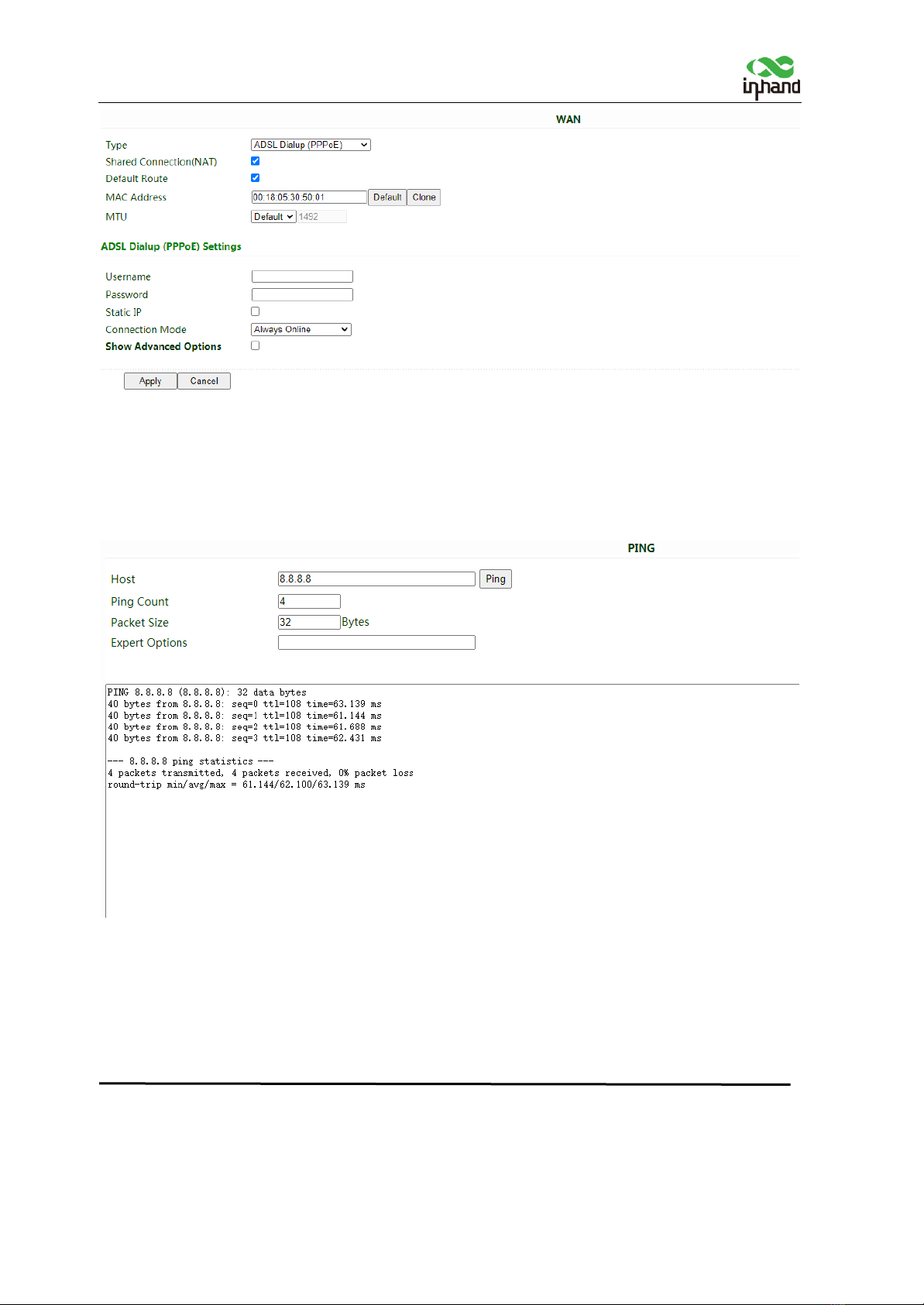

Obtain IP address by ADSL Dialup
Step 5: Check the connectivity in “Tools >> PING”.
4.2 SIM Card Dialup
Step 1: Insert the SIM card when device is power off. Connect 4G antenna to the
router, and connect PC to router. Then power on.
Note:
When insert or plug out SIM card, please power off the device to prevent data loss or
damage to the router.
7
Step 2: Open a browser and access to router’s WEB management page. (refer to 4.1)

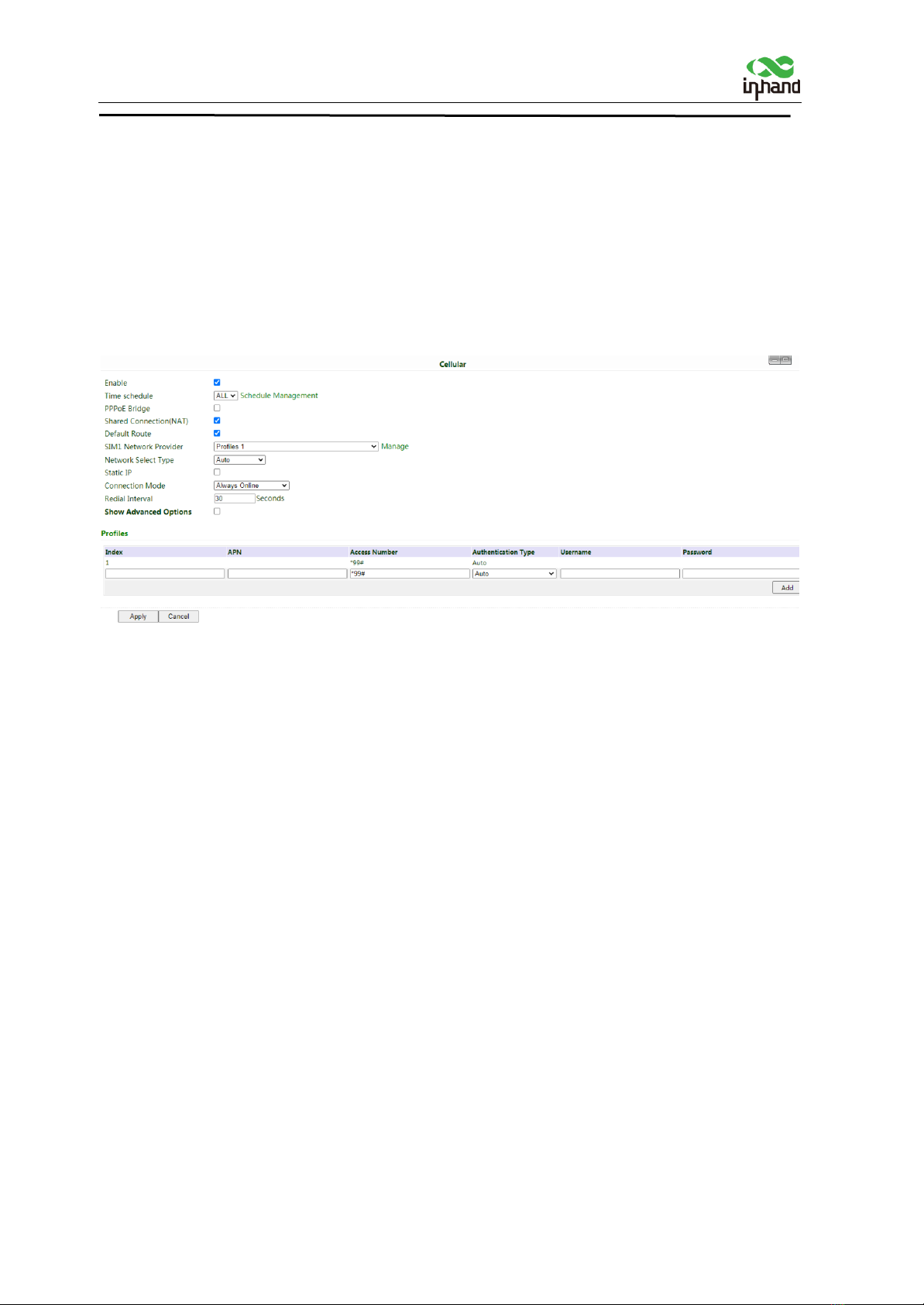

Step 3: Click “Network >> Cellular”, set profile. The device enables the cellular by
default, it will connect to Internet within a few minutes. If the device cannot connect
to Internet, please disable and restart dialup. (If you use a private network SIM card,
you also need to configure APN parameter)
Step 4: Check the dialup status in “Status”, if it shows Connected and there is IP
address and other dialup parameters, the router has connect to Internet by SIM card.
4.3 Wi-Fi to Internet

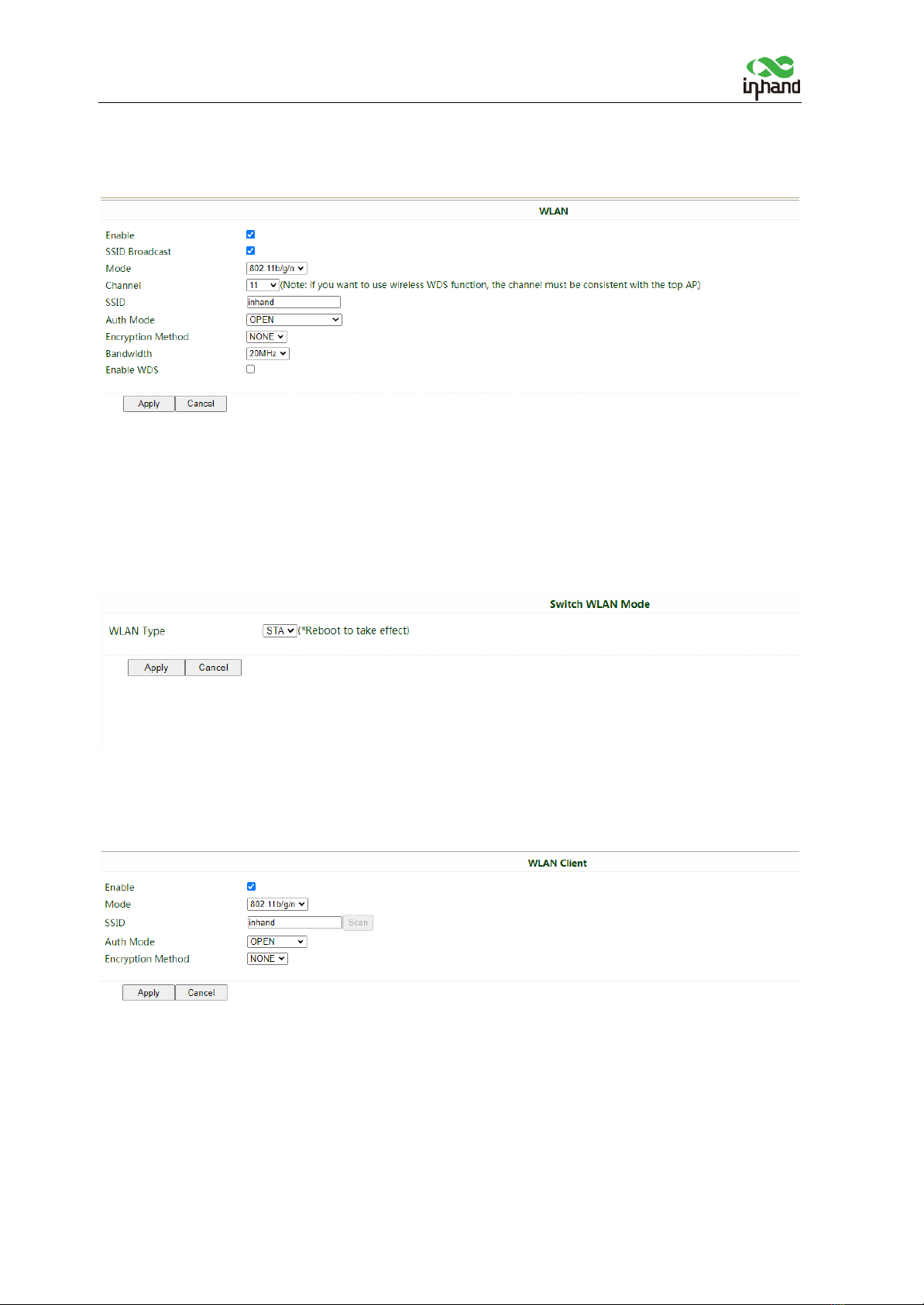

Step 1: Connect Wi-Fi antenna, and connect PC to the device. Access to router’s
WEB management page. (refer to 4.1)
Step 2: Set Wi-Fi mode: AP or STA.
AP mode (default mode): CR202 acts as an accsess point to radiate wireless signals,
and other terminal devices can connect CR202 to access the Internet. It is necessary
to ensure that CR202 itself has been connected to the Internet through wired or
8
cellular. AP mode supports setting SSID name and encryption method, and terminal
devices will need to input password when connecting.
STA mode: CR202 connects to other AP Wi-Fi device to access the Internet.
1. Select WLAN Type to STA in “Network>>Switch WLAN Mode” and save. Then
reboot the router.
2. Click “Scan”to scan available AP in “Network>>WLAN Client”, and click
Connect to choose one of AP.
3. Configure Wi-Fi parameters and save. Then check the connection status in
“Status>>Network Connection”.
