Innoband 4000-R2 Manuale utente

User’s Manual

4000-R2

Wireless N Gigabit Router

Issue 1.1

17th, August, 2011

USER MANUAL

INNOBAND 4000-R2

Information in this document is subject to change without notice and does not represent a commitment

on the part of Innoband Technologies, Inc. The software described in this document is furnished under

a license agreement and may be used or copied only in accordance with the terms of the license

agreement. It is against the law to copy the software on any other medium except as specifically

allowed in the license agreement. The licensee may make one copy of the software for backup

purposes. No part of this manual may be reproduced or transmitted in any form or by any means,

electronic or mechanical, including photocopying and recording, for any purpose without the written

permission of Innoband Technologies, Inc.

Manual Version 1.1

August 2011

Innoband is a trademark of Innoband Technologies, Inc. The trademarks, logos and service marks

(“Marks”) displayed on this manual are the property of Innoband or other third parties. Users are not

permitted to use these Marks without the prior written consent of Innoband or such third party that may

own the Mark. IBM is a registered trademark of International Business Machines Corporation. Intel and

Pentium are registered trademarks of Intel Corporation. Microsoft, MS-DOS, Windows, and the

Windows logo are registered trademarks of Microsoft Corporation. All other products are trademarks or

registered trademarks of their respective owners.

Table of Contents

User’s Manual ................................................................................... 1

4000-R2............................................................................................. 1

Wireless N Gigabit Router................................................................. 1

Chapter 1 Introduction....................................................................... 4

1.1 Packing List.......................................................................... 4

1.2 Spec Summary Table ........................................................... 5

1.3 Hardware Configuration ....................................................... 7

1.4 LED indicators...................................................................... 8

1.5 Button Definition................................................................... 9

1.6 Procedure for Hardware Installation .................................... 9

Chapter 2 Making Configuration ..................................................... 11

2.1 Login to Configure from Wizard ......................................... 12

2.2 System Status .................................................................... 16

2.3 Advanced ........................................................................... 17

Appendix A: Frequently Asked Questions ...................................... 60

Appendix B: Troubleshooting Guide ............................................... 63

Appendix D: Glossary...................................................................... 66

Appendix F: Regulation ................................................................... 69

Appendix G: Warranties .................................................................. 71

Appendix H: Contact Information .................................................... 73

Chapter 1 Introduction

Congratulations on your purchase of this outstanding Wireless Broadband Router. This product is

specifically designed for Small Office and Home Office needs. It provides a complete SOHO solution

for Internet surfing, and is easy to configure and operate even for non-technical users. Instructions for

installing and configuring this product can be found in this manual. Before you install and use this

product, please read this manual carefully for fully exploiting the functions of this product.

1.1 Packing List

items Description Contents Quantity

1 WiFi Broadband Gigabit

Router

2 Power adapter 5V 1.2A

3 CD

4 RJ-45 cable

zWireless broadband gigabit router unit

zPower adapter

zProduct Information CD-ROM

zRJ-45 Cable

1.2 Spec Summary Table

Device Interface

Ethernet WAN RJ-45 port, 10/100/1000Mbps, auto-MDI/MDIX 1

Ethernet LAN RJ-45 port, 10/100/1000Mbps, auto-MDI/MDIX 4

Antenna 1.8 dBi Fixed antenna 2

WPS Button For WPS connection 1

Reset Button Reset router setting to factory default

LED Indication Power/Status / WAN / LAN1 ~ LAN4/ WiFi ●

Power Jack DC Power Jack, powered via external DC 5V/2A

switching power adapter 1

Wireless LAN (WiFi)

Standard IEEE 802.11b/g/n compliance ●

SSID SSID broadcast or in stealth mode ●

Channel Auto-selection, manually ●

Security WEP, WPA, WPA-PSK, WPA2, WPA2-PSK ●

WPS WPS (Wi-Fi Protected Setup) ●

WMM WMM (Wi-Fi Multimedia) ●

Functionality

Ethernet WAN PPPoE, DHCP client, Static IP ●

WAN Connection Auto-reconnect, dial-on-demand, manually ●

One-to-Many NAT Virtual server, special application, DMZ, Super

DMZ(IP pass-through)

●

NAT Session Support NAT session 20000

SPI Firewall IP/Service filter, URL blocking, Internet Access

Control

●

DoS Protection DoS (Denial of Service) detection and protection ●

Routing Protocol Static route, dynamic route (RIP v1/v2) ●

Management SNMP, UPnP IGD, syslog, DDNS ●

Administration Web-based UI, remote login, backup/restore

setting

●

Performance NAT up to 700Mbps and Wireless up to150Mbps

Environment & Certification

Package Information DC 5V/1.2A power adapter, Quick Installation

Guide

Package Size Device dimension (mm) 156x110x22

Information Package dimension (246x210x62mm) SP/MP/ZP ●

Operation Temp. Temp.: 0~40°C, Humidity 10%~90%

non-condensing

●

Storage Temp. Temp.: -10~70°C, Humidity: 0~95%

non-condensing

●

EMI Certification FCC compliance ●

*Specifications are subject to change without prior notice.

1.3 Hardware Configuration

Auto MDI/MDIX RJ-45 Ports

Automatically sense the types of WAN and

LAN when connecting to Ethernet

Power Jack

Antenna Antenna

1.4 LED indicators

LED status Description

Status Green in flash Device status is working.

WAN LED

Green RJ45 cable is plugged

Green in flash Data access

LAN LED Green RJ45 cable is plugged

Green in flash Data access

WiFi LED

Green WLAN is on

Green in flash Data access

Green in fast flash Device is in WPS PBC mode

Green in dark Wi-Fi Radio is disabled

LAN1~LAN4

LEDs

Wi-Fi

LED

WAN

LED

3 in1 Button

1.WPS

2.Wireless ON

3.Reset

Status

LED

1.5 Button Definition

Description

WPS

When Wireless is On, press this button (about 1 sec) to execute

WPS function.

Wireless On

When Wireless is off depend as Schedule Rule, Press this button

(about 1 sec) to enable "Wireless Radio".

Reset

1. Press this button then Power on the device

2. Press about 3~4 second, the device will reset to default then

Status LED flashes per sec in Normal status.

Notice: If Status LED flashes very fast, it means to press this button

too long and please try again.

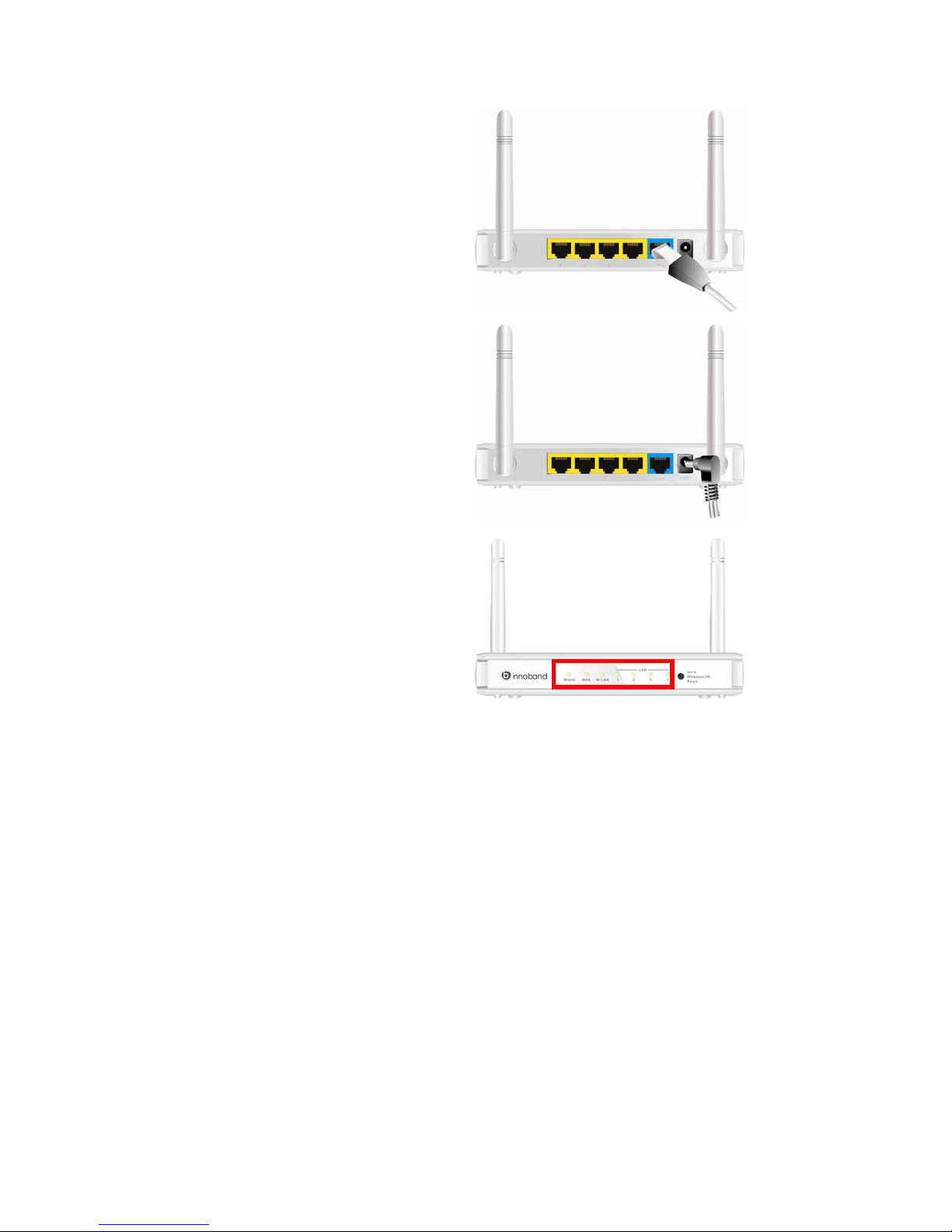

1.6 Procedure for Hardware Installation

Step 1 Insert the Ethernet cable into LAN

Port:

Insert the Ethernet patch cable into LAN port

on the back panel of Router, and an available

Ethernet port on the network adapter in the

computer you will use to configure the unit.

Step 2. Insert the Ethernet patch cable into

Wired WAN port:

Insert the Ethernet patch cable form DSL

Modem into Wired WAN port on the back panel

of Router.

Step 3. Power on Router:

Connect the power adapter to the receptor on

the back panel of your Router.

Step 4. Complete the setup.

When complete, the Status LED will flash.
