Innovation First 104-5192 Manuale utente
Apple TV & Airport Express
Wall Mount
104-5192
104-5345
104-5360
Kit P/N:
Installation Instructions
Wall Mount Hardware Package:
(2) Flat Head Screws
(2) Anchors
Kit Contents:

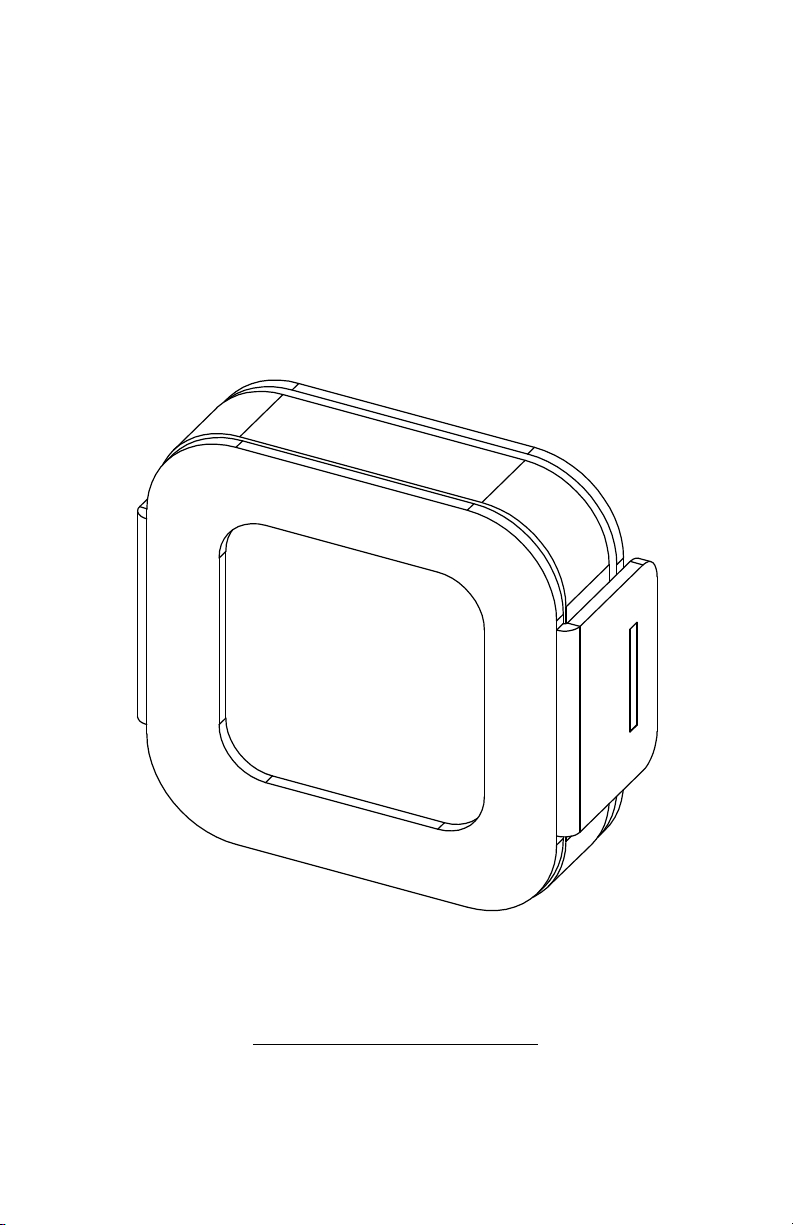

(1) Wall Mount
Wall Mount Installation Instructions
Determine Location: Select appropriate location on wall. Consider cable routing and
length.
Step 1
Mark Hole Positions: Hold Wall Mount in position and mark 2 hole positions with a
pencil.
Step 2
Note: Alternate holes may be used depending on mounting requirements.
Install Drywall Anchors: Install one drywall anchor at each hole mark. Using a #2
Phillips head screwdriver press the anchor into the drywall while turning clockwise
until it is seated flush with the wall.
Step 3
Kit Contents
Page 2
Wall Mount Installation Instructions
Page 3
Step 4 Attach To Wall: Attach Wall Mount to the wall using 2 flat head screws as shown.
Step 5 Install the Equipment: Slide the equipment into the Wall Mount as shown.
53455192 5360
Warranty Statement
Innovation First, Inc. warrants our products against defects in material and workmanship for a
period of one (1) year from the date of purchase. Innovation First, Inc. liability shall be limited to
repairing or replacing, at our option, any defective product.
