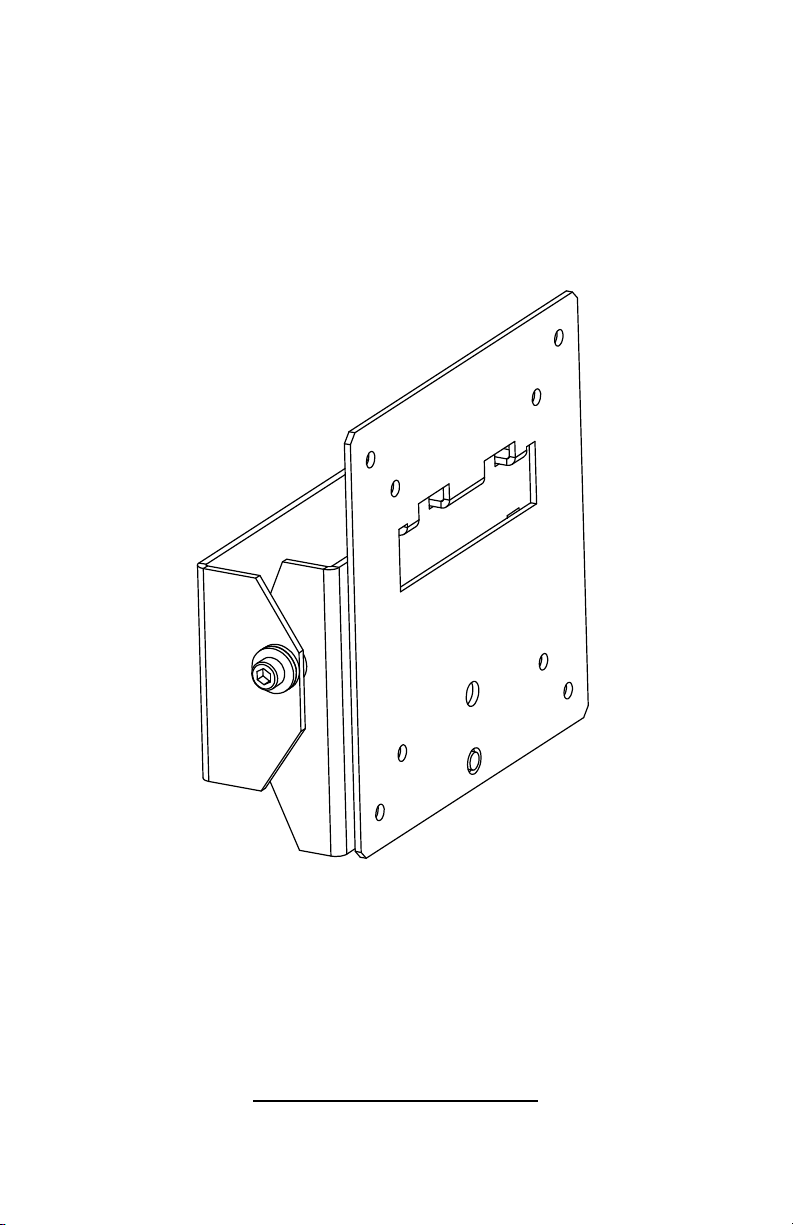

Tilt Monitor Bracket
Patent(s) Pending
101-5483Kit P/N:
Installation Instructions
Kit Contents
Page 2
Mounting Hardware:
(4) 8-32 x .375 Pan Head Screw
(8) Spacers
(4) M4 x 0.7 x 10mm Pan Head Screws
(4) M4 x 0.7 x 18mm Pan Head Screws
(4) M4 x 0.7 x 25mm Pan Head Screws
Kit Contents:
(1) VESA Bracket Plate
(1) Pivot Bracket
Tilt Monitor Bracket Installation Instructions

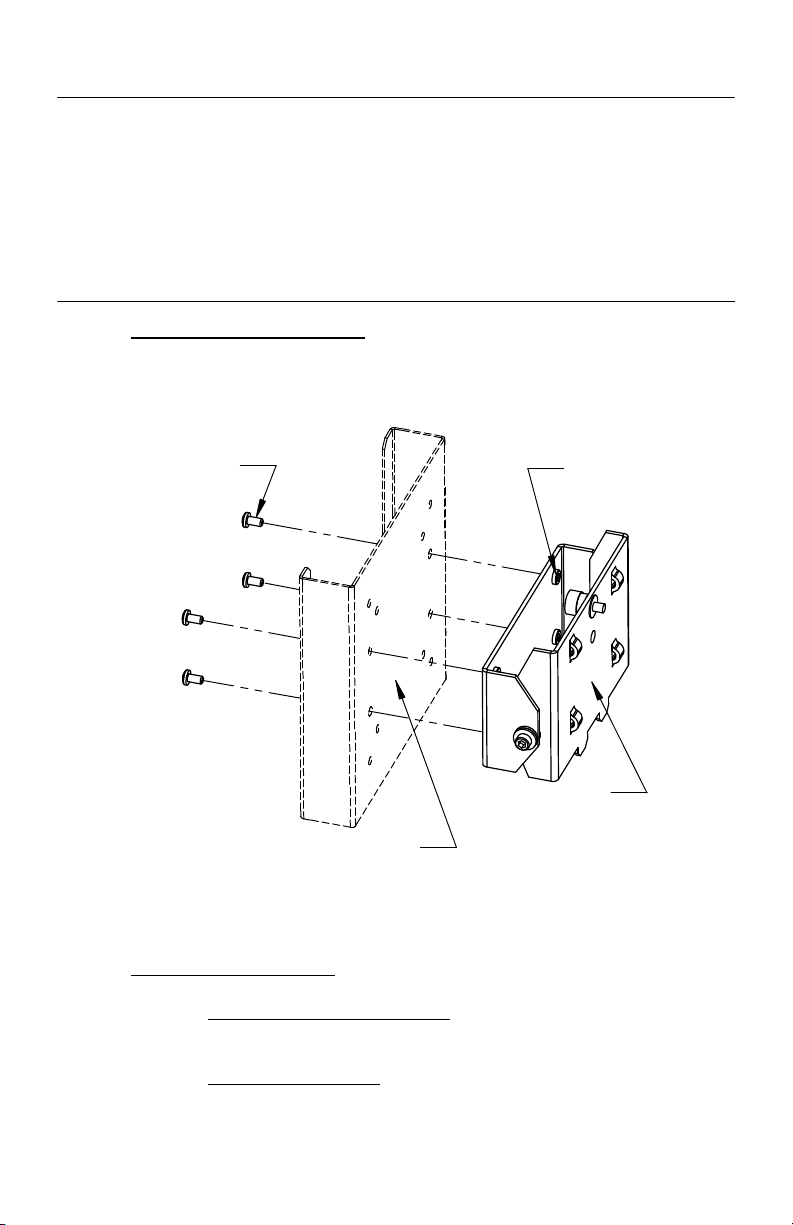

Pivot Mount Bracket Attachment: Insert 0.375" Pan Head Screws through the four
mounting holes on your Computer Bracket (as shown below). Locate the PEM Nuts
on the inner side of Pivot Monitor Bracket. Fasten the Pan Head Screws to the PEM
Nuts.
Step 1

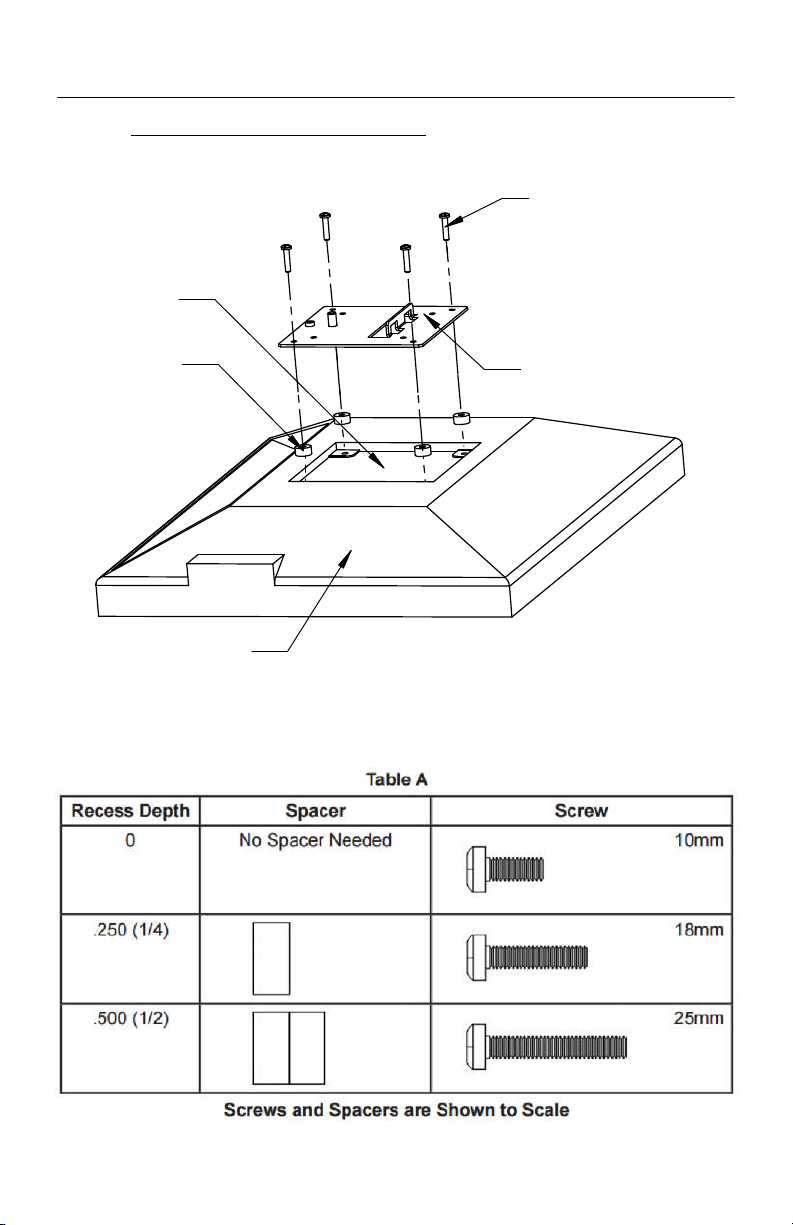

Choosing spacer/screw size: Turn the monitor face down on a large flat surface.
Locate the four VESA mounting holes on the rear of the monitor.
A. Determine if spacers are required: Some monitors have a "recess" on the
rear surface. Spacers are provided to fill this gap. See Table A for spacer
length options.
B. Determine screw length: Only use the metric M4 screws provided. Screw
length is determined by the spacers used (see Table A)
Step 2
Pivot Bracket
(4) PEM Nut
(4) Pan Head Screw
Computer Bracket
4Post Installation Instructions
Page 3
Step 3 VESA Bracket Plate/ Monitor Attachment: Locate the VESA Bracket Plate. Insert (4)
appropriate screws (Step 2) into the outer holes. Install the screws to the four VESA
mounting holes.
Monitor
VESA Bracket Plate
(4) Screws
Spacers
Recess
5483
Warranty Statement
Innovation First, Inc. warrants our products against defects in material and workmanship for a
period of one (1) year from the date of purchase. Innovation First, Inc. liability shall be limited to
repairing or replacing, at our option, any defective product.
VESA Bracket Plate

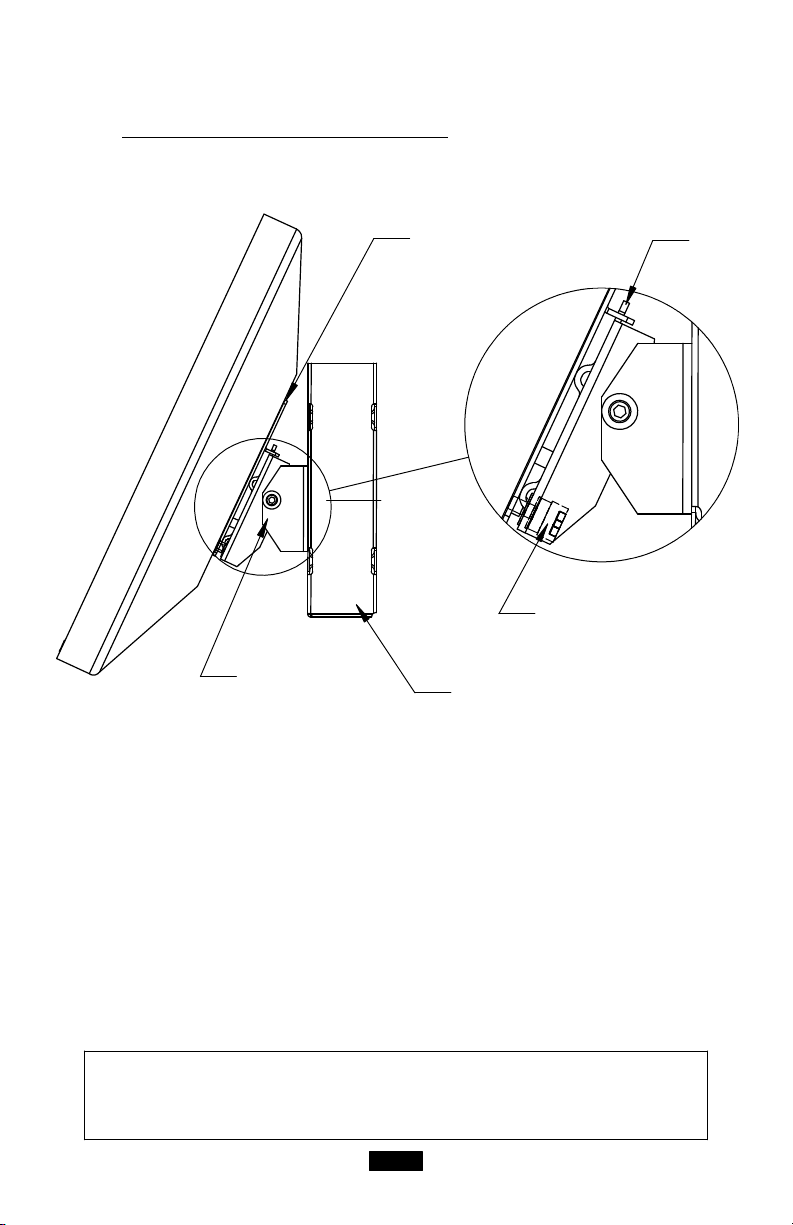

Step 4. VESA Bracket Plate/Pivot Bracket Attachment: Clip the VESA Bracket Plate to the
Pivot Bracket using the hinges (refer to the picture below). Secure by tightening
thumb screw.
Pivot Bracket
Computer Bracket
Hinges
Thumb Screw
