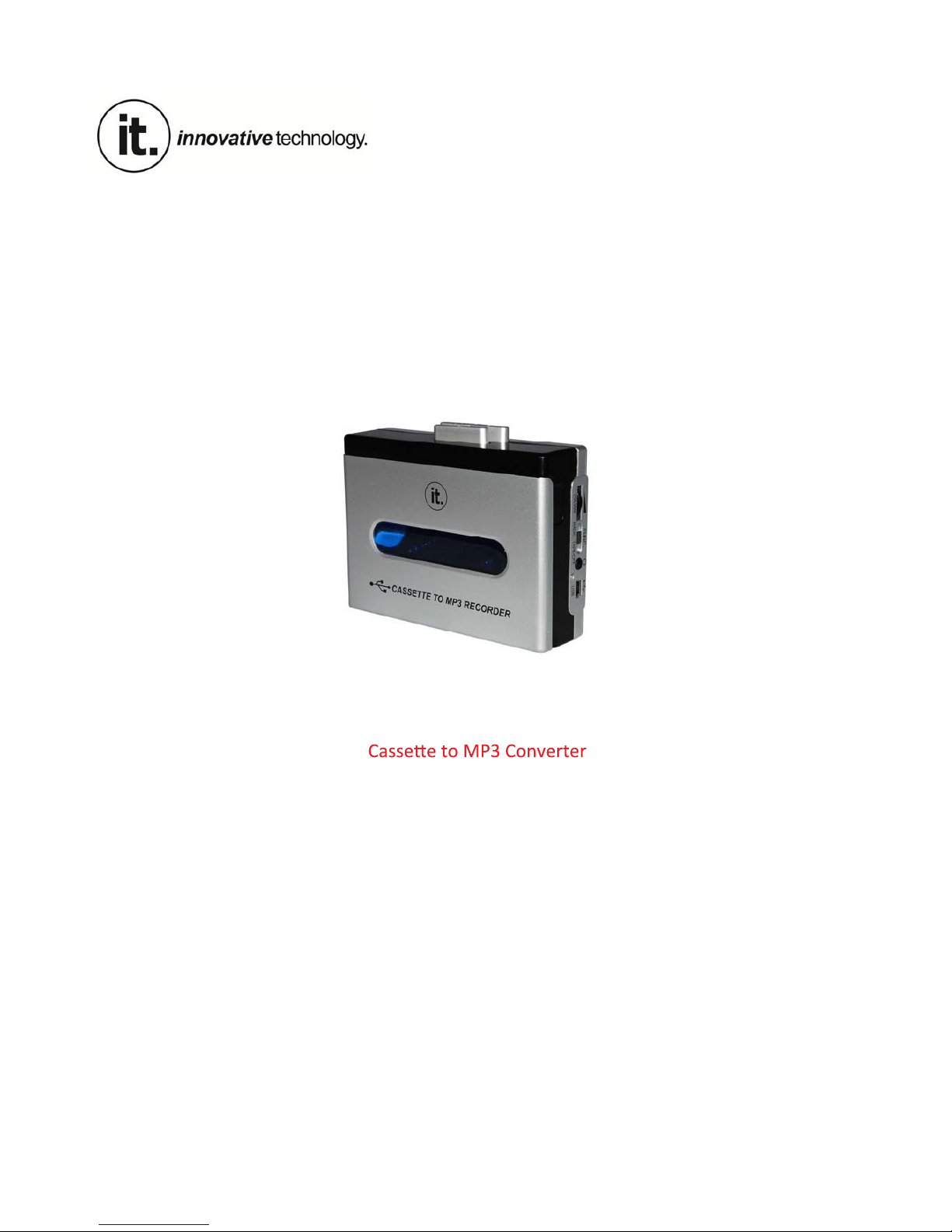

Innovative Technology ITCR-3000 Manuale utente

INSTRUCTION MANUAL

Model: ITCR-3000



2



CONTENTS



3IMPORTANTSAFETYINSTRUCTIONSFORAUDIO

PRODUCTS



4CASSETTETAPEMAINTENANCE

5LOCATIONOFCONTROLS

5POWERSUPPLY

6LISTENINGTOATAPE

6LISTENINGTOARADIO(FM)



7RECORDTOPC

7AUDACITYSOFTWARE

7AUDACITYINSTALLATIONANDUSBCONNECTION



7AUDACITYFORWINDOWSUSERS

8INSTALLINGTHEAUDACITYSOFTWARE

11CONFIGURINGAUDACITYFORMICROSOFTWINDOWS

12AUDACITYPREFERENCES

14RECORDINGOPERATION

16GENERALPROBLEMSFORALLWINDOWSVERSIONS

19ADJUSTMENTFORWINDOWS7ANDSOMEVISTA

SYSTEMSONLY

22PREPARINGTOEXPORTANDSAVEFORMP3FORMAT

24DIVIDINGTRACKS

25TOCHANGETHETITLES(FORMP3FORMATONLY)

26EXPORTANDSAVEFORWAVANDOGGFORMATS

27COPYINGMUSICFILETOMP3PLAYER



28AUDACITYFORMACUSERS

29CONFIGURINGAUDACITYFORMAC

30AUDACITYPREFERENCES

32TOSETTHESMARTRECORDING

33RECORDINGOPERATION

34IMPROVERECORDINGQUALITY

35DIVIDINGTRACKS

36EXPORTANDSAVEFILES



37AUDACITY1.3BETAVERSION

37FORWINDOWSSYSTEMS

46RECORDINGOPERATIONS

49FORMACOSX

54RECORDINGOPERATIONS



58TROUBLESHOOTINGGUIDE

58SOFTWARE

59MAINUNIT

60SPECIFICATIONS



3



IMPORTANTSAFETYINSTRUCTIONS

1. Readandfollowtheinstructionsinthemanual.

2. Keepthismanualinasafeplaceforfuturereference.

3. Removeallpackagingmaterialsfromunit.Checktomakesurethatyouhaveremovedallsuppliedcomponentsbefore

discardingtheboxandpacking.

4. Chooseunitinstallationlocationcarefully.Avoidplacingitindirectsunlightorclosetoasourceofheat.Alsoavoid

locationssubjecttovibrationsandexcessivedust,coldormoisture.Keepawayfromsourcesthathum,suchas

transformersormotors.

5. Theapparatusshouldnotbeexposedtodrippingorsplashing,andnoobjectsfilledwithliquidssuchasvases,should

beplacedontheapparatus.Donotplaceanyflamesourcessuchlightedcandlesontopoftheapparatus.

6. Donotblockanyventilationopenings.Alwaysleaveadequatespaceforventilation.

7. Cleanthecabinetregularlyonlywithasoftclothslightlymoistenedwithamilddetergentsolution.Donotusestrong

solventswhichdamagetohousing.

8. Themainplugisusedasthedisconnectdevice.Thedisconnectdeviceshouldremainreadilyaccessible.

9. Iftheunitisnotusedforaperiodoftime,unplugtheunitandtakebatteriesawayfromtheunit.Storethebatteries

inacooldryarea.

10. Ifitislightening,unplugtheUSBcabletopreventtheunitfromunnecessarydamages.

11. Nevertakebatteriesapart.Donotputbatteriesunderthedirectsunlight,northrowthemintofireorheater.

12. Referallservicingtoqualifiedservicepersonnel.Servicingrequiredwhentheapparatusdoesnotoperatenormallyor

hasbeendamagedinanywaysuchasthepowercordorplugisdamaged,liquidsspilledintotheapparatus,anyhard

objectfallenontheapparatus,theapparatushasbeendropped,theapparatushasbeenexposedtorainormoisture.

13. Themarkinginformationislocatedatthebottomoftheapparatus.

14. Attentionsshouldbedrawntotheenvironmentalaspectsofbatteriesdisposal.

15. Usetheapparatusinmoderateclimates.



Caution:

Useofcontrols,adjustmentsandperformanceofproceduresotherthanthosespecifiedhereinmayresultinhazardous

radiationexposure.



Important:

ThenormalfunctionoftheproductmaybedisturbedbystrongElectro‐MagneticInterference.Ifso,simplyresetthe

producttoresumenormaloperationbyfollowingtheinstructionmanual.Incasethefunctioncouldnotresume,please

usetheproductinotherlocation.



4



CASSETTETAPEMAINTENANCE:

TAPEHANDLING:

Donotstoretapesinthefollowingplaces:

1.Ontopofheaters,exposedtodirectsunlightorinanyotherplaceswithhightemperatures.

2.Nearspeakers,onTVsetsoramplifiersorwheretheywouldbeexposedtostrongmagneticfields.

3.Wherehumidityishighandindirty,dustyplaces.

4.Avoiddroppingorsubjectingcassettestoexcessiveshocks.

5.AsC‐120tapesarephysicallyweakandcouldbecomeentangledinthetransportmechanism,donotusethem.



LOADINGACASSETTETAPE:

1.Useyourfingerorapenciltoturnthecassettehubandtakeupanyslacktape.

Note:Donottouchthetapebecausefingerprintsattractdustanddirteasily.

2.Openthecassettedoormanually.

Note:Donotopenthecassetteholderduringrecordingorplayback.

3.Loadthecassettetapewithitsopenedgefacingup.

4.Gentlyclosethecompartmentdoor

.



MAINTENANCE:

Theheadsandtapepathshouldbecleanedanddemagnetizedperiodically(Cleaningmaterialsnotsupplied).



CLEANINGTAPEPATH:

Applyheadcleaningfluidtoacottonswaborsoftcloth,andlightlyrubtheheads,capstanandallmetalpartsinthetape

path.

Alsocleanthepinchrollerusingacleaningfluiddesignedforrubberproducts.



DEMAGNETIZINGHEADS:

Besurethatthepowerisoff,andthendemagnetizetheheadsusingademagnetizer(notsupplied).Fordetailsusageof

thedemagnetizer,readitsinstructions.



5



LOCATIONOFCONTROLS

1. PLAYBUTTON

2. FASTREWINDBUTTON

3. STOPBUTTON

4. CASSETTEDOOR

5. RESETBUTTON

6. SCANBUTTON

7. DCINPUTJACK

8. BATTERYCOMPARTMENT

9. VOLUMEKNOB

10. FUNCTIONSWITCH

11. EARPHONESOCKET

12. MINIUSBDEVICEJACK



POWERSUPPLY

WhenNOTconnectedtoacomputer:

•DCpowered:ConnectoneendoftheAC/DCadaptor(notsupplied)intotheDCINsocketatthesideoftheunit.

ConnecttheotherendintoanyACoutlet.

NOTE:ThespecificationoftheAC/DCadaptorisDC3V,inner+outer‐.

•Batterypowered:Openthebatterydoorandthenplace2‘AA’sizebatteries(notsupplied)intothebattery

compartment.Besuretomatchthebatterypolarityshownonthecompartment(+/‐).Thenclosethebatterydoor.

NOTE:Topreventpossibledamagetothisunit:

*Loadnewbatterieswiththeirpolarities(“+”and“‐”)alignedcorrectly.

*Donotapplyheattobatteries,orinternalshortcircuitmayoccur.

*Ifthisunitisnottobeusedforalongperiodoftime,removeallbatteriesandstoretheminacoolanddry

place.

*Removeold,drainedbatteriesimmediatelyanddisposeofthem.



Whenconnectedtoacomputer:

NOTE:Removebatterieswhileconnectedtocomputer.

•USBpowered:ConnectoneendoftheUSBcable(included)totheminiUSBsocketontheunit.Connecttheotherend

intotheUSBsocketonyourcomputer.



6



LISTENINGTOATAPE

Thecassettedoesnothaveafastforwardbutton,ifyouneedtofastforwardtothespecifiedpart,flipthetape,pressfast

rewindbutton,thenflipthetapeback.



1.SlidetheFUNCTIONswitchto‘TAPE/OFF’position.

2.TurnVOLUMEknobtolowestposition.Thenpluginyourheadphone.Re‐adjusttheVOLUMEknobtoacomfortable

soundlevelwithoutanydistortion.Onceyou’vesetyoursoundlevel,pleaseleavethevolumealone.

NOTE:Sincehearingdamagefromloudnoiseisusuallyundetectableuntilitistoolate,besurethevolumelevelis

nottoohigh.

3.Openthecassettedoormanually.

4.Loadacassettetapewiththeopenedgefacingupwardandfullreelontheright.Thengentlyclosethecassettedoor.

5.PressthePLAY()button.Attheendofthecassettetape,thetapewillstopandthePLAYbuttonwillbesprungback

automatically.



Tofastrewindthetape:

•PresstheFASTREWINDbuttontorewindthetape,whenitreachestothespecifiedpart,pressSTOPbutton.



Tofastforwardthetape:

•FlipthetapeandthenpresstheFASTREWINDbuttontoadvancethetape.Whenitapproachestothespecifiedpart,

stoptherewindandflipthetapeback.



Tostoptheplaybackorrewind:

•PressSTOPbutton.



LISTENINGTOARADIO(FM)

1.SlidetheFUNCTIONswitchto‘RADIO’position.

2.TurnVOLUMEknobtolowestposition.Thenpluginyourheadphone.Re‐adjusttheVOLUMEknobtoacomfortable

soundlevelwithoutanydistortion.Onceyou’vesetyoursoundlevel,pleaseleavethevolumealone.

NOTE:Sincehearingdamagefromloudnoiseisusuallyundetectableuntilitistoolate,besurethevolumelevelis

nottoohigh.

3.PressSCANbuttontotunetoanearbystationautomatically.

NOTE:TheearphoneactsasanFMantenna,extendtheearphonewireorsitnearawindowtoimprovethe

reception.

4.Toresetthesettingfortheradio,pressRESETbutton.

5.Toturntheradiooff,slidetheFUNCTIONswitchto‘TAPE/OFF’position.



7



RECORDTOPC

AudiofromTAPEandRADIO(FM)canberecordedonthecomputer.

•Torecordfromcassettetape,slideFUNCTIONswitchto‘TAPE/OFF’positionandloadacassettetapeintotheunit.

ThenpressPLAYbuttontostartplayback.

•Torecordfromradio(FM),slideFUNCTIONswitchto‘RADIO’position.PressSCANbuttonbrieflytotunetoanearby

station.



AUDACITYSOFTWARE

TheprovidedCDdisccontainsthefollowingsoftware:

(1)audacity‐src‐1.2.6‐‐‐‐‐‐‐‐‐Forsourcecodes

(2)Audacity_for_MAC‐‐‐‐‐‐‐‐‐ForMacintosh

(3)Audacity_for_WIN‐‐‐‐‐‐‐‐‐ForWindows

(4)AUTORUN.INF

(5)TheGNUGeneralPublicLicense.html

ThesoftwareiscompatiblewithWindow98,2000,ME,XP,VISTA,7andMacintosh.

NOTE:AudacitydoesnotsupportthelatestupgradedMACOS9.



AUDACITYINSTALLATIONANDUSBCONNECTION

ConnectoneendoftheUSBcabletotheminiUSBsocketontheunit.ConnecttheotherendintotheUSBsocketonyour

computer.

Note:TohelpensurethattheAudacitysoftwareandyourcomputerrecognizetheUSBconnection,alwaysconnect

yourunit’sUSBporttoyourcomputer’sUSBportbeforeyouopentheAudacity.

Also,thevolumecontrolontheunitdoesnotaffecttherecordingsoundinput.



AUDACITYFORWINDOWSUSERS

1.PleaseinserttheAudacitysoftwarediskthatcomeswithyourunit.Goto“MyComputer”anddoubleclicktheCDROM

Drive.

NOTE:IftheCDautomaticallylaunchestheSetUpWizard,pleaseskipandreferto‘InstallingtheAudacitySoftware’.



2.TherearefivefoldersintheAudacitydisk.SelectAudacity_for_WINforWindowssystem,andselectAudacity_for_MAC

forMacintoshsystem.



8



3.DoubleclicktheAudacity_for_WINforWindowssystem,anddoubleclicktheaudacity‐win‐1.2.6toinstalltheaudacity

software.



INSTALLINGTHEAUDACITYSOFTWARE

1.TheAudacitySetupWizardwillappear.ClickonNexttoinstallthesoftware.



9



2.Clickon“Iaccepttheagreement”andclickonNext.



3.ContinuetoclickontheNextbutton.



10



4.ClickontheInstallbuttontostartinstallation.


