Inseego Wavemaker PRO FX2000e Manuale utente
FX2000e Quick Start Guide Table of Contents
English
ﺔﯿﺑﺮﻌﻟا
Deutsch
Español
Français
Italiano
English
Top View
This guide provides instructions for setting up, connecting, and
configuring your 5G Indoor Router FX2000e.
Multicolor LED
LED Color Operation Meaning
Blue Solid
Blinking
Strong 5G connection (3 – 5 bars)
Weak 5G connection (1 – 2 bars)
Green Solid
Blinking
Strong 4G connection (3 – 5 bars)
Weak 4G connection (1 – 2 bars)
Yellow Solid Software update is in progress
Red Solid
Blinking
Router is booting up
No service, SIM error, or locked SIM card
White Blinking Factory reset
English
Back View
Antenna1 Port*
SIM Slots
USB 1Gbps LAN Port
Power Port
*For external 3.4-5GHz antennas supporting high sub-6 bands
Reset
Antenna2 Port*
English

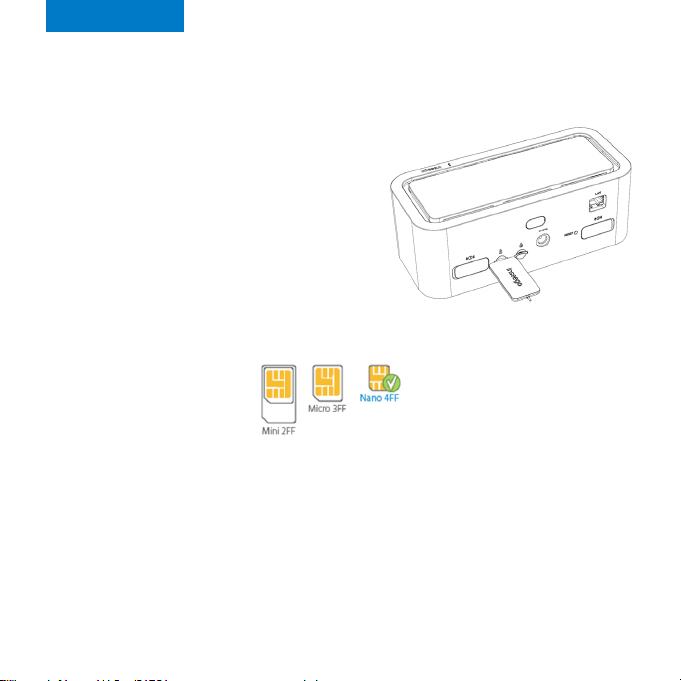

Step One: Install SIM Cards
Setting Up Your FX2000e
Step Two: Power on the FX2000e
• Plug the power cord into the router power port and plug the power
adapter into an AC wall outlet.
WARNING: Be sure to use the power adapter that came with your device to avoid damage that may
void the warranty.
• Use the included SIM tool to insert
a Nano 4FF SIM card into the
appropriate SIM slot on the back
of the device.
NOTE: If necessary, remove the SIM from its protective sleeve, being careful not to touch the gold-
colored contact points. Insert the SIM card notch first, with the contact points facing down.
This device supports only Nano SIM cards.
English
Connecting to a Wireless Device
To wirelessly connect a Wi-Fi-capable device (such as a PC, laptop, tablet,
or phone) to your 5G Indoor Router for the first time:
1. Make sure the 5G Indoor Router is powered on and the indicator
LED is blue or green.
2. On the device you want to connect to the Internet, open the
Wi-Fi settings or application and in the displayed list of available
networks, find the Primary Wi-Fi network name printed on the
bottom of your 5G Indoor Router.
3. Click Connect or otherwise select the network name.
4. When prompted, enter the Primary Wi-Fi password printed on
the bottom of the FX2000e. You can change the default name or
password to something easier to remember (see“Monitoring and
Managing Your 5G Indoor Router”).
Your Wi-Fi–capable device is now connected to the Internet.
• Follow instructions within the Inseego Mobile App to connect to the
FX2000e and perform a location survey to identify the ideal location
for your FX2000e.
NOTE: Make sure to place your FX2000e on a sturdy surface.
• Scan the QR code to download the Inseego Mobile App
from AppStore or Google Play , or visit https://inseego.com/
inseego-connect-get-app to download the App.
Step Three: Identify a Location for your FX2000e
English
Restoring Factory Settings
To restore factory settings, follow these steps:
NOTE: When performing the factory reset, any changes made to settings will be lost.
Monitoring and Managing Your 5G Indoor Router
NOTE: The initial Admin Web UI and Wi-Fi passwords are printed on the label of your device. It is
strongly recommended to change your passwords before using your 5G Indoor Router.
You can use multiple options to monitor and manage your 5G Indoor
Router:
Inseego Mobile App - Use the same mobile app you used to install
your FX2000e to perform basic device monitoring and management.
FX2000e Admin Web UI - Access the Web UI at http://192.168.1.1 for
a full set of device management features.
Inseego Connect - Go to connect.inseego.com to sign up for a free
Inseego Connect account, which provides the fullest experience for
monitoring and managing FX2000e devices from anywhere in the
world with access to a web browser.
1. Verify that your 5G Indoor Router is powered on.
2. Locate the RESET opening on the back of your FX2000e.
3. Place the RESET end of the provided
SIM tool (or one end of an unfolded
paper clip) into the RESET opening and
press down for approximately five
seconds until the device resets.
English
Inseego Mobile App Requirements
More information
To access a User Guide, go to https://www.inseego.com/download/
FX2000e_user_guide.pdf.
Or, from the FX2000e Web UI, select Help > Customer Support > User
Guide.
Customer Service and Troubleshooting
Please reach out to your reseller.
WARNING: DO NOT ATTEMPT TO SERVICE THE WIRELESS COMMUNICATION DEVICE YOURSELF. SUCH
ACTION MAY VOID THE WARRANTY. THE ROUTER IS FACTORY TUNED. NO CUSTOMER CALIBRATION OR
TUNING IS REQUIRED. CONTACT INSEEGO TECHNICAL SUPPORT FOR INFORMATION ABOUT SERVICING
YOUR WIRELESS COMMUNICATION DEVICE.
Support and More
Any device with Wi-Fi capability and an Internet browser. The FX2000e
is compatible with all major operating systems and the latest versions of
browsers.
System Requirements
Smartphone or device on iOS 13 or above, or Android 9.0 or above.
ﺔﯿﺑﺮﻌﻟا
ناﻮﻟﻷا ةدﺪﻌﺘﻣ LED ةﺀﺎﺿإ
LED
قرزأﺾﯿﻣو
ﺖﺑﺎﺛ
(تﺎﻃﺮﺷ 5 ﻰﻟإ 3 ﻦﻣ) يﻮﻗ 5G لﺎﺼﺗا
(ﻦﯿﺘﻃﺮﺷ ﻰﻟإ ﺔﻃﺮﺷ ﻦﻣ) ﻒﯿﻌﺿ 5G لﺎﺼﺗا
ﺮﻀﺧأﺾﯿﻣو
ﺖﺑﺎﺛ
(تﺎﻃﺮﺷ 5 ﻰﻟإ 3 ﻦﻣ) يﻮﻗ 4G لﺎﺼﺗا
(ﻦﯿﺘﻃﺮﺷ ﻰﻟإ ﺔﻃﺮﺷ ﻦﻣ) ﻒﯿﻌﺿ 4G لﺎﺼﺗا
ﺮﻔﺻأ
ﺾﯿﻣوﺞﻣﺎﻧﺮﺒﻟا ﺚﯾﺪﺤﺗ ٍرﺎﺟ
ﺮﻤﺣأﺾﯿﻣو
ﺖﺑﺎﺛ
ﮫﯿﺟﻮﺘﻟا زﺎﮭﺟ ﺪﯿﮭﻤﺗ ٍرﺎﺟ
ﺔﻠﻔﻘﻣ SIM ﺔﻗﺎﻄﺑ وأ SIM ﺔﻗﺎﻄﺑ ﻲﻓ ﺄﻄﺧ كﺎﻨھ وأ ةﺮﻓﻮﺘﻣ ﺮﯿﻏ ﺔﻣﺪﺨﻟا
ﺾﯿﺑأ
ﺖﺑﺎﺛﻊﻨﺼﻤﻟا تاداﺪﻋإ ﻰﻠﻋ ﻂﺒﺿ ةدﺎﻋإ
يﻮﻠﻋ ﺮﮭﻈﻣ
ﺔﯿﻠﺧاﺪﻟا ﻦﻛﺎﻣﻸﻟ 5G ﺔﯿﻨﻘﺘﺑ FX2000e ﮫﯿﺟﻮﺘﻟا زﺎﮭﺟ داﺪﻋإ لﻮﺣ تادﺎﺷرإ ﻞﯿﻟﺪﻟا اﺬھ ﺮﻓﻮﯾ
.ﮫﻨﯾﻮﻜﺗو ﮫﻠﯿﺻﻮﺗو
ﺔﯿﺑﺮﻌﻟا
*ﻲﺋاﻮھ2 ﺬﻔﻨﻣ
SIM ﺔﻗﺎﻄﺑ تﺎﺤﺘﻓ
USB ﺬﻔﻨﻣ ﺔﯿﻧﺎﺜﻟا ﻲﻓ ﺖﺑﺎﺠﯿﺟ 1 ﺔﻋﺮﺴﺑ LAN ﺬﻔﻨﻣ
ﺔﻗﺎﻄﻟا ﺬﻔﻨﻣ
ﻂﺒﻀﻟا ةدﺎﻋإ
*ﻲﺋاﻮھ1 ﺬﻔﻨﻣ
ﻲﻔﻠﺨﻟا ﺮﮭﻈﻤﻟا
ﺰﺗﺮھﺎﺠﯿﺟ 6 ددﺮﺘﺑ ﺔﯿﻟﺎﻋ ﺔﯿﻋﺮﻓ تﺎﻗﺎﻄﻧ ﻢﻋﺪﺗ ﻲﺘﻟا ﺰﺗﺮھﺎﺠﯿﺟ 5و3.4 ﻦﯿﺑ حواﺮﺘﯾ ددﺮﺗ تاذ ﺔﯿﺟرﺎﺨﻟا ﻲﺋاﻮﮭﻟا ةﺰﮭﺟﻷ*
ﺔﯿﺑﺮﻌﻟا
•ددﺮﺘﻣ رﺎﯿﺗ ﺔﻗﺎﻃ رﺪﺼﻤﺑ ﺔﻗﺎﻄﻟا لﻮﺤﻣ ﻞﱢ
ﺻوو ﮫﯿﺟﻮﺘﻟا زﺎﮭﺟ ﺔﻗﺎﻃ ﺬﻔﻨﻤﺑ ﺔﻗﺎﻄﻟا ﻞﺑﺎﻛ ﻞﱢ
ﺻو
.يراﺪﺟ
FX2000e زﺎﮭﺟ ﻞﯿﻐﺸﺗ :ﺔﯿﻧﺎﺜﻟا ةﻮﻄﺨﻟا
.نﺎﻤﻀﻟا ﺀﺎﻐﻟإ ﻲﻓ ﺐﺒﺴﺘﯾ ﺪﻗ يﺬﻟا ﻒﻠﺘﻟا ﺐﻨﺠﺘﻟ كزﺎﮭﺟ ﻊﻣ ﻖﻓﺮﻤﻟا ﺔﻗﺎﻄﻟا لﻮﺤﻣ ماﺪﺨﺘﺳا ﻦﻣ ﺪﻛﺄﺗ :
FX2000e كزﺎﮭﺟ داﺪﻋإ
SIM ﺔﻗﺎﻄﺑ ﺐﯿﻛﺮﺗ :ﻰﻟوﻷا ةﻮﻄﺨﻟا
•لﺎﺧدﻹ ﺔﻨﻤﻀﻤﻟا SIM ةادأ مﺪﺨﺘﺳا
SIM ﺔﺤﺘﻓ ﻲﻓ Nano 4FF SIM ﺔﻗﺎﻄﺑ
.زﺎﮭﺠﻟا ﻦﻣ ﻲﻔﻠﺨﻟا ﺀﺰﺠﻟا ﻲﻓ ﺔﺒﺳﺎﻨﻤﻟا
.ﻂﻘﻓ Nano SIM تﺎﻗﺎﻄﺑ ﻢﻋﺪﯾ زﺎﮭﺠﻟا اﺬھ
Mini 2FF ﺔﻗﺎﻄﺑ
Micro ﺔﻗﺎﻄﺑ
Nano 4FF ﺔﻗﺎﻄﺑ
ﻞﺧدأ .ﻲﺒھﺬﻟا نﻮﻠﻟا تاذ ﺲﻣﻼﺘﻟا طﺎﻘﻧ ﺲﻤﻟ مﺪﻋ ﻰﻠﻋ صﺮﺤﻟا ﻊﻣ ،ﻲﻗاﻮﻟا ﺀﺰﺠﻟا ﻦﻣ SIM ﺔﻗﺎﻄﺑ جﺮﺧأ ،ﺮﻣﻷا مﺰﻟ اذإ :
.ﻞﻔﺳﻷ ﺲﻣﻼﺘﻟا طﺎﻘﻧ ﮫﯿﺟﻮﺗ ﻊﻣ ،ًﻻوأ SIM ﺔﻗﺎﻄﺑ ﺔﺤﺘﻓ
