Insignia NS-DPF10A Manuale utente

User Guide | Guide de l’utilisateur | Guía del Usuario

10.4" Digital Picture Frame

Cadre photo numérique de 10,4 po

Marco digital para fotos de 10.4"

NS-DPF10A

www.insignia-products.com 1

Insignia NS-DPF10A

Digital Picture Frame

Contents

Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Setting up your picture frame . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Using your picture frame. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Maintaining your digital picture frame . . . . . . . . . . . . . . . . . . . 18

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Legal Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

6-month limited warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Español. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Welcome

Congratulations on your purchase of a high-quality Insignia product.

Your NS-DPF10A represents the state-of-the-art in digital picture

frame design and is designed for reliable and trouble-free

performance.

Safety information

Always follow these basic safety precautions when using your digital

picture frame. This will reduce the risk of fire, electric shock, and

injury.

• Your picture frame is for indoor use only.

• Unplug your picture frame before performing care and

maintenance.

• Do not block the ventilation holes on the back of your picture

frame at any time.

Warning

To reduce the risk of fire or shock hazard, do not expose

your picture frame to rain or moisture.

Warning

To prevent the risk of electric shock, do not remove the

cover. There are no user-serviceable parts inside. Refer all

servicing to qualified personnel.

Insignia NS-DPF10A Digital Picture Frame

www.insignia-products.com

• Keep your picture frame out of direct sunlight and heat

sources.

• Protect the power cord. Route power cords so that they are not

likely to be walked on or pinched by items placed on or against

them. Pay particular attention to the point where the cord

attaches to the digital picture frame.

• Only use the AC adapter included with your picture frame.

Using any other power adapter will void your warranty.

• Unplug the power cord from the outlet when your picture frame

is not in use.

Features

Your digital picture frame features:

• High resolution 10.4" TFT display

• Image playback in slideshow format

• MP3 audio playback

• MPEG video playback

• Audio slideshow

• Built-in multi-format card reader that reads CF, MMC, SD, MS,

MS-Pro, and xD-Picture memory cards

• 256 MB internal memory

• USB port for connecting to a PC

• USB port for connection to devices such as a thumb drive or

camera

• Two interchangeable wood frames

• Cleaning cloth

• Remote control with battery

Insignia NS-DPF10A Digital Picture Frame

www.insignia-products.com

Sides

# Component Description

1 USB Connect an external device, such as a camera or

USB flash drive, to this port.

2 PC Connect a PC to this port.

3 SD/MS/MMC/

xD-Picture Insert an SD, MS, MMC, or xD-Picture memory card

into this slot.

4 CF Insert a CF memory card into this slot.

5 MENU Press to open or close the on-screen menu.

6 ENTER Press to start or pause playback. When the

on-screen menu is open, press to confirm selections.

7 Press to navigate up or left in the on-screen menu.

8 Press to navigate down or right in the on-screen

menu.

9 Power LED Lights when your picture frame is turned on.

10 Power switch Slide to turn your picture frame on or off.

11 Power

connector Plug the AC power adapter into this connector.

USB PC SD/MMC/NS CF

Insignia NS-DPF10A Digital Picture Frame

www.insignia-products.com

Back

You can use your picture frame in landscape (horizontal) or portrait

(vertical) mode.

To change the mode:

• Rotate the stand until it locks into place.

• To remove the stand for wall-mounting, rotate the stand to the

center position, then remove.

Stand

Insignia NS-DPF10A Digital Picture Frame

www.insignia-products.com

Remote control

#Button Function

1 POWER Press to turn your picture frame on or off.

2 PHOTO Press to play a slideshow of pictures.

3 MUSIC Press to play an MP3 file.

4 COMBO Press to play a slideshow with background music.

5 EDIT Press to copy files to or delete files from internal

memory.

6 ESC Press to go to the previous command.

7 MENU Press to open the main menu.

8 Arrow buttons Press to navigate in on-screen menus.

9 ENTER Press to confirm selections or save changes.

10 ZOOM Press to zoom (enlarge) a picture by 20%.

11 ROTATE Rotate by 90°.

POWER MUTE

PHOTO MUSIC MOVIE TEXT

COMBO

EDIT

SETUP

CALENDAR

ESC MENU

VIEW

BACK MUSIC

UP VOL+

LEFT RIGHT

DOWN VOL-

ENTER

ZOOM ROTATE REV FWD

PLAY

COPY/DEL

PREV NEXT

-/--

Insignia NS-DPF10A Digital Picture Frame

www.insignia-products.com

Setting up your picture frame

Package contents

Make sure that the package contains:

• Digital picture frame unit with removable desktop stand

• AC power adapter

•USBCable

• Remote control with battery

• Extra wood frame and matting

• Cleaning cloth

• User guide

To set up your picture frame:

1Plug one end of the AC power cord into the power connector on

the side of your picture frame, then plug the other end into a

power outlet.

2Insert a memory card into the appropriate slot.

12 PLAY Press to start or pause slideshow, movie, or audio

playback.

13 COPY/DEL Press to copy files to or delete files from internal

memory.

14 MUTE Press to mute the audio. Press again to restore the

audio.

15 TEXT Press to play a text file.

16 MOVIE Press to play a movie (video) clip.

17 CALENDAR Press to display the calendar.

18 SETUP Press to change settings.

19 BACK MUSIC Press to play an MP3 file during a slideshow.

20 VOL+ Press to increase the volume.

21 VIEW Press to view pictures in thumbnail view. You picture

frame displays three rows of three pictures.

22 VOL– Press to decrease the volume.

23 FWD Press to go forward in a slideshow or movie clip.

24 REV Press to go backward in a slideshow or movie clip.

25 NEXT Press to go to the next picture in a slideshow.

26 PREV Press to go to the previous picture in a slideshow.

#Button Function

Insignia NS-DPF10A Digital Picture Frame

www.insignia-products.com

3Slide the power switch to the ON position. Your picture frame

starts playing a slideshow with the pictures stored in its internal

memory.

Connecting to a PC

You can connect your picture frame to a PC using the PC port. When

your picture frame is connected to a PC, you can drag files from the

PC to your picture frame. The files are stored in your picture frame’s

internal memory. You can also delete files from your picture frame’s

memory.

When your picture frame is connected to a PC, the slideshow of

pictures in internal memory stops.

To connect to a PC:

• Plug one end the USB cable into the PC port on the side of

your picture frame, then plug the other end of the cable into a

USB port on your PC.

Connecting to an external device

You can connect your picture frame to an external device such as a

thumb drive, card reader, or camera. When your picture frame is

connected to an external device, you can play the file on the device

from the MAIN MENU.

To connect an external device:

• Plug one end of the USB cable into the USB port on the side

your picture frame, then plug the other end into the USB port

on the external device.

NoteWhen your picture frame is connect to a PC, your picture

frame’s internal memory and any inserted memory cards

appear as drives in My Computer and Windows Explorer.

NoteSome devices, such as USB thumb drives, do not require

the use of the USB cable.

Insignia NS-DPF10A Digital Picture Frame

www.insignia-products.com

Using your picture frame

Your picture frame can display pictures or video and can play MP3

files.

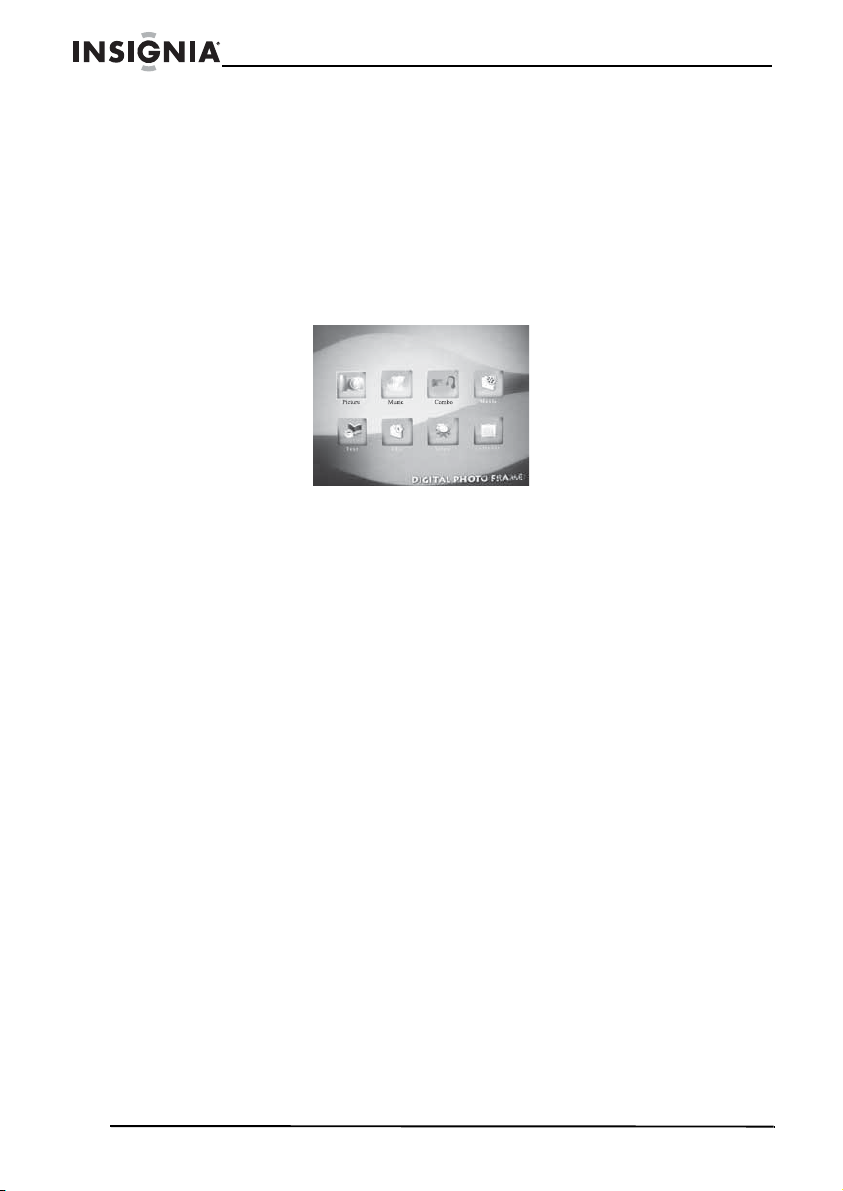

Using the on-screen menu

To access the on-screen menu:

1Press MENU. The MAIN MEMU opens.

2Press the arrow buttons to select an option, then press ENTER. A

screen opens that lets you change the option.

A third screen may appear, depending on the option.
