USER GUIDE

DVD Player

NS-HDVD18

NS-HDVD18_17-0080_MAN_V1_ENG.fm Page 1 Thursday, April 20, 2017 4:08 PM

www.insigniaproducts.com

Contents

Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

DVD player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Setting up your DVD player. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Connecting to AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Connecting the DVD player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Using your DVD player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Powering your DVD player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Playing a DVD or audio CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Controlling DVD or audio CD playback. . . . . . . . . . . . . . . . . . . . . . .9

Adjusting the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Programming your DVD player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Using the Setup menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Maintaining. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Cleaning your DVD player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Handling discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Cleaning discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Legal notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

ONE-YEAR LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Important Safety Instructions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates that dangerous voltage

constituting a risk of electric shock is present

within your DVD player.

This symbol indicates that there are important

operating and maintenance instructions in the

literature accompanying your DVD player.

NS-HDVD18_17-0080_MAN_V1_ENG.fm Page 2 Thursday, April 20, 2017 4:08 PM

DVD Player

www.insigniaproducts.com

This unit contains a low-power laser device. There is no danger of hazardous

radiation outside this unit.

1Read these instructions.

2Keep these instructions.

3Heed all warnings.

4Follow all instructions.

5Do not use this apparatus near water.

6Clean only with a dry cloth.

7Do not block any ventilation openings. Install in accordance with the

manufacturer's instructions.

8Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including amplifiers) that produce heat.

9Do not defeat the safety purpose of the polarized or grounding-type

plug. The wide blade is provided for your safety. If the provided plug

does not fit into your outlet, consult an electrician for replacement of

the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly

at plugs, convenience receptacles, and the point where they exit from

the apparatus.

11 Only use attachments/accessories specified by the manufacturer.

12 Unplug this apparatus during lightning storms or when unused for

long periods of time.

13 Refer all servicing to qualified service personnel. Servicing is required

when the apparatus has been damaged in any way, such as when the

power-supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally, or has been

dropped.

14 To reduce the risk of fire or electric shock, do not expose this device to

rain, moisture, dripping, or splashing, and do not place objects filled

with liquids, such as vases, on it.

Double insulation.

This is a class II apparatus.

NS-HDVD18_17-0080_MAN_V1_ENG.fm Page 3 Thursday, April 20, 2017 4:08 PM

NS-HDVD18

www.insigniaproducts.com

Features

Package contents

•DVDplayer

• Remote control (includes two AAA batteries)

• AV cable (to connect to a TV)

•QuickSetupGuide

DVD player

Front view

Back view

Power on/standby LED

Disc tray Open/close disc tray

Play/pause Power on/off

Remote control

receiver

Composite video output

Coaxial audio output

Component video Pb output

Component video Pr output

Right

audio

output

Left

audio

output

Component video Y output

NS-HDVD18_17-0080_MAN_V1_ENG.fm Page 4 Thursday, April 20, 2017 4:08 PM

DVD Player

www.insigniaproducts.com

Remote control

Open or close the disc tray

DISPLAY (time, title, chapter)

Numbers

SETUP (opens setup menu)

ENTER (confirm selection)

Menu navigation

TOP MENU

Play/Pause

CLEAR

REPEAT

STOP

A-B (set up a repeat play segment)

ANGLE

RANDOM (begin playback from a

random chapter or track)

STEP (play frame by frame)

SLOW

DVD MENU

RETURN

PROG (select and play a specific

chapter)

ZOOM

SUB-T (select subtitles)

Fast forward

Fast back

Power on/off

AUDIO (choose language)

NS-HDVD18_17-0080_MAN_V1_ENG.fm Page 5 Thursday, April 20, 2017 4:08 PM

NS-HDVD18

www.insigniaproducts.com

Setting up your DVD player

Connecting to AC power

• Plug the AC power cord into an AC wall outlet.

Connecting the DVD player

You can connect your DVD player to a TV or monitor so you can watch DVDs and to a

stereo or home theater system for enhanced audio.

Component video (best)

1Plug the green, blue, and red connectors from an RCA cable (not included)

into the COMPONENT VIDEO OUT connectors (Y, Pb, and Pr) on the back of

your DVD player. Make sure that the colors on the connectors match the jacks.

2Plug the red, green, and blue connectors on the other end of the RCA cable

into the component video in jacks on your TV or monitor, making sure to

match the colors on the connectors with the jacks.

3Connect the white (Left) and red (Right) connectors from an RCA audio cable

to the Land RAUDIO OUT jacks on your DVD player.

4Connect the white (Left) and red (Right) connectors from the other end of the

RCA audio cable to the white (Left) and red (Right) audio in connectors on

your TV, monitor, stereo, or home theater system.

Note

You may have to select the correct input on your TV or monitor.

Component video (RCA) cable (not

included) (better)

TV or monitor

RCA audio

cables

Stereo or Home Theater system

NS-HDVD18_17-0080_MAN_V1_ENG.fm Page 6 Thursday, April 20, 2017 4:08 PM

DVD Player

www.insigniaproducts.com

AV (better)

1Plug the yellow connector from the included AV cable into the VIDEO jack on

your DVD player. Plug the yellow connector on the other end of the AV cable

into the VIDEO IN jack on your TV or monitor.

2Connect the white (Left) and red (Right) connectors from the included AV

cable to the Land RAUDIO OUT jacks on your DVD player.

3Connect the white (Left) and red (Right) connectors from the other end of the

AV cable to the white (Left) and red (Right) audio in connectors on your TV,

monitor, stereo, or home theater system.

Note

You may have to select the correct input on your TV or monitor.

AV audio

cables

AV video cable

NS-HDVD18_17-0080_MAN_V1_ENG.fm Page 7 Thursday, April 20, 2017 4:08 PM

NS-HDVD18

www.insigniaproducts.com

Coaxial video and audio (good)

• Connect a coaxial cable from the back of your DVD player to the coaxial

(antenna) jack on your TV or monitor.

Using your DVD player

Powering your DVD player

1Make sure that your DVD player is connected to power.

2Push the (power) switch on the front of your DVD player, or on the remote

control, to turn it on. The start-up picture (DVD VIDEO) appears on the screen.

3Push the (power) switch on the front of your DVD player, or on the remote

control, to turn it off.

Playing a DVD or audio CD

1Push the (open/close) button on the front of your DVD player, or on the

remote control, to open the disc tray.

2Place a disc, label side up, in the disc tray, then close the tray. The disc starts

playing automatically.

Note

You may have to select the correct input on your TV or monitor.

Note

Most DVDs and your DVD player have region codes that help

control illegal distribution of DVDs. The region code for your DVD

player is 1. You can only play DVDs with a region code of 1. The

region code for a DVD is printed on the DVD or the DVD

packaging.

Coaxial audio

cable

NS-HDVD18_17-0080_MAN_V1_ENG.fm Page 8 Thursday, April 20, 2017 4:08 PM

DVD Player

www.insigniaproducts.com

Controlling DVD or audio CD playback

• Press (STOP) once to stop playback. Your DVD player remembers where

you stopped. If you press , your DVD player starts playing at the point

where you stopped.

• Press (STOP) twice to stop playback. If you press , your DVD player

starts playing at the beginning of the disc.

• Press to pause playback. Press this button again to resume playback.

• Press to fast-forward the disc. Each time you press this button, the

fast-forward speed changes from 2 to 4 to 8 to 20 times the normal speed.

• Press to fast-reverse the disc. Each time you press this button, the

fast-reverse speed changes from 2 to 4 to 8 to 20 times the normal speed.

• Press (NEXT) to go to the next title, chapter, or track.

• Press (PREV) to go to the previous title, chapter, or track.

Adjusting the volume

• Adjust the volume of playback by turning it up or down on your TV, stereo

system, or home theater.

Programming your DVD player

1Insert a disc into the DVD player.

2Press the PROG button on the remote control.

3Select the chapter number you want to play, from the list on the screen.

4Press to begin playback.

Using the Setup menus

Your DVD player has a Setup menu you can use to adjust settings.

1Press SETUP on the remote control. The Setup Menu opens on your TV or

monitor.

2Press or to highlight an option, then press ENTER to select that option.

3Press or to change the setting for that option, then press OK to confirm

your selection.

4Repeat Step 2 through Step 3 to change other menu options.

5Press SETUP to exit.

NS-HDVD18_17-0080_MAN_V1_ENG.fm Page 9 Thursday, April 20, 2017 4:08 PM

NS-HDVD18

www.insigniaproducts.com

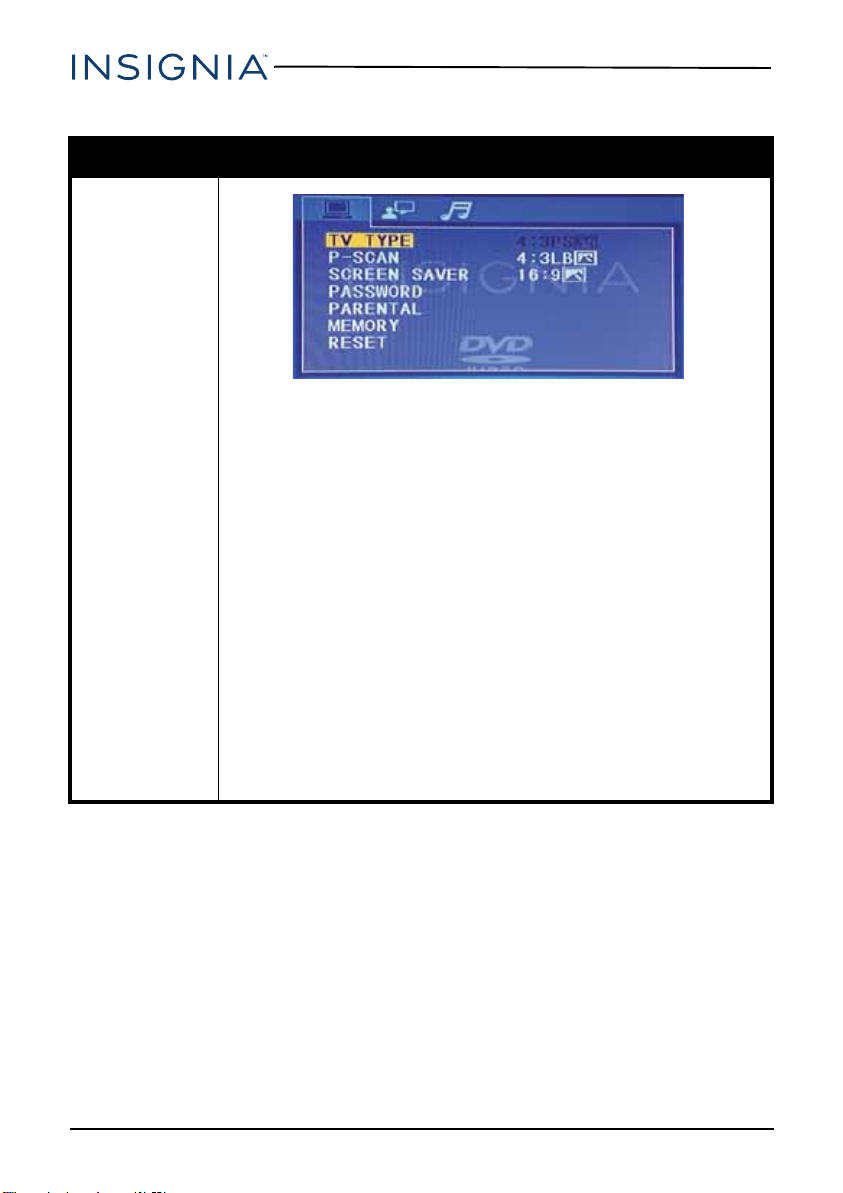

Setup menu options

Option Menu and sub-options

General Setup

TV Type–Selects the aspect ratio. You can select:

•4:3/PS–Select this option when the DVD player is connected to a normal

TV (4:3 aspect ratio). Wide-screen images are shown on the screen, but with

some parts cropped automatically.

•4:3/LB–Select this when the DVD player is connected to a normal TV (4:3

aspect ratio). Wide-screen images are shown on the screen with a black

band on the top and bottom.

•16:9–Displays the video image full-screen when your DVD player is

connected to a widescreen TV (16:9 aspect ratio).

P-SCAN–Turns progressive scan On or Off. The progressive scan feature adjusts

the TV screen resolution to provide a smoother, more theaterlike image.

Screen Saver–When this option is turned on, your DVD player displays a screen

saver when the same image stays on the screen for five minutes.

PASSWORD–Lets you set the parental control password. The default password is

0000. You should change the password to a number you can remember.

Parental–Blocks DVD playback based on ratings. Select this option to set the

parental control level. Options include: KID SAFE, G, PG, PG 13, PGR, R, Nc17,

and ADULT. The default is ADULT. Enter the password 0000.

Memory–When this option is turned on and you open the disc tray, your DVD

player remembers where you stopped. If you close the tray with the same disc

loaded, your DVD player starts playing at the point where you stopped.

Reset–Reset all settings except the password and parental controls back to the

factory default.

NS-HDVD18_17-0080_MAN_V1_ENG.fm Page 10 Thursday, April 20, 2017 4:08 PM

Altri manuali per NS-HDVD18

Indice

Altri manuali Insignia Lettore DVD

Insignia

Insignia NS-D160A14 Manuale operativo

Insignia

Insignia NS-D160A14 Manuale utente

Insignia

Insignia NS-D150A13 Manuale del proprietario

Insignia

Insignia NS-7PDVDD Manuale utente

Insignia

Insignia IS-PDDVD7 Manuale utente

Insignia

Insignia NS-DD10PDVD19 Manuale utente

Insignia

Insignia NS-VDVD1 Manuale utente

Insignia

Insignia NS-D160A14 Manuale utente

Insignia

Insignia NS-A3111 - AV System Manuale utente

Insignia

Insignia NS-MVDS7 Manuale utente

Insignia

Insignia NS-D150A13 Manuale di installazione e funzionamento

Insignia

Insignia NS-C2115 Manuale utente

Insignia

Insignia NS-CADVD Manuale utente

Insignia

Insignia NS-D160A14 Manuale operativo

Insignia

Insignia NS-D150A13 Manuale utente

Insignia

Insignia NS-BRDVD Manuale tecnico

Insignia

Insignia NS-D150A13 Manuale utente

Insignia

Insignia NS-FSDVD Manuale utente

Insignia

Insignia NS-D150A13 Manuale operativo

Insignia

Insignia NS-D150A13 Manuale elenco delle parti

Insignia

Insignia NS-D160A14 Manuale utente

Insignia

Insignia NS-MVDS7 Guida rapida

Insignia

Insignia NS ES6111 - Micro System Guida rapida

Insignia

Insignia NS-D9PDVD15 Manuale utente

Manuali Lettore DVD popolari di altre marche

Sony

Sony DVP-F11 Manuale utente

Philips

Philips DVP3560K/F8 Manuale utente

LENCO

LENCO DVP-740 X2 Manuale utente

JVC

JVC XV-N650BEU Manuale utente

Aiwa

Aiwa XD-DV370 Manuale utente

MedeaWiz

MedeaWiz Sprite 4K DV-S4 Manuale utente

Denon

Denon DVM-1805 - DVD Changer Manuale utente

Toshiba

Toshiba SD-3815 Manuale utente

Tevion

Tevion 44330 Manuale utente

Samsung

Samsung DVD-HD860 Manuale utente

Sylvania

Sylvania DP170SL8 Manuale utente

Toshiba

Toshiba SD-P1200 Manuale utente

JVC

JVC XV-D9000E Manuale utente

Dolby Laboratories

Dolby Laboratories CP650 Manuale utente

Philips

Philips DVD737K/931 Manuale utente

Denon

Denon DVD-5900 Manuale utente

Philips

Philips DVD 951 Manuale utente

Philips

Philips DVDR3460 Manuale utente
