Firmwareupdate:Download/InstallinstructionsforTVModel:NS‐L32X‐10A



Systemrequirements:acomputerwithanopenUSBport,USB2.0flashdrive(stick),broadband

internetaccessandoperatingsoftwareofWindowsXP,WindowsVista,Windows7orMacOS10.3or

newer.Thisoptionisnotrecommendedwithdial‐uporDSLservicewithabitratelowerthan256kbps.If

theinstructionsprovidedbelowdonothelp,callInsigniaCustomerSupportat(877)467‐4289for

assistance.

First:Downloadtheupdatefile

1. InsertUSBflashdriveintotheopenUSBportonyourcomputer.

2. Downloadfirmware;ifapop‐upwindowopenstellingyoutoopen,saveorcancel,clickSave

andsavethefiletoyourUSBflashdrive.Note:Fileneedstobesavedontherootdirectory.

Note:Filesizeisapproximately3MB.Estimateddownloadtimeis1‐2minutes(witha1.5

Mbpsbroadbandconnection).

3.AftersavingthefirmwaretoyourUSBflashdrive;removetheUSBflashdrivefromyour

computer.

Second:UpgradingtheTVSoftwarewithaUSBFlashDrive(Stick)

1. MakesureyouTV’sACcordissecurelypluggedintoawalloutletandtheunitisturnedoff.This

canbeverifiedbyaredindicatorlightonthefrontoftheTV.

2. InserttheUSBflashdrivecontainingthefirmwarethatwasdownloadedintotheTV’sUSB

serviceportlocatedonthesideoftheTV.Note:Thisportmaybecoveredbyarubberflap,you

mayneedtoflipopentherubberflap(Seephotobelow).



3. TurntheTVonusingtheremotecontrolorpowerbuttononthesideoftheTV.

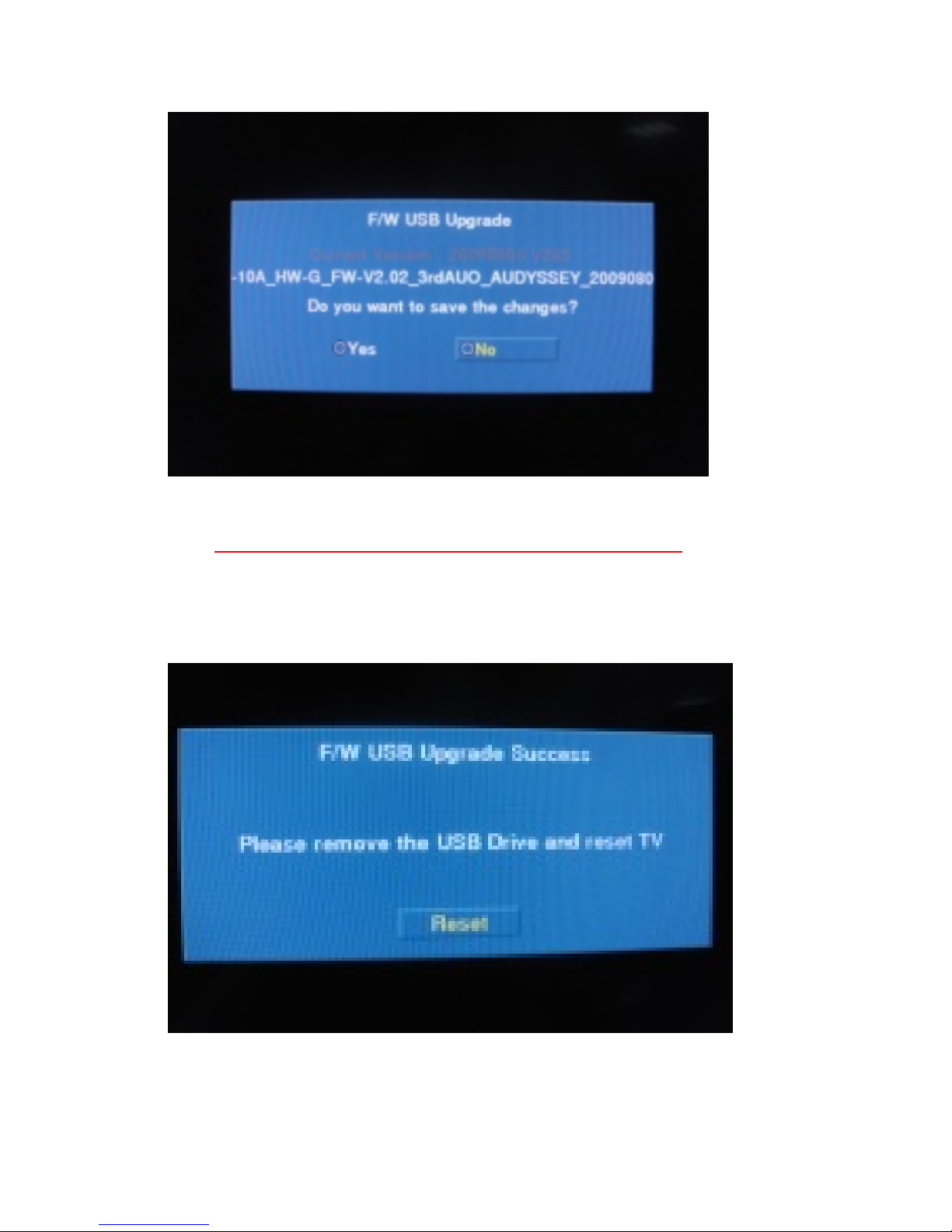

4. Ascreensimilartotheonebelowwillappear(Note:ifthereisnoupgrademenudisplayed;you

canturnyourTVoff,thenturntheunitbackon):





5. Usingyourremotecontrolarrowkeys,makesurethe“Yes”buttonishighlightedandpress

enter/OKontheremote.Thesoftwareupdatewillthenbegin

Note:DONOTTURNTHEPOWEROFFORUNPLUGDURINGTHEUPDATE

Note:Duringthesoftwareupdate,aprogressbarwillappeardisplayingtheprogressofthe

update;thisupdatetakesapproximatelyone(1)minute.

6. Oncetheupdatehascompleted,ascreensimilartotheoneshownbelowwillappear:





7. RemovetheUSBflashdrive(stick)fromtheTV.

8. PresstheEnter/OKkeyontheremotecontrol,TVwillthenrestart.

9. VerifyTVPoweredoffthenPoweredbackon.IftheTVdidnotthen,powerofftheTV;then

powertheTVbackon.OncetheTVispowereduptheprocessiscomplete.

Note:Itisrecommendedthatyouerase/deletetheupdatefilefromtheUSBflashdriveusing

yourcomputerpriortousingtheUSBflashdriveagain.

Note:Youwillneedtoreprogramyourfavoritechannelsandanycustomsettingsthatyoumay

havesetup.

Note:Ifyouexperienceanyissueswhileperformingthisupgrade,callInsigniaCustomerSupport

at(877)467‐4289forassistance.













































March2010
