14.02-5

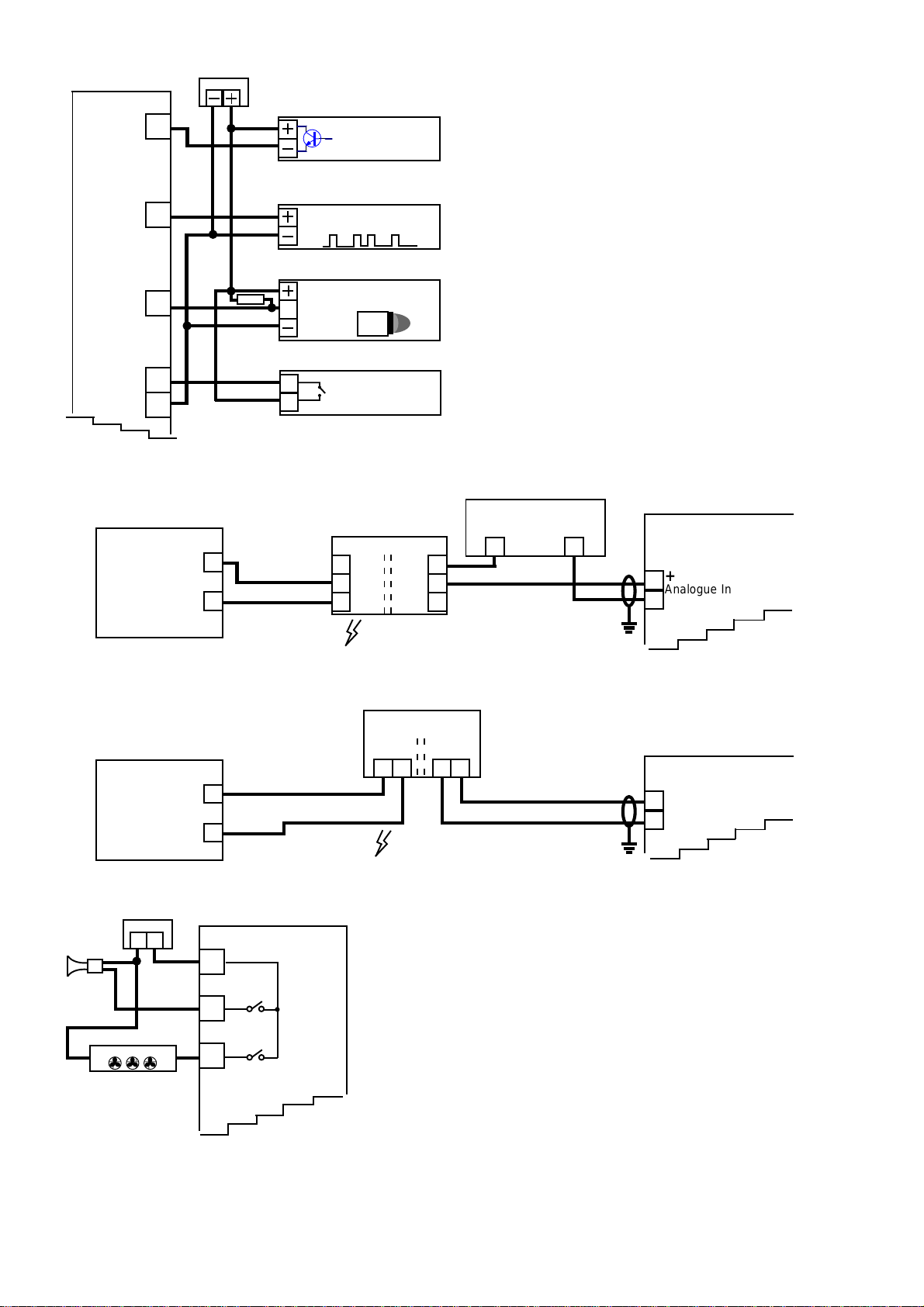

2100-A16 Output Specifications.
Dual Analogue Outputs: Analogue Outputs supplied from factory as mA. V must be factory fitted.
-Resolution 2 Outputs, 12bits, 4000 Steps Typical. (Some ranges may differ.)
-V Ranges 0~10V, 2~10V. Output Drive = 4mA Maximum. (2k5 @ 10V)
-mA Ranges 0~20mA, 4~20mA. Output Drive = 12V Maximum. (600@ 20mA)
Digital Outputs: 2 Isolated Relays with LED Indication of Each Output.
-Functions 2 on Board Controllers (16 with 2100-R2), Can be used as Set Point (SV)
SwitchingDifferential,Auto/Manual,ManualOutputSetting,DualActionControl,
Single Action Control, Heat/Cool, Cool Only, Heat Only.
-Contact Material Gold Clad Silver.
-RelayRatings 30Vac/dc, 1A Maximum.
-Approved to Standard UL & CSA:.
-Number of Operations 1 x 105Min, at 30Vac/dc, 1A, Resistive Load.
2100-A16 General Specifications.
Comms: -Protocols Intech Scada; PLC Message; Modbus RTU; RS422/RS485 or RS232
-Baud Rate Selectable 2400, 4800, 9600. (Default = 9600).
-Format 8 bit, No Parity, 1 Stop. (Not selectable.)
-Modbus RTU Refer to Modbus section, Page 20, for more details.
-Ethernet10/100 Refer to Ethernet 10/100 section, Page 23, for more details.
Power: -H 85~264Vac/dc;50/60Hz; 10VA.
-M 23~90Vdc;10VA.
-L 10~28Vac/dc; 50/60Hz; 10VA.
Referto‘2100-A16 H1PowerSupplySettings’forvoltageselectioninstructions.
Transmitter Power Supply 20Vdc±5%; Max. Load=50mA; Ripple<20mVrms; Common to Analog Inputs.
Transmitter power supply is not available with Ethernet 10/100 comms option.
Safety and EMC Compliances:
EMC Compliances Emissions EN 55022-A. Immunity EN 50082-1.
Safety Compliance EN 60950.
Mains Isolation 250Vac.
Mains Isolation Test Voltage -To all Inputs and Outputs: 3000Vac 50Hz for 1min.
-To Earth 1500Vac 50Hz for 1min.
Input/Output Isolation Test Voltages -Digital Input to Analogue Input/Output: 1000Vdc for 1min.
-Digital Input to Digital Output: 1000Vdc for 1min.
-Analogue Input/Output to Digital Output: 100Vdc for 1min.
-Comms to Analogue Input/Output: 1000Vdc for 1min.
-Comms to Digital Input/Output: 1000Vdc for 1min.
General Specifications: (Unless otherwise stated in other input specifications.)
Accurate to <±0.1% FSO Typical.
Linearity& Repeatability <±0.1% FSO Typical.
ChannelSeparation <±0.1% FSO Typical.
Ambient Drift <±0.01%/C FSO Typical.
Noise Immunity 125dB CMRR Average Differential Input 18Vpeak.
RF Immunity <±1% Effect FSO Typical.
A01 & AO2 25msec. Nominal Pulse Length.
-(used as CLOCK and RESET) 20mA Nominal Current.
Settling Time and Averaging Software Selectable.
Permanent Memory (E2ROM) 10,000 Writes per Input Parameter.
-(2100-ME fitted) 10 Year Data Retention.
Operating Temperature 0~60C.
Storage Temperature -20~80C.
OperatingHumidity 5~85%RH Max. Non-Condensing.
Housing -Material ABS Inflammability V0 (UL94)
-Dimensions L=195, W=120, H=70mm.
-Mounting 35mm Symmetrical Mounting Rail.
-Weight 800g. Includes Packaging.
Note 1. Contact INTECH INSTRUMENTS for more detailed programming information.
Note 2. For mA inputs a 2 pin jumper must be installed for each input.
Note 3. The 2100-A16 is C and F selectable. This selection affects all temperature readings. (CJC must be calibrated in C.)
Product Liability. This information describes our products. It does not constitute guaranteed properties and is not intended to affirm the suitability
of a product for a particular application. Due to ongoing research and development, designs, specifications, and documentation are subject to
change without notification. Regrettably, omissions and exceptions cannot be completely ruled out. No liability will be accepted for errors, omissions
or amendments to this specification. Technical data are always specified by their average values and are based on Standard Calibration Units at
25C, unless otherwise specified. Each product is subject to the ‘Conditions of Sale’.
Warning: These products are not designed for use in, and should not be used for patient connected applications. In any criticalinstallation
an independant fail-safe back-up system must always be implemented.
CAUTION: Dangerous Voltages may be present. The 2100-A16 has no user serviceable parts.
Protective enclosure only to be opened by qualified personnel.
Remove ALL power sources before removing protective cover.
