1009-eplus450-850-en - 1

DO NOT connect laser printers, scanners, or copiers to this UPS.

High power devices may damage this UPS.

USER MANUAL

________________________________________________________________________________________________________

1. SAFETY INSTRUCTIONS

SAFETY AND USE:

WARNING: This product has been designed to operate safely and reliably for years. Nevertheless, as it is an electrical

device, it is required to read and understand this manual. Keep manuals as references for future consults.

WARNING: This product has been designed to be used indoors, protected of water, direct sun light and extreme

temperatures. This device must not be used outdoors, close to moisture of heat sources.

WARNING: Do not set objects on this UPS. Handle with care. Do not block UPS ventilation.

WARNING: Make sure to connect this unit to proper power line according to selected model. The UPS Technical Specs

sticker shows power rating information. DO NOT connect this UPS to any of its own power outlets.

WARNING: UPS must be installed following instruction from this manual.

The manufacturer is not liable for any damage that might rise from misusing this unit or defective installation.

WARNING: Only computer related equipment can be connected to this UPS. DO NOT connect medical equipments, life

support equipments, microwave ovens, vacuum cleaners, refrigerators, or any other appliance to this UPS.

WARNING: UPS must be checked, repaired and maintained by qualified personnel only. This product is locked by screws.

WARNING –ELECTRIC SHOCK RISK:

Inside the UPS there are dangerous high voltages even when disconnected of power line, due to internal batteries

WARNING: In case of emergency turn off the UPS pressing Power Button, unplug it and call technical support.

DISPOSAL –Out of order units:

Disposal

We strongly recommend disposing this UPS according to regulations in your country to prevent possible

environmental damages; besides some parts might be recycled.

BATTERY WARNING: DO NOT dispose batteries in fire as it might explode. DO NOT try to open batteries,

there are dangerous liquids inside.

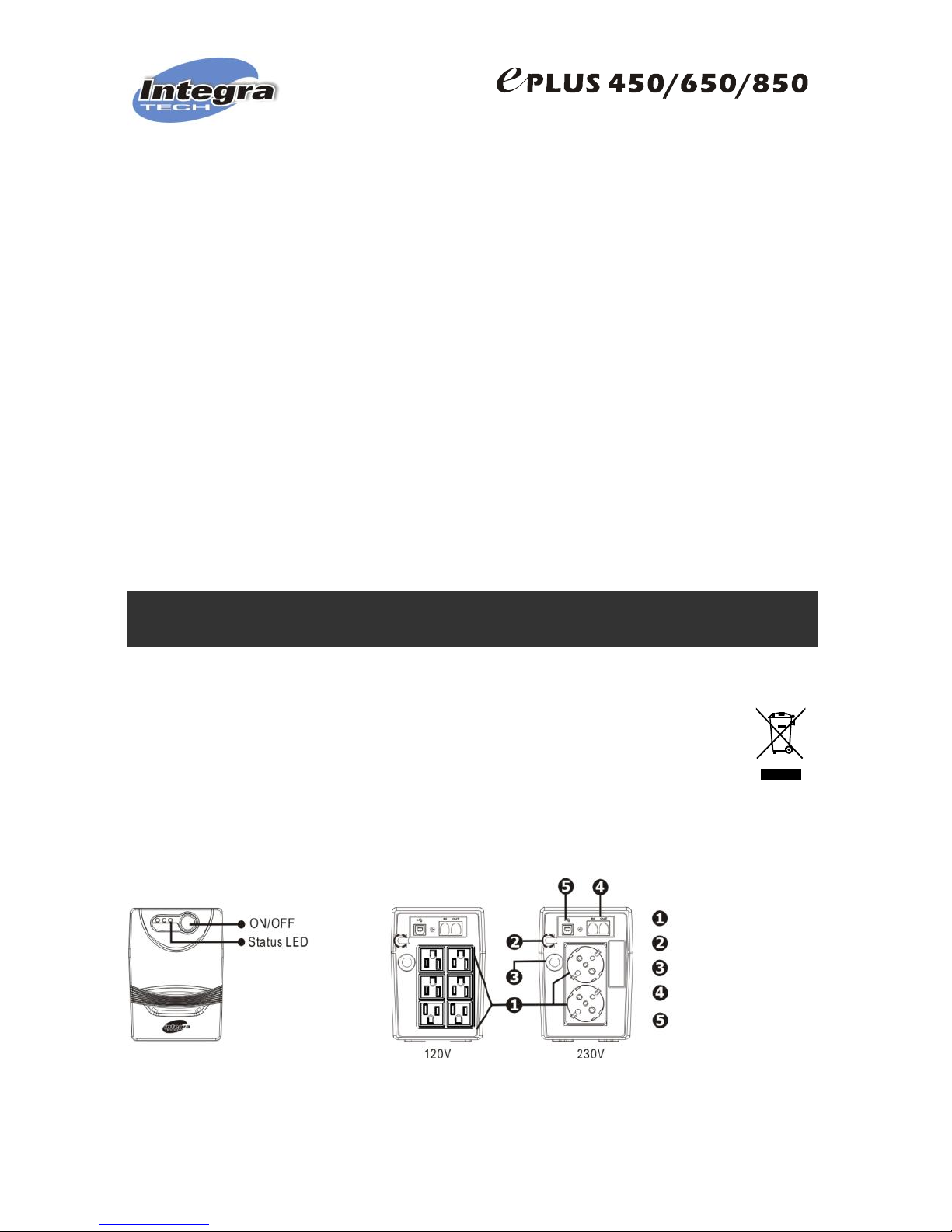

2. PRODUCT DESCRIPTION

EPLUS 450 / 650 / 850 series includes voltage regulation (Interactive Technology) ideal to protect computer related

equipment at home and offices.

Power Outlets

AC Input

Input Breaker

RJ11 / RJ45

USB

1009-eplus450-850-en - 2

First Time:

CHARGE BATTERIES FOR 6 HOURS BEFORE CONNECTING YOUR EQUIPMENTS TO UPS

3. INSTALLATION

This product leaves factory with battery fully charged, however

during transportation and storage it may loose a non determined

part of its charge; therefore we recommend plugging it to Power

Line for 6 hours before using the UPS.

Install this unit in any protected environment with a dust free

air flow. Also corrosive vapours and conductive contaminants

must be avoided. Do not use UPS outdoors or where either

temperature or humidity exceeds tech specs. Install UPS at least

10 inches away from your monitor to avoid magnetic interference.

Connect phone or LAN cable to RJ11/45 Jack Identified as

“IN” and your Router or PC RJ45 port to RJ-11/45 Jack Identified

as “OUT”. Plug UPS to a power outlet with a proper grounding.

Connect your equipments to UPS power outlets.

NEVER connect equipments with power consumption higher

than Power Capacity of this UPS, such as Laser Printers or

copiers.

4. OPERATION

For you to get higher performance of this UPS, it is important to understand how it works.

This is an interactive UPS and protects your computer related equipments as well as your valuable information. When

minor power failures occurs (electrical surges or sags), your UPS quickly regulates voltage by means of its voltage

stabilization without using batteries. When failure slips out of the UPS regulation range (as in a black out), UPS inverter

starts working to generate power from energy stored in the batteries so you can properly close all applications, save your

data and close operating system.

Under normal conditions, your UPS keeps charged and standing by.

This unit is equipped with a LED indicator to let you know about UPS status.

Power pushbutton is located in UPS front panel. To power up your UPS press power pushbutton once during 1 second.

To power off your UPS press power pushbutton again for 2 to 3 seconds.

Cold start function allows you to power up your UPS and your equipments even during power loss, thus your UPS acts

like a small power generator

5. MONITORING AND CONTROL SOFTWARE

Our software offers great features to communicate your PC and UPS, allowing an effective management of UPS

capabilities.

Among others, main software features are:

Programmable operation Interface

On AC Power Failure, closes appropriately all applications and files saving all data

Allows to schedule automatic UPS shutdown

Graphically shows UPS status

Software Downloading Procedure: Go to www.integra-ups.com and select download section. Choose the appropriate

version of “VIEWPOWER” according to your Operative System.

PASSWORD: To access as administrator the password to be used is: administrator

VERY IMPORTANT: Download installation and operation manual as well; follow all instructions.

1009-eplus450-850-en - 3

TO ENLARGE UPS BATTERIES LIFE EXPECTANCY, WE RECOMMEND A COMPLETE DISCHARGE

ONCE EVERY 2 TO 3 MONTHS. OPERATION TEMPERATURE SHOULD BE BELOW 25ºC.

6. BATTERIES: MAINTENANCE

Batteries (despite its technology or quality) are components that loose capacity after some time and usage. INTEGRA

cares for using first quality batteries in all UPS models. Life expectancy for our Interactive UPS is 3 to 4 years. However

this time may be shortened by operation conditions. With higher temperatures and frequent use, batteries trend to loose

capacity. Consequently batteries must be checked periodically to assure the appropriate back up.

7. TROUBLESHOOTING

PROBLEM PROBABLE CAUSE SOLUTION

Power pushbutton has not been properly

used

Push power button for 3 seconds or until UPS

power up

Battery charge extremely low

Charge batteries for 6 hours before checking

UPS again

Battery failure

Batteries must be replaced for new ones (same

type and capacity)

Loose power cord Check power cord and tight it up.

Breaker activated

Check breaker in UPS rear panel. Push it to reset

it.

Breaker activates frequently

Power consumption of equipoments

connected to UPS is higher to UPS capacity.

Unplug non critical equipments.

Continuous beep UPS Overload condition Unplug non critical equipments.

Batteries exhausted for been recently used

Charge batteries for 6 hours before checking

UPS again

Battery failure

Batteries must be replaced for new ones (same

type and capacity)

Back up = 0 Sec.

UPS shutdowns immediatly after

power loss

DOES NOT WORK

Green LED off

UPS in battery Mode

Green LED blinks and acoustic alarm

is on although power line is normal

8. WARRANTY AND SUPPORT

Support: In case of failure check recommendations and troubleshooting table. If problem continues we recommend going

to your authorized distributor who sold the UPS where you will get support to solve the problem.

Batteries: Batteries (despite its technology or quality) are elements that loose capacity after some time and usage and,

therefore, back up decreases. Under regular conditions, batteries must be replaced every 3 to 4 years. In hostile conditions

(high temperature, frequent black outs), batteries life expectancy may be dramatically reduced.

Warranty: INTEGRA products are warranted to be defective free (material and manufacturing) by the time you purchase it.

However if your product presents any problem, the INTEGRA authorized distributor who provided the unit, will take care of

your claim during the warranty period, according to the conditions settled during purchase.

Warranty details in www.integra-ups.com

1009-eplus450-850-en - 4

9. TECHNICAL SPECIFICATIONS

Model EPLUS 450 EPLUS 650 EPLUS 850

Capacity 450VA/250W 650VA/360W 850VA/480W

Input

Voltage

Frequency

Output

Voltage

Frequency

Waveform

Batteries

* Back-up Time Typical 12 min. max. 20 min. max. 25 min. max.

* Recharge Time

Protections

Alarms-Indications

Acosutic Alarm

AC Mode

Battery Mode

Protections

Input Circuit Breaker

Surge/Spikes Protection (Line H-N)

Surge/Spikes Protection RJ11/RJ45

Features

Power Outlets 220V model: 2 pcs

Communication

Software

Phisycal

287x100x142 mm

3.6 Kg

287x100x142 mm

4.3 Kg

287x100x142 mm

4.9 Kg

Simulated Sinewave

4-6 hours to 90% capacity

Deep discharge and overcharge

Battery Mode / Low Battery / Overload / Battery Fault / UPS Fault

Model 120V: (81-145 Vac) / Model 220V: (162-290Vac)

60Hz / 50 Hz - Auto Sensing

Model 120V: +/- 10% / Model 220V: +/- 10%

60Hz (+/- 1%) or 50Hz (+/- 1%)

* Times for 1PC + TFT load

with Reset

Power Outlet Sockets with surge & spikes protection: L-N

* Product specifications are subject to change without further notice.

Green lighting

Green flashing

Supports: Windows / Linux / Unix / Mac OS

USB Port

220V model: 2 pcs

RJ11/RJ45

Certifications apply according to the

market or our product model
