Intel BOXNUC8i7BEKQA Manuale utente

User Guide for NUC8i7BEKQA and NUC8i5BEKPA

Intel® NUC 8 Enthusiast, a Mini PC with Windows® 10 –NUC8i7BEKQA

Intel® NUC 8 Home, a Mini PC with Windows® 10 –NUC8i5BEKPA

User Guide

Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Intel NUC 8 Home

NUC BOXNUC8I5BEKPA2 o cerca il tuo prodotto tra le migliori offerte di PC Desktop e Workstation

User Guide for NUC8i7BEKQA and NUC8i5BEKPA

Before You Begin

CAUTIONS

The steps in this guide assume you’re familiar with computer terminology and with the safety

practices and regulatory compliance required for using and modifying computer equipment.

Disconnect the computer from its power source and from any network before performing any of the

steps described in this guide.

Failure to disconnect power or networks before you open the computer or perform any procedures can

result in personal injury and/or equipment damage. Some circuitry on the board can continue to

operate even though the front panel power button is off.

Follow these guidelines before you begin:

Always follow the steps in each procedure in the correct order.

Create a log to record information about your computer, such as model, serial numbers,

installed options, and configuration information.

Electrostatic discharge (ESD) can damage components. Perform the procedures described in

this chapter only at an ESD workstation using an antistatic wrist strap and a conductive foam

pad. If such a station isn’t available, you can provide some ESD protection by wearing an

antistatic wrist strap and attaching it to a metal part of the computer chassis.

Installation Precautions

When you install and test the Intel NUC, observe all warnings and cautions in the installation

instructions.

To avoid injury, be careful of:

Sharp pins on connectors

Sharp pins on circuit boards

Rough edges and sharp corners on the chassis

Hot components (such as SSDs, processors, voltage regulators, and heat sinks)

Damage to wires that could cause a short circuit

Observe Safety and Regulatory Requirements

If you don’t follow these instructions, you increase your safety risk and the possibility of

noncompliance with regional laws and regulations.

User Guide for NUC8i7BEKQA and NUC8i5BEKPA

This guide tells you how to:

•

Upgrade memory (RAM)

•

Change/install an M.2 SSD

•

Use a VESA mount bracket

•

Connect power

•

Set up Microsoft® Windows® 10

•

Keep device drivers current

•

Recover the operating system

Open the Chassis

Unscrew the four corner screws on the bottom of the chassis and lift the cover.

Upgrade System Memory

The Intel NUC Mini PC NUC8i7BEKQA have two 260-pin DDR4 SO-DIMM sockets, pre-installed

with two 8GB DDR4 2400 MHz SO-DIMM.

The Intel NUC Mini PC NUC8i5BEKPA have two 260-pin DDR4 SO-DIMM sockets, pre-installed

with two 4GB DDR4 2400 MHz SO-DIMM.

To upgrade memory, be sure to select memory modules that meet these requirements:

1.2V low voltage memory

2400 MHz SO-DIMMs

Non-ECC

User Guide for NUC8i7BEKQA and NUC8i5BEKPA

Find compatible memory modules in the Intel Product Compatibility Tool:

NUC8i7BEKQA

NUC8i5BEKPA

NOTE

If you plan to install only one memory module, install it in the lower memory

socket.

To upgrade or add memory, follow these steps:

1. Observe the precautions in "Before You Begin" on page 2.

2. Turn off all peripheral devices connected to the computer. Turn off the computer and

disconnect the power cord.

3. Remove the computer’s bottom chassis cover.

Upgrade to different memory

a. Remove the pre-installed memory module

i. Gently spread the retaining clips at each end of the memory socket, which causes

the module to pop out of the socket (C).

ii. Holding the module by the edges, lift it away from the socket, and store it

in an anti-static package.

b. Install the new memory module

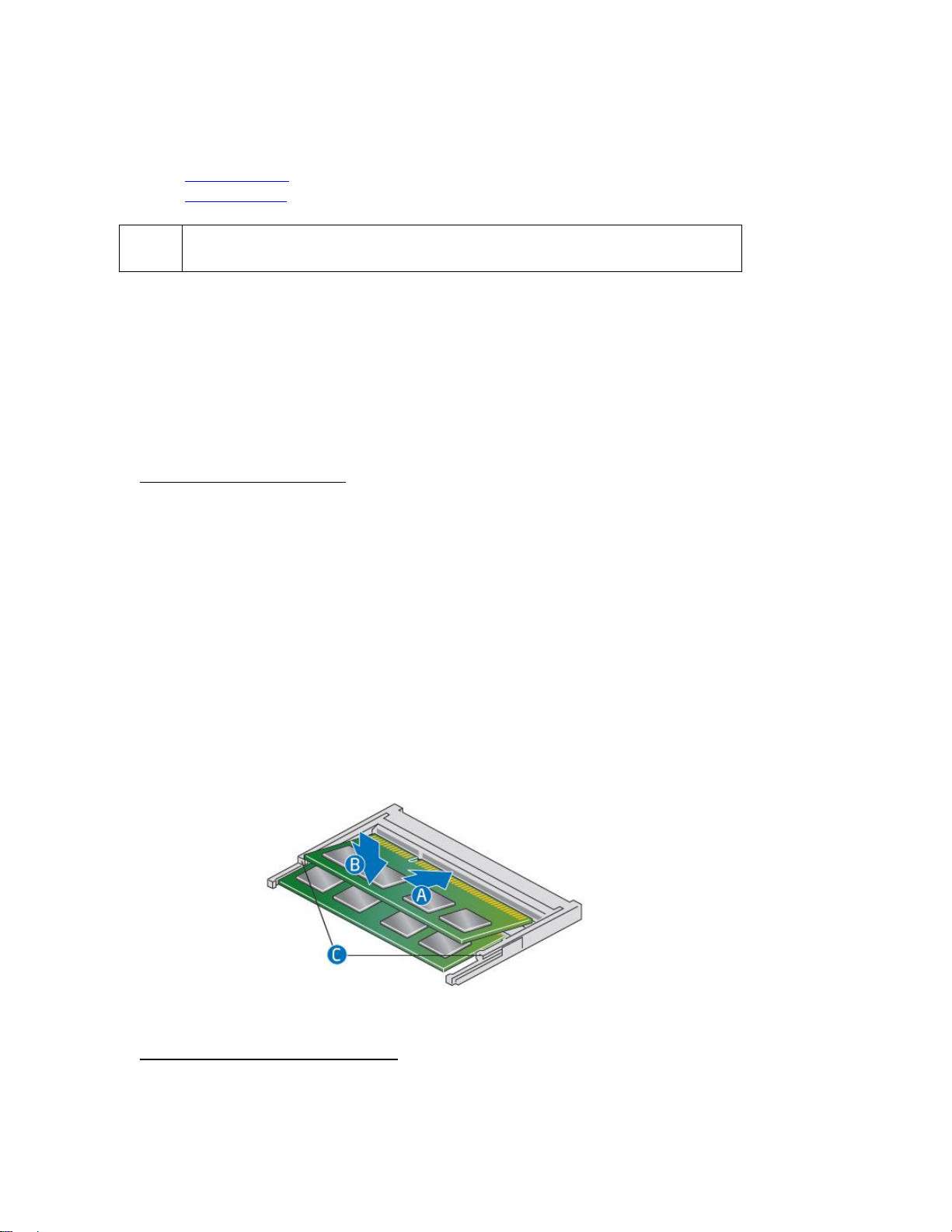

i. Align the small space at the bottom edge of the memory module with the

key in the socket.

ii. Insert the bottom edge of the module at a 45 degree angle into the socket

(A).

iii. When the module is inserted, push down on the outer edges of the

module until the retaining clips snap into place (B). Make sure the clips

are firmly in place (C).

Install an additional memory module

a. Align the small space at the bottom edge of the memory module with the key on the

socket.

User Guide for NUC8i7BEKQA and NUC8i5BEKPA

b. Insert the bottom edge of the module at a 45 degree angle into the socket (A).

c. When the module is inserted, push down on the outer edges of the module until

the retaining clips snap into place (B). Make sure the clips are firmly in place (C).

d. Reinstall and reconnect any parts you removed or disconnected to reach the memory

sockets.

e. Replace the computer’s cover and reconnect the power cord.

Changing an M.2 SSD or Intel® Optane™ Memory Module

The Intel NUC Mini PC NUC8i7BEKQA support an 80mm or 42mm m.2 SSD, pre-

installed with one 512GB NVMe m.2.

The Intel NUC Mini PC NUC8i7BEKQA support an 80mm or 42mm m.2 SSD, pre-

installed with one 256GB NVMe m.2.

Find compatible M.2 SSDs in the Intel Product Compatibility Tool:

NUC8i7BEKQA

NUC8i5BEKPA

NOTE

Before changing the Intel Optane memory module, it needs to be disabled. Follow

Removing Intel Optane Memory on this page first, before taking the module out.

To Change an M.2 SSD:

1. Remove the small silver screw from the 80mm or 42mm metal standoff on the board (A).

2. Remove the pre-installed SSD/Intel Optane Memory from the connector.

3. Align the space at the bottom of the new M.2 SSD to the key on the connector.

4. Insert the bottom edge of the M.2 SSD into the connector (B).

5. Secure the card to the standoff with the small silver screw (C).

User Guide for NUC8i7BEKQA and NUC8i5BEKPA

Close the Chassis

After all components have been installed, close the Intel NUC chassis. Intel recommends this be done

by hand with a screwdriver to avoid over-tightening and possibly damaging the screws.

Attach and Use the VESA Bracket (Optional)

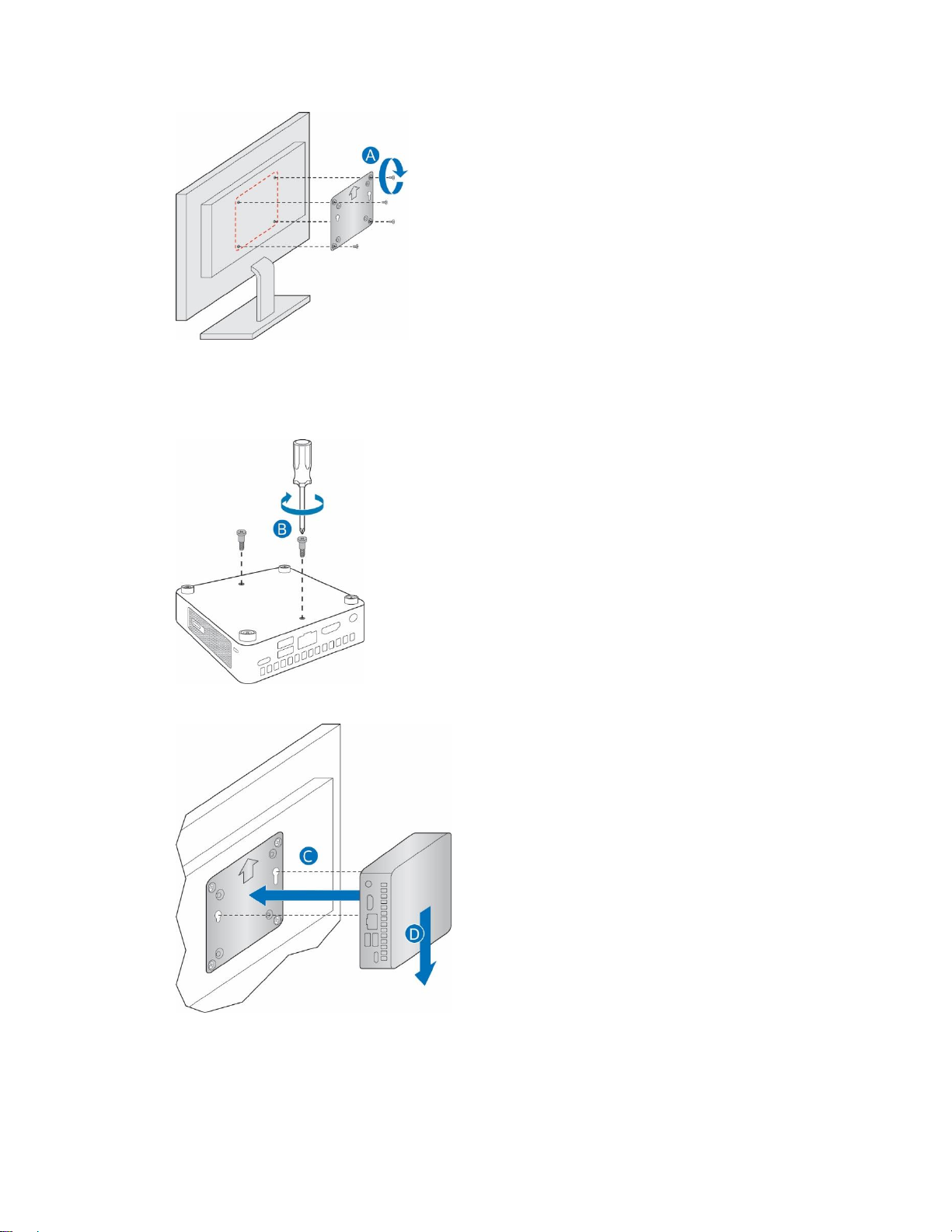

Follow these instructions to attach and use the VESA mount bracket:

1. Using the four small black screws that were included in the box, attach the VESA bracket to the

back of the monitor or TV.

User Guide for NUC8i7BEKQA and NUC8i5BEKPA

2. Attach the two slightly larger black screws to the bottom chassis cover of the Intel NUC.

3. Slide the Intel NUC onto the VESA mount bracket.

User Guide for NUC8i7BEKQA and NUC8i5BEKPA

Connect Power

Each Intel NUC model includes either a region-specific AC power cord or no AC power cord (only the

power adapter).

Product codes

Power cord type

BOXNUC8i7BEKQA

BOXNUC8i5BEKPA

No power cord included. An AC power cord needs to be purchased

separately. Power cords are available at many Internet sites for use in

multiple countries. The connector on the power adapter is a C5 type

connector.

BOXNUC8i7BEKQA1

BOXNUC8i5BEKPA1

US power cord included.

BOXNUC8i7BEKQA2

BOXNUC8i5BEKPA2

EU power cord included.

BOXNUC8i7BEKQA3

BOXNUC8i5BEKPA3

UK power cord included.

BOXNUC8i7BEKQA4

BOXNUC8i5BEKPA4

Australia/New Zealand power cord included.

1. Connect AC power.

User Guide for NUC8i7BEKQA and NUC8i5BEKPA

Set Up Microsoft® Windows® 10

Microsoft Windows 10 is already installed on the Intel NUC. The first time you start the computer, you

are guided through the Windows 10 setup steps, including:

Selecting your region and language.

Accepting the Microsoft Windows license terms.

Personalizing Windows and assign a PC Name.

"Get Online" dialog to pick a wireless network (this step is optional).

Choosing Express Settings or Customize.

Assigning a User Name and Password.

Reinstalling the Operating System

If you upgrade or replace the computer’s drive, you may need to install a new version of the operating

system. See these resources:

Supported Operating Systems

Windows Setup Guide

Install the Latest Device Drivers and Software

Here are the options for keeping device drivers current:

Allow the Intel® Driver & Support Assistant (Intel® DSA) to detect out-of-date drivers

Manually download drivers, BIOS, and software from Download Center.

NUC8i7BEKQA

NUC8i5BEKPA

Drivers are available for the following features:

Bluetooth

Chipset

CIR (Infrared)

Graphics

Intel® ME

Intel® Rapid Storage Technology

Intel® Ready Mode Technology

Intel® Software Guard Extensions (Intel® SGX)

LAN (wired and wireless)

Realtek Audio

Realtek Card Reader

Serial IO

Thunderbolt

User Guide for NUC8i7BEKQA and NUC8i5BEKPA

Operating System Recovery

There’s a Windows recovery partition on the Intel NUC. You can use this partition to Refresh, Reset, or

Restore Windows. Here is what each of these actions do:

Refresh

If your PC isn't performing as well as it once did, and you don't know why, you can

refresh your PC. This action doesn’t delete any of your personal files or change

your settings. Refresh does the following:

Files and personalization settings won’t change.

PC settings are changed back to their defaults.

Apps from the Windows Store are kept.

Apps installed from disks or websites are removed.

List of removed apps is saved on the desktop.

Reset

If you want to recycle your PC, give it away, or start over with it, you can reset it

completely. This process removes everything. Reset does the following:

All personal files and apps are removed.

PC settings are changed back to their defaults.

Windows is reinstalled.

Restore

If a recently installed app or driver is causing problems with your PC, you can

restore Windows back to an earlier point in time, called a restore point. System

Restore doesn’t change your personal files, but it can remove recently installed

apps and drivers.

Caution - Before performing a Refresh or Reset:

Make sure to back up all personal data to external storage.

Remove SD card from the card slot, if one is inserted.

To access the recovery media:

If Windows starts

From Windows Start, type Recovery and select Recovery Options.

See Recovery options in Windows 10 for complete details on how

to use the recovery options.

If Windows doesn’t start

The recovery process should automatically start. If Recovery

doesn’t automatically start, you can try to initiate it as follows:

1. Press F8 during boot, when you see the prompt “F8 to

Activate Windows 8.1/10 Recovery Mode”.

2. Follow the recovery steps.
