Intel Learning Series Manuale utente

What’s in the box

Intel-powered clamshell classmate PC

Power adapter

Congratulations on your purchase of an

Intel-powered clamshell classmate PC.

Follow these simple instructions to get

your classmate PC up and running.

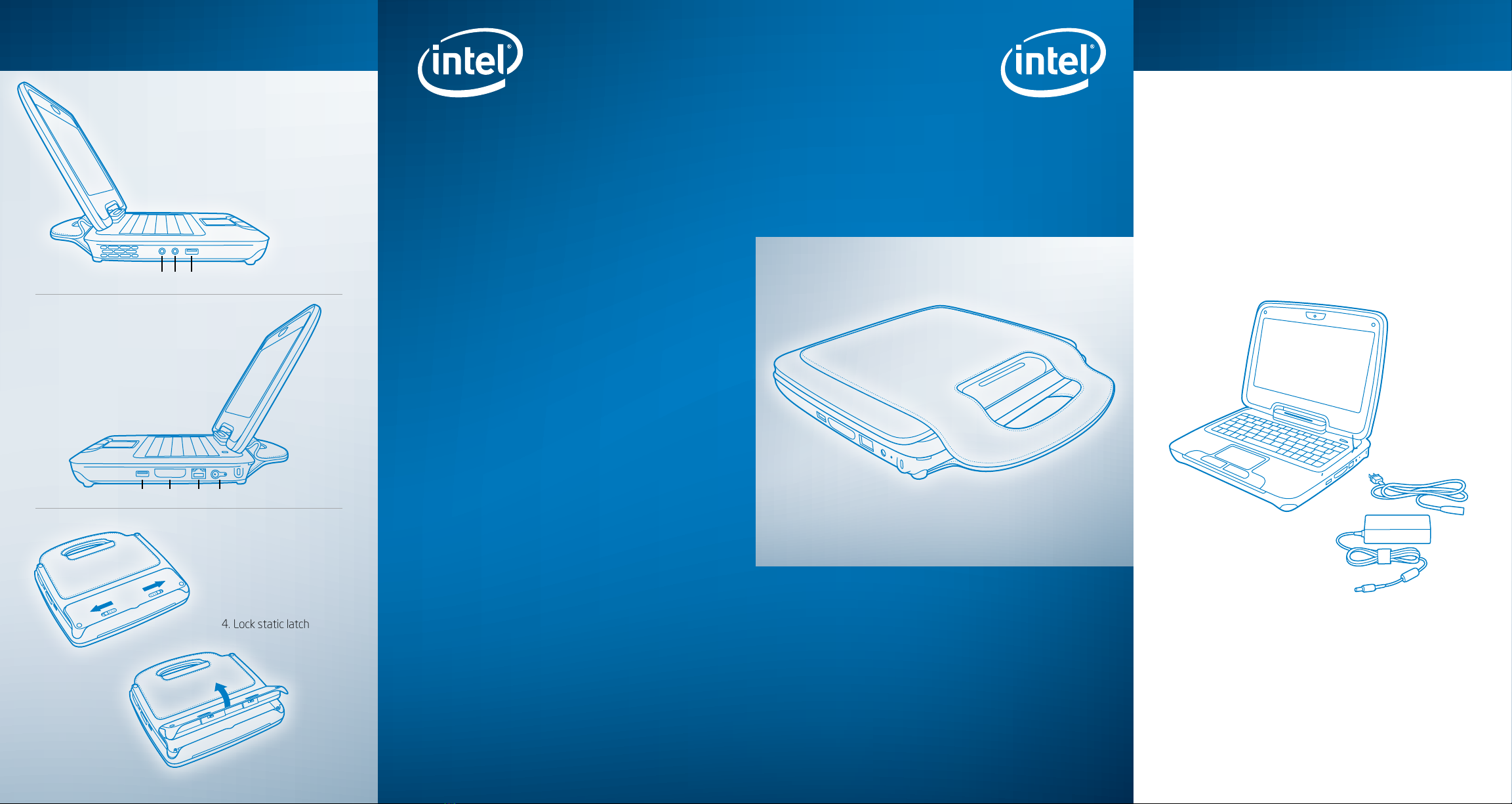

Replace Battery

1. Unlock static latch

2. Hold spring latch and

lift battery out

3. Snap replacement battery

into slot

4. Lock static latch

2Connections 1Congratulations!

Intel-powered

clamshell classmate PC

Hardware Quick Start Guide

Part of the Intel® Learning Series

are trademarks of Intel Corporation in the U.S. and other countries.

* Other marks and brands may be claimed as the property of others.

1208/MG/CMD/PDF 318938-002 US

Right

4. USB 2.0 port #2

5. SD Card Reader

6. Ethernet Port

7. Power Input

Left

1. Headphone jack

2. Microphone jack

3. USB 2.0 port #1

1 2 3

4 5 6 7

The row of icons located above the keyboard light up with

different colors to indicate the system and power status of

your classmate PC.

Icon System/power indication

Green light: Wireless local area network (WLAN) module is active.

Green light: Numeric keypad is activated.

Green light: Caps lock is activated.

Green light: The battery is charged.

Orange light: The battery is being charged.

Blinking orange light: Battery power is low.

Alternating green and orange light (when the AC adapter is

plugged in): The system has stopped charging the battery because

the battery pack temperature is too high.

Green light: The system is on.

Set Up a Wireless Connection

1. Verify the WLAN module is active (the wireless icon

light will be green). If it is not, press the Fn key and the

F1 key simultaneously.

2. Click Start.

3. Click Control Panel.

4. Double-click the Wireless icon.

5. Follow the instructions on screen.

Press and hold the Power Button for three seconds or until the

screen turns on.

If the screen does not turn on, check the power connection and

strength of the battery. Refer to the user’s manual for

troubleshooting tips.

Set Up a Wired Connection

1. Connect an Ethernet Cable to your classmate PC.

2. Connect the other end

of the Ethernet cable to

a cable modem, DSL

modem, or network.

1. Connect the AC Power Cord to the Power Adapter.

2. Connect the Power Adapter to the computer Power Input.

3. Plug the Power Cable into a Wall Outlet.

IMPORTANT:

The battery must be charged for at least six hours before

rst use. The battery charge indicator will become green when

the battery is fully charged. Keep the power cable away from

young children.

3Charge Battery 4System/Power Status Indicators 5Start The Computer 6Set Up A Connection

AC Power

Cord

Status

Indicators

Power

Cable

Power

Input

Ethernet Port

Power

Adapter

Power

Button
