Intellian s6HD Manuale utente
Document Number: 2014KO-UM0211-V2_0
s6HD
Installation and Operation Manual
2
Intellian Satellite TV Antenna Systems
Intellian s6HD Serial Number
This serial number will be requested for all troubleshooting or service Inquiries.
Notice
All Rights Reserved
Intellian s6HD®and Intellian®are the registered trademarks of Intellian Technologies, Inc., and should not be appropriated without permission by Intellian Technologies, Inc.,
and the information contained in this manual is the property of Intellian Technologies, Inc. Any and all parts of this manual shall not be reproduced and distributed in any form
without prior written consent by Intellian Technologies, Inc. The information contained in this manual shall be subject to change at any time without notice due to the functional
upgrades of the product.
3
Table of Contents
INTRODUCTION
INTRODUCTION TO INTELLIAN s6HD
FEATURES OF INTELLIAN s6HD
BASIC SYSTEM CONFIGURATION OF INTELLIAN
INSTALLATION
SYSTEM COMPONENTS
TOOLS REQUIRED FOR INSTALLATION
PLANNING THE INSTALLATION
INSTALLATION AND MOUNTING OF ANTENNA
INSTALLING THE ACU
ACU DIMENSIONS
SELECTION OF INSTALLATION SITE
CONNECTING THE SYSTEM TO A GPS
DC OUT PORT
PC TO ACU COMMUNICATION SETUP
OPERATION INSTRUCTION
INTRODUCTION
OPERATING THE ACU
ACU SOFT KEYS
NORMAL MODE
SETUP MODE
ANTENNA CONTROL SOFTWARE
INTRODUCTION TO Aptus®
SOFTWARE INSTALLATION
PC TO ACU COMMUNICATION SETUP
ESTABLISH A DATA COMMUNICATION
AUTO UPDATE
TOOLBAR MENUS
SYSTEM PROPERTY STATUS DASHBOARD
WORK VIEW TABS
PREPARATION FOR TRANSPORTATION
WARRANTY
APPENDIX : s6HD TECHNICAL SPECIFICATION
4
4
5
6
7
7
10
11
13
16
16
17
23
24
24
26
26
27
27
27
30
51
51
51
52
52
53
54
57
60
71
72
73
4
Intellian Satellite TV Antenna Systems

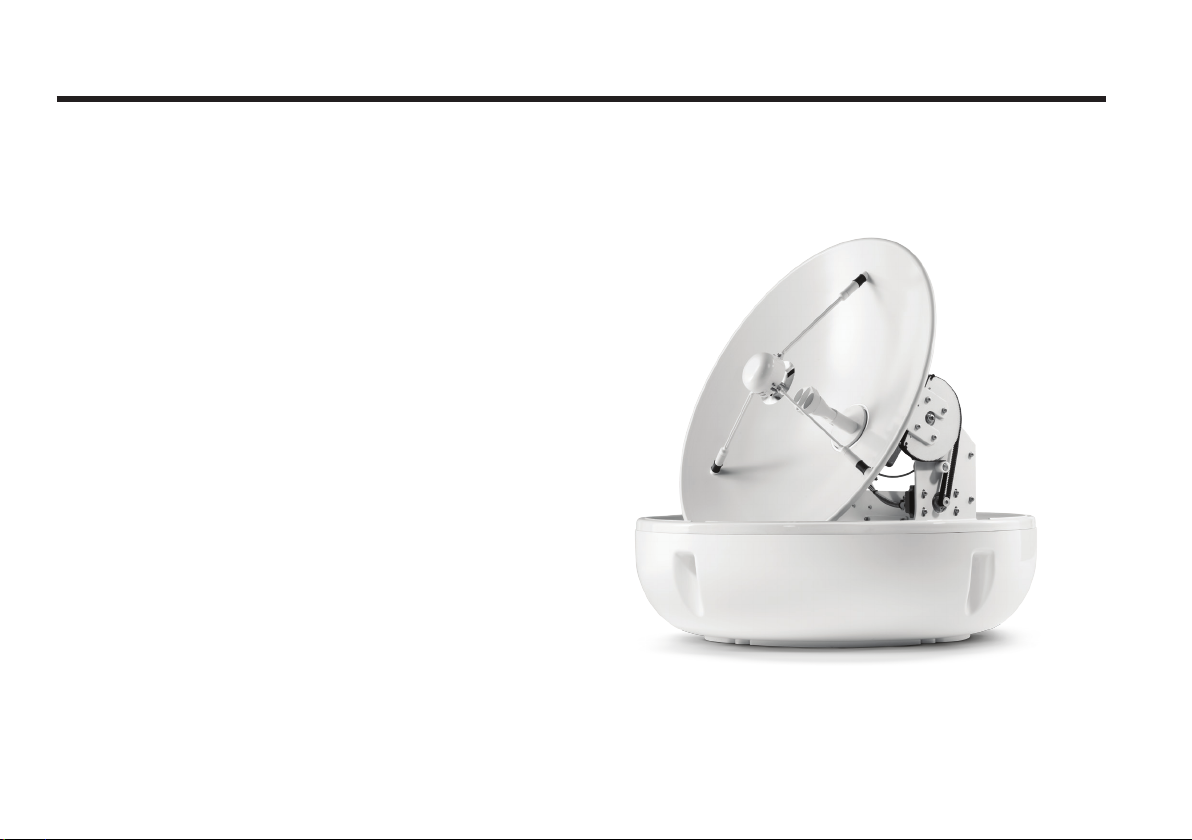

Introduction to Intellian s6HD
Intellian s6HD is a digital marine satellite antenna system specially
designed for the DIRECTV services for all types of vessels (Anchored or
in transit) to automatically identify, track and capture satellite signals
from the Digital Video Broadcasting (DVB: the international standard for
digital TV transmissions) compatible Satellites.
Intellian s6HD is a dual-band 2-axis marine satellite antenna system
which is capable of receiving 3 DIRECTV satellite signals simultaneously.
Receiving signals from one DIRECTV 101°W Ku-band satellite and two
DIRECTV 99°W and DIRECTV 103°W Ka-band satellites at the same
time, you can simultaneously watch all DIRECTV channels no matter
which satellite your target program is coming from. This also enables
the channel guide data to remain constantly up to date.
Using simple connection to the antenna, the Intellian s6HD with SWM
(Single Wiring Multi-switch) enables 16 Receivers to view all DIRECTV
channels with the possibility to upgrade to 32 SWM Receivers or DVRs.
The s6HD is also compatible with general Ku-band receivers such as
DISH Network, Bell TV, and DIRECTV local channel services.
Introduction
5
Features of Intellian s6HD
Simultaneous reception of 3 DIRECTV satellites
Intellian s6HD receives HDTV channels from 3 primary DIRECTV’s
Ka-band and Ku-band satellites located at 99°W, 101°W and 103°W.
No delay time or changing the satellite signal, you can simultaneously
watch every DIRECTV channels.
Plug and play, DIRECTV capable
Intellian s6HD uses single cable from the antenna to ACU for simple
installation. The Built-in SWM (Single Wiring Multi-switch) and two
8-way splitters in the default package of the s6HD enables 16-receiver
connections as standard. The s6HD is expandable up to 32 receivers
and beyond and fully capable of supporting DVR receivers.
Multi-band alignment control systems
The built-in multi-band alignment control systems keeps the multi-feed
LNB aligned with the three DIRECTV satellites at sea even during harsh
marine environment or high-speed cruising.
Non-primary DIRECTV service receptions
Intellian s6HD is capable of receiving DIRECTV local channels broadcast
from the two DIRECTV Ku-band satellites located 110°W and 119°W as
well as Dish Network and Bell TV services.
Ethernet Port for management
The Ethernet Port on the rear panel of ACU enables direct and simple
network connection between a PC and the ACU. By connecting to ISP or
the modem linked with VSAT systems, Intellian s6HD can be monitored,
controlled, and diagnosed remotely from anywhere, anytime through the
TCP/IP protocol.
This not only can save tremendous time but also save the cost
generated from the hundreds of routine maintenance activities such as
operating rmware upgrades, tracking parameters resets, and system
diagnostic.
Wireless Connectivity and Aptus mobile
The built-in WiFi enables the ACU to be wirelessly connected. Any kind
of wireless devices such as PCs, laptops and smartphones can be used
to connect to the ACU and monitor, control and change the settings of
the system wirelessly. Intellian Aptus mobile is available for download to
access to the ACU via Wi-Fi and operate the antenna from their iPhone,
iPad or other network devices.
iPhone and iPad are registered trademarks of Apple Inc.
6
Intellian Satellite TV Antenna Systems
Basic System Conguration
For your satellite TV system to function properly, the system will have
to be connected with all of the provided components as shown in the
gure below (Refer to the next chapter ‘Installation’ in this manual for
more detailed connection instructions). Separate purchase of a satellite
receiver and a TV is required.

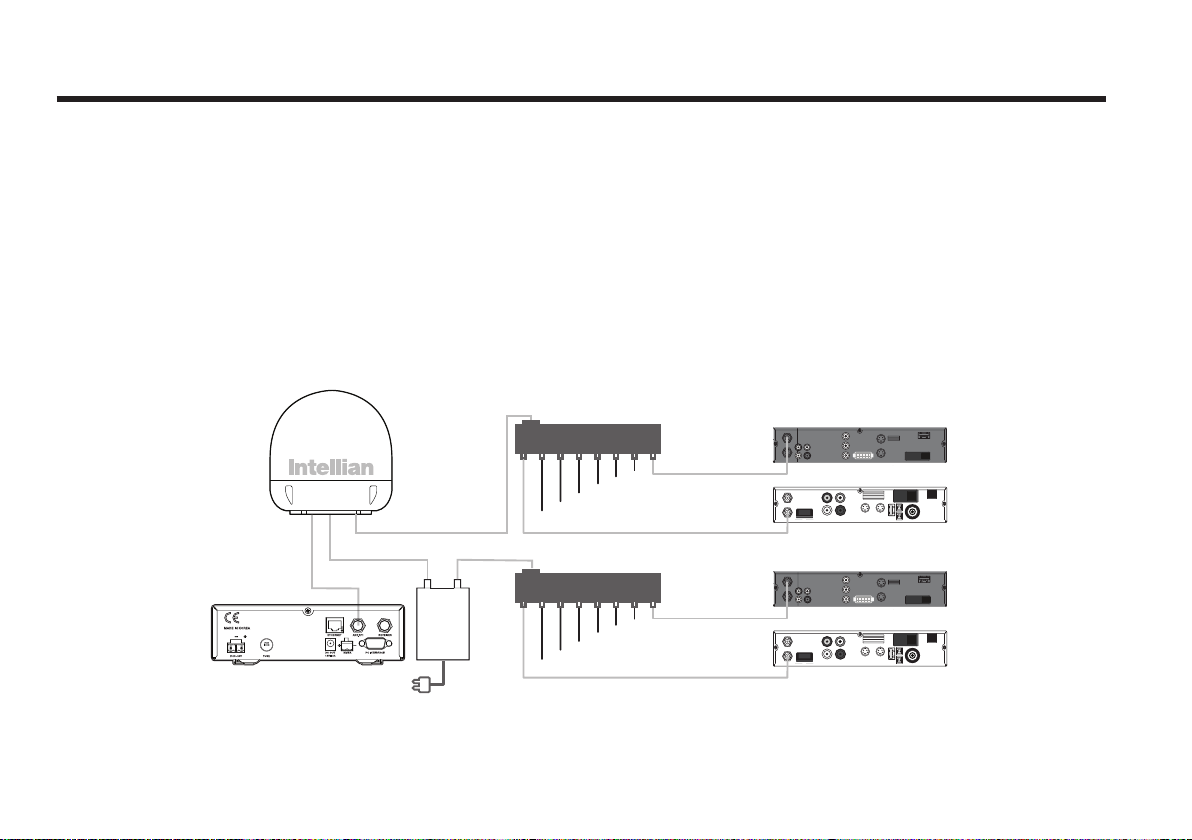

Figure 01 : Basic Conguration with 16 Receivers
SWM
Power
Supply
ACU
Receiver 1
Receiver 8
Receiver 1
Receiver 8
8-Way Splitter
8-Way Splitter
L1
S2
S1
R8
R1
R8
R1
R7 R6 R5 R4 R3 R2
R7 R6 R5 R4 R3 R2
7
The components of the Intellian s6HD are designed as module system
so that it is suitable for simple installation on all types of vessels.
System Components
Antenna Unit
The antenna of Intellian s6HD is composed with the following
components for optimum search and reception of the satellite signal.
• Mechanical Unit – manipulates the antenna to receive the optimal
satellite signal regardless of the movement of the vessel.
• Control Unit – controls mechanical operation of the antenna.
• RF Unit – transmits the optimum satellite signal to the receiver.
• Radome – protects the antenna from the severe marine environment.
Installation
Figure 02 : Radome
8
Intellian Satellite TV Antenna Systems
Antenna Control Unit (ACU)
The Antenna Control Unit (ACU) provides the power to the antenna and
controls the various settings of the antenna. The digital VFD (Vacuum
Fluorescent Display) allows for easy operation of the ACU, even in the
dark.
The functions of the ACU are as follows:
• Controls the antenna system
• Provides power to the antenna unit
• Monitors the antenna status
• Changes the target satellite
• Set up the user environment
• Set the current GPS information
• Set satellite information
• Move antenna manually
• Perform self-diagnosis of the antenna
• Set up the interface with a PC

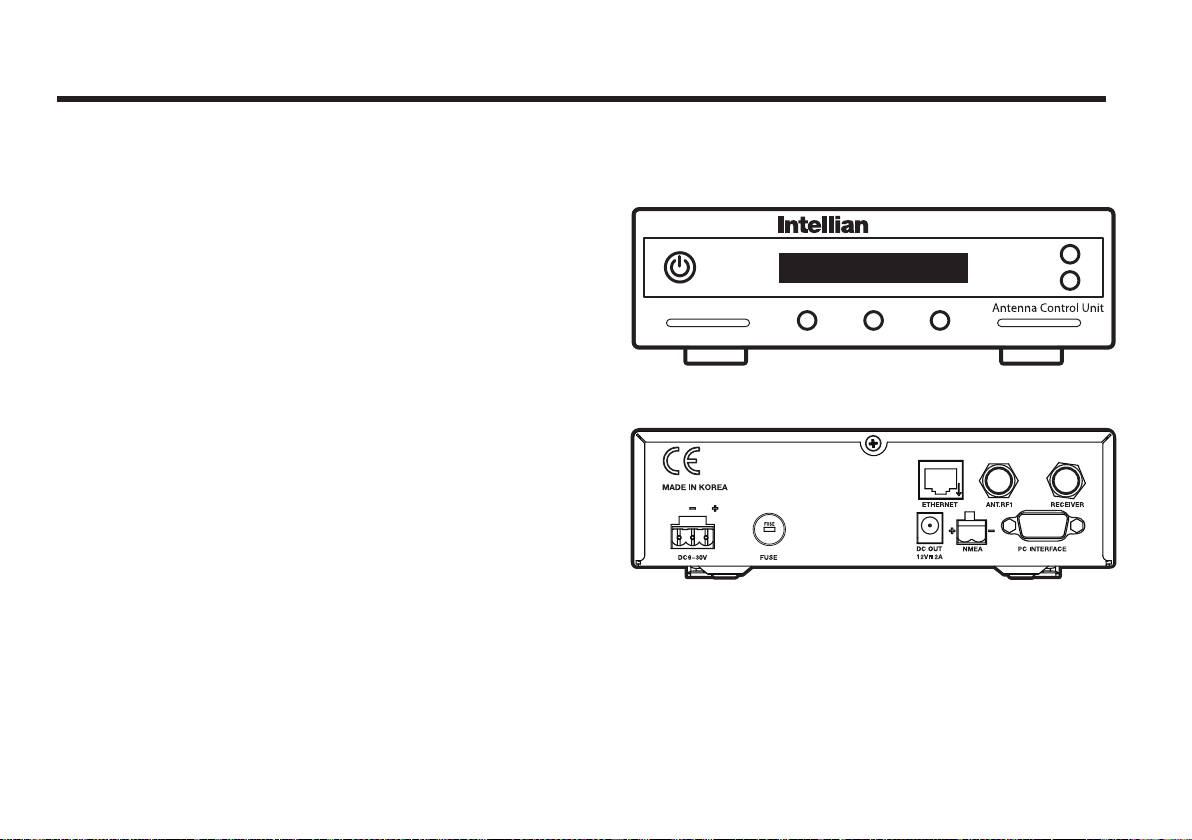

Figure 03 : Front & Rear of ACU
Front
Rear
9
Installation Kit
Contains the items required for securing the antenna unit and ACU to the vessel.
Other Components
4 Power Cable 33ft (10m) 1
5 PC Serial Cable 6ft (1.8m) 1
6 NMEA Connector AK950-2 1
7 Power Connector AK950-3 1
8 Hex Bolt M8x50L 5
9 Self-Tapping Screw ø4x16L 5
ø3x8L 5
10 Flat Washer M8 5
11 Spring Washer M8 5
12 SWM Power Supply - 1
13 SWM 8-Way Splitter - 2
14 Aptus CD - 1
15 Manual - 1
16 Mounting Template - 1
17 Quick Installation Guide - 1
No Components Size Qty
1 ACU Bracket - 2
2 RG6 (Antenna - ACU RF Cable) 49ft (15m) 2

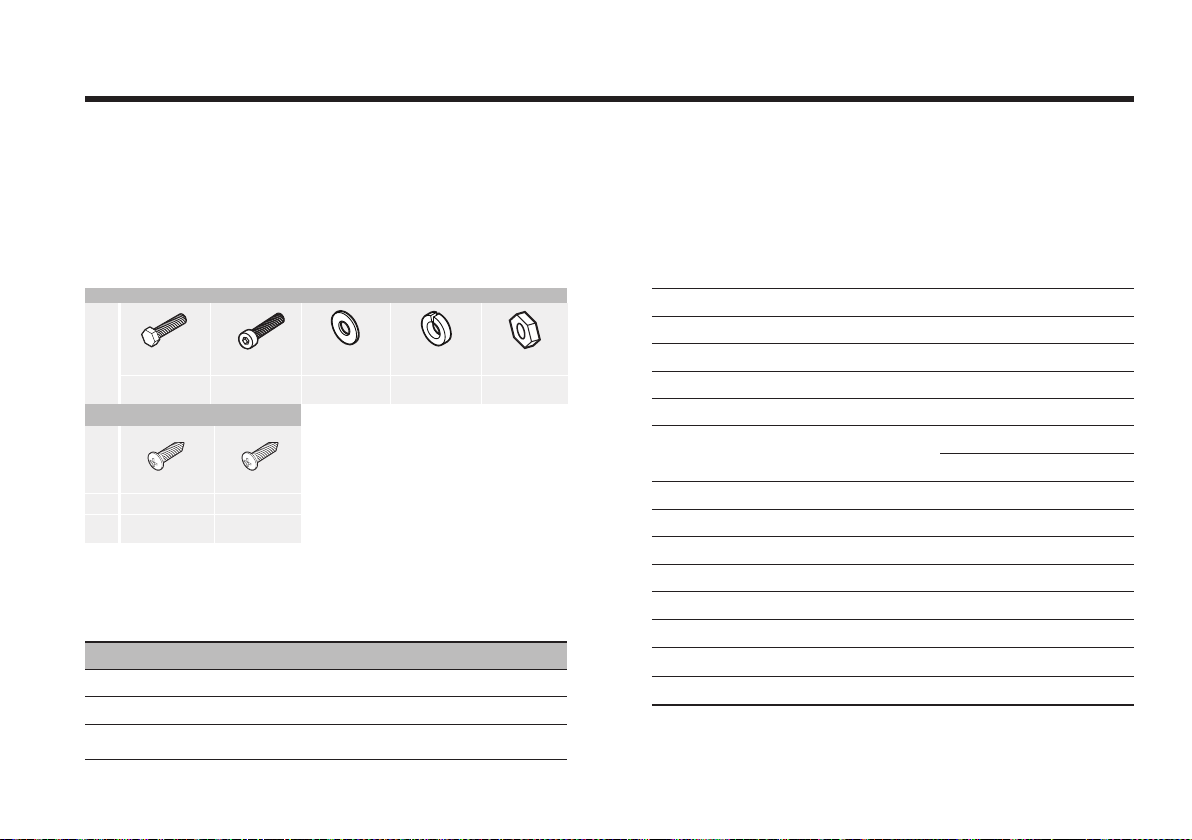

3 RG6 (ACU - IRD Cable) 9.8ft (3m) 2 Figure 05 : List of the Supplied Parts
Figure 4 : Installation Bolt Kit
Hex.Bolt
5
Hex.Head
Wrench Bolt
5
-
Flat Washer
5
Hex. Nut
5
Spring Washer
5
Antenna
Item
Qty
Item
Qty
Size
Self-Tapping Screw
5
(M4 X 16L)
Machine Screw
5
(M3 X 8L)
ACU
10
Intellian Satellite TV Antenna Systems
Tools Required for Installation
Power Drill 11 mm Spanner
Cross-Head
Screwdriver 13 mm Spanner
10 mm Drill Bit
Ø80 mm
Hole Saw
Pencil
5 mm
Allen/Hex key

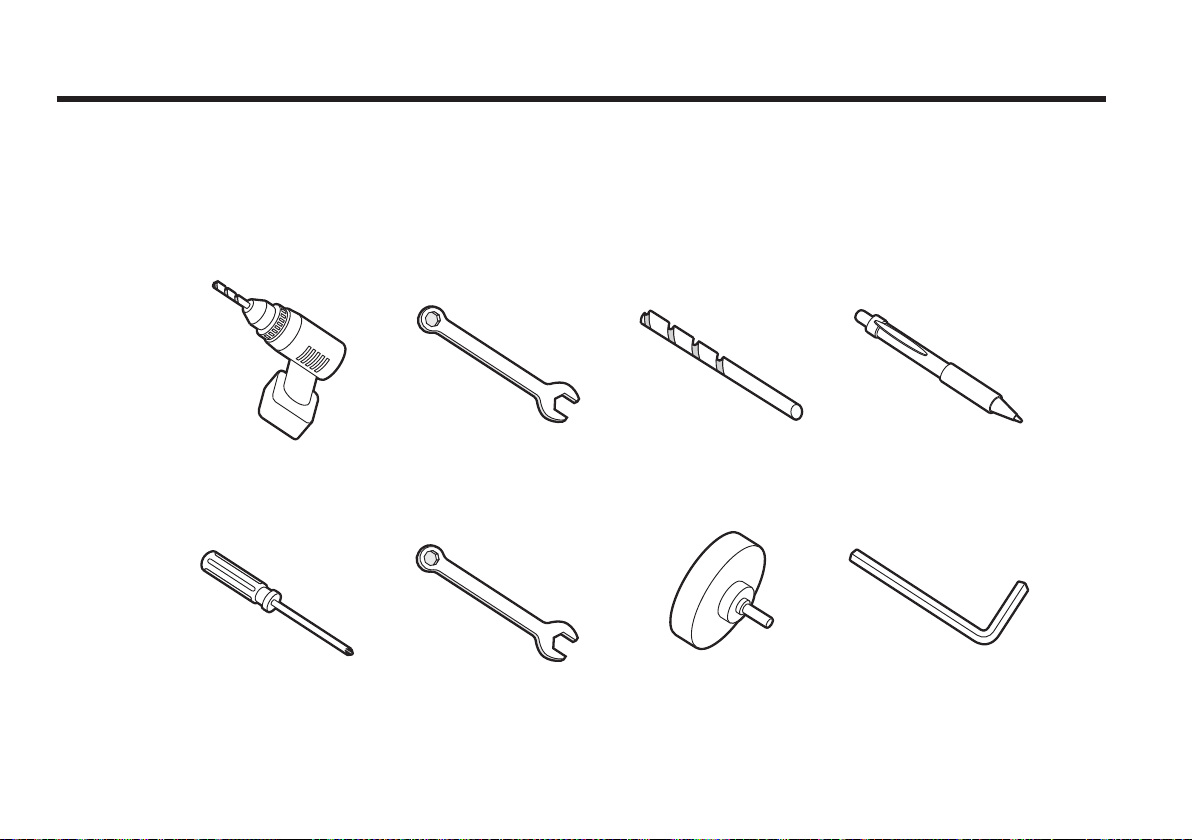

Figure 06 : Required Tools for Installation
