Intellinet 522731 Manuale utente

802.11g Super-G 108Mb Wireless Cardbus

Adapter

Quick Installation Guide

The enclosed Hardware Installation Guide gives you a step-

by-step explanation of how to install your 108Mb Super-G

Cardbus Adapter. Further technical assistance and all

updated drivers can be accessed at

www.intellinet-network.com

Here you have access to 24hour support and can contact our

support team to answer any questions you may have.

In order to provide the requested support we need the

following details from you:

•A clear description of the problem;

•Version number of the drivers you are using (always

check the website to see whether you are using the

latest version);

•Type of PC you are using;

•Operating system you are using

For more information about Intellinet products, please visit

the Intellinet Web Site: www.intellinet-network.com

ATTENTION!

The Software installation as described below, may be slightly

different from the installation on your computer. This

depends on the Windows version you are using.

BEFORE YOU GET STARTED…

Getting started:

Installing the software involves two steps. The first is to install the driver

and the second is to install the Configuration Utility.

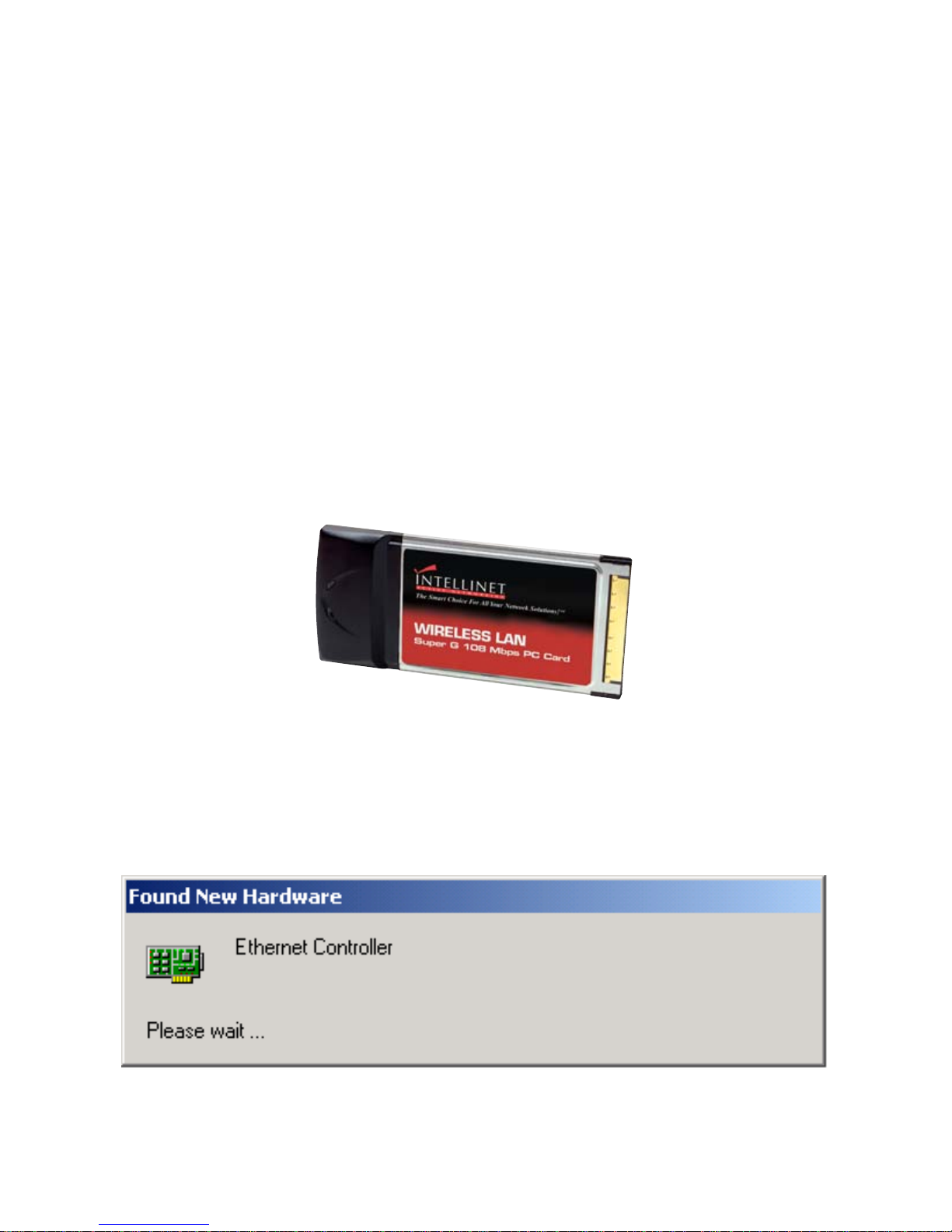

Installing the 802.11g Wireless PC-Card

Insert The 802.11g Wireless PC-Card into an available 32-bit

Cardbus slot.

Installing The Driver

When the 802.11g Wireless PC-Card has been inserted into a 32-bit

Cardbus slot, the Found New Hardware screen appears.

Continue with the installation and the screen below may appear. Click on

Yes to proceed with the installation.

Insert the Driver CD into the CD-ROM drive. If you have not inserted the

Driver CD into the CD-Rom a prompt such as the one below will appear.

Click OK.

Then, the installation will continue with the following screen and come to

completion.

Installing The Configuration Utility

Look for the file named “Setup.exe” on the installation CD-ROM. Double-

click on it to start the installation for the configuration utility.

When this screen appears click Next.

To install to the folder C:\Program Files\WLAN\ Utility click Next.

Otherwise click on Browse to choose an alternate location.

Click Next to proceed with the utility installation.The Select Program

Folder will then appear. You may add a new folder you wish to contain a

start up icon or choose one from the list provided. Click Next to proceed.

The Setup Status screen will appear to inform you that the installation is in

process, as seen below. This same screen will then alert you that all backup

files have been removed.

After WLAN Utility has been successfully installed, InstallShield Wizard

will prompt you to restart your computer. Select “Yes”and click on Finish.
