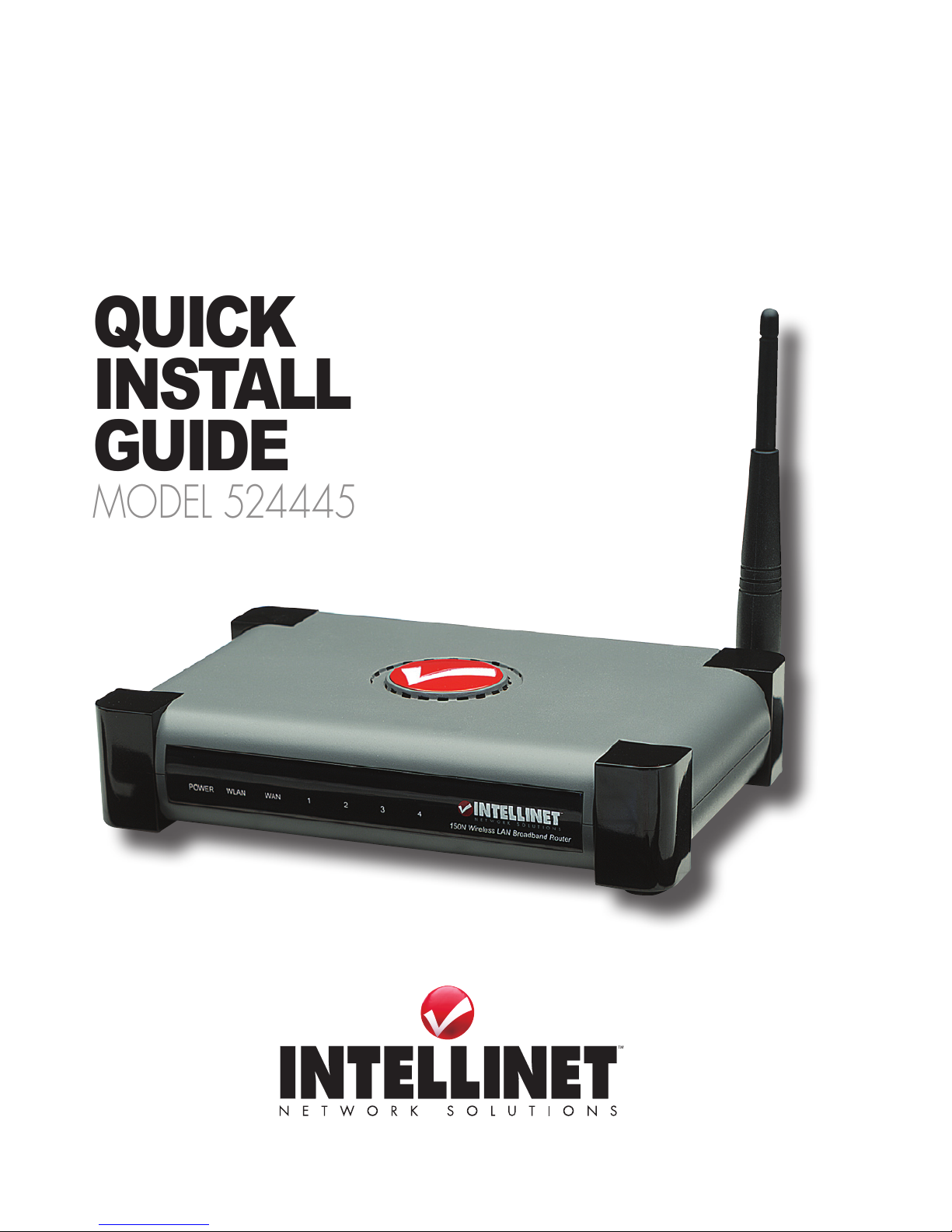

Intellinet 524445 Manuale utente

Wireless

150N

4-Port

router

quick

iNstall

guide

MODEL 524445

INT-524445-QIG-0908-04

Thank you for purchasing the INTELLINET NETWORK SOLUTIONS

™

Wireless 150N 4-Port Router, Model 524445. This quick install guide

presents the rudimentary steps required to set up and operate this device.

For specications and more detailed instructions, refer to the user manual

on the CD enclosed with this product or at www.intellinet-network.com.

Installation

1. Connect the LAN/Ethernet port of your DSL or cable modem to the

WAN port of the router using the provided RJ-45 Ethernet cable.

2. Connect all your computers and network devices (network-enabled

components like game consoles, network media players, network

storage units or LAN switches) to the LAN ports (1-4) of the router.

3. Connect the A/C power adapter to the wall socket, and then connect it

to the power socket of the router.

4. Check all LEDs on the front panel. The PWR LED should be on, and

the WAN and LAN LEDs should be on if the computer or network

device connected to the corresponding router port(s) are powered on

and correctly connected.

5. Connect your computer to one of the LAN ports of the router, then

activate the network connection. Start the Web browser — e.g., MS

Internet Explorer — and open

http://192.168.2.1 to display a

login window.

6. Enter “admin” for username

and “1234” for password.

Additional install instructions —

as well as explanations for all

the setup options — can be

found in the user manual on the

enclosed CD.

Safety Guidelines

• Do not place this router outdoors or near excessive heat or humidity.

• Do not yank any connected cables; disconnect them gently.

• If placing this device at heights or on a wall, make sure it’s rmly

secured to prevent damage or possible injury.

• Router parts (antenna, power supply, etc.) are dangerous should children

put them in their nose or mouth. Keep out of the reach of children!

• It’s normal for the router to become hot when used a long time, so keep

the router away from paper, cloth and other ammable materials.

• There’s no user-serviceable part inside the router. If you nd that the

router is not working properly, contact your dealer (place of purchase)

and ask for help. Do not disassemble the router: Doing so will void

the warranty.

• If the router falls into water while turned on, Do not touch it to remove

it! Turn off its power source before you do anything, or contact an

experienced technician for help.

• If smoke or strange odors emanaye from the router or power supply,

remove the power supply or turn the power off immediately.

3

INTELLINET NETWORK SOLUTIONS™offers a complete line

of active and passive networking products.

Ask your local computer dealer for more information or visit

www.intellinet-network.com.

Copyright © INTELLINET NETWORK

SOLUTIONS

All products mentioned are trademarks or registered trademarks of their respective owners.
