Intellix XVR1648 Manuale utente

Stand Alone Type

DVR SYSTEM

USER MANUAL

VR1648

Important Safety Instructions -------------------------------------------------- 4

Specification & Organization -------------------------------------------------- 5

Specifications

---------------------------------------------------------

Product Contents List --------------------------------------------------- 6

System Organization ---------------------------------------------------- 8

Product Description --------------------------------------------------------- 9

Front panel description --------------------------------------------------- 9

Rear panel description --------------------------------------------------- 10

Remote Controller description --------------------------------------------- 11

HDD , CD/DVD-RW Connect -------------------------------------------------- 12

Power On ----------------------------------------------------------------13

Live Display --------------------------------------------------------------- 14

Configuring the live display ----------------------------------------------- 14

PTZ -------------------------------------------------------------------- 15

Search ------------------------------------------------------------------ 16

Normal Search -------------------------------------------------------- 16

Panorama1 Search ----------------------------------------------------- 21

Panorama2 Search ----------------------------------------------------- 22

Smart

---------------------------------------------------------

Smart

Archiving ----------------------------------------------------------------24

Archiving ------------------------------------------------------------ 24

Archived Data Management ---------------------------------------------- 25

Setup-System ------------------------------------------------------------- 26

Camera ----------------------------------------------------------26

Alarm/Event ------------------------------------------------------ 29

Display ---------------------------------------------------------- 36

Audio -----------------------------------------------------------39

User ------------------------------------------------------------40

Network ---------------------------------------------------------42

System ----------------------------------------------------------44

Storage ---------------------------------------------------------- 46

Setup-Record ------------------------------------------------------------ 47

Record mode --------------------------------------------------------- 47

Normal

record

--------------------------------------------------------

Normal

record

--------------------------------------------------------

Intensive record ------------------------------------------------------- 51

Panic record ---------------------------------------------------------- 53

Sequence --------------------------------------------------------------- 54

Digital Zoom -------------------------------------------------------------- 55

RemoteSW installation ------------------------------------------------------- 56

System Requirement ---------------------------------------------------- 56

Introduction ----------------------------------------------------------- 57

RemoteSW Local Setup ------------------------------------------------------ 58

local setup ----------------------------------------------------------- 58

RemoteSW Search ----------------------------------------------------------- 62

Search Function Introduce ------------------------------------------------ 62

Search Method -------------------------------------------------------- 63

Search Option --------------------------------------------------------- 64

RemoteSW DVR System Setup ------------------------------------------------- 69

Camera -------------------------------------------------------------- 70

Alarm/Event ---------------------------------------------------------- 71

Display -------------------------------------------------------------- 74

Audio --------------------------------------------------------------- 76

User ---------------------------------------------------------------- 76

RemoteSW DVR Record Setup ------------------------------------------------ 77

Record Mode ---------------------------------------------------------- 77

Normal record --------------------------------------------------------- 79

ntens

ve recor

--------------------------------------------------------

Panic record ---------------------------------------------------------- 82

1) Read these instructions.

2) Keep these instructions.

IMPORTANT SAFETY INSTRUCTIONSIMPORTANT SAFETY INSTRUCTIONS

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with a dry cloth.

7) Do not block any of the ventilation openings. Install in accordance with the manufacturer's

instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has

two blades with one wider than the other.

A grounding type plug has two blades and a third grounding prong.

The wide blade or the third prong is provided for your safety.

When the provided plug does not fit into your outlet, consult an electrician for replacement

of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

11) Only use the attachments/accessories specified by the manufacturer.

12) Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold

ih h

e apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury

from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus

has been damaged in any way, such as power supply cord or plug is damaged, liquid has

been spilled or objects have fallen into the apparatus, the apparatus has been exposed to

been

spilled

objects

have

fallen

into

the

apparatus,

the

apparatus

has

been

exposed

rain or moisture, does not operate normally, or has been dropped.

15) This equipment is indoor use and all the communication wirings are limited to inside of the

building.

16) The socket-outlet shall be installed near the equipment and shall be easily accessible.

17) CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

# Operation Max temperature : 40℃

# USB Load condition: USB Ports( 5 Vdc, Max. 500 mA)

Specifications

SPECIFICATION&ORIGANIZATIONSPECIFICATION&ORIGANIZATION

MODEL XVR1648

Operation PENTAPLEX PENTAPLEX performance

(Doing Simultaneous Live Display/Recording/Playback/Archiving/

Networking effectively without interfering each other operations)

Video in Channels 16

Connection BNC, 1.0Vpp composite 75ohm balanced

Loop through BNC,1.0Vpp composite 75ohm unbalanced, auto termination

Audio in Channels 4

Connection line level unbalanced

Main Displays BNC 1.0Vpp composite 75ohm unbalanced

VGA 15 pin D-SUB 1024 x 768 @ 60Hz

Screen display modes 1 , 4 , 9 , 16

User defined channels for each mode

Sequence Adjustable dwell time, user defined sequences

Spot displays

Channels

4 fully programmable

Spot

displays

Channels

fully

programmable

Connection BNC, 1.0Vpp composite 75ohm unbalanced

Display mode Full screen sequence, adjustable dwell time

Audio out Channels 1

Connection RCA, line level unbalanced

External alarm Inputs 16(16 Open collector TR), NO or NC common ground

Outputs 16, high(+5V) or low(0V) selectable, common ground

User interface On screen display GUI, alpha blending

Control Front panel/IR Remote/USB Mouse

Recording Video CODEC MPEG-4

Resolution options for each

channel CIF (352 x 240, 352 x 288), 2 CIF (704 x 240, 704 x 288)), D1 (704 x 480, 704 x 576)

Maximum total frame rate 480 FPS (NTSC) / 400 FPS (PAL)

Image quality Highest, High, Standard, Low

Pre-event recording 5 seconds max

Recording modes Continuous / Motion detection / Alarm / User event / Panic

Frame rate options for each

channel 30 – 15 – 7.5 – 4 – 2 – 1

Schedule

Configurable recording time

limits Weekly / Daily per Camera

Audio

Audio inputs independently assigned to each channel

Audio

inputs

independently

assigned

each

channel

Motion detection 16 x 16 selectable grid with 10 levels of sensitivity

Covert recording Yes, selectable by channel

Camera title English and Numeral

SPECIFICATION&ORIGANIZATIONSPECIFICATION&ORIGANIZATION

Model XVR1648

Playback Speed Forward / reverse. 1x, 2x, 3x, 4x, 8x, 16x, 32x, 64x, 128x

Control Front panel buttons and Jog / Shuttle ring/USB Mouse

Search method Calendar / timeline, event log, Sequence, Thumbnail, Smart Search

Split screen display modes 1,4,16

Audio synchronization Yes, any frame rate

Archiving Storage CD-RW (DVD±RW option), USB Memory stick, Network

Format

Watermarked AVI

Format

Watermarked

AVI

Archive data Independent channels selection (video / audio), backup log, event log

Time Time zone Worldwide, Selectable

DST Yes

PTZ RS-485 Multi protocol, baud rate and speed control for each channel

System Watchdog Yes

Abnormal shutdown detection Yes, with system auto recovery

HDD error detection Yes, SMART monitoring

Network Connection RJ45, 10 / 100 Ethernet

DHCP Yes

DDNS Yes

Two way network audio Yes

Bandwidth management Yes

Remote client Client software Yes, Included

Remote configuration Yes

Remote PTZ control Yes

Email event notification Yes

Storage Maximum Capacity Not limited

Storage 4 x HDD maximum

Recording options Write once / Overwrite

Event handling Source Alarm in, motion detection, video loss, HDD error, User event

Action Record, alarm out, email notification, log, remote client popup, buzzer, full screen popup

Security

User levels

ADMIN MANAGER USER

Security

User

levels

ADMIN

MANAGER

USER

Key Lock Yes, password protected

Physical Dimensions 428mm(w) x 475mm(d) x 93mm(h)

Weight 12Kgs

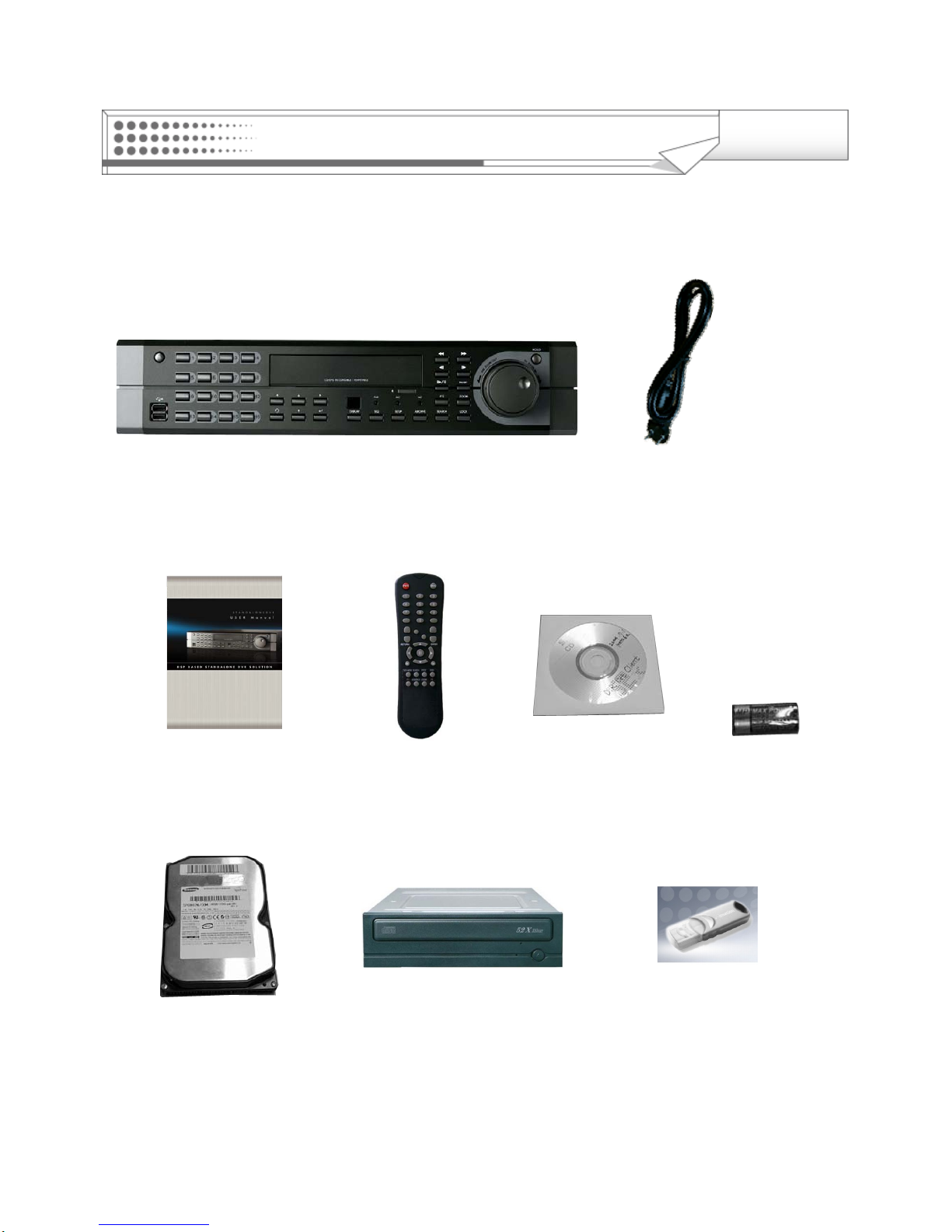

Product Contents List

Please confirm that all product contents are present after opening the package.

SPECIFICATION&ORIGANIZATIONSPECIFICATION&ORIGANIZATION

①Basic Contents

AC Power Cable

Remote ControllerInstruction Manual Remote Agent

Installation CD AAA Battery x 2

②Optional Contents

Internal Hard Disk Drive Internal CD-RW/DVD-RW Drive USB Thumb Drive

SPECIFICATION&ORIGANIZATIONSPECIFICATION&ORIGANIZATION

System Organization

Alarm Sensor #1-16 Relay Out Remote Client PC Image Printer

NETWORK

Camera #1-16

TCP/IP

Alarm Input/Out

AVI Backup

Video In

Video Out Backup

WEB Client

VCR VGA

Monitor A/V Monitor

Remote

Controller

CD-RW USB USB Mouse

Front Panel

PRODUCT DESCRIPTIONPRODUCT DESCRIPTION

POWER BUTTON

DISPLAY

Selects various display

modes in live display and

playback

LOCK

Locks the front panel buttons
