Interlogix IFS MC201-1FS Manuale utente

IFS MC201-1P/1FS

User Manual

P/N 1076525 • REV A • ISS 07FEB12

reserved.

Trademarks and

patents Interlogix, IFS MC201-1P/1FS, the IFS Brand and

logo are trademarks of UTC Fire & Security.

Other trade names used in this document may be

trademarks or registered trademarks of the

manufacturers or vendors of the respective

products.

Manufacture

UTC Fire & Security Americas Corporation, Inc.

2955 Red Hill Avenue, Costa Mesa, CA

92626-5923, USA

Version This document applies to IFS MC201-1P/1FS

version 1.0.

Certification N4131

FCC compliance Class A: This equipment has been tested and

found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference when the

equipment is operated in a commercial

environment. This equipment generates, uses,

and can radiate radio frequency energy and, if not

installed and used in accordance with the

instruction manual, may cause harmful

interference to radio communications. Operation

of this equipment in a residential area is likely to

cause harmful interference in which case the user

will be required to correct the interference at his

own expense.

ACMA

compliance Notice! This is a Class A product. In a domestic

environment this product may cause radio

interference in which case the user may be

required to take adequate measures.

European Union

directives 2004/108/EC (EMC directive): Hereby, UTC Fire

& Security declares that this device is in

compliance with the essential requirements and

other relevant provisions of Directive 2004/108/EC

2002/96/EC (WEEE directive): Products marked

with this symbol cannot be disposed of as

unsorted municipal waste in the European Union.

For proper recycling, return this product to your

local supplier upon the purchase of equivalent

new equipment, or dispose of it at designated

collection points. For more information see:

www.recyclethis.info.

Contact

information www.utcfireandsecurity.com or

www.interlogix.com

Customer support www.interlogix.com/customer-support

IFS MC201-1P/1FS User Manual i

Contents

Overview 1

About the MC201-1P/1FS 1

Package Contents 2

Hardware Overview 3

Front Panel 4

Back Panel 4

Link Fault Pass-through (LFP) 4

Link Loss Carry Forward (LLCF) 5

Link Loss Return (LLR) 6

Installing the Converter 7

PoE Function 8

LED Indicators 9

System 9

10/100Base-TX Port 9

100Base-FX SC Port 9

Specifications 11

Cable Specifications 12

RJ-45 Pin Assignments 12

RJ-45 Cable Pin Assignments 12

Fiber Optic Cable Connection

Specifications 13

Contacting Technical Support 14

IFS MC201-1P/1FS User Manual 1

Overview

Thank you for purchasing the IFS MC201-1P/1FS 10/100Mbps

Ethernet Twisted pair to 100Base-FX fiber optic PoE Bridge

Converter. This converter is used to convert one type of media

signal to a different type of media that allows two segments to

connect easily, efficiently and inexpensively. The converter

supports Power over Ethernet to power one IEEE 802.3af

compliant powered device.

About the MC201-1P/1FS

The MC201-1P/1FS is an IEEE 802.3af Power over Ethernet

Converter that supplies 48 VDC over Ethernet cable. The

MC201-1P/1FS IEEE 802.3af Power over Ethernet Converter

inserts DC Voltage onto a Category 5 cable, allowing the cable

between the Converter (MC201-1P/1FS) and PoE PD

(Powered Device) to transfer data and power simultaneously.

The maximum distance between the Converter (MC201-

1P/1FS) and PoE PD is 328 ft. (100m). MC201-1P/1FS

combines Ethernet with IEEE 802.3af power and transfers

over the twisted pair cables. A PoE splitter can be used to

separate the Ethernet data and power if needed to power a

non-PoE device.

With the MC201-1P/1FS, only one Ethernet cable is needed to

carry both power and data to each device providing simpler

network designs, higher reliability while reducing costs.

Note: PSE (Power Sourcing Equipment) is a device (switch, or

hub for instance) that will provide power in a PoE setup. The

maximum allowed continuous output power per such device is

15.4W according to the IEEE 802.3af standard.

2 IFS MC201-1P/1FS User Manual

PD (Powered Device) is a device powered by the PSE and

thus consumes energy, such as IP Phones, network cameras

and Wireless access points, etc.

Package Contents

Open the package containing the MCR205-1T/1S and

carefully unpack it. The box should contain the following items:

• MCR205-1T/1S PoE Media Converter x1

• User’s Manual CD x1

If any of these items are missing or damaged, please contact

your dealer immediately. If possible, retain the product box

including the original packing material to return it for

repair/replacement.

IFS MC201-1P/1FS User Manual 3

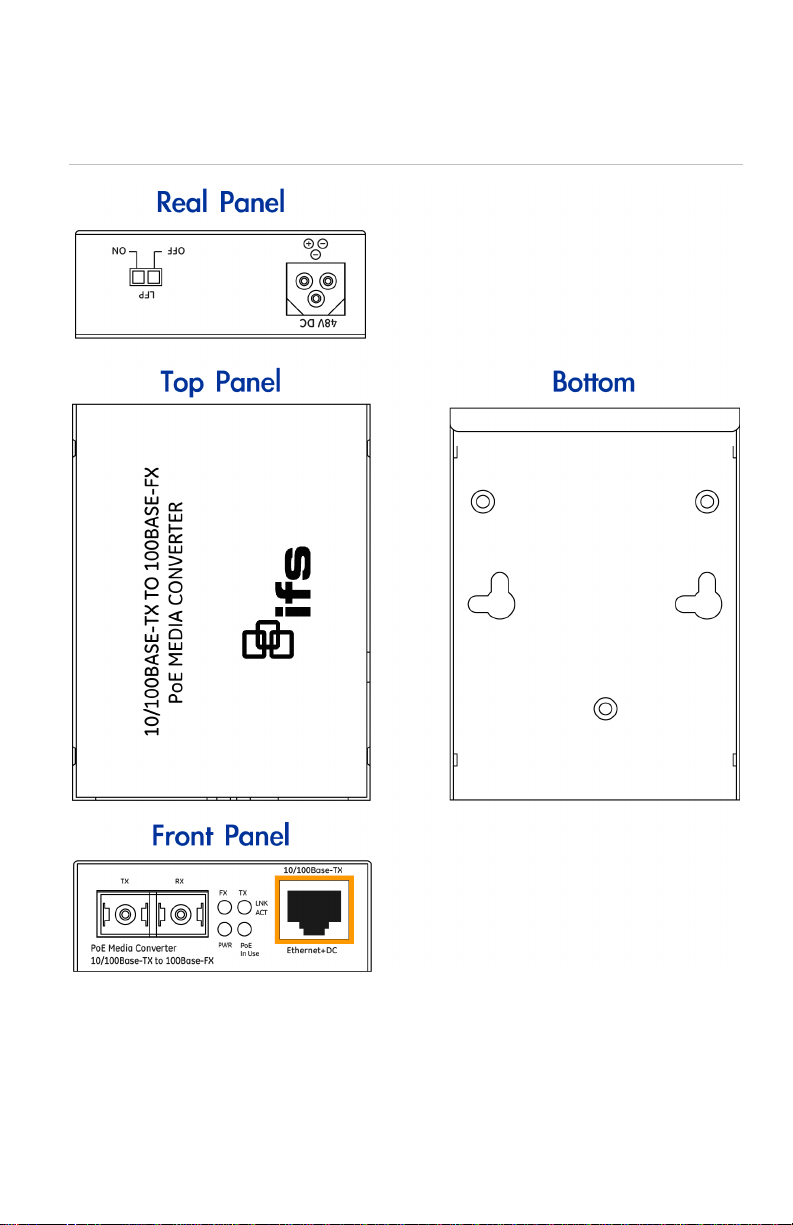

Hardware Overview

Figure 1: Physical Layout

4 IFS MC201-1P/1FS User Manual

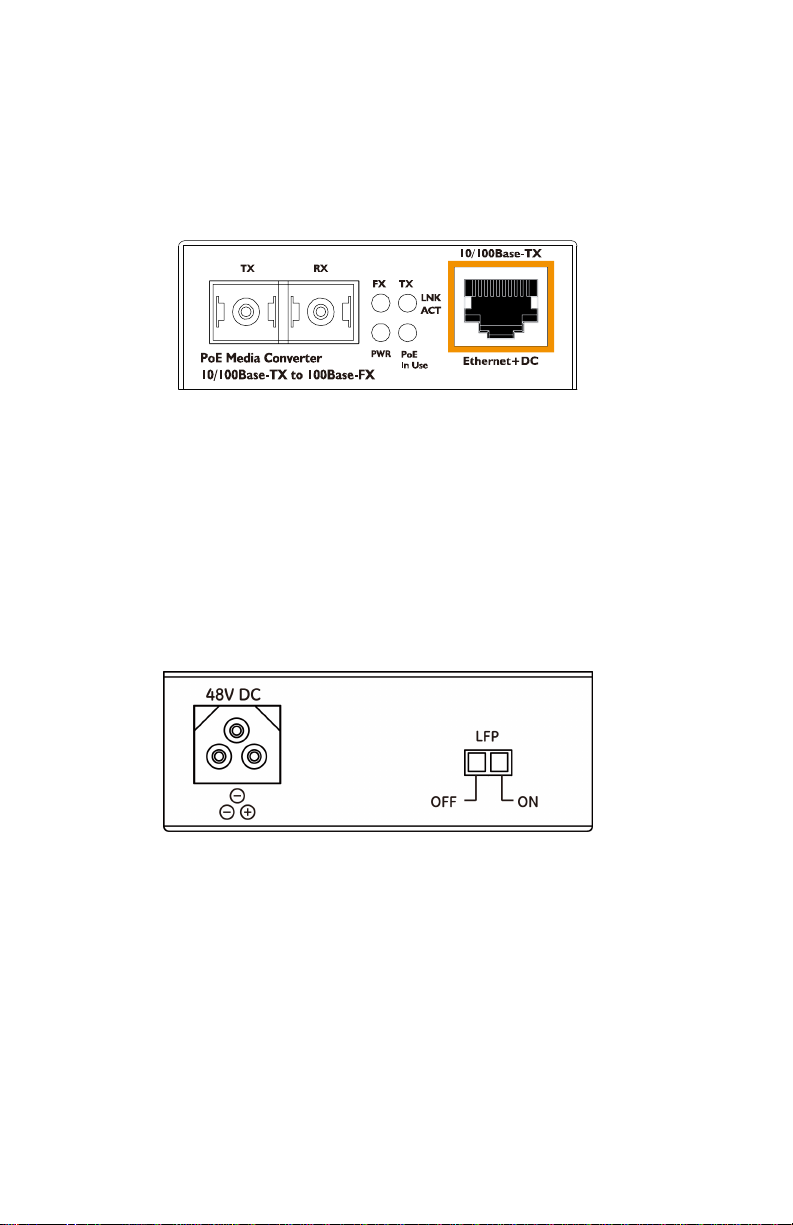

Front Panel

There is one RJ-45 Twisted-Pair jack (Auto-MDI/MDI-X), one

fiber-optic connector and four LED indicators on the MC201-

1P/1S front panel.

Back Panel

There is one DIP switch for turning the Link Fault Pass-

through feature on or off, and 48V DC power input located at

the back panel. The back panel also has one 48 VDC power

socket for the MC201-1P/1S.

Note: Please make sure that the 48VDC power supply used is

capable to provide 0.32A to support full PoE load.

Link Fault Pass-through (LFP)

The LFP function refers to the Link Fault Pass-through

function (LLCF/LLR) and the DIP Switch design. LLCF/LLR

can immediately notify administrators about a connectivity

problem. The DIP Switch enables or disables the LFP function.
