Interlogix GE-DS-82 Istruzioni per il montaggio
© 2010 UTC Fire & Security.
All rights reserved.
P/N 1069669-EN • REV 1.01 •
ISS 19AUG101 of 11
GE-DS-82 and GE-DS-82-
PoE Managed Switch
Installation Sheet
Package Contents
Thank you for purchasing the Interlogix 8-Port Fast Ethernet + 2-Port Gigabit
TP/SFP Combo Managed PoE Switch.
The following Managed Switch model numbers are covered in this sheet:
•GE-DS-82
• GE-DS-82-PoE
Open the box of the Managed Switch and carefully unpack it. The box should
contain the following items:
• The Managed Switch x1
• User manual CD x1
• This Installation Sheet x1
• RS-232 cable x1
• Rubber feet x 4
• Two rack-mounting brackets with attachment screws x1
• Power Cord x1
If any item is found missing or damaged, please contact your local reseller
for replacement.
System Requirements
Your switch is designed to operate with a variety of platforms, operating
systems and network cards. Actual performance will depend on a
combination of these components. Differences in performance can occur
depending on the versions and types of platforms, operating system and
network cards used.
The minimum system requirements are:
• Clients running Windows 98/ME, NT4.0, 2000/XP, Vista, MAC OS9 or
later, Linux, UNIX or other platform compatible with TCP/IP protocols.
• Workstation installed with an Ethernet NIC (Network interface Card)
• Serial Port connection (Terminal)
• Above PC with COM Port (DB-9)
• Ethernet Port connection
• Network cables - Use standard network (UTP) cables with RJ45
connectors.
• Above PC installed with WEB Browser and JAVA runtime
environment Plug-in
Note: We recommend using Windows XP or Windows 7 with Internet
Explorer 6.0 or above for access to the switch management setup.
2 of 11 P/N 1069669-EN • REV 1.01 • ISS 19AUG10
Terminal Setup
There are three ways to access and setup your switch. They are:
• RS-232 console
• Telnet
• Web Browser
RS-232 console
To configure the system, connect a serial cable to a COM port on a PC or
notebook computer and to the serial (console) port of the GE-DS-82
Managed Switch. The console port of the Managed Switch is DCE already,
so that you can connect the console port directly through PC without the
need of Null Modem.
Figure 1: Terminal setup diagram
PC / Workstation with terminal
emulation software Managed switch
Serial port Serial port 115200,8,n,1
A terminal program is required to make the software connection to the GE-
DS-82 and the GE-DS-82-PoE Managed Switch. Window’s Hyper Terminal
program is a good choice. The Hyper Terminal program can be accessed
from the Start menu.
1. Click START, then Programs/ Accessories and then Hyper Terminal.
2. When the COM1 Properties window appears, configure the COM port
with the following parameters and then click the OK button.
• Baud : 57600
• Parity : None
• Data bits : 8
• Stop bits : 1
• Flow Control : None
P/N 1069669-EN • REV 1.01 • ISS 19AUG10 3 of 11
Figure 2: The COM1 properties window
Logon to the Console
Once the terminal has connected to the device, Supply power to the GE-DS-
82 and the GE-DS-82-PoE Managed Switch, the terminal will display that it is
running testing procedures.
The following message asks for the login username and password. The
factory default password for the login screen is:
• Username: admin
• Password: admin
4 of 11 P/N 1069669-EN • REV 1.01 • ISS 19AUG10

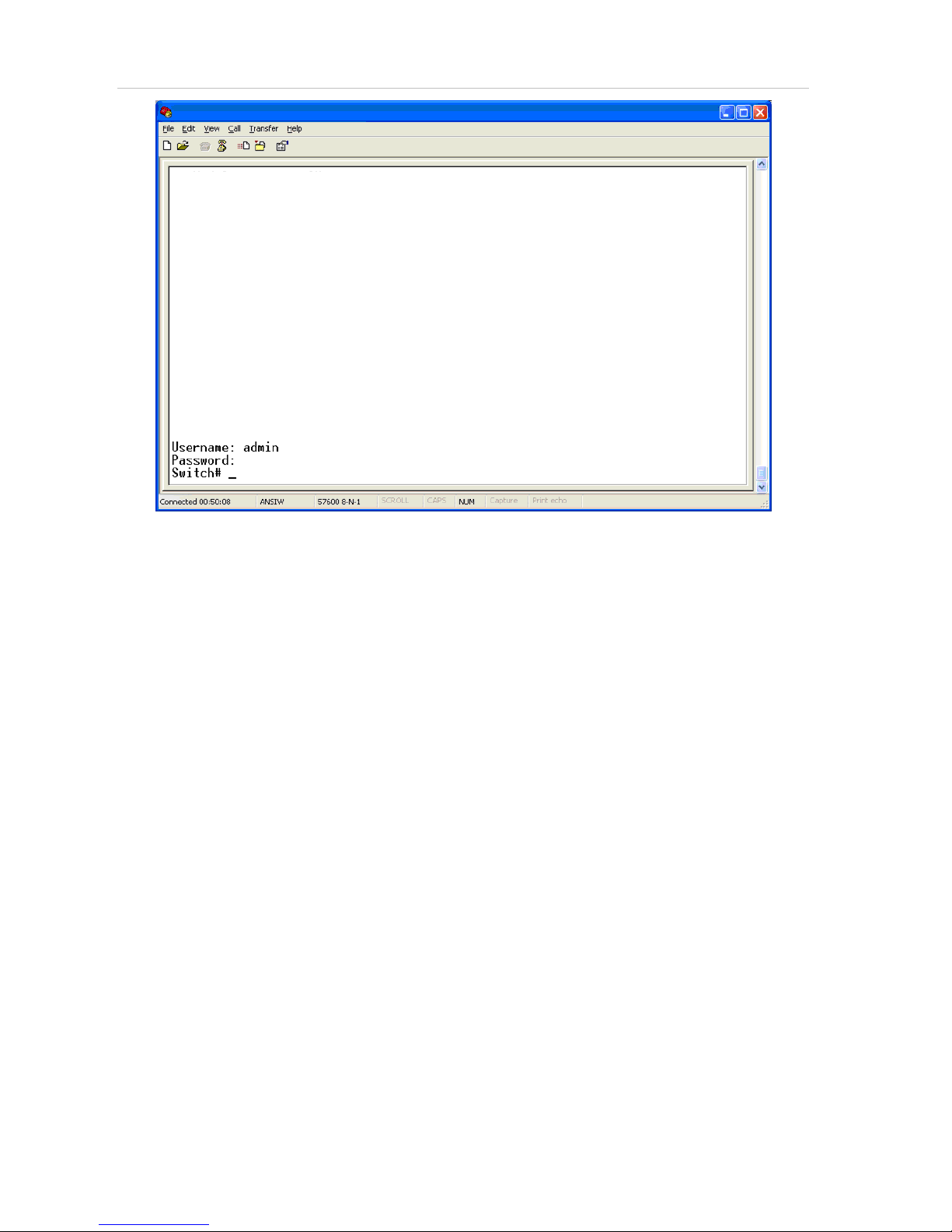

Figure 3: GE-DS-82 Login screen
Note: For security reasons, please change and memorize the new password
after this first setup. Passwords must be entered in lowercase letters in the
console interface.
P/N 1069669-EN • REV 1.01 • ISS 19AUG10 5 of 11
Telnet
Setup
1. Connect
an RJ-45
cable from
the PC to a
Switch port
on the
Managed
Switch.

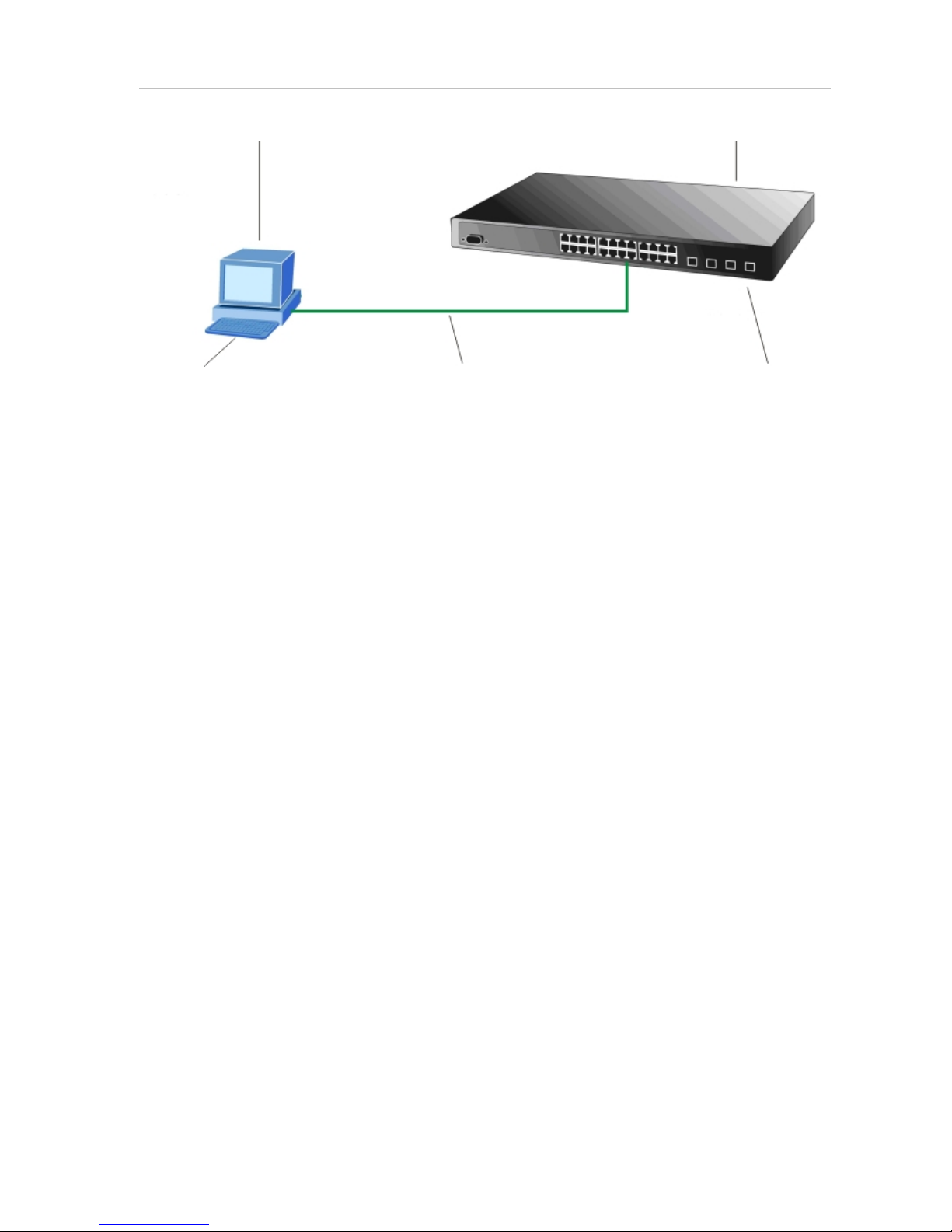

Figure 4: RJ-45
connection
diagram
PC / Workstation with IE
browser Managed
switch
IP address:
192.168.0.X RJ-45 / UTP cable IP address:
192.168.0.100
2. Launch the Hyper Terminal program. A terminal program is required
to make the software connection to the Managed Switch. Windows'
Hyper Terminal program is a good choice. Hyper Terminal can be
accessed from the Start menu. Click START, then Programs,
Accessories and then Hyper Terminal.
3. The following screen will appear. Input a new connection name. You
should use something like the model name of your switch.
Figure 5: The New Connection dialog window
6 of 11 P/N 1069669-EN • REV 1.01 • ISS 19AUG10
4. Change the Connect using drop-down menu to TCP/IP (Winsock) then
input the Host address. The Managed Switches default IP address is
192.168.0.100 and the default telnet port number is 23, then press the
OK button.
Figure 6: The
Connect to
dialog
window
Log on to the Console
Make sure the device has finished booting. Once telnet has connected to the
device, the Hyper terminal will display the login request.
The following message asks for the login username and password. The
factory default password username and password is:
User name: admin
Password: admin
P/N 1069669-EN • REV 1.01 • ISS 19AUG10 7 of 11
Figure 7: The Login request window
Now you can configure the Switch by Telnet.
Web Browser Setup
Start Web Management
The following shows how to start up the Web Management of the GE-DS-82
Managed Switch. Please note that the Managed Switch is configured through
an Ethernet connection, make sure the manager PC must be set on the
same IP subnet address.
For example, the default IP address of the GE-DS-82 Managed Switch is
192.168.0.100, then the manager PC should be set at 192.168.0.x (where x
is a number between 1 and 254, except 100), and the default subnet mask is
255.255.255.0.
8 of 11 P/N 1069669-EN • REV 1.01 • ISS 19AUG10
Figure 8: IP management diagram
PC / Workstation with IE
browser Managed
switch
IP address:
192.168.0.X RJ-45 / UTP cable IP address:
192.168.0.100
Login to the managed Switch
1. Enter the IP address http://192.168.0.100 (the factory-default IP address
or one you have previously changed in the console) in the Web Browsers
Address Field
2. The following dialog box appears, please enter the default password
"admin" (or the password you have changed via console). The login
screen in Figure 9 appears.
• Default IP Address: 192.168.0.100
• Default Username: admin
• Default Password: admin
P/N 1069669-EN • REV 1.01 • ISS 19AUG10 9 of 11
Figure 9: Login screen
3. After entering the username and password, the main screen appears as
shown in Figure 10.
Figure 10: Main Screen of the GE-DS-82 PoE
4. You can use the Web Management interface to continue the Switch
management, please refer to the user manual for more information.
NOTE: For security reasons, please change and memorize the new
password after this first setup.
10 of 11 P/N 1069669-EN • REV 1.01 • ISS 19AUG10
