Intermec PB50 Manuale utente

Vehicle Cradle

AV8

车载固定座安装指南

車用支架安裝指南

Guide d’installation du socle de véhicule

Installationsanleitung für Fahrzeugträger

차량 거치대 설치 안내서

Manual de Instalação da Base para Veículos

Инструкция по установке автомобильного

кронштейна

Guía de instalación del soporte para vehículos

Installation

Guide

PB50

PB51

All manuals and user guides at all-guides.com

all-guides.com

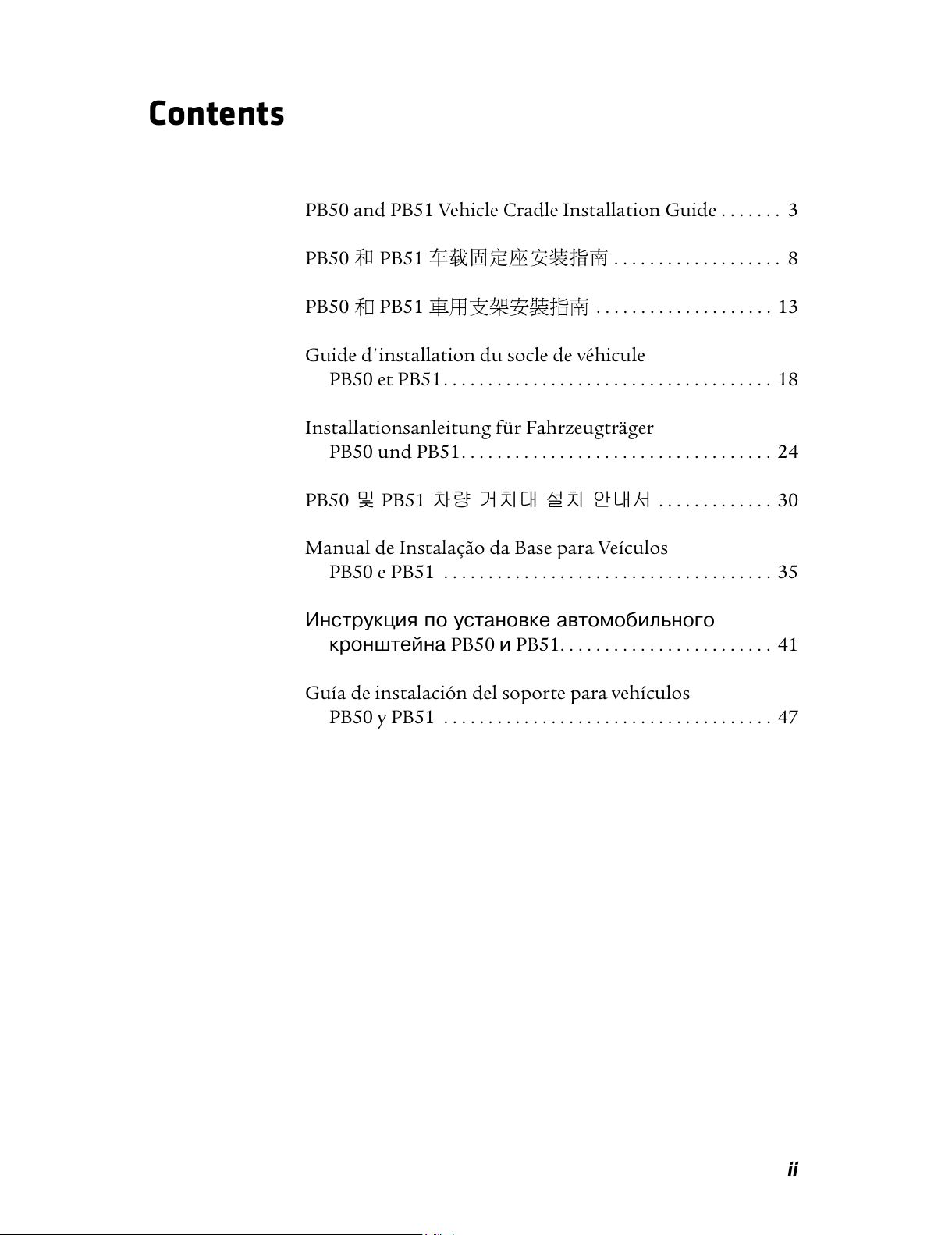

Contents

PB50 and PB51 Vehicle Cradle Installation Guide . . . . . . . 3

PB50 和PB51 车载固定座安装指南 . . . . . . . . . . . . . . . . . . . 8

PB50 和 PB51 車用支架安裝指南 . . . . . . . . . . . . . . . . . . . . 13

Guide d'installation du socle de véhicule

PB50 et PB51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Installationsanleitung für Fahrzeugträger

PB50 und PB51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

PB50 및 PB51 차량 거치대 설치 안내서 . . . . . . . . . . . . . 30

Manual de Instalação da Base para Veículos

PB50 e PB51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Инструкция по установке автомобильного

кронштейна PB50 иPB51. . . . . . . . . . . . . . . . . . . . . . . . 41

Guía de instalación del soporte para vehículos

PB50 y PB51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

All manuals and user guides at all-guides.com

PB50 and PB51 Vehicle Cradle Installation

Guide

Use this guide to install the PB50 and PB51 Vehicle Cradle

(Model AV8) for the PB50 and PB51 printers. The vehicle cradle

provides a convenient way to mount the PB50 or PB51 to your

vehicle for charging or printing.

The shipping box for the vehicle cradle contains these items:

What You Need

•Power cord. You need to purchase the appropriate power

cord separately. For help, contact your Intermec sales

representative.

•Small Phillips screwdriver.

RAM vehicle base

RAM cradle base

Mounting arm

Vehicle cradle

Documentation

Hardware

All manuals and user guides at all-guides.com

Installing the Vehicle Cradle

1Attach the RAM cradle base to the vehicle cradle using the

four button head hex screws and the hex key.

2Attach the RAM vehicle base to your vehicle using the four ¼-

inch-flathead hex screws and nuts.

3Attach the vehicle cradle to the RAM vehicle base by placing

the mounting arm over the two bases and then tightening

the mounting arm.

Hex screw

(4 places)

Cradle base

Vehicle

cradle

Mounting arm

Vehicle

base

Vehicle

cradle

Cradle

base

All manuals and user guides at all-guides.com

4Using a small Phillips screwdriver, remove the two screws

from the connector cover on the back of the PB50 or PB51

and save the screws and the connector for a later use if

necessary.

5Insert the PB50 or PB51 into the vehicle cradle and then pull

out and push back on the blue lever.

6Press the PB50 or PB51 into the vehicle cradle until you hear

a click and the printer is firmly connected to the vehicle

cradle.

All manuals and user guides at all-guides.com

7Push in on the blue lever to lock the PB50 or PB51 into the

vehicle cradle.

8Attach the power cord to the connector on the side of the

vehicle cradle.

9Connect the other end of the power cord to your vehicle.

Caution: Do not use the serial port in the vehicle dock at the

same time as the serial port in the printer. Doing so will

result in corrupted data. Please use only one or the other.

All manuals and user guides at all-guides.com

all-guides.com

Using the Vehicle Cradle With Fanfold Media

If you want to use fanfold media with the vehicle cradle, use the

following procedure to understand how to route the media

through the printer.

To use the vehicle cradle with fanfold media

1Position the box that contains the fanfold media in a

convenient location.

2Press the media cover release button to open the media door.

3Route the media through the slot in the bottom of the

printer and pull a few inches through the printer.

4Close the media door.

All manuals and user guides at all-guides.com

PB50 和PB51 车载固定座安装指南

请按照本指南安装用于固定 PB50 和 PB51 打印机的 PB50

和PB51 车载固定座（型号 AV8）。使用本车载固定座，您

可方便地将 PB50 或PB51 安装到您的车辆中，从而供您充电

或打印。

本车载固定座的包装箱内包含以下产品：

不提供以下产品 :

•电源线。您需要单独购买适当的电源线。如需帮助，请联

系当地的 Intermec 销售代表。

•小型飞利浦十字螺丝刀。

All manuals and user guides at all-guides.com

安装车载固定座

1使用 4 个内六角平圆头螺钉和内六角扳手将 RAM 固定

座基座装配到车载固定座上。

2使用 4 个 6.3 mm 的内六角沉头螺钉和螺母将 RAM 车

载基座装配到您的车辆上。

3将安装臂放置在两个基座上，然后拧紧安装臂，这样可将

车载固定座和 RAM 车载基座装配在一起。

All manuals and user guides at all-guides.com

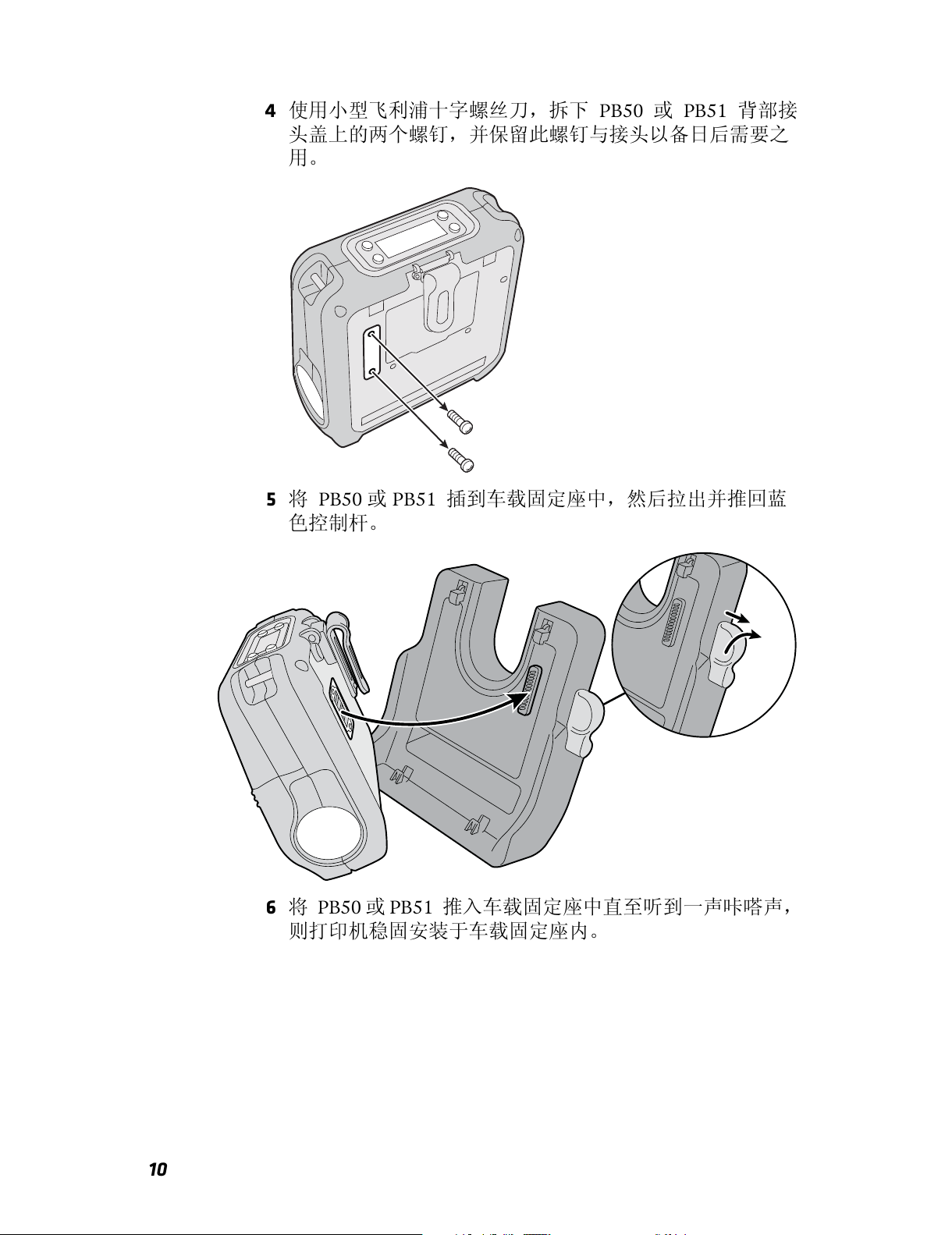

4使用小型飞利浦十字螺丝刀，拆下 PB50 或 PB51 背部接

头盖上的两个螺钉，并保留此螺钉与接头以备日后需要之

用。

5将 PB50 或PB51 插到车载固定座中，然后拉出并推回蓝

色控制杆。

6将 PB50 或PB51 推入车载固定座中直至听到一声咔嗒声，

则打印机稳固安装于车载固定座内。

All manuals and user guides at all-guides.com
