Intermec CK1 Serial Dock Manuale utente

What Is the Battery Charger? Charging Batteries Understanding the Lights

The CK1 Battery Charger (P/N 073660) is an accessory for the CK1 Handheld Computer. You

use the battery charger to charge the CK1 battery (P/N 073659).

This guide explains how to install and use the battery charger. Before using the battery

charger, please read this guide thoroughly and save it for future reference.

What You Need

To use the battery charger, you need one of the following AC power supplies:

You can charge the CK1 battery (P/N 073659) in the CK1 battery charger. The battery charger

fully charges the battery in about 5 hours.

This table explains what the different colors of the Charging and Power lights mean.

To charge batteries

•With the contacts on the battery aligned with

the contacts on the charger, slide the battery

into the slot.

The Charging light for that slot changes to green

or red to indicate the battery charge status. See

“Understanding the Lights” to learn what the

Charging light colors mean.

You must use the appropriate Intermec power supply with this device or

equipment damage may occur.

Attention: Vous devez utiliser la source d’alimentation Intermec

adéquate avec cet appareil sinon vous risquez d’endommager

l’équipement.

CK1 Battery Charger Quick Start Guide

Region Part Number

Australia 073855

Europe 073853

United Kingdom 073852

United States 073854

Light Color Description

Charging Red

Green

The battery charger is charging the battery.

The battery is fully charged.

Power Off

Green

The battery charger is not receiving power. Make sure the AC

power supply is connected properly.

The battery charger is connected to AC power and is ready to

charge.

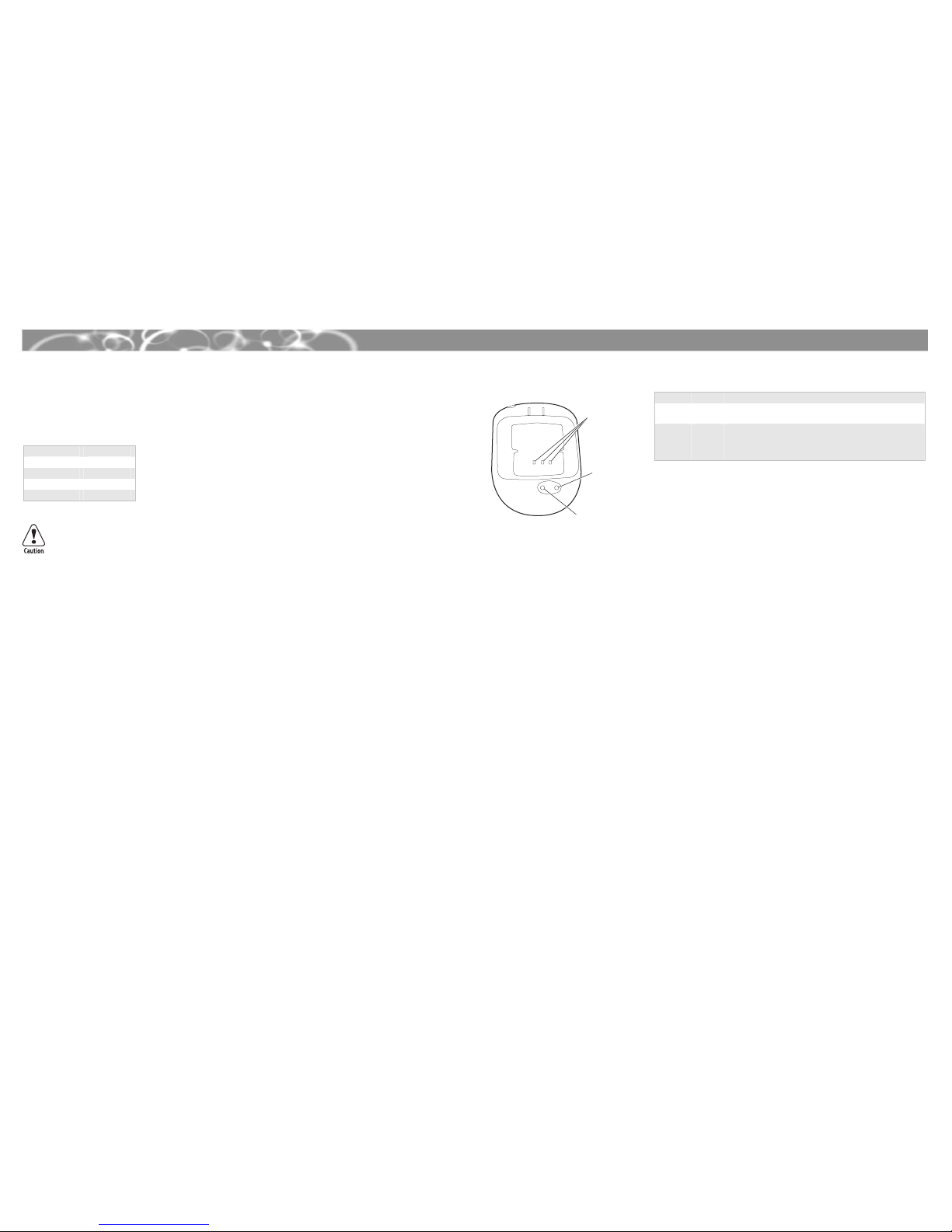

Power

light

Battery

contacts

Charging

light

Heading 1

Specifications

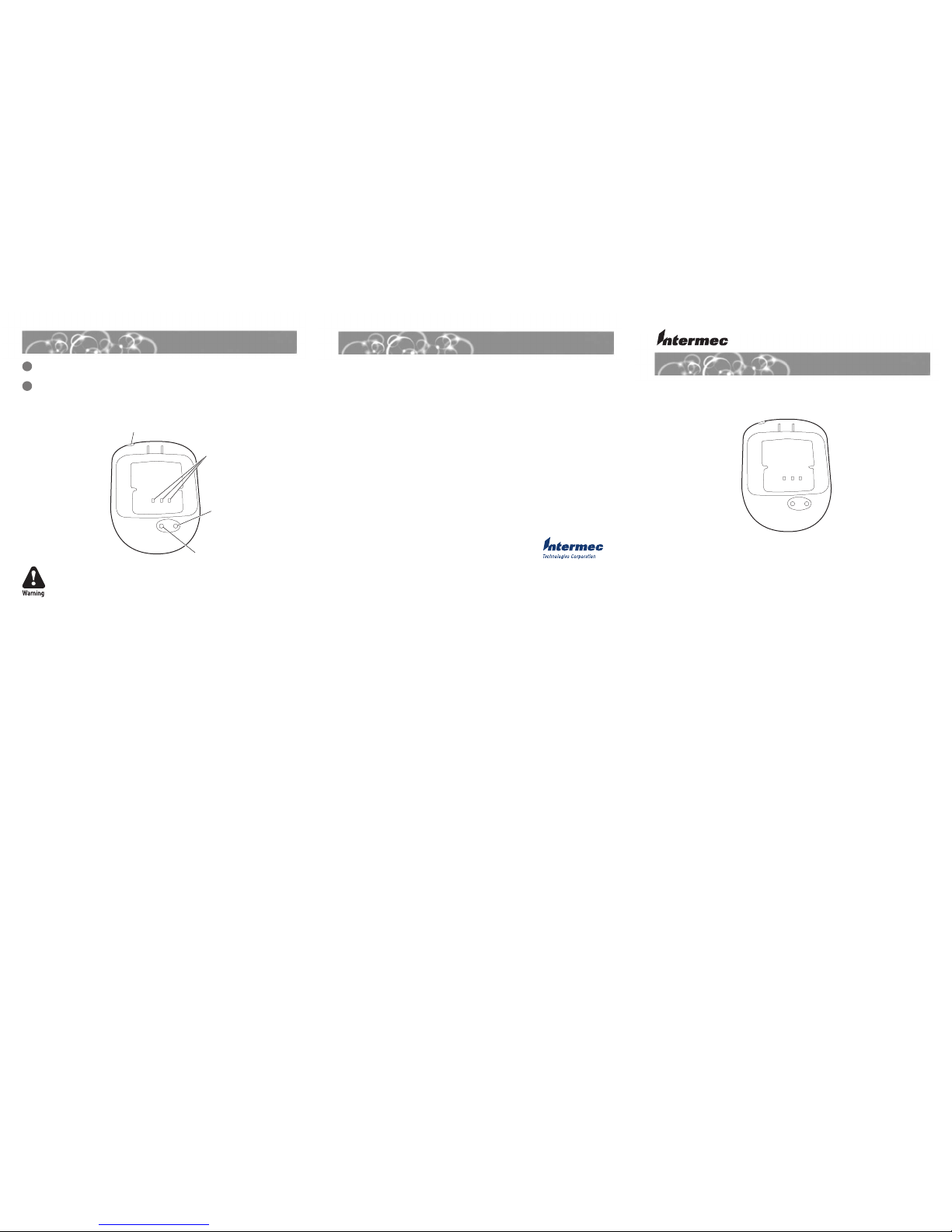

Installing the Battery Charger Specifications

Quick Start Guide

CK1 Battery Charger

CK1 Battery Charger Quick Start Guide

*073776-001*

P/N 073776-001

Place the battery charger on a flat, stable, and clean surface that is within 1.5 m (5

ft) of an AC power outlet.

Connect the AC power supply to the power supply connector on the battery

charger and to an AC power outlet. The Power light turns on, showing that the

battery charger is ready to use.

To prevent fire or electric shock, do not expose the battery charger to rain or

moisture.

Avertissement: Pour éviter des risques d’incendie ou de choc électrique, ne

pas exposer le chargeur de batterie à la plui ou l’humidité.

You may need additional information when working with the CK1 and battery charger in a

data collection system. Please visit our web site at www.intermec.com to download PDF files

of our current manuals. To order printed versions of the Intermec manuals, contact your local

Intermec representative or distributor.

For More Information

Power

supply

connector

Power

light

Battery

contacts

Charging

Input Voltage: x 6V

Current: 400 mA

Operating Temperature: 5°C to 40°C (41°F to 104°F)

Storage Temperature: -20°C to 70°C (-4°F to 158°F)

Operating Humidity: 0% to 95% non-condensing relative humidity

6001 36th Avenue West

Everett, WA 98203

U.S.A.

www.intermec.com
