EasyCoder®PD41/PD42

Parallel IEEE 1284 Interface Installation Instructions

These instructions tell you how to install the Parallel IEEE 1284 Interface

Board in a EasyCoder PD41/PD42 printer. The kit includes the following:

• Parallel IEEE 1284 Interface Board with I/O Bus Cable

Required Tools

To install the interface board in your printer, you need these tools:

• Screwdriver, slotted

• Screwdriver, Phillips

Installing the Interface Board

Before you begin installation, please acknowledge the following important

safety notes:

The installation described in this section must only

be performed by an authorized service technician.

Intermec assumes no responsibility for personal

injury or damage to the equipment if the

installation is performed by an unauthorized

person.

Die in diesem Abschnitt beschriebene Installation

darf nur von einem autorisierten

Wartungstechniker durchgeführt werden. Intermec

übernimmt keine Verantwortung für Verletzungen

oder Sachschäden, falls die Installation von einer

unberechtigten Person durchgeführt wird.

Make sure the printer has been turned off and

disconnected from the power supply before you

start installation.

Stellen Sie sicher, dass der Drucker abgeschaltet

und von der Stromversorgung abgetrennt wurde,

bevor Sie mit der Installation beginnen.

To install the Parallel IEEE 1284 interface board

1Turn off the printer and unplug the power cord..

2Open the side door. Remove the two screws that hold the cover to the

electronics compartment.

3Lay the printer down on its side, with the electronics compartment facing

up.

4Loosen the electronics compartment cover by placing the tip of a slotted

screwdriver at the edge of the cover and gently pushing the handle

towards the top of the printer. DO NOT attempt to bend it loose.

Take precautions against electrostatic discharge, for

example by wearing grounded wrist straps.

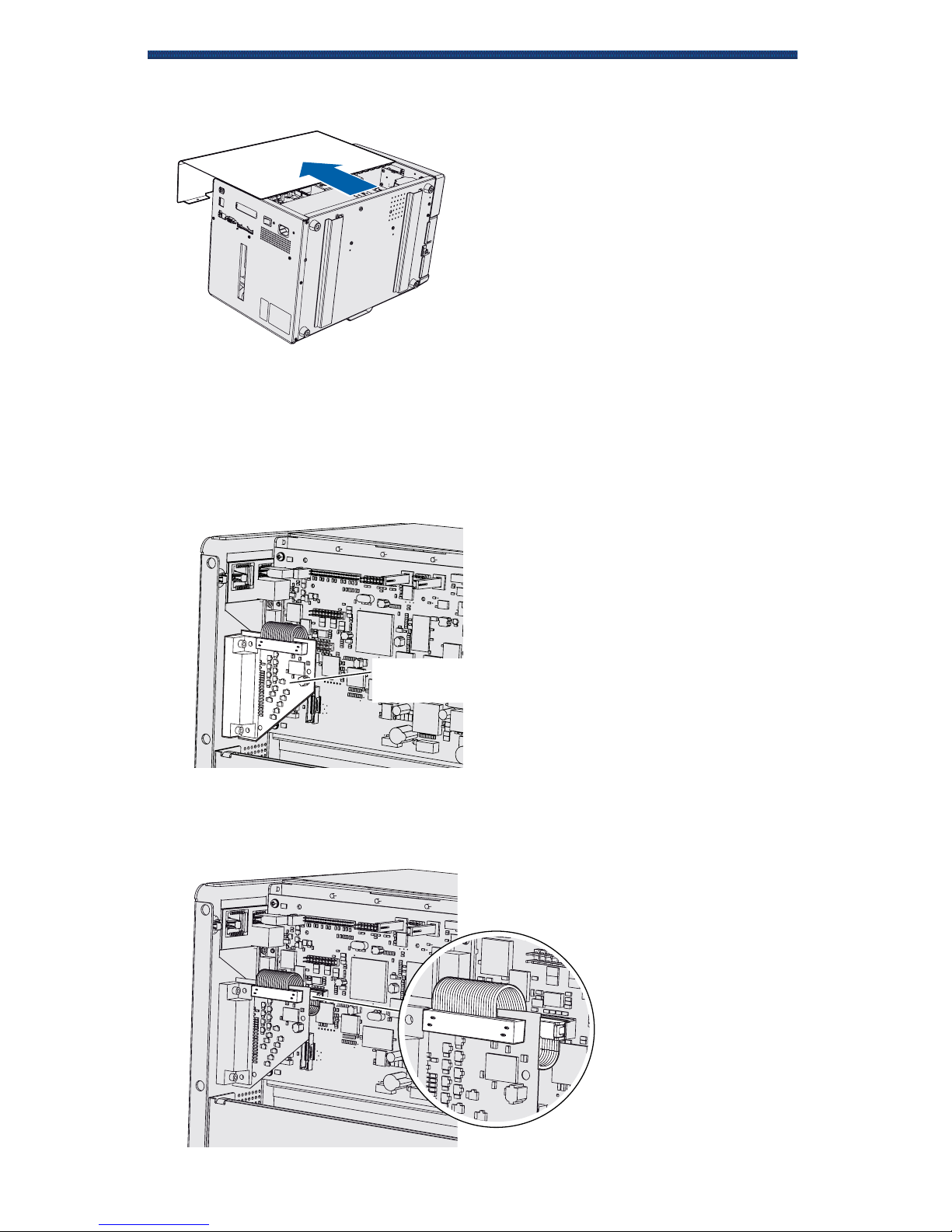

5Slide the cover out along the rails and remove it from the printer.

6Put the printer back in upright position.

7Remove the small plate that covers the slot for the Parallel board on the

back of the printer. Keep the screws.

8Use the screws that were removed in Step 6 to secure the Parallel board in

the slot.

9Connect the I/O bus cable to the printer main board.

Parallel IEEE 1284

interface board

Worldwide Headquarters

6001 36th Avenue West

Everett, Washington 98203

U.S.A.

tel 425.348.2600

fax 425.355.9551

www.intermec.com

2007 Intermec Technologies

10 Reattach the cover.

When you turn on the printer, it automatically recognizes the Parallel IEEE

1284 interface. PD42 users have to activate the interface, see the next

section.

Activating the Parallel IEEE 1284 Interface (PD42 only)

On the PD42 printer, the parallel interface and the USB interface cannot be

active at the same time. USB is active by default, so in order to use the

parallel interface you must change this setting in Setup.

To activate the Parallel IEEE 1284 interface

1Press Setup ().

2Navigate to Com > Interface.

3In the Interface submenu, select IEEE 1284.

4Press Enter ().

EasyCoder PD41/PD42 Parallel IEEE 1284 Interface Installation Instructions

*1-960661-01*

P/N 1-960661-01
