Intermec Trakker Antares 2410 Manuale utente

Trakker Antares®

241X Handheld

Terminal

Quick Start Guide

Cd39nuggetfont

ii Trakker Antares 241X Handheld Terminal Quick Start Guide

Intermec Technologies Corporation

Corporate Headquarters

6001 36th Ave. W.

Everett, WA 98203

U.S.A.

www.intermec.com

The information contained herein is proprietary and is provided solely

for the purpose of allowing customers to operate and service Intermec-

manufactured equipment and is not to be released, reproduced, or used

for any other purpose without written permission of Intermec.

Information and specifications contained in this document are subject

to change without prior notice and do not represent a commitment on

the part of Intermec Technologies Corporation.

The word Intermec, the Intermec logo, Norand, ArciTech, CrossBar,

Data Collection Browser, dcBrowser, Duratherm, EasyCoder,

EasyLAN, Enterprise Wireless LAN, EZBuilder, Fingerprint, i-gistics,

INCA (under license), InterDriver, Intermec Printer Network

Manager, IRL, JANUS, LabelShop, Mobile Framework, MobileLAN,

Nor*Ware, Pen*Key, Precision Print, PrintSet, RoutePower, TE 2000,

Trakker Antares, UAP, Universal Access Point, and Virtual Wedge are

either trademarks or registered trademarks of Intermec Technologies

Corporation.

Throughout this manual, trademarked names may be used. Rather

than put a trademark (or ) symbol in every occurrence of a

trademarked name, we state that we are using the names only in an

editorial fashion, and to the benefit of the trademark owner, with no

intention of infringement.

There are U.S. and foreign patents pending.

Wi-Fi is a registered certification mark of the Wi-Fi Alliance.

Microsoft, Windows, and the Windows logo are registered trademarks

of Microsoft Corporation in the United States and/or other countries.

This product includes software developed by the OpenSSL Project for

use in the OpenSSL Toolkit. (http://www.opensssl.org/).

This product includes cryptographic software written by Eric Young

(EAY@cryptsoft.com)

Cd39nuggetfont

Trakker Antares 241X Handheld Terminal Quick Start Guide iii

Contents

About This Guide................................................................ 5

Introducing the Trakker Antares 241X Terminals................ 5

Equipment You Need to Get Started ................................... 6

Using the Terminal for the First Time ................................. 6

Unpack the Terminal ............................................ 7

Charge and Install the Battery Pack ....................... 7

Turn On the Terminal .......................................... 8

Set the Time and Date ........................................ 10

(Optional) Configure the Serial Port Parameters.. 11

(2435 Only) Configure the Network Parameters . 12

(2415 Only) Configure the Radio Parameters...... 13

Choosing Your TE 2000 Configuration............................. 14

Using the Keypad .............................................................. 15

Learning About the Bar Code Symbologies........................ 16

Learning About the Status LEDs........................................ 16

Changing the Beep Volume ............................................... 17

Useful Bar Codes............................................................... 18

Specifications..................................................................... 18

Where to Go From Here ................................................... 19

Cd39nuggetfont

iv Trakker Antares 241X Handheld Terminal Quick Start Guide

Cd39nuggetfont

Trakker Antares 241X Handheld Terminal Quick Start Guide 5

About This Guide

This guide describes how to set basic parameters to start using

the Trakker Antares®2410 and 2415 terminals. You may need

to refer to additional Intermec documents to configure the 241X

for your data collection network. For a list of documents see

“Where to Go From Here” on page 19.

Introducing the Trakker Antares 241X

Terminals

The 241X terminals are small, lightweight, handheld data

collection terminals that are designed for a range of applications,

including commercial applications such as in-store retail.

Tab

2410

Fn L Fn R

Enter Enter

OPQ

Space Del

Ins

Caps

F1 F2 F3 F4

F5 F6 F7 F8

F9 F10

241XG008.eps

?X Y Z

@V W

Trakker Antares 241X Handheld Terminal

2410

This programmable terminal runs custom batch applications.

You create applications for the terminal using the Trakker

Antares Programmer’s Software Kit (PSK) and Microsoft C/C++

functions. The 2410 has an integrated I/O port to transmit data

to and accept data from a host or PC via RS-232 serial

communications.

Cd39nuggetfont

6 Trakker Antares 241X Handheld Terminal Quick Start Guide

2415

This terminal has all the capabilities of the 2410, and it can also

communicate in a radio frequency (RF) network. The 2415

provides real-time communications to a host either through

access points and the Intermec Gateway or Data Collection

Server (DCS) 30X, or directly through access points. The 2415

can also run client/server applications, TE 2000terminal

emulation applications, and Data Collection Browser

(dcBrowser), which lets you run Web-based applications.

The 2415 with an IEEE 802.11b radio installed

is Wi-Fi certified for interoperability with other

802.11b wireless LAN devices.

Equipment You Need to Get Started

•Standard lithium-ion battery pack (P/N 069428 or P/N

073929) or high performance lithium-ion battery pack (P/N

069429 or P/N 073930)

•2-pack battery charger (P/N 069582), Trakker Antares

TZ2410 battery charger, or Trakker Antares TD2410

communications dock

Note: Intermec recommends that you keep at least

two battery packs on hand so that you can use one

battery pack while the other is recharging. You

should keep a battery pack in the terminal at all times

to prevent the loss of data.

Using the Terminal for the First Time

Once you have the required equipment, follow these steps to

start using your new terminal:

1 Unpack the terminal.

2 Charge and install the battery pack (sold separately).

3 Turn on the terminal.

4 Set the time and date.

5 (Optional) Configure the serial port parameters.

Cd39nuggetfont

Trakker Antares 241X Handheld Terminal Quick Start Guide 7

6 (2415 only) Configure the network parameters.

7 (2415 only) Configure the radio parameters.

These steps are described in detail in the next sections.

Unpack the Terminal

When you remove the terminal from its box, save the box

and shipping material in case you need to ship or store the

terminal. Check the contents of the box against the invoice for

completeness. If there is a problem, contact your local Intermec

service representative.

Charge and Install the Battery Pack

The lithium-ion battery pack that is used in this

device may present a fire or chemical burn hazard

if it is mistreated. Do not disassemble it, heat it

above 100°C (212°F) or incinerate it.

Attention: Le bloc-batterie au lithium utilisé dans

cet appareil peut présenter un risque d’incendie

ou de brûlure chimique en cas de mauvais

traitement. Ne désassemblez pas, ne chauffez pas à

une température supérieure à 100°C (212°F) et

n’incinérez pas ce bloc-batterie.

You must fully charge the lithium-ion battery pack before you

can use the terminal. The terminal will not operate without a

battery pack.

To charge the battery pack

•Place the battery pack in an empty slot in a battery charger.

Depending on the battery pack you have installed, the battery

pack is fully charged in 1.25 to 9 hours. For help, see the

documentation that came with your battery charger.

You can also use the communications dock that is connected to

a power supply to charge the battery pack. For help, see the

Trakker Antares TD2410 Communications Dock Quick Reference

Guide (P/N 069552).

Cd39nuggetfont

8 Trakker Antares 241X Handheld Terminal Quick Start Guide

Replace the battery pack with P/N 069428, P/N

069429, P/N 073929, or P/N 073930 only. The

use of any other battery pack may present a risk of

fire or explosion.

Attention Danger: Remplacez le bloc-batterie

principal par la pièce réf. n° 069428, réf. n°

069429, réf. n° 073929, ou réf. n° 073930

seulement. L’utilisation de tout autre bloc-batterie

présente un risque d’incendie ou d’explosion.

Contact your local Intermec sales representative for replacement

main battery packs. DISPOSE OF USED BATTERY PACKS

PROMPTLY. KEEP THEM AWAY FROM CHILDREN.

To install the battery pack

241XG010.eps

Turn On the Terminal

Before turning on the terminal, you should familiarize yourself

with the terminal’s keypad. For help, see “Using the Keypad” on

page 15.

The Suspend/Resume key is the _key in the middle of the

bottom row of the keypad. When you press _to turn off the

terminal, the terminal does not actually shut off, but it goes into

a Suspend mode. You can configure the terminal so that when

you press _to turn it on, it either to resumes exactly where it

was when you turned it off or to boots and restarts your

application.

Cd39nuggetfont

Trakker Antares 241X Handheld Terminal Quick Start Guide 9

To turn on the terminal for the first time

1 Press the _key. The terminal runs POST (power-on self

test), and then the Boot Menu appears.

BOOT MENU

1 - Boot System

2 - Run Loader

3 - Power Down

POWER DOWN IN 60 SEC

241XG011.eps

2 Press 1to boot the terminal and initialize the firmware.

If you have a 2415 with TCP/IP or UDP Plus, the radio is

enabled. The next screen or message you see depends on the type

of application loaded on the 241X.

2410 or 2415 Programmable Terminal

A sample application screen appears. The terminals ship loaded

with at least these two applications stored on drive C:

APPTSK.BIN and EM9560.BIN.

APPTSK.BIN is the default application. If you exit an

application or if certain errors occur, the terminal resets and

runs APPTSK.BIN. EM9560.BIN emulates a subset of the

functionality available on the Intermec 95XX terminals. You can

use either application to scan, enter, transmit, and display data.

For help, see Appendix D in the Trakker Antares 2400 Family

System Manual (P/N 071389).

2415 Terminal With TE 2000 Application

The 2415 tries to connect to the Intermec Gateway, DCS 30X,

or directly to the host. Before you can start a TE session, you

need to configure the radio parameters and the network

parameters. You may also need to choose your TE configuration.

For help, see “Choosing Your TE 2000 Configuration” on page

14.

Cd39nuggetfont

10 Trakker Antares 241X Handheld Terminal Quick Start Guide

Set the Time and Date

1 Press (\248to access the TRAKKER Antares 2400

Menu System. The Main Menu appears.

Note: You must press the Enter key ( \) on the left

side of the terminal.

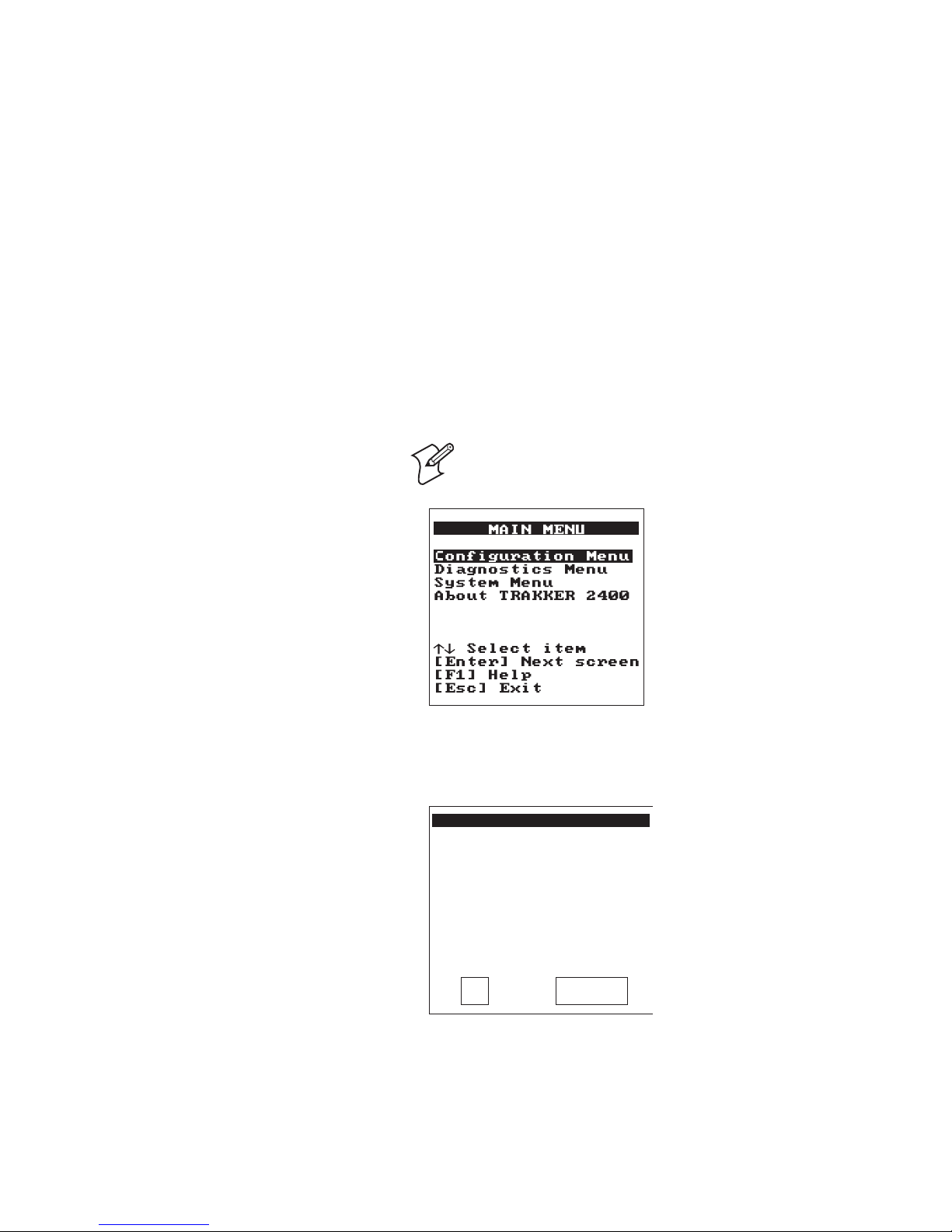

241XG015.eps

2 Press >>to choose the System Menu, and then press \.

And then select Set Time and Date, and press \. The Time

and Date screen appears.

TIME AND DATE

Current time is

12:00:00

New time:

12:39:00

Current date is

2001/01/01

New date YYYY/MM/DD:

241XG016.eps

OK CANCEL

3 Enter the current time in the format HH MM SS (hours,

minutes, seconds). You must enter the colon character (:).

4 Enter the current date in the format YYYY/MM/DD (year,

month, day). You must enter the forward slash character (/).

Altri manuali per Trakker Antares 2410

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Intermec PDA

Intermec

Intermec PEN*KEY 6620 Manuale per l'uso e la cura

Intermec

Intermec 6210 Manuale utente

Intermec

Intermec 5055 Manuale per l'uso e la cura

Intermec

Intermec 6300 SERIES Manuale utente

Intermec

Intermec CK3R Manuale utente

Intermec

Intermec 6110 Manuale utente

Intermec

Intermec NORAND 6642 Manuale utente

Intermec

Intermec PEN*KEY 6100 Manuale utente

Intermec

Intermec PEN*KEY 6400 Manuale

Intermec

Intermec CN3E Series Manuale utente

Intermec

Intermec CN4 Manuale utente

Intermec

Intermec 6640 Manuale di programmazione

Intermec

Intermec Trakker Antares 2455 Manuale

Intermec

Intermec PEN*KEY 6400 Manuale utente

Intermec

Intermec Trakker Antares 2400 Manuale utente

Intermec

Intermec CN70e RFID Manuale utente

Intermec

Intermec JANUS JG2010 Manuale utente

Intermec

Intermec Janus 2010 Istruzioni per l'installazione e il funzionamento

Intermec

Intermec PEN*KEY 6200 Manuale utente

Intermec

Intermec CK30 Manuale utente

Intermec

Intermec 5020 Manuale utente

Intermec

Intermec Trakker Antares 2420 Manuale utente

Intermec

Intermec CK3X Manuale utente

Intermec

Intermec PEN*KEY 6200 Manuale utente

Manuali PDA popolari di altre marche

SPOT

SPOT SPOT Manuale utente

Palm

Palm handheld Manuale utente

Winmate

Winmate E500QK Manuale utente

Getac

Getac PS236 Manuale utente

Sharp

Sharp CE-1600P Manuale utente

HTC

HTC PHAR100 Manuale utente

Mindeo

Mindeo M40 Manuale utente

Acer

Acer n30 Manuale utente

ASCOM

ASCOM 9D24 EX Manuale utente

Unitech

Unitech PA520BTNF Manuale utente

HandHeld

HandHeld Nautiz X3 Manuale utente

Casio

Casio PALM Manuale utente

Sharp

Sharp TM-20 Guida rapida

Atid

Atid AT870 Manuale utente

AML

AML M7225 Manuale utente

Audiovox

Audiovox Maestro Manuale tecnico

Casio

Casio PV-750 Plus Manuale di istruzioni e di sicurezza

Unitech

Unitech PT630 Manuale utente
