IntesisBox MBS-LON Manuale utente

IntesisBox

MBS - LON

Doc. Rev.

Installation Manual

URL

tel

http://www.intesis.com

[email protected]

+34 938047134

1 / 5

This information is subject to change without notice.

•

IntesisBox must be installed by accredited electrician or similar technical personnel, following all the safety instructions

given here, and in accordance always with the country legislation for installation of electric equipment.

•IntesisBox can not be installed outdoors or exposed to direct solar radiation, water, high relative humidity or dust.

•IntesisBox must only be installed in a restricted access location

•In case of wall mount, fix firmly IntesisBox on a not vibrating surface following the instructions below.

•In case of DIN rail mount fix IntesisBox properly to the DIN rail following the instructions below.

•Mounting on DIN rail inside a metallic cabinet properly connected to earth is recommended.

•Disconnect always power of any wires before manipulating and connecting them to IntesisBox.

•A power supply with a NEC Class 2 or Limited Power Source (LPS) and SELV rated is to be used.

•Respect always the expected polarity of power and communication cables when connecting them to IntesisBox.

•Supply always a correct voltage to power IntesisBox, see details of voltage range admitted by the device in the technical

characteristics below.

•This device was designed for installation in an enclosure. To avoid electrostatic discharge to the unit in environments with

static levels above 4 kV precautions should be taken when the device is mounted outside an enclosure. When working in

an enclosure (ex. making adjustments, setting switches etc.) typical anti-static precautions should be observed before

touching the unit

Safety Instructions

WARNING

Follow carefully this safety and installation instructions. Improper work may lead to serious harmful for your

health and also may damage seriously the IntesisBox and/or any other equipment connected to it.

Use the software LinkBoxMB to configure IntesisBox, follow the instructions of the user's manual for more

details.

See instructions to download and install the latest version of LinkBoxMB and

the user's manual at

http://www.intesis.com/down/mb/linkboxmb.html

Configuration and setup

•Disconnect from mains the power supply before connecting it to IntesisBox.

•Disconnect power of any bus or communication cable before connecting it to IntesisBox.

•Mount IntesisBox on the wall or DIN rail following the instruction given below, respecting the safety

instructions given above.

•Connect a NEC Class 2 or Limited Power Source (LPS) and SELV rated power supply to IntesisBox,

respect the polarity if DC power or Line and Neutral if AC power. Apply always a voltage within the range

admitted by IntesisBox and of enough power (see technical characteristics).

•Circuit-breaker must be used before the power supply. Rating 250V-6A

•Connect the communication cables to IntesisBox, see details on the user's manual.

•Power IntesisBox and the rest of devices connected to it.

Installation instructions

IntesisBox

MBS - LON

Doc. Rev.

Installation Manual

URL

tel

http://www.intesis.com

[email protected]

+34 938047134

2 / 5

This information is subject to change without notice.

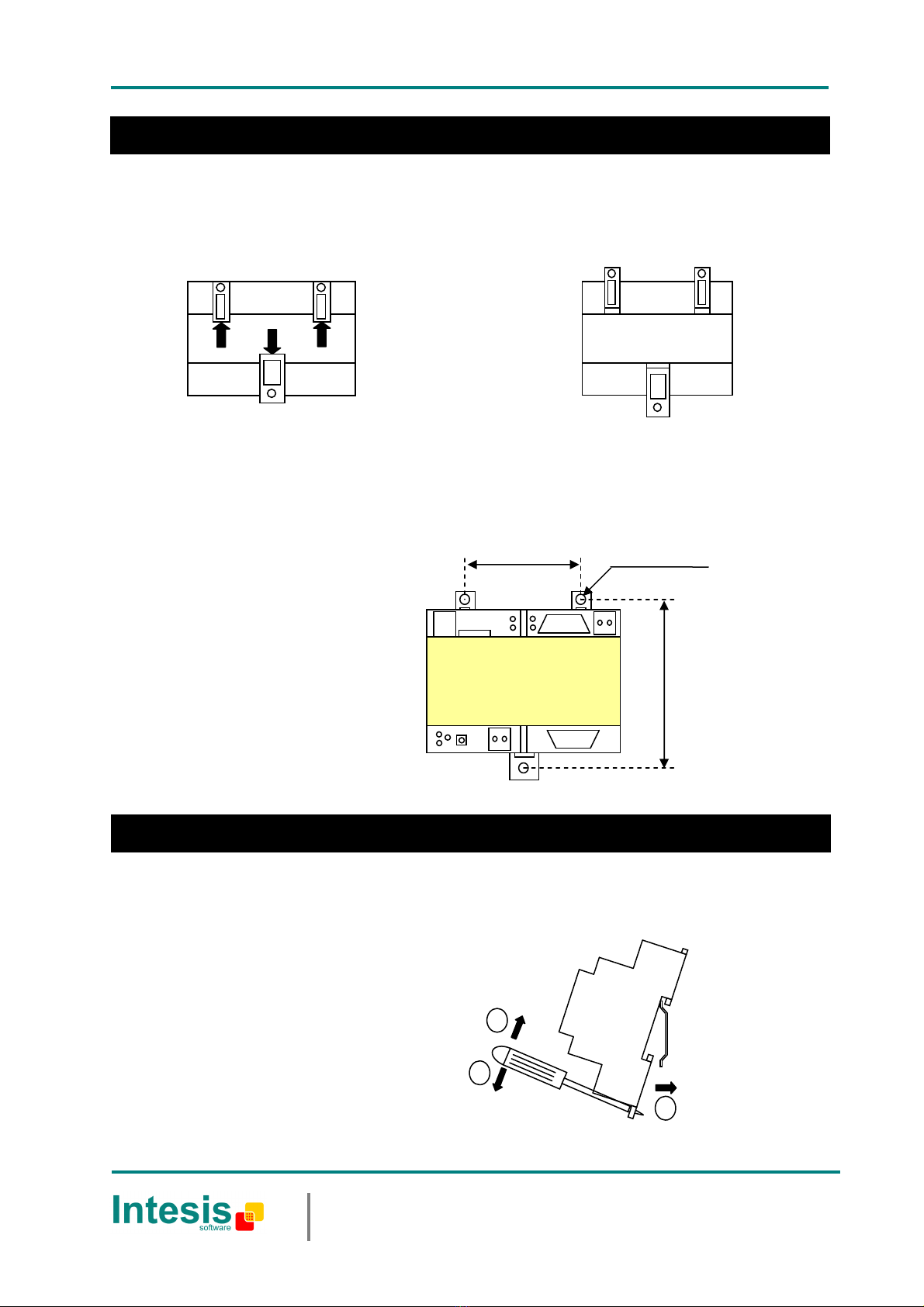

1. Separate the fixing clips in the bottom of the box, pushing them to the outside until hear the "click" which

indicates that now the clips are in position for wall mount, see in the figure below.

2. Use the holes of the clips to fix the box in the wall using screws. Use the template below for the wall holes.

With the clips of the box in their original position, insert first the box in the upper edge of the DIN rail and later insert

the box in the down part of the rail, using a small screwdriver and following the steps in the figure below.

Wall ount

Clips in their original position, for DIN rail

mount Clips in position for wall mount

DIN

Rail

Top view of the box

DIN rail ount

Side view of the box

Botton view of the box

100 mm

IntesisBox

www.intesis.com

61 mm Ø 3 mm

IntesisBox

MBS - LON

Doc. Rev.

Installation Manual

URL

tel

http://www.intesis.com

[email protected]

+34 938047134

3 / 5

This information is subject to change without notice.

________________________________________________________________________________________

Notes:

1. Must use NEC Class 2 or Limited Power Source (LPS) and SELV rated power supply.

If using DC power supply:

•Respect polarity applied of terminals (+) and (-). Be sure the voltage applied is within the range admitted (9 to 30 Vdc). The power

supply can be connected to earth but only through the negative terminal, never through the positive terminal.

If using AC power supply:

•Make sure the voltage applied is of the value admitted (24 Vac). Do not connect any of the terminals of the AC power supply to

earth, and make sure the same power supply is not supplying any other device.

2. Modbus connection. Only one Modbus connection type can be used simultaneously: Modbus TCP, Modbus RTU EIA485, or Modbus RTU

EIA232, this must be configured within LinkBoxMB software.

Modbus TCP: Connect the cable coming from the Modbus TCP master device to the connector ETH of IntesisBox, use a crossover

ethernet CAT5 cable if connecting directly to the Modbus TCP master device, or an straight ethernet CAT5 cable if connecting to a

switch or hub of the LAN of the building. If connecting using the LAN of the building contact the network administrator and make

sure that TCP/IP traffic and the TCP port used (502 by default) are allowed through all the LAN path.

Modbus RTU EIA485: Connect the EIA485 bus to the connector Modbus RTU EIA485 of IntesisBox. Respect the polarity.

Remember the characteristics of the standard EIA485 bus: maximum distance of 1200 meters, maximum 32 device connected,

and a 120 ohms terminator resistor in each end of the bus. IntesisBox comes with an internal bus biasing circuit which incorporates

internal bus terminator resistor, and thus if you connect IntesisBox in one end of the bus then it is not necessary to install additional

120 ohms resistor in that end.

Modbus RTU EIA232: Connect the serial EIA232 cable coming from the Modbus RTU master device to the Modbus RTU EIA232

connector of IntesisBox, this is a male DB9 connector (DTE) in which only lines TX, RX and GND are used, see pinout details in

the user's manual. Respect the maximum distance of 15 meters for this EIA232 line.

3. Use the software LinkBoxMB to configure IntesisBox. See the user's manual for details.

Connections

Console wire 1.8 m long.

DB9 Female - DB9 Male

standard. It is supplied.

LinkBoxMB

Only needed for

configuration

See Note 3

Power

See Note 1

Modbus TCP

master

See Note 2

LON

TP/FT-10

PC Console

- + Ethernet

Modbus TCP

+ -

IntesisBox

www.intesis.com

Ethernet

RJ45

EIA232

EIA485

B A

LON TP/FT-10

Modbus RTU

master EIA232

See Note 2

Modbus RTU

master EIA485

See Note 2

CMN 24Vac

9 - 30Vdc

Max.125 mA

24Vac

Max.127mA

50-60H

IntesisBox

MBS - LON

Doc. Rev.

Installation Manual

URL

tel

http://www.intesis.com

[email protected]

+34 938047134

4 / 5

This information is subject to change without notice.

Enclosure Plastic, type PC (UL 94 V-0).

Dimensions: 107mm x 105mm x 58mm.

Colour Light Grey. RAL 7035.

Power

9 to 30Vdc +/-10%, Max.: 125mA.

24Vac +/-10% 50-60H , Max.: 127mA

Must use a NEC Class 2 or Limited Power Source (LPS) and SELV

rated power supply.

Plug-in terminal block for power connection (2 poles).

Terminal wiring

(for power supply

and low-voltage

signals)

Per terminal: solid wires or stranded wires (twisted or with ferrule)

1 core: 0.5mm

… 2.5mm

2 cores: 0.5mm

… 1.5mm

3 cores: not permitted

Mounting Wall.

DIN rail EN60715 TH35.

Modbus TCP port 1 x Ethernet 10Base-T (RJ45).

Modbus RTU ports

1 x Serial EIA232 (DB9 male DTE). SELV

1 x Serial EIA485 (Plug-in screw terminal block 2 poles). SELV

LON port 1 x LON (TP-FT/10) (plug-in terminal block 2 poles).

LED indicators

1 x Power.

2 x LON port activity (Tx, Rx).

2 x Serial port (Modbus RTU) activity (Tx, Rx).

2 x Ethernet port link and activity (LNK, ACT).

1 x LON service.

Push buttons 1 x LON service switch.

Console port EIA232. DB9 female connector (DCE). SELV

Configuration Via console port.

Firmware Allows upgrades via console port.

Operational

temperature 0°C to +70°C

Operational

humidity 25-90% at 50ºC, non condensing

Protection IP20 (IEC60529).

RoHS conformity Compliant with RoHS directive (2002/95/CE).

Norms and

standards

CE conformity to EMC directive (2004/108/EC) and Low-voltage

directive (2006/95/EC)

EN 61000-6-2

EN 61000-6-3

EN 60950-1

EN 50491-3

Not used for the moment. Reserved for future use.

Standard cable DB9male-DB9female 1,8 meters long is supplied with the device for connection to a PC COM port for

configuring and monitoring the device. The configuration software, compatible with Windows

operating systems, is also supplied.

Technical characteristics

IntesisBox

MBS - LON

Doc. Rev.

Installation Manual

URL

tel

http://www.intesis.com

[email protected]

+34 938047134

5 / 5

This information is subject to change without notice.

Di ensions

External dimensions.

Free space recommended to install the device, with spacing enough for external connections.

115 mm

130 mm

100 mm

Power

Ethernet port

107 mm

105 mm

58 mm

Modbus RTU

EIA232/485

Console

port

LON port
