126796GN - Frame Pool Set Prism Oval 503 x 274 x 122

Ladder 2

Cartridge Filter Unit 16

Above Ground Pool 32

Overview Pool Size vs Pump Running Time 47

Air Valve For Water Revitalization Set 49

Transition Liner For U-Shaped Side Support 51

Setup Video 52

Mounting 54

Repair Kit 55

Service Center 56

332

English

(332IO) 48”, 52” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 04/26/2022

IMPORTANT

SAFETY RULES

Read, understand, and follow all instructions

carefully before installing

and using this

product.

Keep for future reference.

Ladder with

Removable Steps

48” (122cm) & 52” (132cm) models

OWNER’S MANUAL

For illustrative purposes only. 52” (132cm) Shown

Don’t forget to try these other fine Intex products: Pools, Pool

Accessories, Inflatable Pools and In-Home Toys, Airbeds and

Boats available at fine retailers or visit our website.

Due to a policy of continuous product improvement, Intex reserves

the right to change specifications and appearance, which may

result in updates to the instruction manual, without notice.

Gedruckt in China.

®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous

licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in

einigen Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Development Co. Ltd., Hong Kong &

Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans

l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V.,

Ettenseweg 46, 4706 PB Roosendaal – The Netherlands • Distributed in the UK by Unitex Service (UK) Limited,

21 Holborn Viaduct, London EC1A 2DY, UK.

www.intexcorp.com

332-*A*-R0-2304

(332IO) 48”, 52” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 04/26/2022

332

SAVE THESE INSTRUCTIONS

Page 2

TABLE OF CONTENTS

Warnings........................................................................................................... 3

Parts References.............................................................................................. 4-5

Setup Instructions...............................................................................

..........

... 6-12

Long Term Storage.......................................................................................... 12

General Aquatic Safety.....................................................

......................

........ 13

Limited Warranty..............................................................

.......................

........ 14

(332IO) 48”, 52” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 04/26/2022

332

SAVE THESE INSTRUCTIONS

Page 3

IMPORTANT SAFETY RULES

Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product.

WARNING

• Supervise children and those with disabilities at all times.

• Always assist children when they use the ladder to avoid falls

and/or serious injury.

• Never dive or jump from this ladder.

• Locate the ladder on a level, solid base.

• One person on this ladder at a time.

• Maximum load: 300 lbs (136 kg). Complies with EN16582

strength requirements.

• Face the ladder at all times for entry/exit of pool.

• Remove and secure ladder when pool is not occupied.

• Do not swim under, through or behind ladder.

• Check all nuts and bolts regularly to ensure ladder stays sturdy.

• If swimming at night use artificial lighting to illuminate all safety

signs, ladders, pool floor and walkways.

• Assembly and disassembly by adults only.

• This ladder is designed and manufactured for a specific pool wall

height and/or deck of the pool. Do not use with other pools.

• Failure to follow the maintenance instructions and warnings may

result in adverse health effects or injury, particularly to children.

• Only use this ladder for the purposes described in this manual.

FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN

BROKEN BONES, ENTRAPMENT, PARALYSIS, DROWNING OR

OTHER SERIOUS INJURY.

These product warnings, instructions and safety rules provided with

the product represent some common risks of water recreation

devices and do not cover all instances of risk and danger. Please

use common sense and good judgment when enjoying any water

activity.

(332IO) 48”, 52” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 04/26/2022

332

SAVE THESE INSTRUCTIONS

Page 4

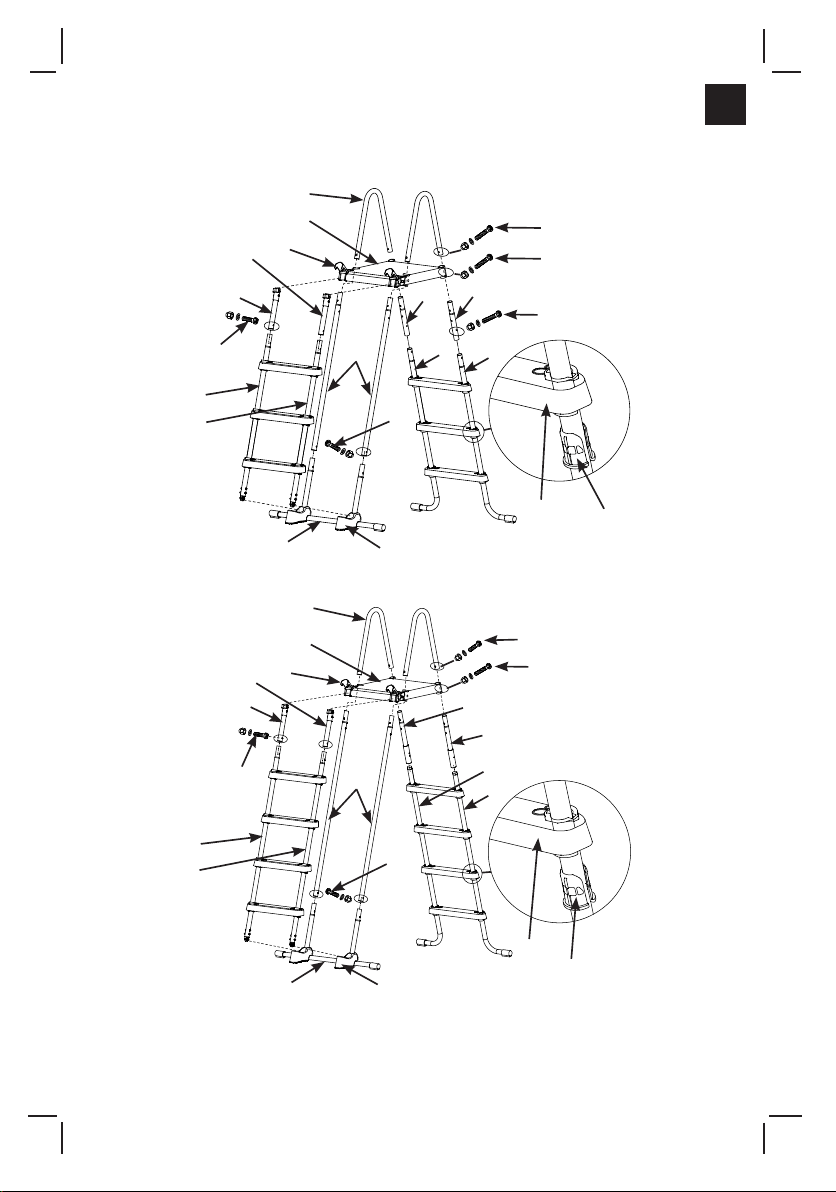

PARTS REFERENCE

Before assembling your product, please take a few minutes to check the contents

and become familiar with all the parts.

NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.

48" (122cm) model

52” (132cm) model

4 (M6*35)

5 (M6*40)

4 (M6*35)

(M6*35)

10 11

17 18

4 (M6*35)

5 (M6*40)

17 18

4 (M6*35)

15 4

(M6*35)

(332IO) 48”, 52” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 04/26/2022

332

SAVE THESE INSTRUCTIONS

Page 5

PARTS REFERENCE (continued)

Before assembling your product, please take a few minutes to check the contents

and become familiar with all the parts.

REF.

NO.

DESCRIPTION

QUANTITY SPARE PART NO.

48" 52"

48" 52" #28076 #28077

1 U-SHAPED TOP RAIL 2 2 12512A 12512A

TOP PLATFORM 1 1 12182 12182

3CLASP 2 2 12190 12190

SHORT FASTENER FOR U-SHAPED TOP RAIL

(WITH 1 EXTRA) 11 9 10810 10810

5LONG FASTENER FOR TOP PLATFORM (WITH

1 EXTRA) 5 5 10227 10227

A SIDE - UPPER SIDE LEG (MARKED “A”) 1 1 12669AA 12643AA

A SIDE - UPPER SIDE LEG (MARKED “B”) 1 1 12669AB 12643AB

A SIDE - LOWER J- LEG (MARKED “A”) 1 1 12670AA 12644AA

A SIDE - LOWER J- LEG (MARKED “B”) 1 1 12670AB 12644AB

STEP 6 8 12629 12629

STEP ANCHOR SLEEVE 12 16 12630 12630

12 B SIDE - UPPER SIDE LEG (MARKED “A1”) 1 1 12653AA 12653AA

13 B SIDE - UPPER SIDE LEG (MARKED “B1”) 1 1 12653AB 12653AB

14 B SIDE - LOWER SIDE LEG (MARKED “A1”) 1 1 12651AA 12654AA

15 B SIDE - LOWER SIDE LEG (MARKED “B1”) 1 1 12651AB 12654AB

16 C SIDE - UPPER SIDE LEG (MARKED “C”) 2 2 12652A 12655A

17 C SIDE - LOWER U-SHAPED SIDE LEG (MARKED “C”) 1 1 12650A 12650A

18 SUPPORT BASE 2 2 11356 11356

IMPORTANT

It is very important to lay out the parts correctly and identify which parts connect

together before starting the assembly. Although some parts look alike, they are

not always interchangeable. Refer to the parts list.

This ladder is designed and manufactured for Intex pool wall height:

Item # Pool Wall Height Item # Pool Wall Height

28076 48” (122cm) 28077 52” (132cm)

(332IO) 48”, 52” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 04/26/2022

332

SAVE THESE INSTRUCTIONS

Page 6

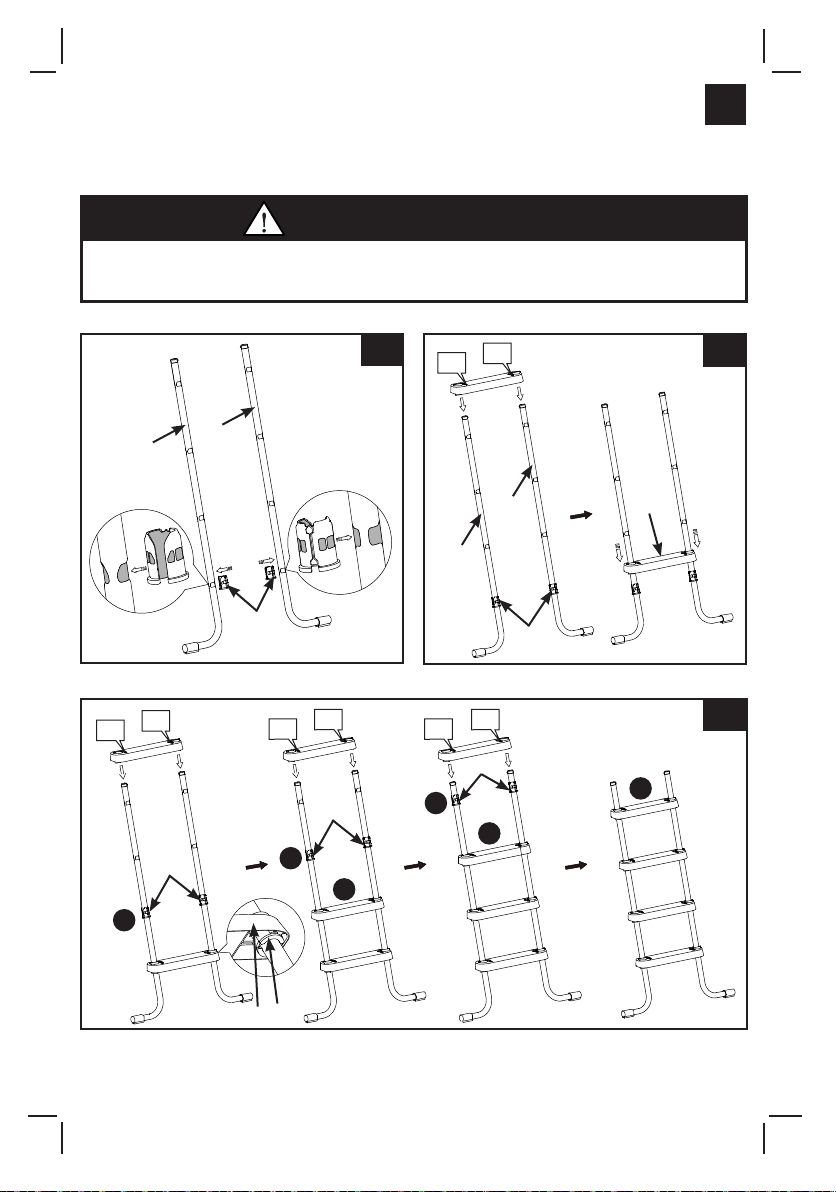

1. SIDE A LEGS ASSEMBLY (refer to figures 1.1 through 1.4):

WARNING

INCORRECTLY CONNECTED PARTS MAY RESULT IN AN UNSTABLE LADDER OR

LADDER FAILURE WHICH CAN CAUSE FALLING AND PERSONAL INJURY OR DEATH.

IMPORTANT: Ensure the J-shaped legs are pointing outwards before installing the steps.

LADDER SETUP

TOOLS REQUIRED: One (1) Phillips screwdriver, one (1) small flat screwdriver

One (1) pair of pliers or a small adjustable wrench

Estimated assembly time 30-60 minutes. (Note the assembly time is only approximate

and individual assembly experience may vary.)

1.1

910

1.2

1.3

AA A

BB B

A A

B B

10 11

(332IO) 48”, 52” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 04/26/2022

332

SAVE THESE INSTRUCTIONS

Page 7

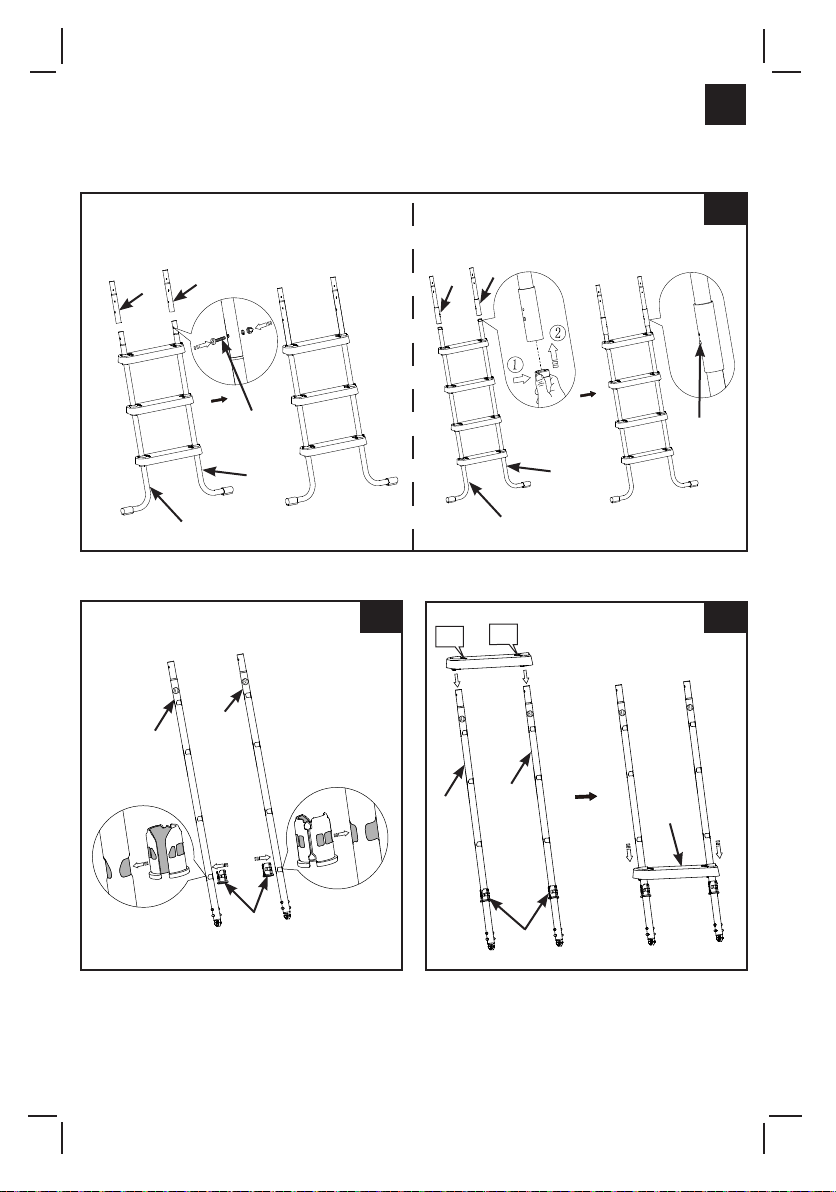

• UPPER SIDE A LEGS ASSEMBLY (refer to figure 1.4):

2. SIDE B LEGS ASSEMBLY (refer to figures 2.1 through 2.4):

LADDER SETUP (continued)

A1 B1

2.1

Press,hold

and insert

Spring pin

FOR 52" (132 cm)

1.4

FOR 48" (122 cm)

4 (M6*35)

A1 B1

14 15

A1 B1

2.2

(332IO) 48”, 52” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 04/26/2022

332

SAVE THESE INSTRUCTIONS

Page 8

LADDER SETUP (continued)

4 (M6*35)

14 14

15 15

2.4

A1 A1

B1 B1

10 11

2.3

A A A

B B B

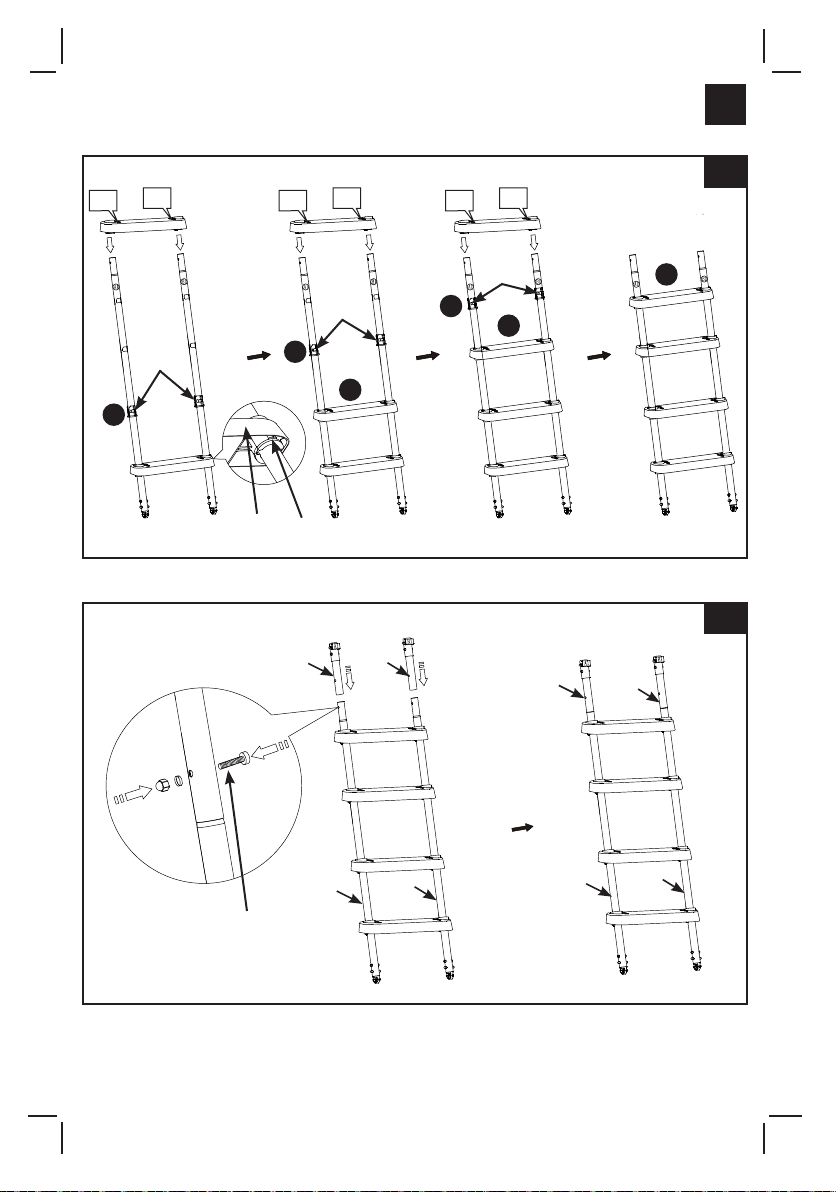

• UPPER SIDE B LEGS ASSEMBLY (refer to figure 2.4):

(332IO) 48”, 52” LADDER WITH REMOVABLE STEPS ENGLISH 4.875” X 7.25” PANTONE 295U 04/26/2022

332

SAVE THESE INSTRUCTIONS

Page 9

5 (M6*40)

B A

LADDER SETUP (continued)

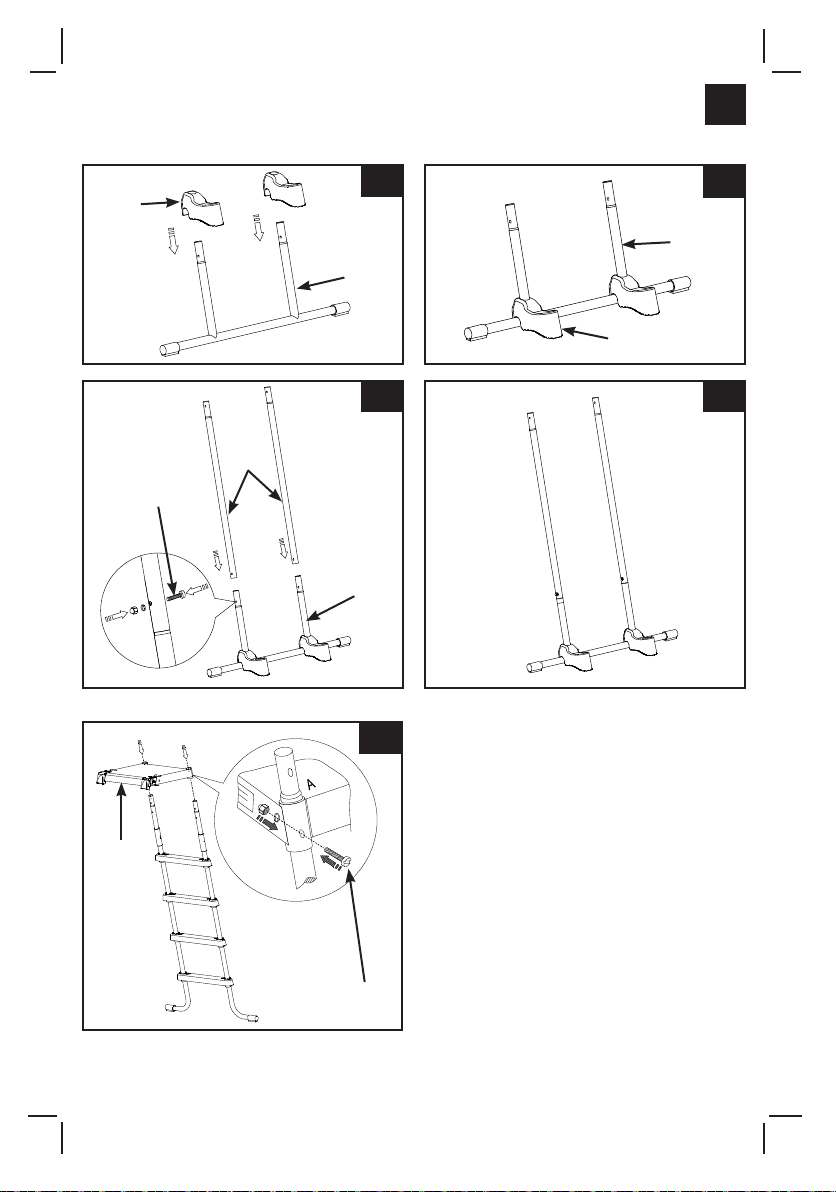

3. SIDE C LEGS ASSEMBLY (refer to figures 3.1 through 3.4):

IMPORTANT: Make sure the legs are securely connected and locked.

4. TOP PLATFORM INSTALLATION (refer to figure 4):

4 (M6*35)

C17

3.3

3.2

3.4

3.1
