Invacare® Sonnet Basic

Users Manual GB

Invacare EC-Høng A/S

Ident. no.: 1427681

Version 02 09.2002

Manual for Invacare®Sonnet Basic

This bedside table is developed for the home care sector and for hospitals. The bedside table contains a number of

functions and qualities, which are specially designed for these health care sections.

How to mount the telescopic pipe at the U-frame:

Lead the two screws with washer and distance piece through the U-frame

and thighten the screws in the telescopic pipe. See fig.1 and fig. 2.

Use the Allen key to adjust the screws.

Mount the thumbscrew loosely.

Mount the four wheels at the U-frame with an adjustable wrench. Place the

bottom part on the wheels.

Fig. 1

Fig. 2

Fig. 3

It is now possible to mount the top of the table. The table top is mounted

with the upper part of the telescopic pipe.

Connect the two parts of the telescopic pipe and thighten the thumbscrew

when the top of the table is in the desired height.

See fig. 3.

Push the handle under the tabletop in order to release the adjusting plate.

Rotate the tabletop 180º.

Let go of the handle and turn the tabletop until the locking pin is engaged.

See fig. 3

Manual for Invacare®Sonnet Basic

Use only regular household detergents. Use a sponge or a soft brush to

wash the bedside table.

Never use acids, alkalines or solvents such as acetone or cellulose thinner.

The demountable plastic parts can be cleaned under rinsing water and in an

automatic dishwasher.

The bedside table does not tolerate cleaning in water-jet based cleaning

equipment.

None of the moving parts of the bedside table requires lubricating; they

only have to be clean in order to function satisfactorily.

The Invacare®Sonnet Combi must be stored in a room with a humidity of

10 – 80% and with temperature of 0 – 50º.

The storing room must be frost-proof.

During transport must the additional plate be placed in bottom position.

The closet door and drawers must be closed.

Fig. 4

Fig. 5

Fig. 6

Mount the side table by leading the pipe into the pipe above the handle.

Push it to the bottom and turn it, until its in gear. See fig. 4.

Manufacturer:

INVACARE EC-Høng A/S

Østergade 3

DK-4270 Høng

www.invacarebeds.dk

Invacare® EC-Høng A/S

Ident. no.: 1427681

Version 02 09. 2002

Customer Sales and Service

INVACARE A/S

Sdr. Ringvej 39

DK-2605 Brøndby

Phone: +45 36 90 00 00

Fax: +45 36 90 00 01

www.invacare.dk

INVACARE AS

Grensesvingen 9

P.O. Box 6230 / Etterstad

N-0603 Oslo

Phone: +47 22 57 95 00

Fax: +47 22 57 95 01

www.invacare.no

INVACARE N.V.

Autobaan 14

B-8210 Loppem, Brügge

Phone: +32 50 83 10 10

Fax: +32 50 83 10 11

www.invacare.be

INVACARE AB

Fagerstagatan 9 / Box 66

S-163 91 Spånga

Phone: +46 8 761 70 90

Fax: +46 8 761 81 08

www.invacare.se

INVACARE B.V.

Celsiusstraat 46

NL-6716 BZ Ede

Phone: +31 318 69 5 757

Fax: +31 318 69 5 758

www.invacare.nl

INVACARE LTD

South Road

Bridgend Industrial Estate

UK-Bridgend, CF31 3PY

Phone: +44 1 656 664 321

Fax: +44 1 656 667 532

INVACARE MECCSAN S.R.L.

Via dei Pini 62

I-36016 Thiene (VI)

Phone: +39 0445 380059

Fax: +39 0445 380034

INVACARE S.A.

Cl Areny s/n

Pol.industrial de Celrà

17460 Celrà (Girona-Spain)

Tel: +34 972 493200

Fax: +34 972 493220

INVACARE Lda

Senhora de Campanhä 105

4369-001 Porto

Phone: +351 22 510 59 46/47

Fax: +351 22 510 57 39

INVACARE Poirier S.A.S

La Perrée

Route de St Roch (RD 36)

F-37230 Fondettes

Phone: +33 2 47 62 64 66

Fax: +33 2 47 42 12 24

www.invacare.fr

INVACARE Deutschland

GmbH

Kleiststraße 49

D-32457 Porta Westfalica

Phone: +49 (0) 57 31 / 754-0

Fax: +49 (0) 57 31 / 754-52 191

www.invacare.de

Altri manuali Invacare Arredamento per interni

Invacare

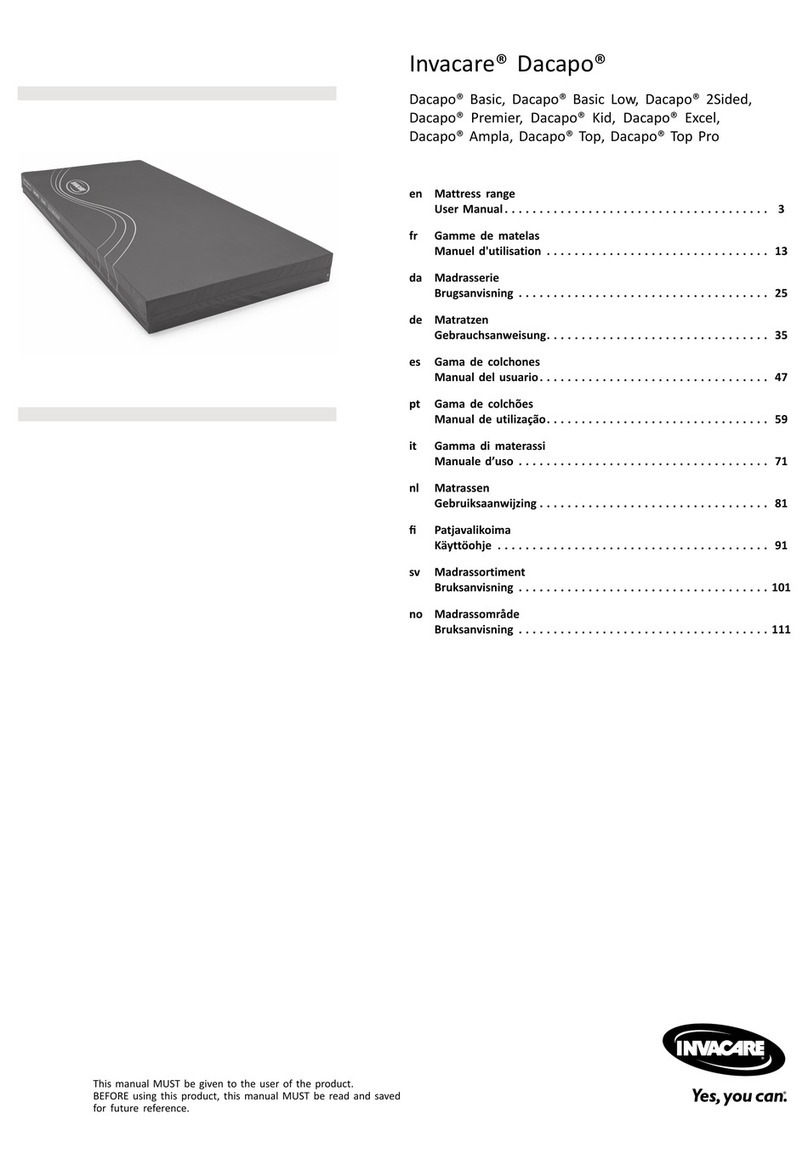

Invacare Dacapo Basic Manuale utente
