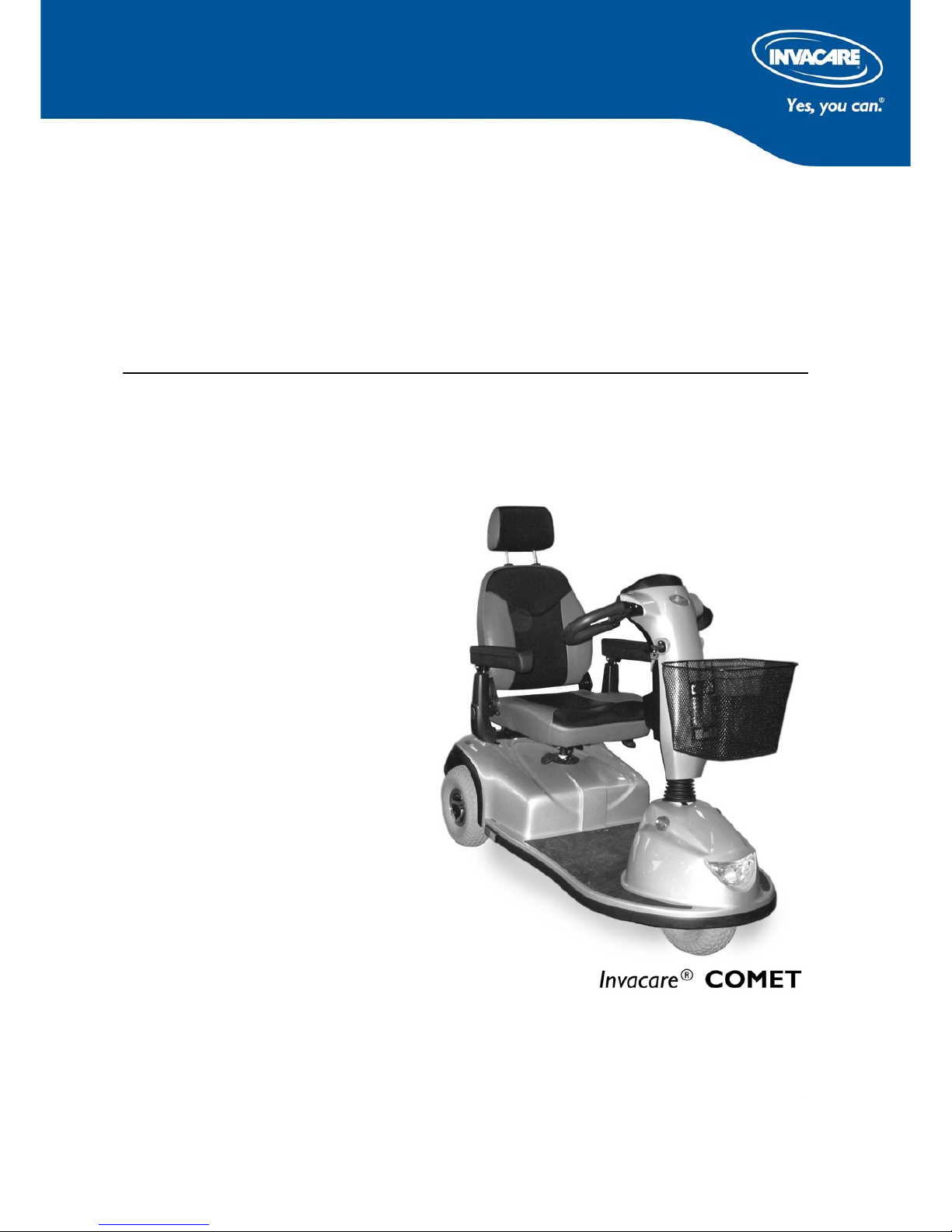

Invacare Comet Guida
Version: 2010/08/20a EN
Spare Parts Catalogue
TABLE OF CONTENTS
Information
User Manuals Comet ...................................................
Colours . . . ............................................................
A
ccessory Compatibilit
y
.................................................
Chassis
Front Frame 4-Wheeler ..................................................
Front Shroud 4-Wheeler .................................................
Front Frame 3-Wheeler ..................................................
Front Shroud 3-Wheeler .................................................
Rear Shroud ...........................................................
Rear Frame ...........................................................
Seat
Seat & Seatoptions . ....................................................
Front / Rear Wheel
Frontwheel 3-Wheeler ...................................................
Frontwheels 4-Wheeler ..................................................
Propulsion
Rear Wheels & Propulsion 10/15 km/h .....................................
Brakes
Brakes 3 Wheeler . . ....................................................
Brakes 4 Wheeler . . ....................................................
Steering
Steering . . ............................................................
Steering Details ........................................................
Cable and Charger
Cable & Charger . . . ....................................................
Safety Options
Warning Triangle . . . ....................................................
Other Options & Accessories
A
ccesories ............................................................
A
ccessory Compatibilit
y
.................................................
5..................
6..................
7..................
8..................
9..................
10.................
11.................
12.................
13.................
14.................
15.................
16.................
17.................
18.................
19.................
20.................
21.................
22.................
23.................
24.................
7..................
Invacare® Comet | Information
User Manuals Comet
Version: 2010/08/20a EN
Pos. Part number Description Valid from →until Qty
CZ 1514593 User Manual Comet Czech 1
DA 1514594 User Manual Comet Danish 1
DE 1514596 User Manual Comet German 1
EN 1514597 User Manual Comet English 1
ES 1514598 User Manual Comet Spanish 1
ET 1514599 User Manual Comet Estonian 1
FR 1514600 User Manual Comet French 1
IT 1514601 User Manual Comet Italian 1
LT 1514602 User Manual Comet Lithuanian 1
NL 1514603 User Manual Comet Dutch 1
NO 1514604 User Manual Comet Norwegian 1
PL 1514605 User Manual Comet Polish 1
PT 1514606 User Manual Comet Portuguese 1
SK 1514607 User Manual Comet Slovenian 1
SV 1514608 User Manual Comet Swedish 1
FI 1527700 User Manual Comet Finsk 1
5 / 26
Invacare® Comet | Information
Colours
Version: 2010/08/20a EN
Pos. Part number Description Valid from →until Qty
1 SP1523462 Tuch Up Paint Onyx Blue 1
2 SP1523450 Tuch Up Paint Moonstone Silver 1
3 SP1537798 Tuch Up Paint Slate Grey 1
6 / 26
Invacare® Comet | Information
Accessory Compatibility
Version: 2010/08/20a EN
Pos. Part number Description Valid from →until Qty
-- - 1
7 / 26
Invacare® Comet | Chassis
Front Frame 4-Wheeler
Version: 2010/08/20a EN
Pos. Part number Description Valid from →until Qty
2 SP1521755 Pad, Leg Shield 1
3 SP1521756 Pad Front RH/LH 1
4 SP1505476 Push Rivet 1
5 SP1505479 Tree Rivet (6 Pieces) 1
6 SP1521758 Band, Battery Comp. 1
7 SP1517317 Controller Rhino 110A 1
7 1492574 CONTROLLER ELECTRONIC RHINO 160 11/2005-> (Comet HD) 1
8 SP1505487 Bearing 1
9 SP1521760 Front 1
10 SP1521761 Wire Harness →20080818 1
10 SP1527400 Wire Harness 20080819 →20090524 1
10 SP1532911 Wire Harness 20090525 →1
8 / 26
Invacare® Comet | Chassis
Front Shroud 4-Wheele
r
Version: 2010/08/20a EN
Pos. Part number Description Valid from →until Qty
1 SP1521732 Front Shroud, silver 1
1 SP1521733 Front Shroud, blue 1
1 SP1537792 Front Shroud, slate grey 1
2 SP1517733 Turn Signal LH 1
3 SP1517734 Turn Signal RH 1
4 SP1517878 Head Light, cmpl. →20080818 1
4 SP1527473 Head Light, cmpl. 20080819 →1
5 SP1521762 Cover Bumper Front 1
6 SP1521761 Wire Harness →20080818 1
6 SP1527400 Wire Harness 20080819 →20090524 1
6 SP1532911 Wire Harness 20090525 →1
7 SP1521735 Moulding LH 1
8 SP1521734 Moulding RH 1
9 SP1521754 Moulding 1
10 SP1517331 Reflector 1
11 SP1522030 Bulb Turn Signal 24V/10W 1
12 SP1522029 Bulb Head Light 24V/21W →20080818 1
12 SP1527474 Bulb Head Light 12V/15W 20080819 →1
13 SP1521836 Speed Limit Switch 6 km/h 1
13 SP1522027 Speed Limit Switch 12/15 km/h 1
9 / 26
Invacare® Comet | Chassis
Front Frame 3-Wheeler
Version: 2010/08/20a EN
Pos. Part number Description Valid from →until Qty
2 SP1521765 Pad, Leg Shield 1
3 SP1505476 Push Rivet 1
4 SP1521758 Band, Battery Comp. 1
5 SP1517317 Controller Rhino 110A 1
6 SP1505487 Bearing 1
7 SP1521729 Frame 3-Wheeler 1
8 SP1521761 Wire Harness →20080818 1
8 SP1527400 Wire Harness 20080819 →20090524 1
8 SP1532911 Wire Harness 20090525 →1
11 SP1536164 Trigger limit switch 1
10 / 26
