INVENTOR A2VI-09 Manuale utente

A2VI-09/A2VO-09

A2VI-12/A2VO-12

Your-conditions

Eπιτοίχια Μονάδα

Wall Mounted Unit

English/Ελληνικά/ Română

CONTENTS

This symbol stands for the items

should be forbidden. This symbol stands for the items

should be followed

■....................................1

■

■................................13

■....................................16

■ ..........................21

■..............................23

■.............................25

■..................26

■............... 27

■

■................................19

■.. ..................................14

Operation and maintenance

Notices for use ......................................4

Name of parts....................

....................... 6

■Operation of Remote Controller.............................7

Clean and care

Troubleshooting

Installation service

Notices for installation

Installation dimension diagram

Installation of indoor unit

Installation of outdoor unit

Check after installation and test operation

Emergency operation

Installation and Maintenance of Healthy Filter

Do not dispose this product as unsorted municipal waste.

Collection of such waste separately for special treatment

is necessary.

The products in this manual may be different with the real one, according to different

models, some models have displayer and some models without displayer, the position

and shape of the displayer please refer to the real one.

This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities or lack of experience and knowledge,

unless they have been given supervision or instruction concerning use of the appliance

by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Safety Precautions

WARNING

Please read the following notices before operation



cut o power

If there's abnormal pheno-

If this abnormal status is kept



Safety Precautions

it may

on,air conditioner may be

damaged or even cause

electric shock or re.

menon(like smell of burning),

please cut o the power imm-

ediately and then contact with

the authorized maintenance

center.

Do not operate the air cond-

itioner with wet hands.

Otherwise, it may cause electric

shock.

Do not cut o or damage the

power cord or signal control

wire. If the power cord or

signal control wire of air

conditioner is damaged,please

replace it by the professional

with specied power cord.

The special circuit must be

adopted for power supply to

avoid re.

Do not use octopus multipurpose

socket or mobile wiring board for

wire connection.

Please cutothepower supply

when the air conditioner won't

be used for an extended



period of time.

Otherwise, it will accumulate

dust and it may cause overhe -

ating, re and other accidents.

Do not damage the power

cord or use unspecied

power cord.

Otherwise, it may cause re

due to overheating of power

Before cleaning the air con-

ditioner,please cut o the



Otherwise, it will cause electric

shock or injury.

Power supply should adopt

the special circuitwith the

prote ction of air switch and

the capacity must be sucient.

Pease do not turn on or turn

o the air conditioner

Y-type connection is adopted

for the power supply of this

air conditioner. If the power

cord is damaged, it must be

replaced by the manuf acture,

maintenance center or a

similarly qualied person to

When the voltage is too high,

electric elements can be

damaged easily; if the voltage

too low, the compressor will

vibrate ercely, which may

damage the cooling system

or compressor and electric

power.



frequently.

avoid a hazard.



cord.



components can't operate.

★

２

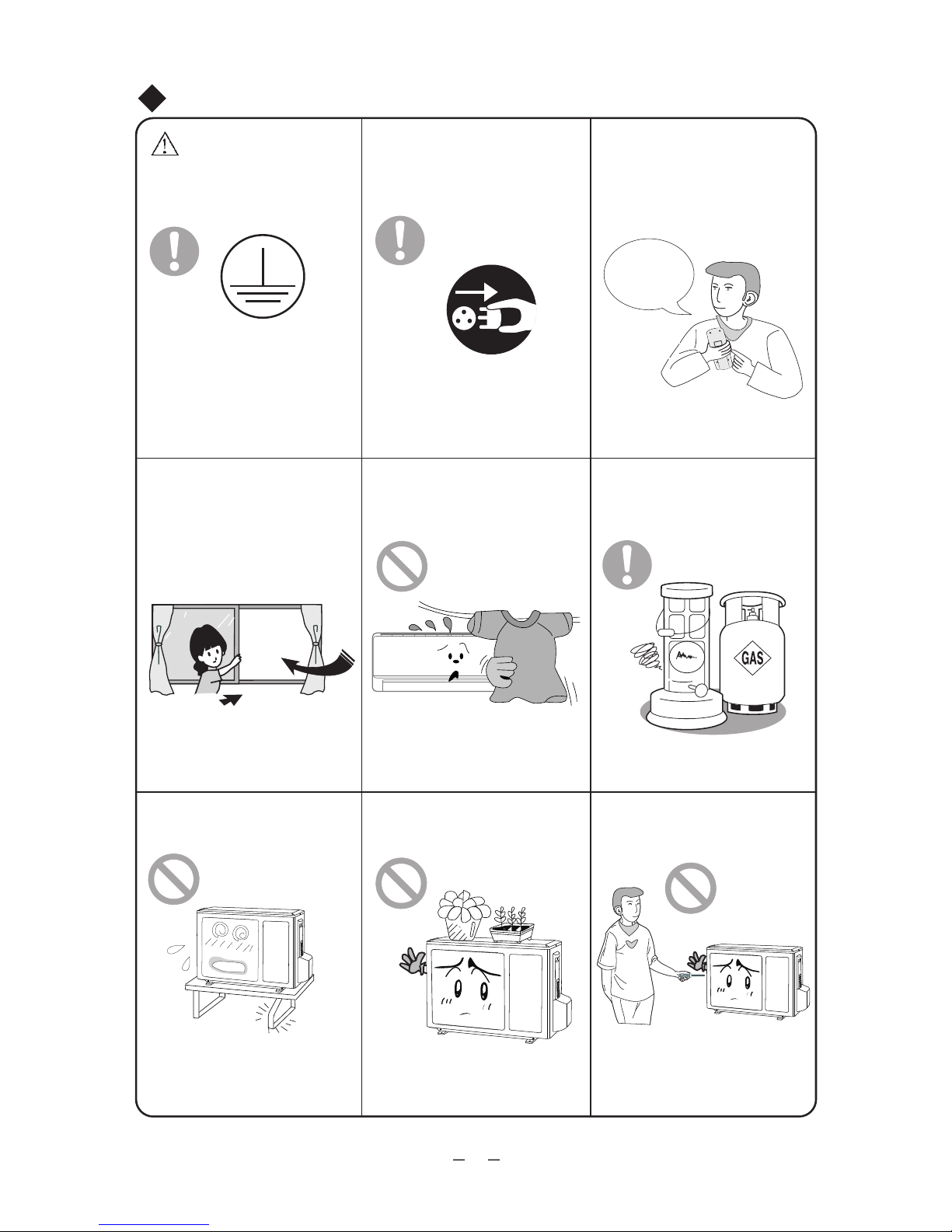

★★Be sure to pull out the power

★

★★

★

Earth: The ground

be connected!

If not, please ask the qualified person-

nel to install. Furthermore, don't conn-

ect each wire to the gas pipe, water

pipe, drainage pipe or any other impr-

oper places.

plug when not using the air co-

nditioner for a long time.

Otherwise, the accumulated dust

may cause fire or electric shock.

Select the most appropriate tem-

perature.

Keep room cool-

er than outside

about 5 degree.

It can preclude the electricity wasted.

Don't leave windows and

doors open for a long time

while operating the air conditioner.

It can decrease the air conditioning

capacity.

Don't block the air intake or outlet

vents of both the outdoor and indoor

units.

It can decrease the air conditioning

capacity or cause a malfunction.

Keep combustible spray away

from the units more than 1m.

It can cause afire or explosion.

If it is damaged, it may lead to

the fall of the unit and cause

the injury.

Please note whether the installed

stand is firm enough or not.

Don't step on the top of the

outdoor unit or place something

on it.

As falling off the outdoor unit

can be dangerous.

Don't attempt to repair

the air conditioner by yourself.

The wrong repair will lead to

an electric shock or fire, so

you should contact the service

center to repair.

Safety Precautions

３

★

Safety Precautions

Do not cut off or damage the power cords or

control cords. If they are damaged, please

contact the dealer or qualified service

personnel

To change the airflow direction, adjust the vertical

air flow direction by using the remote controller

or adjust horizontal air flow direction manually.

Vertical Louver Horizontal Louver

Do not insert your hands or objects into

the air inlet or outlet.

It may cause an accident.

Do not expose animals or plants directly to

the air flow.

Do not expose yourself to cold air directly

for a long time.

Do not use the unit for any other purpose, such

as preserving food or drying clothes.

Do not splash water on the air conditioner. Do not place a burner near the air conditioner.

It will cause CO toxicosis due to incomplete burning.

It may have a detrimental effect on them.

It's not good for your health.

It may cause electric shock or malfunction.

★

★★ ★★

★ ★★

★★

Notices for use

Working principle and special functions for cooling

Principle:

Anti-freezing function:

Working principle and special functions for heating

Principle:

Defrosting:

Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that

indoor ambient temperature decreased, its cooling capacity will increase or decrease by

outdoor ambient temperature.

If the unit is running in COOL mode and in low temperature, there will be frost formed on

the heat exchanger, when indoor heat exchanger temperature decreased below 0 , the

indoor unit microcomputer will stop compressor running and protect the unit.

℃

Air conditioner absorbs heat from outdoor and transmits to indoor, in this way to increase

room temperature. This is the heat pump heating principle, its heating capacity will be

reduced due to outdoor temperature decrease.

If outdoor temperature becomes very low, please operate with other heating equipments.

When out frost will

form on outdoor unit, that will effect the heating effect, at this time, the auto defrosting

function will act, the heat running will stop for 8-10mins.

During the auto defrosting, the fan motors of indoor unit and outdoor unit will stop.

During the defrosting, the indoor indicator flashes, the outdoor unit may emit vapor.

This is due to the defrosting, it isn't malfunction.

After defrosting finished,the heating will recover automatically.

４

door temperature is low but high humidity, after a long while running,

The climate type of this unit is according to the nameplate.

The external static pressures at which the appliance was tested should be zero Pa.

Notices for use

Anti-cool wind function:

In "Heat" mode, under the following three kinds of state, if indoor heat exchanger doesn't

arrive at certain temp., indoor fan will not act, in order to prevent cool wind blowing(within

2 mins):

1. Heating starts. 2.After Auto Defrost finished. 3.Heating under the low temperature.

The operating temperature range (outdoor temperature) for cooling unit is -7℃~ 43℃；

for cooling and heating unit is -7℃~43℃.

Working temperature range

Maximum cooling

Minimum cooling

Maximum heating

Minimum heating

Indoor sideDB/WB(oC) Outdoor sideDB/WB(oC)

32/23

21/15

27/---

20/---

43/26

21/--

24/18

-5/-6

⑹

⑸

⑵

⑻

⑼

⑽

⑷

⑺

⑶

⑴Power cord

Remotecontroller

Front panel

Filter

Horizontal louver

Wall pipe

Binding tape

Connection wires

Drain hose

Drain connecter

ON OFF/

- +

MO DE FAN

SWING I FEEL

SLEEP

TEMP

TIMER-ON

CLOCK

T -OFFIMER

TURBO LIGHT

X-FAN

：

HOUR

ONOFF

Name of Parts

⑸

⑻

⑶

⑼

⑽

⑴

⑵

Indoor unit

Air in

Air out

Outdoor unit

Air in

Air out

⑷⑹

⑺

：Cool

：Dry

：Heat

：Set temp.

：Power

The icons displayed:

６

ON OFF/

- +

M O D E FAN

SWING IFEEL

SLEEP

TEMP

TIMER-ON

CLOCK

T -OFFIMER

TURBO LIGHT

X-FAN

：

HOUR

ONOFF

７

Press it to start or stop operation.

ON/OFF

MODE

Press it to select operation mode

(AUTO/COOL/DRY/FAN/HEAT).

: Press it to increase temperature

setting.

: Press it to decrease temperature

setting.

FAN

Press it set swing angle.

TIMER ON

SWING

TIMER OFF

CLOCK

X-FAN ( page 11)

TEMP( page 11)

TURBO( page 11)

SLEEP( page 11)

LIGHT

Press it to set fan speed.

Press it to set auto-on timer.

Press it to set auto-off timer.

Press it set clock.

Press it to set HEALTH or AIR function.

I FEEL(Page 10)

Operation of Remote Controller

Press it to turn on/off the light.

is displayed when pressing the

AIR button.Press this button again

to clear the display.

AIR icon:

This area will show the set tempe-

rature. In SAVE mode,"SE" will be

displayed.

DIGITAL display:

LOCK icon:

is displayed by pressing "+"

and “-” buttons simultaneously. Press

them again to clear the display.

LIGHT icon:

is displayed by pressing the

LIGHT button. Press LIGHT button

again to clear the display.

MODE icon:

If MODE button is pressed,

current operation mode icon

(AUTO), ( COOL),

(DRY), (FAN) or (HEAT

only for heat pump models) will show.

is displayed when pressing

the

up & down swing

down button.

Press this button again to clear the

display.

Up & down swing icon:

After pressing TIMER button,

HOUR

ON or OFF will blink.This area will

show the set time.

SET TIME display:

Pressing TEMP button,

(set temperature),

ambient temperature)

(outdoor ambient temperature)

and blank is displayed circularly.

(indoor

TEMP icon:

SLEEP icon :

is displayed by pressing

the SLEEP button. Press this

button again to clear the display.

Operation of Remote Controller

18 19 20 21

８

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali INVENTOR Condizionatore d'aria

INVENTOR

INVENTOR PR1VI32-09WFC Manuale utente

INVENTOR

INVENTOR LDVI-09WFI/LDVO-09 Manuale utente

INVENTOR

INVENTOR NUVI-09WF Manuale utente

INVENTOR

INVENTOR P6MVI-12WFR Manuale utente

INVENTOR

INVENTOR EP3-WiFi16L Manuale utente

INVENTOR

INVENTOR A1PSI-24 Manuale utente

INVENTOR

INVENTOR ATM04S Guida del prodotto

INVENTOR

INVENTOR V4MRFI-24 Manuale utente

INVENTOR

INVENTOR P6MVI-09WFR Manuale utente

INVENTOR

INVENTOR APSI-30 Manuale utente

INVENTOR

INVENTOR K2VI32-09WFI Manuale utente

INVENTOR

INVENTOR EVI-09 Manuale utente

INVENTOR

INVENTOR AR4VI32-09WFI Manuale utente

INVENTOR

INVENTOR V4MKI-24UR Manuale utente

INVENTOR

INVENTOR O3MVO32-09 Manuale utente

INVENTOR

INVENTOR RKI-18/RKO-18 Manuale utente

INVENTOR

INVENTOR V4MDI-12B Manuale utente

INVENTOR

INVENTOR V5MFI-66B Guida

INVENTOR

INVENTOR RFI-30 Manuale utente

INVENTOR

INVENTOR V5MFI-66 Guida

INVENTOR

INVENTOR EPC-09 Manuale utente

INVENTOR

INVENTOR V1RFI-30 Manuale utente

INVENTOR

INVENTOR P9MVI32-18WiFi Manuale utente

INVENTOR

INVENTOR V4MFO-24 Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente
