MINIHEAD SPOT

USER MANUAL

TABLE OF CONTENTS

BEFORE YOU

BEGIN..............................................................................3

WHAT IS INCLUDED.......................................................................................................................................... 3

UNPACKING INSTRUCTIONS ........................................................................................................................... 3

AC POWER ...................................................................................................................................................... 3

SAFETY INSTRUCTIONS.................................................................................................................................. 4

INTRODUCTION

................................................................................

FEATURES....................................................................................................................................................... 5

DMX CHANNEL SUMMARY 13 CHANNEL MODE FOR SPOT................................................................................ 5

DMX CHANNEL SUMMARY 5 CHANNEL MODE FOR SPOT.................................................................................. 6

PRODUCT OVERVIEW ..................................................................................................................................... 6

SETUP

.......................................................................................

FUSE REPLACEMENT....................................................................................................................................... 7

FIXTURE LINKING ............................................................................................................................................ 7

Data Cabling .................................................................................................................................................. 7

DMX Data Cable........................................................................................................................................... 7

Cable Connectors ........................................................................................................................................ 8

3-Pin to 5-Pin Conversion Chart .................................................................................................................... 8

SETTING UP A DMX SERIAL DATA LINK ............................................................................................................. 8

MASTER/SLAVE FIXTURE LINKING................................................................................................................... 9

MOUNTING ...................................................................................................................................................... 9

Orientation .................................................................................................................................................. 9

Rigging ....................................................................................................................................................... 9

OPERATING

INSTRUCTIONS.......................................................................10

NAVIGATING THE CONTROL PANEL ................................................................................................................10

MENU MAP......................................................................................................................................................11

USER CONFIGURATIONS ...............................................................................................................................11

USER CONFIGURATIONS ...............................................................................................................................12

To set the pan to inverting or non-inverting: ...................................................................................................12

To set the tilt to inverting or non-inverting:......................................................................................................12

To set the LED Readout to Inverting or Non-Inverting: ....................................................................................12

To set the DMX channel configuration:..........................................................................................................12

To set the maximum pan angle: ....................................................................................................................12

To set the maximum tilt angle: ......................................................................................................................12

Service Functions ..........................................................................................................................................12

To reset the fixture:......................................................................................................................................12

To restore all settings to their factory defaults: ...............................................................................................12

OPERATION...................................................................................................................................................13

Stand-Alone Mode (Sound-Active, Auto Mode): ................................................................................................13

Master/Slave Mode (Master Sound, Master Auto): .............................................................................................13

DMX Mode ....................................................................................................................................................13

DMX CHANNEL VALUES (13 CHANNEL FOR SPOT) ..........................................................................................14

DMX CHANNEL VALUES (5 CHANNEL FOR SPOT) ............................................................................................16

APPENDIX....................................................................................17

TECHNICAL SPECIFICATIONS ........................................................................................................................17

BEFORE

YOU

BEGIN

What

is included

1 x Mini Spot

User Manual

Unpacking

Instructions

Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that

all parts are present, and have been received in good condition. Notify the shipper immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture

must be returned to the factory, it is important that the fixture be returned in the original factory box

and packing.

Power

To determine the power requirements for a particular fixture, see the label affixed to the back plate of

the fixture or refer to the fixture

’

s specifications chart. Afixture

’

s listed current rating is its average

current draw under normal conditions. All fixtures must be powered directly off a switched circuit and

cannot be run off a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer

channel is used solely for a 0% to 100% switch. Before applying power to a fixture, check that the

source voltage matches the fixture

’

s requirement. Check the fixture or

device carefully to make sure that if a voltage selection switch exists that it

is set to the correct line voltage you will use.

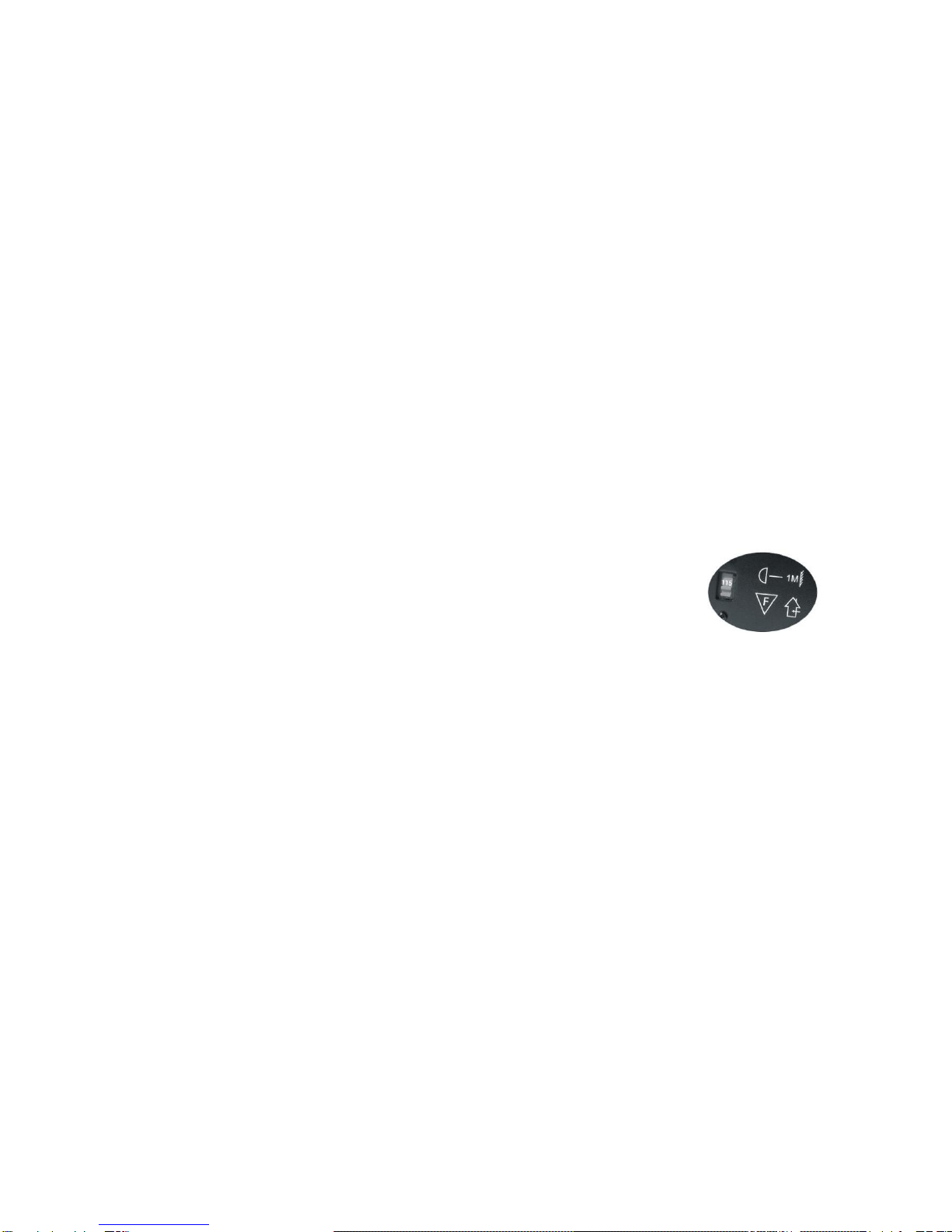

Figure

Voltage Switch

Warning!

Verify that

the

voltage select switch

on your

unit

matches

the

line voltage applied.

Damage

your

fixture

may

result if the

line voltage applied

does not match the

voltage indicated

the voltage selector switch.

All

fixtures

must be

connected

circuits

with a

suitable Earth Ground.

Not all fixtures have a voltage

select switch. Please be sure to

connect to the proper voltage.

Safety Instructions

Please read these instructions carefully, it includes important

information about the installation, usage and maintenance of this

product.

Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that

they also receive this instruction booklet.

Always make sure that you are connecting to the proper voltage, and that the line voltage you are

connecting to is not higher than that stated on the decal or rear panel of the fixture.

This product is intended for indoor use only!

To prevent risk of fire or shock, do not expose fixture to rain or moisture. Make sure there are no

flammable materials close to the unit while operating.

The unit must be installed in a location with adequate ventilation, at least 20in (50cm) from adjacent

surfaces. Be sure that no ventilation slots are blocked.

Always disconnect from power source before servicing or replacing fuse and be sure to replace with

same fuse size and type.

Secure fixture to fastening device using a safety chain. Never carry the fixture solely by its head. Use

its carrying handles.

Maximum ambient temperature (Ta) is 104

F (40

C). Do not operate fixture at temperatures higher

than this.

In the event of a serious operating problem, stop using the unit immediately. Never try to repair the

unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please

contact the nearest authorized technical assistance center. Always use the same type spare parts.

Don

’

t connect the device to a dimmer pack.

Make sure the power cord is never crimped or damaged.

Never disconnect the power cord by pulling or tugging on the cord.

Avoid direct eye exposure to the light source while it is on.

INTRODUCTION

Features

CONTROL FEATURES

5 or 13-channel DMX-512 LED moving yoke

Pan: 540o / tilt: 270o

RGB color mixing

Gobo wheel

9 gobos + open

Gobo wheel spin effect

Variable electronic strobe

Variable electronic dimmer (0

–

100%)

Vector speed channel for pan/tilt, RGB color mixing and color macros

Built-in movement macros via master/slave or DMX

ADDITIONAL FEATURES

User-selectable basic or advanced operating modes

User-selectable pan/tilt ranges

Pan: 540

, 360

, 180

Tilt: 270

, 180

, 90

Compact and lightweight

LED display menu with invert

Reset to factory settings option

Display auto on/off

Pan/tilt invert option

Fan cooled

DMX

Channel

Summary

Channel

Mode

for

Spot

CHANNEL

FUNCTION

Pan

Pan Fine

Tilt

Tilt Fine

Vector Speed (Pan/Tilt)

Dimmer/Strobe

Red

Green

Blue

Color Macros

Vector Speed (Color)

Movement Macros

Gobo

DMX

Channel

Summary

Channel

Mode

for

Spot

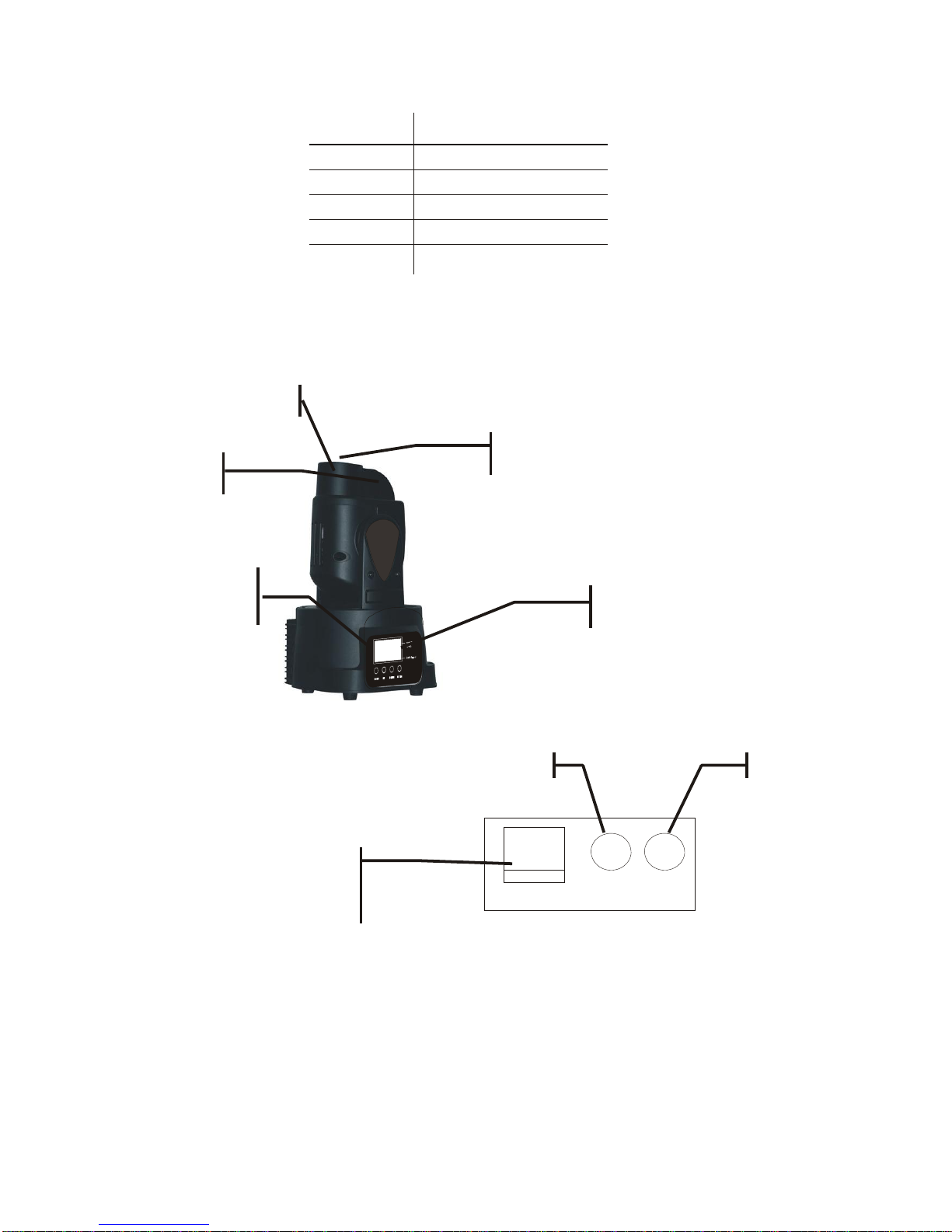

Product Overview

Projector Head

Lens

Focus

Control

Panel

LED Readout

DMX Out

DMX In

IEC Power

Connector with

Fuse holder

(Rear)

CHANNEL

FUNCTION

Pan

Tilt

Dimmer/Strobe

Color Macros

Gobo

SETUP

Disconnect the power cord before replacing a fuse and

always

replace with the same type

fuse.

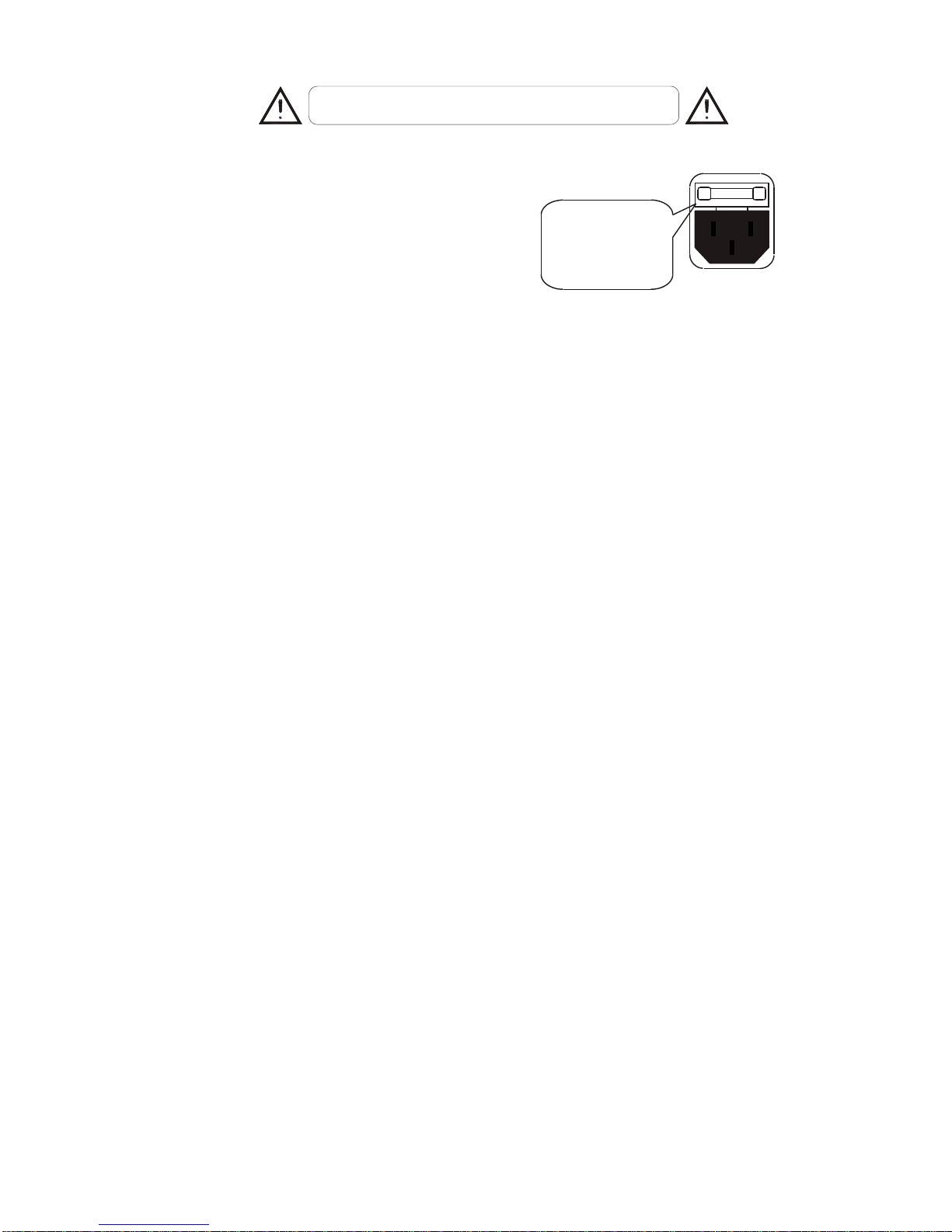

Fuse

Replacement

With a flat head screwdriver wedge the fuse

holder out of its housing. Remove the damaged

fuse from its holder and replace with exact

same type fuse. Insert the fuse holder back in

its place and reconnect power.

The fuse is located

inside this

compartment.

Remove using a flat

head screwdriver.

Fixture Linking

You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller

or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The

combined number of channels required by all the fixtures on a serial data link determines the number

of fixtures the data link can support.

Important:

Fixtures on a serial data link must be daisy chained in one single line. To comply with the EIA-485

standard no more than 32 devices should be connected on one data link. Connecting more than 32

fixtures on one serial data link without the use of a DMX optically-isolated splitter may result in

deterioration of the digital DMX signal.

Maximum recommended serial data link distance: 500 meters (1640 ft.)

Maximum recommended number of fixtures on a serial data link: 32 fixtures

Data

Cabling

To link fixtures together you must obtain data cables. If you choose to create your own

cable please use data-grade cables that can carry a high quality signal and are less prone to

electromagnetic interference.

DMX

DATA CABLE

Use a Belden? 9841 or equivalent cable which meets the specifications for EIA RS-485 applications.

Standard microphone cables cannot transmit DMX data reliably over long distances. The cable will

have the following characteristics:

2-conductor twisted pair plus a shield

Maximum capacitance between conductors

–

30 pF/ft.

Maximum capacitance between conductor and shield

–

55 pF/ft.

Maximum resistance of 20 ohms / 1000 ft.

Nominal impedance 100

–

140 ohms

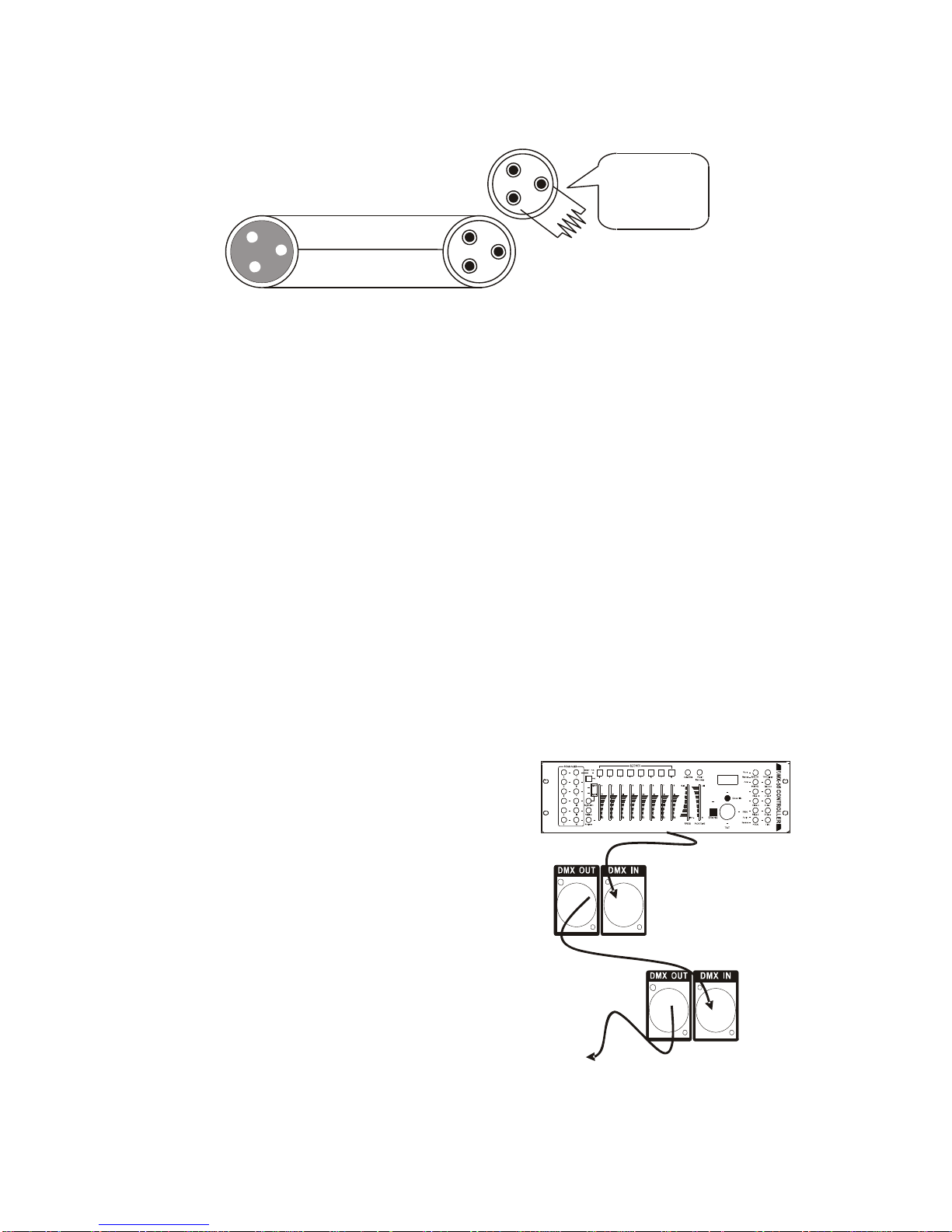

CAB LE C ONN ECTORS

Cabling must have a male XLR connector on one end and a female XLR connector on the other end.

DMX connector configuration

Resistance 120

ohm 1/4w between

pin 2 (DMX -) and

pin 3 (DMX +) of

the last fixture.

COMMON

DMX +

INPUT

OUTPUT

Termination reduces signal errors. To

avoid signal transmission problems

and interference, it is always

advisable to connect a DMX signal

terminator.

DMX -

Do not allow contact between the common and the fixture

’

s chassis ground. Grounding the common

can cause a ground loop, and your fixture may perform erratically. Test cables with an ohm meter to

verify correct polarity and to make sure the pins are not grounded or shorted to the shield or each other.

CAUTION

3-PIN

5- PIN

CON VE R

SION

CHAR T

Note!

If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter.

CHAUVET Model No: DMX5M, or DMX5F.

The chart below details a proper cable conversion:

3 PIN TO 5 PIN CONVERSION CHART

3 Pin Female (output)

Pin 1

Pin 2

Pin 3 Do not use

Do not use

5 Pin Male (Input)

Pin 1

Pin 2

Pin 3

Conductor

Ground/Shield

Data ( - ) signal

Data ( + ) signal

Do not use

Setting

up a

DMX

Serial

Data

Link

1. Connect the (male) 3 pin connector side of

the DMX cable to the output (female) 3 pin

connector of the controller.

2. Connect the end of the cable coming from

the controller which will have a (female) 3

pin connector to the input connector of the

next fixture consisting of a (male) 3 pin

connector.

Universal DMX Controller

3. Then, proceed to connect from the output

as stated above to the input of the following

fixture and so on.

This drawing provides a

general illustration of the

DMX Input/Output panel of

a lighting fixture

DMX Data Cables

Order Code

DMX1.5

DMX4.5

DMX10

Description

DMX Cable 1.5m/4.9ft

DMX Cable 4.5m/14.8ft

DMX Cable 10m/32.8ft

Continue the link

Master/Slave Fixture Linking

1. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector

of the first fixture.

2. Connect the end of the cable coming from the first fixture which will have a (female) 3 pin

connector to the input connector of the next fixture consisting of a (male) 3 pin connector. Then,

proceed to connect from the output as stated above to the input of the following fixture and so on

Often, the setup for

Master-Slave and

Standaloneoperationrequires that

the first fixture in the chain be

initializedfor this purpose via eithe

settingsin the control panel or DIP-r

switches.Secondarily,the fixtures

that follow may also require a slave

setting. Please consult the

“

Operating

Instructions

”

sectionin

this manual for complete instructions

for this type of setup and

configuration.

Mounting

ORIENTATION

This fixture may be mounted in any position provided there is adequate room for ventilation.

RIGGING

Hanging Clamp

Note!

Clamp is sold separately.

It is important never to obstruct the fan or vents pathway. Mount the

fixture using, a suitable

“

”

“

”

type clamp. Adjust the angle of the

fixture by loosening both knobs and tilting the fixture. After finding the

desired position, retighten both knobs.

When selecting installation location, take into consideration lamp

replacement access and routine maintenance.

Safety cables must always be used.

Never mount in places where the fixture will be exposed to rain, high

humidity, extreme temperature changes or restricted ventilation.

OPERATING

INSTRUCTIONS

Navigating

the

Control Panel

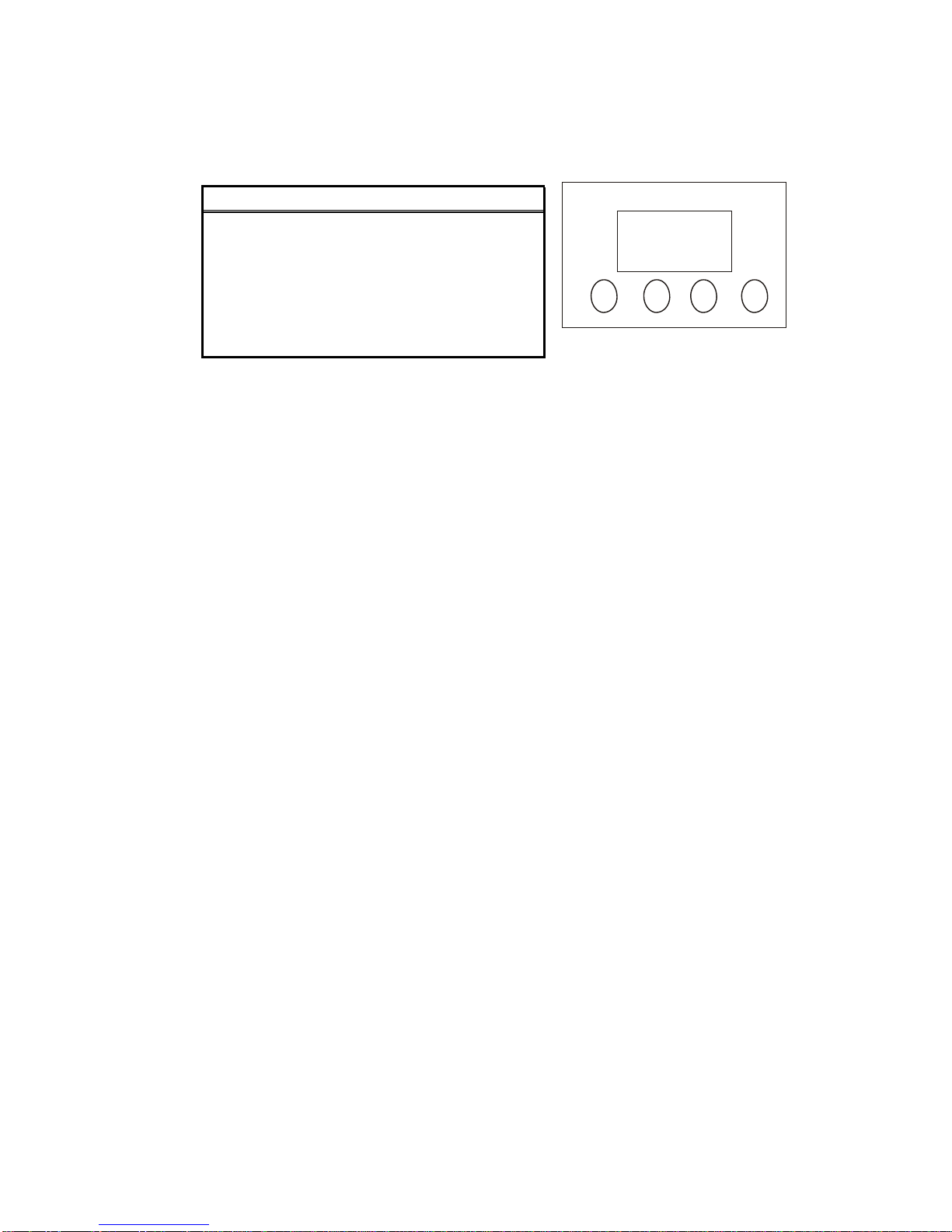

Access control panel functions using the four panel buttons located directly underneath the LCD

Display.

previous menu option

order

<ENTER>

or option within a menu

The Control Panel LED Display shows the menu items you select from the menu map on page #11.

When a menu function is selected, the display will show immediately the first available option for the

selected menu function. To select a menu item, press <ENTER>.

Press the <MODE/ESC> button repeatedly until you reach the desired menu function. Use the <UP>

and <DOWN> buttons to navigate the menu options. Press the <ENTER> button to select the menu

function currently displayed, or to enable a menu option. To return to the previous option or menu

without changing the value, press the <MODE/ESC> button.

Button Function

<MODE/ESC> Used to access the menu or to return to a

<UP> Scrolls through menu options in ascending

<DOWN> Scrolls through menu options in descending

Used to select and store the current menu

MODE/ESC UP DOWN ENTER

Indice

Altri manuali Invision Attrezzatura di illuminazione

Invision

Invision KRYPTON TRIDENT 1500 Manuale utente

Manuali Attrezzatura di illuminazione popolari di altre marche

Brizo

Brizo 8SP-MU-4 Manuale utente

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuale utente

IKEA

IKEA BJÖRKSPIREA Manuale utente

Laserworld

Laserworld Evolution Series ES-400RGB Manuale utente

Alien

Alien RG STAR Manuale utente

EuroLite

EuroLite LED B-40 Manuale utente

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuale utente

Commercial Electric

Commercial Electric 54568141 Manuale utente

CREE LIGHTING

CREE LIGHTING 304 Series Manuale utente

Goobay

Goobay 49867 Manuale utente

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuale utente

Alkalite

Alkalite Krypton KT-81 Manuale utente

Clas Ohlson

Clas Ohlson GU10 Manuale utente

DTS

DTS DELTA 10 F Manuale utente

ring

ring Solar Steplight Manuale utente

One Stop Gardens

One Stop Gardens 57696 Istruzioni per il montaggio

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuale utente

SIREM

SIREM Swimeo A2 Manuale utente
