Involight LEDPAR189 Manuale utente

DMX LED PAR64,18*Tri-9W Manual

Our LED PAR64 18*Tri-9W advantage is obvious, its operation is much easier, moreover, it can make very even color mixing, bright,

and dynamic light scenery effects. It is widely applied to entertainment halls, clubs and stages etc.

Specification:

1.Weight: 3.0kgs

2.Size: 31×23×23cm

3.LEDS:18*Tri-9W Leds

4.Beam angle: 40degree (25degree optional)

5.Wattage:144W

6.Power input: AC 120V/240V, 60Hz/50Hz

7.Polished housing, short(black,white optional)

8.Double brackets&color frame available upon request.

9.DMX mode, M/S, auto run, built-in programs, sound active mode

10.LED display for easier operation

11.Thermal protection

12.Ultra brightness and perfect color mixing

12.Unique cooling system

13.Inner box: 37×25.5×25.5cm

14.Master carton: 39×27.5×54cm 2 pcs/ctn

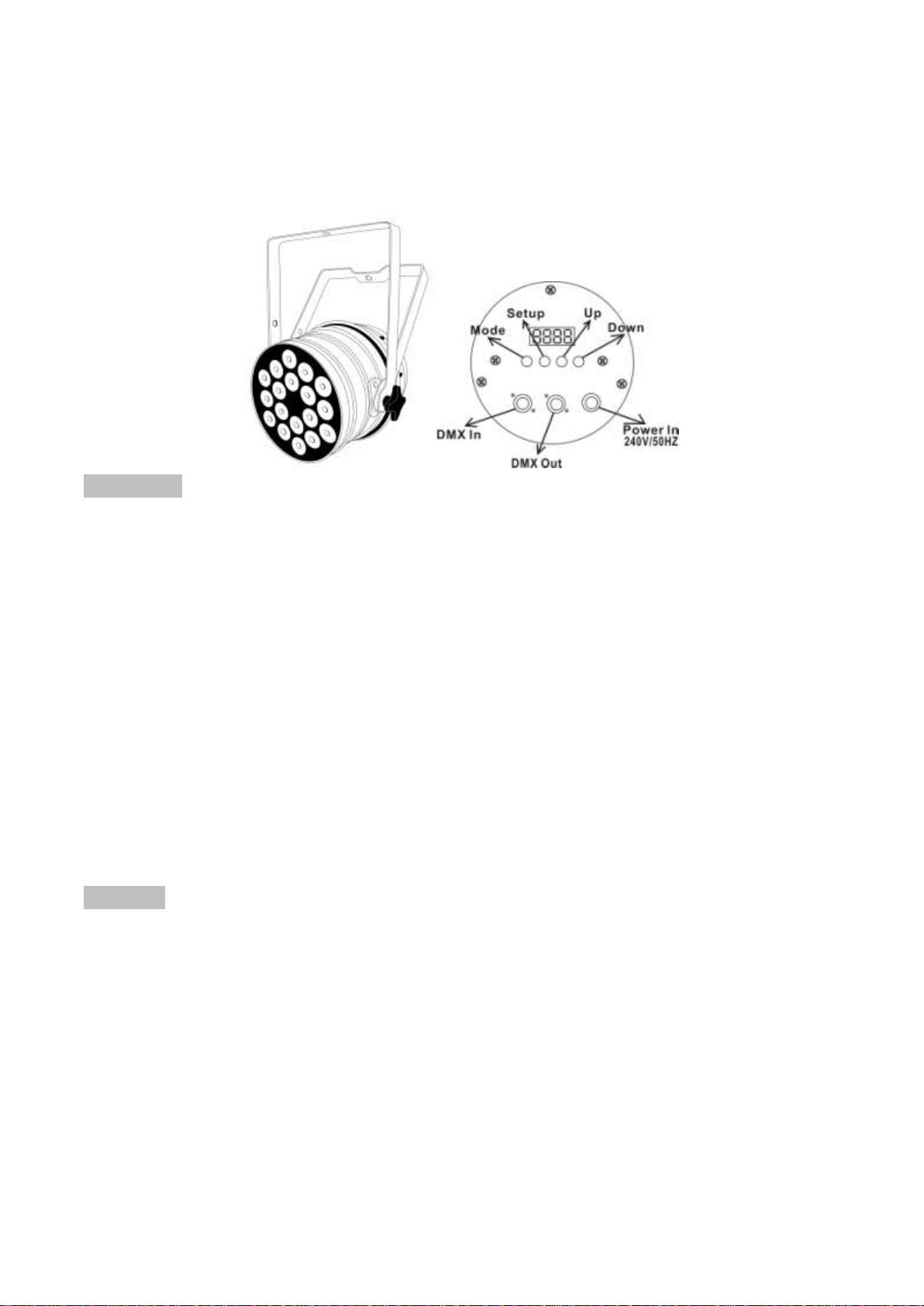

Operation:

A . Built-in program

1、Press MODE button ,enter buil-in program menu “Pr.××”

2、Press UP or DOWN button,select effects program from Pr.01~Pr.10

When LED display show Pr.01,press SETUP button enter the static color ,press UP or DOWN button ,you can select 7 static

colors on the built-in program (1.-r ；2.-rg；3.-g；4.-gb；5.-b；6.-rb；7.rgb).Press SETUP again ,you can press UP or DOWN

adjust the brightness of the static colors .Press SETUP button again to setup the the flash “FSxx”of the color .Also press UP

or DOWN to adjust the speed of flash

When LED display show Pr.02- Pr.10,the first time press SETUP button ,it will show “SP.XX”,now you can press UP and

DOWN button to setup the speed of running from SP01~SP100(FL).The second time press SETUP button ,it will show

“FSxx”,now you can press UP and DOWN to setup the speed of the flash from FS00~FS99.

B.Auto run mode

Press MODE button ,to enter auto run mode “AUTO”, it will auto run 9 built-in programs from Pr.02~Pr.10.The user can

setup the running speed, flash speed with mode Pr.02~Pr.10 .The setting up effects will be auto run in order.

C.DMX mode

1、Press MODE button ,enter DMX mode menu “d.×××”

2、Press UP or DOWN BUTTON ,to setup DMX value from d.001—d.512

3、Press SETUP button ,enter setup DMX mode menu X-ch

4、Press UP or DOWN button ,to setup DMX mode , 3-ch，4-ch，8-ch

5. On mode 8-ch,the user can setup device number ID.xx .It can be used 8 Channels to control 66pcs lights with the same

DMX address .66pcs lights can be controlled uniformly or isolately .

6. Press UP or DOWN button ,setup ID value from ID.01—ID.66

DMX mode 1：3-ch

CHANNEL

VALUE

FUNCTION

CH1

0-255

RED

CH2

0-255

GREEN

CH3

0-255

BLUE

DMX mode 2：4-ch

CHANNEL

VALUE

FUNCTION

CH1

0-255

MASTER DIMMER

CH2

0-255

RED

CH3

0-255

GREEN

CH4

0-255

BLUE

DMX mode3：8-ch（8 channels）

CHANNEL

VALUE

FUNCTION

CH1

0-255

MASTER DIMMER

CH2

Red color dimming

0-255

Red color dimming 0-255

Different static

color chosen (the

6CH on 0-24 )

0-8

R(255)

9-17

R(255) G(50)

18-26

R(255) G(150)

27-35

R(255) G(255)

36-44

R(200) G(255)

45-53

R(100) G(255)

54-62

R(40) G(255)

63-71

G(255)

72-80

G(255) B(50)

81-89

G(255) B(150)

90-98

G(255) B(255)

99-107

G(150) B(255)

108-116

G(50) B(255)

117-125

B(255)

126-134

R(50) B(255)

135-143

R(150) B(250)

144-152

R(255) B(255)

153-161

R(220) B(50)

162-170

R(150) G(50) B(100)

171-179

R(50) G(180) B(220)

180-188

R(50) G(220) B(100)

189-197

R(150) G(220)

198-206

R(150) B(220)

207-215

G(180) B(220)

216-224

G(220) B(50)

225-233

R(220) G(100) B(50)

234-242

R(220) G(200) B(100)

243-251

R(255) G(200) B(150)

252-255

R(255) G(255) B(255)

Speed

adjust(control the

chosen speed of the

program CH6

（25-249）)

0-255

0—255 slow—fast

CH6 on

250-255,can

control the

sensitivity of sound

active

0-255

Adjust sensitivity ofsound active

CH3

0-255

Green color dimming 0-255

CH4

0-255

Blue color dimming 0-255

CH5

0-9

NO FUNCTION

10-255

STROBE （slow—fast）

CH6

0-24

Through the CH2 select 29 static colors

25-49

Pr02（7color gradual change）

50-74

Pr03（3color gradual change）

75-99

Pr04（7color jumpping change）

100-124

Pr05（3color jumpping change）

125-149

Pr06（fantasy change1）

150-174

Pr07（fantasy change2）

175-199

Pr08（red gradual change）

200-224

Pr09（green gradual change）

225-249

Pr10（blue gradual change）

250-255

Sound active

CH7

VALUE

ID ADDRESS

0-9

ID1-ID66

10-19

ID1

20-29

ID2

30-39

ID3

40-49

ID4

50-59

ID5

60-69

ID6

70-79

ID7

80-89

ID8

90-99

ID9

100-109

ID10

110-119

ID11

120-129

ID12

130-139

ID13

140-149

ID14

150-159

ID15

160-169

ID16

170-179

ID17

180-195

ID18

190-199

ID19

200-209

ID20

210

ID21

211

ID22

。

251

ID62

252

ID63

253

ID64

254

ID65

255

ID66

CH8

0-250

CH1 CH2 CH3&CH4 INSTANT FADER

RESPONSE(CH1-CH4 respond in direct)

251-255

CH1 CH2 CH3&CH4 DELAY FADER

RESPONSE(CH1-CH4 delay respond )

On mode 3,when CH6 on 0-24,CH2 can select the built-in program static color,but the function of red dimming will be temporary

failure,CH3 ,CH4 will be failure in the same time ; When CH6 on 25-249 ,CH2 can adjust the speed of built-in program of CH6. ,but

the function of red dimming will be temporary failure,CH3 ,CH4 will be failure in the same time ;When CH6 on 250-255, the sound

active mode can be opened ,CH2 can adjust the sensitivity of sound active ,but the function of red dimming will be temporary

failure,CH3 ,CH4 will be failure in the same time;if CH6 is not 0,the function adjust red,green ,blue will be temporary failure on

CH2,CH3,CH4 .

D.M/S mode

Press MODE button ,enter slave mode“SLAV”

The effect of built-in program ,auto run ,sound active on the master light is the same with all the slave light .

E.Sound active mode

1、Press MODE button ,enter sound active mode “SU.××”

2、Press UP or DOWN button ,to setup the sensitivity of sound active from SU.00~SU.31

Notice:

A.If no any touch the buttons within 20 seconds ,the LED display will be closed ,if touch any button at this time ,the LED display will

recover the orginal status.All the buttons will recover the function ,

B.This light has the excess temperature self protection function .When the brightness is obvious reduce ,please check if the fan work in

normal ,after clear the trouble ,please power on ,the light will be release defend,and work in normal .
