InWin NR24 Manuale utente

User Manual

All-In-One

Nebula Liquid CPU Cooler

-2-

NR Series Product Video

Product Video Information

-3-

Interstellar Cooling

High Performance AIO Liquid CPU Cooler NR Series

will provide your build with stellar visual aesthetics.

The water block is ﬁlled with crystal shimmering stars

and the radiator is equipped with high static pressure

fans Luna AL120. Gaze into the realms of Nebula!

Product Story

-4-

Speci󽗉cations

Model NR24 NR36

Model Number IW-LC-NR24 IW-LC-NR36

CPU Socket Support

Intel®LGA 1700/ 1200/ 2066/ 2011-V3/ 2011/

1366/ 1156/ 1155/ 1151/ 1150

AMD®AM4/ AM3+/ AM3/ AM2+/ AM2/ FM2+/

FM2/ FM1/ TR4

Radiator

Dimensions

(L x W x H)

277 x 120 x 27 mm

(10.9 x 4.7 x 1.1")

397 x 120 x 27 mm

(15.6 x 4.7 x 1.1")

Materials Aluminium

Tube Length 400 mm 450 mm

Tube Material Rubber with Nylon Braided Sleeve

Water

Block

Dimensions

(L x W x H)

87.3 x 75 x 68 mm

(3.4 x 3.0 x 2.7")

Materials

Copper, Glass, Plastic

Pump

Dimensions

(L x W x H)

66 x 50 x 31 mm

(2.6 x 2.0 x 1.2")

Materials

PPS GF

Pump Speed 5200 +/- 10% RPM

Fan

Model Luna Series AL120

Quantity

Included 2 PCS 3 PCS

Dimensions

(L x W x H)

120 x 120 x 25 mm

(4.7 x 4.7 x 1.0")

Speed Mode PWM 400-1800 +/- 10% RPM

Noise Level 25 dB(A) (Normal)

Airﬂow 82.96 CFM

Static Pressure 2.31 mm / H2O

Connectors 4-Pin (12V, PWM), 3-Pin (5V, ARGB)

Rated Voltage DC 12V

Bearing Type Long Lifespan Sleeve Bearing

Package Dimensions

(L x W x H)

331 x 265 x 136 mm

(13 x 10.4 x 5.4")

459 x 244 x 136 mm

(18.1 x 9.6 x 5.4")

Net Weight 0.85 kg / 1.87 lb 1.05 kg / 2.31 lb

Gross Weight 2.0 kg / 4.41 lb 2.45 kg / 5.4 lb

Warranty 3 Years

* InWin's products comply with RoHS regulation.

* Speci󽗉cations may vary based on di󽗈erent regions.

NR24 NR36

-5-

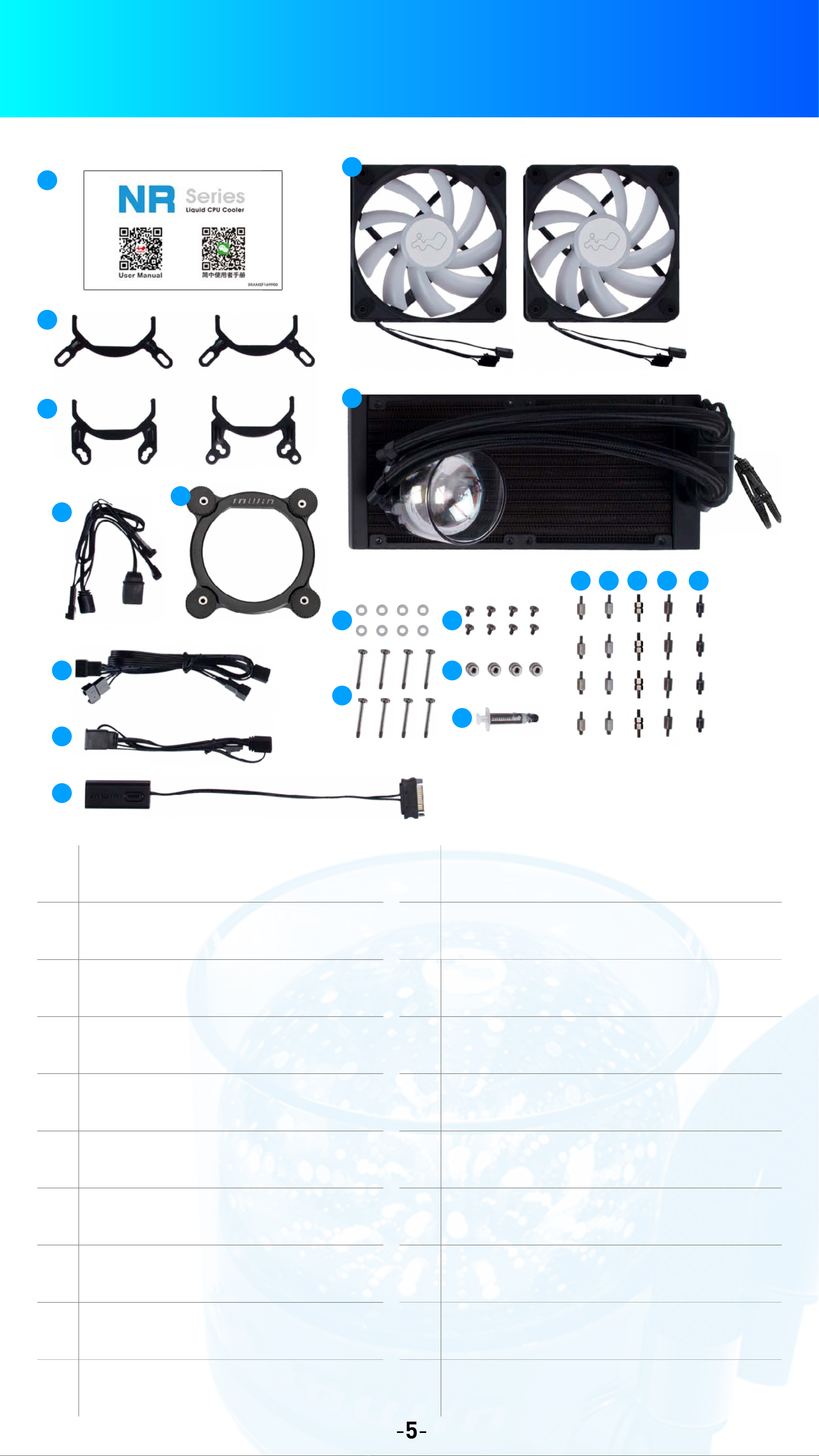

fgh i j

a. QR Code Card x 1

b. Intel Mounting Bracket x 2

c. AMD Mounting Bracket x 2

d. Luna AL120 Fans x 2

e. Intel CPU Backplate x 1

f. Standoff Screws x 4

(LGA 20XX)

g. Standoff Screws x 4

(LGA 115X/1200/1366)

h. Standoff Screws x 4

(LGA 1700)

i. Standoff Screws x 4 (AMD)

j Standoff Screws x 4 (TR4)

k. 240 Radiator x 1

l. ARGB Water Block Cable x 1

m. ARGB Fan Cable x 1

n. PWM Fan Cable x 1

o. Washer x 8

p. Fan Screws x 8

q. Radiator Screws x 8

r. ARGB One-Click Controller x 1

s. Thumbscrew Caps x 4

t. Thermal Compound x 1

NR24 Package Contents

-6-

NR36 Package Contents

fgh i j

a. QR Code Card x 1

b. Intel Mounting Bracket x 2

c. AMD Mounting Bracket x 2

d. Luna AL120 Fans x 3

e. Intel CPU Backplate x 1

f. Standoff Screws x 4

(LGA 20XX)

g. Standoff Screws x 4

(LGA 115X/1200/1366)

h. Standoff Screws x 4

(LGA 1700)

i. Standoff Screws x 4 (AMD)

j Standoff Screws x 4 (TR4)

k. 360 Radiator x 1

l. ARGB Water Block Cable x 1

m. ARGB Fan Cable x 1

n. PWM Fan Cable x 1

o. Washer x 12

p. Fan Screws x 12

q. Radiator Screws x 12

r. ARGB One-Click Controller x 1

s. Thumbscrew Caps x 4

t. Thermal Compound x 1

-7-

* Please follow the related chapters to assemble.

* Please use the original provided accessories to avoid damage to the product.

Installation Guide

(1) Install AL120 Fans to Radiator

(2) Install Fans and Radiator combo to your

PC chassis.

Parts Required：Radiator Screws

Parts Required：240 mm/360 mm radiator, Luna AL120 Fans, Washers,

Fan Screws

Note：Please be sure to use a washer on each screw before installation.

-8-

(3) Installation for motherboards

A. For Intel Motherboards (LGA 115X/1200/1366/20XX/1700)

(1) Switch the Intel backplate pins according to the CPU socket of your

motherboard.

(2) Attach the Intel backplate to the bottom of the motherboard.

(3) Install the standoff screws onto your motherboard. Ensure to use the

correct standoff screws for your CPU socket.

Note: Intel LGA 20XX does not require back plate installation.

Note: Intel LGA 20XX does not require backplate installation.

Parts Required：Standoff Screws (LGA115X/1200/1366/20XX/1700)

LGA1700

LGA1366

LGA115x / 1200

Installation Guide

-9-

B. For AMD Motherboards (AMD or TR4)

(1) Please remove the retention module. AMD's backplate comes with

AMD's motherboard. Attach it to the bottom of motherboard.

(2) Install the standoff screws onto your motherboard. Ensure to use the

correct standoff screws for your CPU socket.

Parts Required：Standoff Screws (AMD or TR4)

Installation Guide

-10-

(4) Install the Pump Unit

A. Choose your Mounting Bracket according to your CPU

B. Apply the Thermal Compound

evenly on the CPU surface

D. Install the water block and then tighten it with the

Thumbscrews

C. Remove the protect ﬁlm

from the cold-plate

Parts Required: Intel or AMD Mounting Brackets, Thumbscrew Cap, Thermal

Compound

Intel

AMD

Installation Guide
