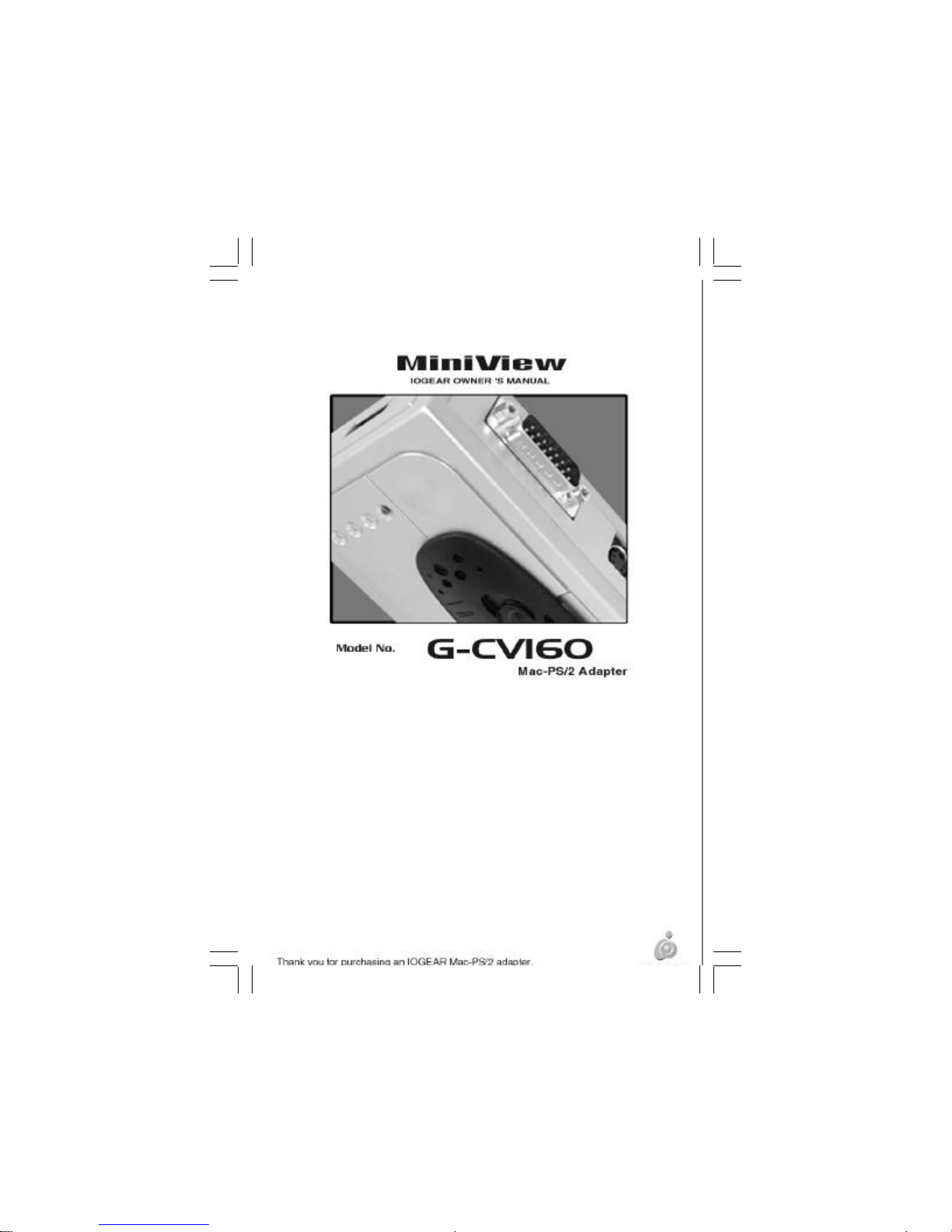

IOGear MiniView G-CV160 Manuale utente
IOGEAR
16560 Aston Street
Irvine, CA 92606
Phone: (949) 250-1260
Toll Free: (888) 999-2836
Fax: (949) 250-1262
www.iogear.com
©1999 ATEN Technology, Inc. All Rights Reserved.
Microsoft and Windows 98 are registered trademarks of
Microsoft Corporation.
IBM is a registered trademark of International Business
Machines, Inc.
Macintosh, G3/G4 and iMac are registered trademarks of
Apple Computer, Inc.
ATEN is a registered trademark of ATEN Technology,
Inc.
IOGEAR is a registered trademark of ATEN Technology,
Inc.
ATEN Technology makes no warranty of any kind with
regards to the information presented in this document.
All information furnished here is for informational
purposes only and is subject to change without notice.
ATEN Technology assumes no responsibility for any
inaccuracies or errors that may appear in this document.
This IOGEAR package contains:
G-CV160 Mac –PS/2 Adapter
ADB Patch Cable
Mac Video Patch Cable
User Manual & Setup Guide
Product Registration / Warranty Card
Please check to make sure that all components are
included and nothing is damaged. If you discover a
problem, please contact your dealer. Before
connecting your MiniViewTM, read the manual
thoroughly and follow the installation and operation
procedures carefully in order to prevent any
damage to the unit and/or any devices it connects
to.
Package ContentsPackage Contents
ContentsContents
Introduction ……...…………...……... 0101
Features / Sys. Requirements …… 0202
Installation ……………………..……… 0303
KVM Setup …………………………………..
Non-KVM Setup ………...………….………. 0404
Connection Diagrams …………………….... 0505
Dip Switches ….………………………… 0606
Video
Keyboard & Mouse 0707
Mac Key Assignments …………….… 0808
Specifications …………………….….… 0909
Radio Interference / Warranty ...… 1010
Contacting IOGEAR ..…………………. 1111
Thank you for purchasing IOGEAR’s MiniViewTM
Mac Adapter, a Macintosh-PS/2 converter that
allows seamless integration of a Macintosh
computer into your existing KVM configuration.
Our Mac Adapter is fully compatible with older
Macintosh systems, the new iMac, G3 and G4.
Full Macintosh keyboard functionality is supported
on any PS/2 keyboard, while a second ADB port
allows your existing ADB devices to be used with
the Mac. Although this unit is fully compatible with
our PS/2 KVM switches, it can also be used as a
stand-alone Mac-PS/2 converter. We hope you
enjoy using your new Macintosh Adapter –yet
another first-rate connectivity solution from
IOGEAR.
IntroductionIntroduction
1
Features
ConvertsfromADBandDB-15to PS/2 and HDB-15
AllowsaMacintoshsystemtobeincorporatedinto
yourKVM setup.
SecondaryADBportprovides support for additional
Macintoshaccessories.
FullMacfunctionalitysupportedonaPS/2keyboard
Nosoftwarerequired.
PatentedVSEtechnologysupportsultrahighquality
videoatresolutionsupto1920x1440.
Savetime,spaceandmoney.
3 Year Limited Warranty.
System Requirements
1) Macintosh computer with:
ADB connectors for the mouse & keyboard
DB-15 connectors for the video (standard Mac
Video)
2) A PS/2 mouse
3) A PS/2 or AT keyboard
4) A VGA, SVGA or MultiSync monitor
FeaturesFeatures / System Requirements/ System Requirements
2
InstallationInstallation
3

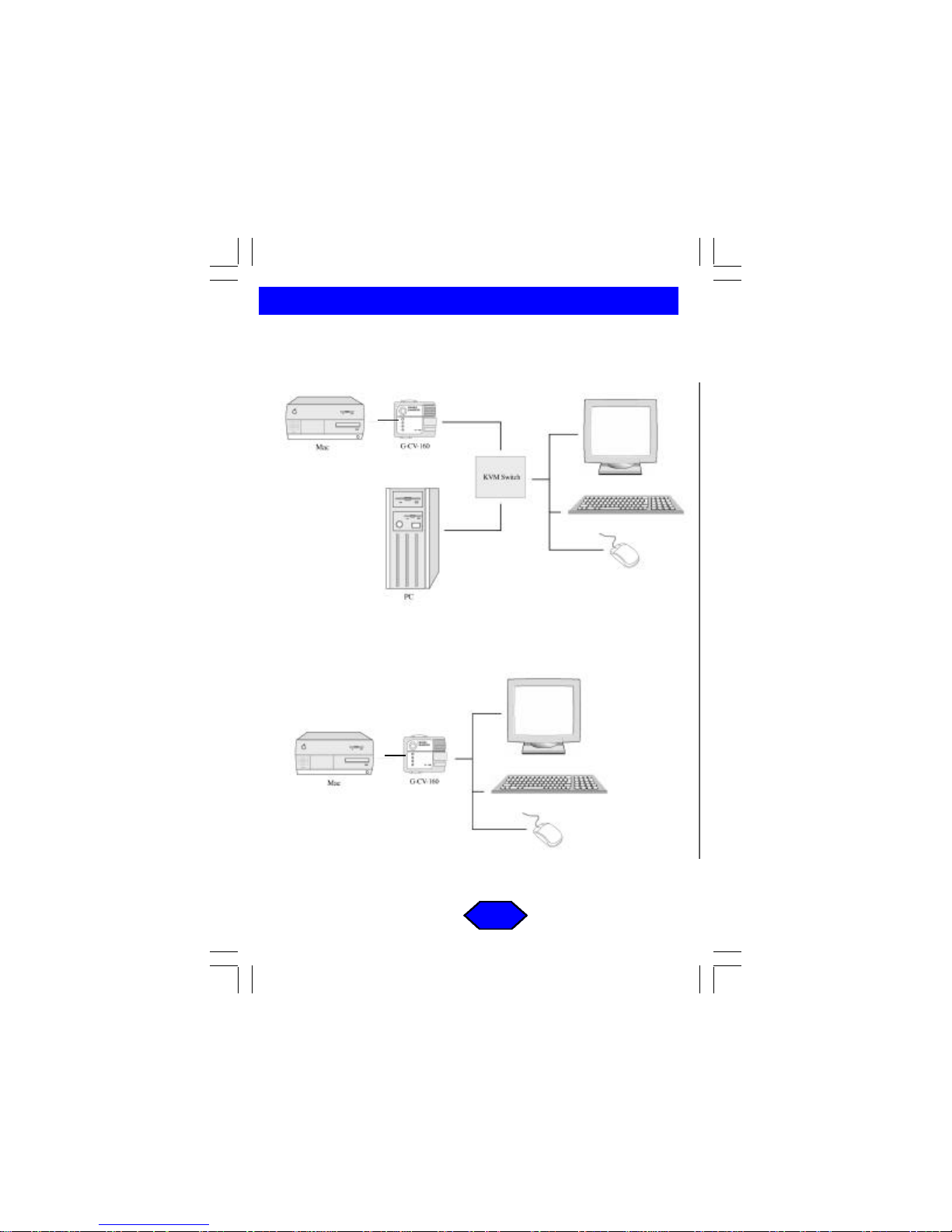

Installation in a KVM setup:
Before installing your G-CV160, please make sure
your Macintosh is powered OFF.
1) Connect the PC keyboard and mouse ports
on the G-CV160 to one of the PC ports on
your KVM switch. Be sure the keyboard port
on the KVM switch is connected to the key-
board port on the G-CV160, and the same is
true for the mouse ports.
2) If you have an older Macintosh with DB-15
(Mac video) connectors, connect the PC
video port on the G-CV160 to the correspond-
ing video port on your KVM switch. If you're
connecting the G-CV160 to a new G3, G4 or
other Macintosh with HDB-15 video connec-
tors, you can bypass the video portion of the
G-CV160 and connect the video port on your
KVM switch directly to the Mac.
3) Connect the Mac ports on the G-CV160 to
your Macintosh computer.
4) If you have any extra ADB devices (beside
the typical mouse and keyboard), connect
them to the 2nd ADB port on the side of the
G-CV160.
Before installing your G-CV160, please make sure your
Macintosh is powered OFF.
Installation without a KVM switch:
1. Connect your PS/2 keyboard and mouse to
the PC ports on the G-CV160.
2. If you have an older Macintosh with DB-15
(Mac video) connectors, connect your
monitor to the PC video port on the G-
CV160. If you’re connecting the G-CV160
to a new G3, G4 or other Macintosh with
HDB-15 video connectors, you can bypass
the video portion of the G-CV160 and
connect the monitor switch directly to your
Mac.
3. Connect the Mac ports on the G-CV160 to
your Macintosh computer.
4. If you have any extra ADB devices (besides
the typical mouse and keyboard),
connect them to the 2nd ADB port on the
side of the G-CV160.
InstallationInstallation
4
InstallationInstallation
5
