Iomega ZipCD 650 Istruzioni per l’uso

Internal ZipCD™ATAPI Drive

PC Quick Install

WRITING

PHONES

DISCIN

OPEN

Recordable

ReWritable

650

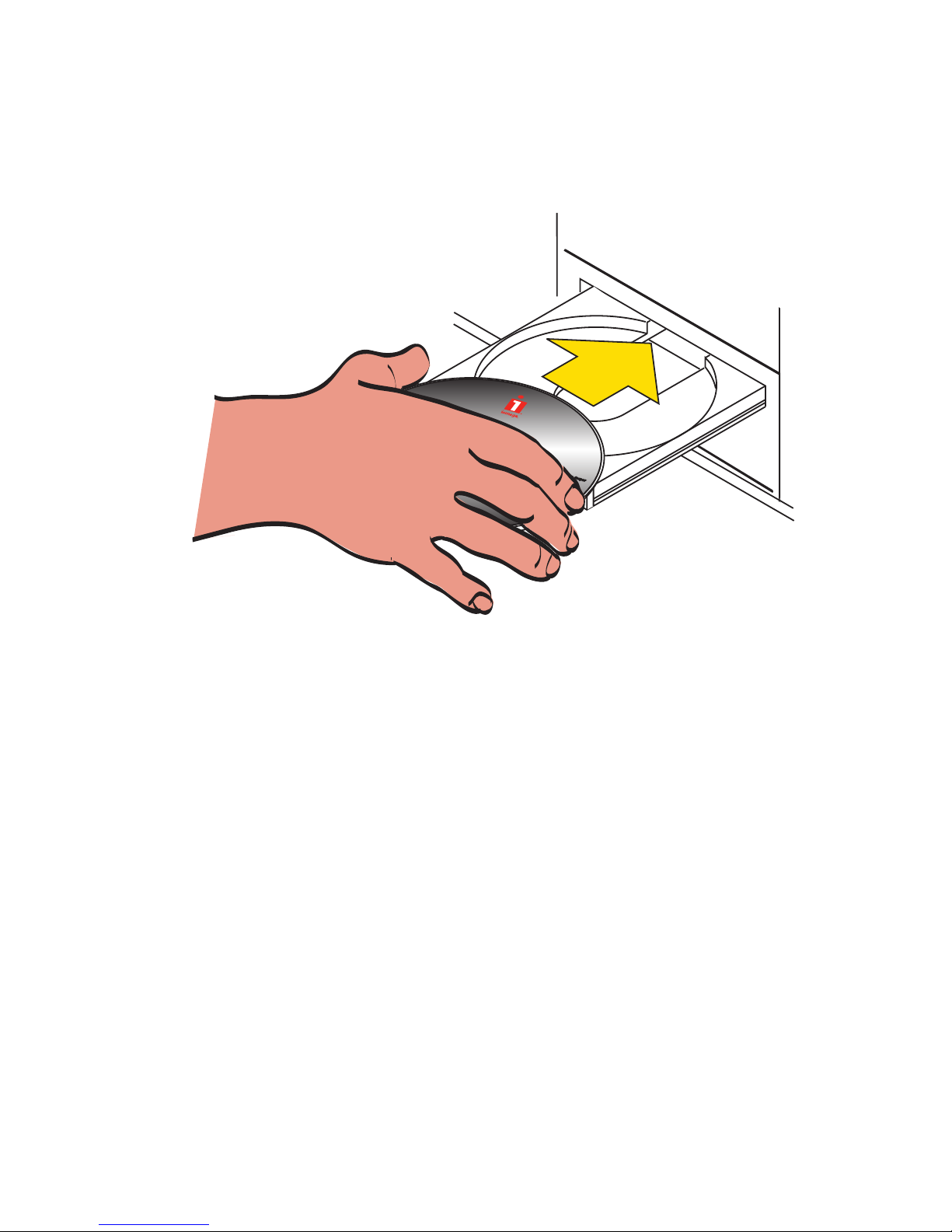

Start your computer, wait for the operating system to load,

then insert the ZipCD™software disc.

Select “Print Installation Instructions” to view and print detailed

installation instructions. See step 12 for information about viewing the

manual.

Select “Install ZipCD™Software” to install the software needed for your

ZipCD drive. Follow the onscreen instructions.

If necessary, change the ZipCD™drive jumper setting 1.

Leave the setting in the Slave 2position if you are connecting the ZipCD™

drive on the same data cable with another device. Use the Master 3setting if

the ZipCD drive will be the only device on the secondary IDE channel. Do

not use Cable Select unless your computer supports this mode. (Check your

computer documentation.)

Shut down the computer, disconnect the power cord and

remove cover.

CAUTION! Always turn off power to the computer and all devices

connected to it before beginning any computer hardware change.

NOTE: Locate and write down the drive serial number for your drive.

WRITING

PHONES

DISCIN

OPEN

Recordable

ReWritable

650

Select the IDE interface connection you want to use.

Connect the ZipCD™drive to the secondary IDE channel 1either in slave

configuration with another drive as master (e.g. CD-ROM) or in master

configuration as the only device. If you are unsure about the connection, see

step 11 to view and print the detailed instructions.

WRITING

PHONES

DISCIN

OPEN

Recordable

ReWritable

650

Locate a vacant 5.25”drive bay. Remove the panel cover and

slide the ZipCD™drive into the drive bay.

Some computers may require rails. Check your documentation.

NOTE: If it makes it easier to connect cables on your computer, you can

secure the ZipCD™drive in the drive bay now. (See step 9.)

MASTER

SLAVE

CABLESELECT

AUDIO OUT

RGNDL

CS M

SL A

IDEPIN1

DC INPUT

+5GND+12

ZipCD

PIN 1

Pin 1

40 Pin

Pin 1

Connect the ZipCD™drive to the computer’s IDE connection

using an IDE data cable.

NOTE: You can use either the cable included with the drive or an IDE cable

that may already be connected to the computer’s motherboard.

CAUTION! Make sure PIN 1 on the cable connects to PIN 1 on the ZipCD™

drive, the motherboard, and any other connected device.

MASTER

SLAVE

CABLE SELECT

AUDIO OUT

R GND L

C S M

S L A

IDE PIN1

DC INPUT

+5 GND +12

Skip this step if the computer’s CD-ROM drive is already

connected to the computer’s audio in port.

Connect the audio cable to the ZipCD™drive and the computer’s audio

connector, usually located on the sound card or the motherboard. Check

your sound card documentation or your system’s documentaton and the

User’s Manual for more detailed instructions.

MASTER

SLAVE

CABLE SELECT

AUDIO OUT

R GND L

C S M

S L A

IDE PIN1

DC INPUT

+5 GND +12

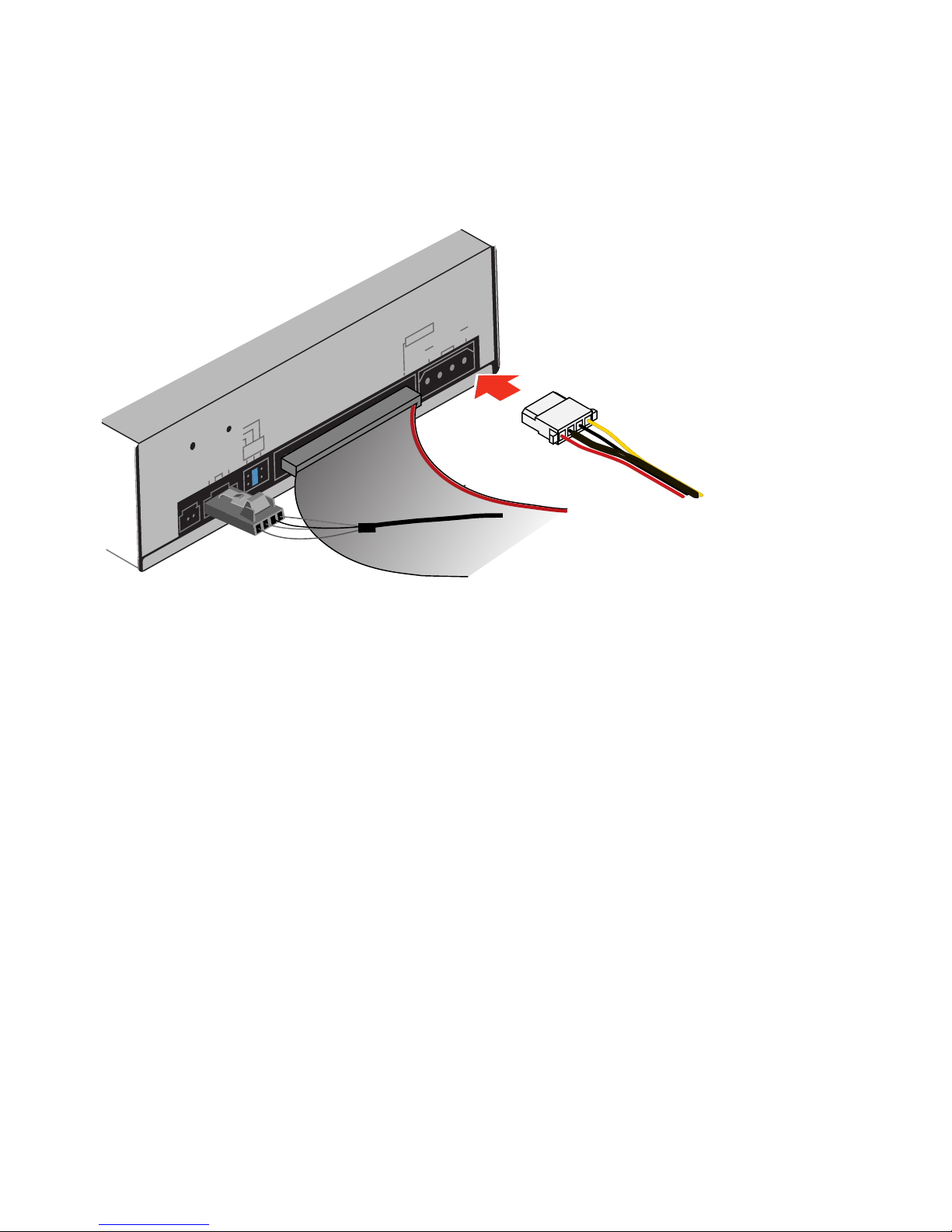

Connect a computer power supply cable.

You may need a Y-cable if your system’s power cable does not have a free

connector.

CAUTION! Make sure the power supply cable is securely connected to the

ZipCD™drive.
