User Guide (English)

Introduction

Thank you for purchasing the Total PA™Glow Max. At ION, your entertainment is as

important to us as it is to you. That’s why we design our products with one thing in mind—

to make your life more fun and more convenient.

Box Contents

Total PA™Glow Max

Power Cable (5 ft. / 150 cm)

Microphone with cable (15 ft. / 450 cm)

Remote Control

Speaker Stand

Quickstart Guide

Support

For the latest information about this product (documentation, technical specifications,

system requirements, compatibility information, etc.) and product registration, visit

ionaudio.com.

For additional product support, visit ionaudio.com/support.

Speaker Stand Installation

1. Extend the speaker stand tripod legs on a flat, stable surface. Fully extend the legs until

the plastic bracket is stopped by the bumps on the center pole. Insert the lower pin

directly above the lower adjustment knob and tighten the lower adjustment knob.

2. Raise the mounting pole up to the appropriate height needed and tighten the side

adjustment knob. When raising the mounting pole, make sure the end with the upward

pointing arrow is on the top.

3. Insert the upper pin into the upper pin-hole so the mounting pole stays at your set

height, and tighten the side adjustment knob.

4. On Total PA™Glow Max, adjust the bottom knob counter-clockwise so the screw is not

blocking the opening.

5. Line up the Total PA™Glow Max mounting hole with the speaker stand pole and place

on the pole.

6. Tighten the mounting knob clockwise on Total PA™Glow Max.

Note: Remove Total PA™Glow Max prior to moving the stand for maximum safety.

MIC IN 2 XLR IN MIXOUTMIC IN 1

PRESETS

LINK

Setup

1. Make sure all items listed in the Box Contents are included in the box. Look in the box

under the foam sheet for the power cable and microphone.

2. Read the Safety & Warranty Manual before using the product.

3. Study the Connection Diagram.

4. Make sure all input devices (such as microphones, CD players, or digital media players) are

turned off with their volume settings set to “zero.”

5. Connect all devices as shown in the Connection Diagram.

6. Switch everything on in the following order:

a. Audio input devices (e.g. microphones, instruments, CD players)

b. Total PA™Glow Max

7. When you are finished using Total PA™Glow Max, switch everything off in the following

order:

a. Total PA™Glow Max

b. Audio input devices

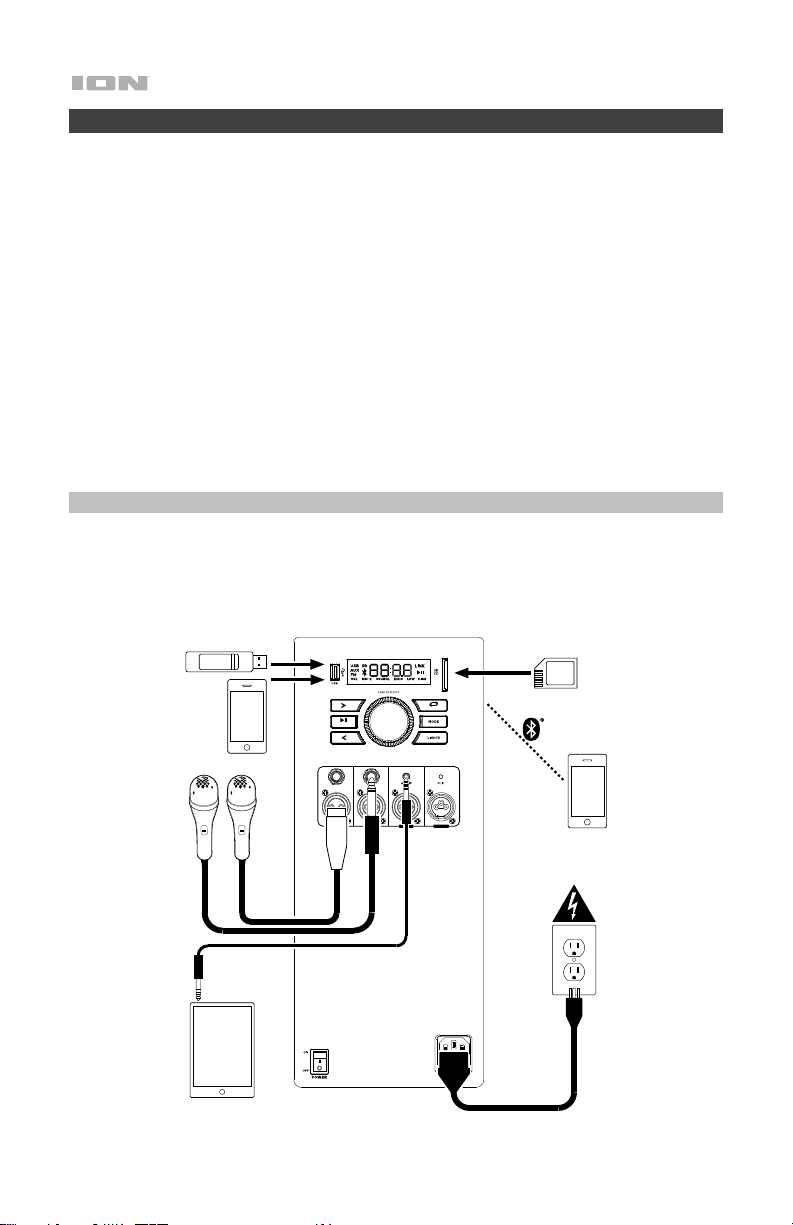

Connection Diagram

Items not listed under the Box Contents are sold separately.

Microphones

SD Card

(16 GB limit and only

MP3

files supported)

USB drive (16 GB limit and

only MP3

files supported)

Smartphone

Tablet

Power

Smartphone

Features

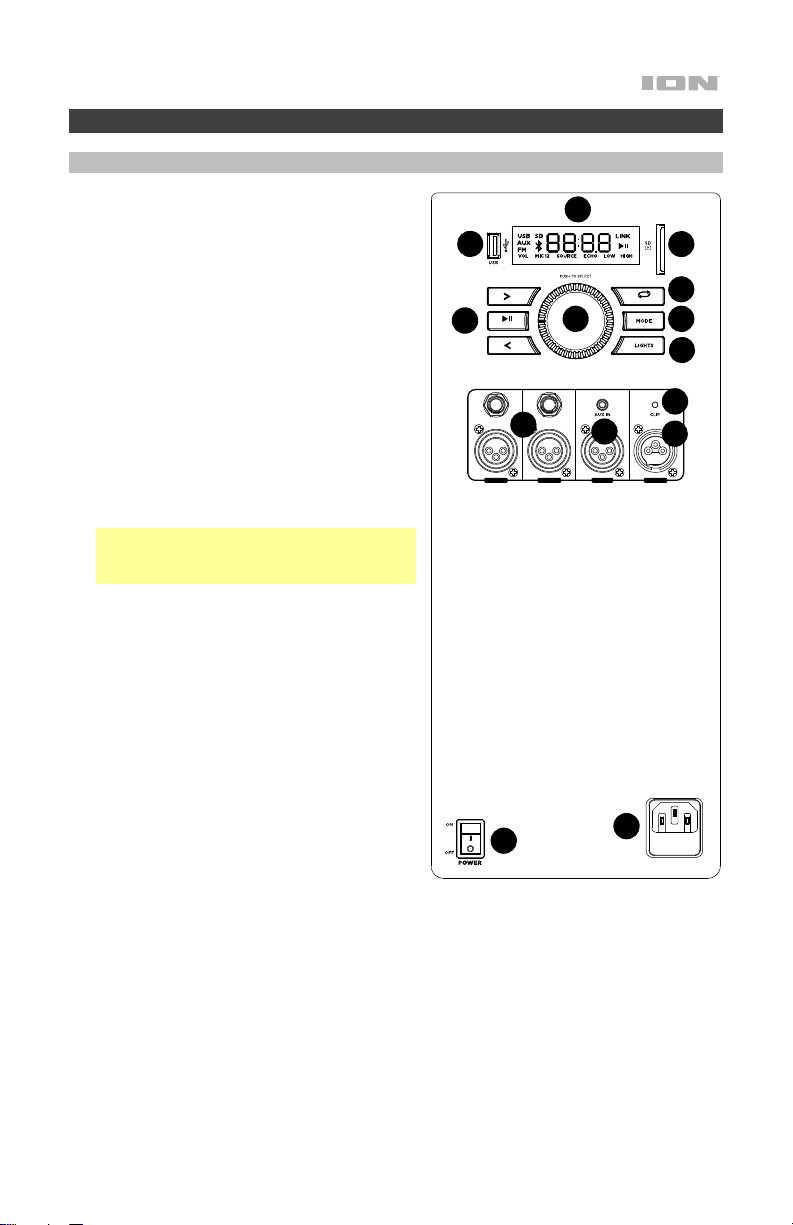

Rear Panel

1. Media Panel Buttons: Controls for the

USB/SD, FM radio, and Bluetooth®audio

sources. These controls include mode

selection and music playback options. See

Media Panel for more information.

2. USB Port: Connect your USB flash drive

here to play music. You can also use this

port for charging the USB device, such as a

tablet or smartphone. To charge a device

that is streaming music via Bluetooth,

pause the music first and then wait for it to

reconnect after the USB cable is inserted.

3. SD Card Slot: Insert your SD card here to

play music.

4. Display: This screen shows information

relevant to Total PA™Glow Max’s current

operation.

Note: The Display comes with a plastic

protector on it. Remove this for optimal

viewing.

5. Mic Inputs (1/4”/6.35 mm & XLR):Connect

a microphone or mic-level source to these

inputs.

6. Aux Inputs (1/8” &XLR): These inputs can

be used to connect a CD player, MP3

player, or other audio source.

7. Mix Out (XLR):Connect this output to a

speaker, mixer, or recorder.

8. Control Knob: Turn this knob to adjust the

main volume (overall output) of the

loudspeaker. Push this knob to select and

make adjustments to the mic 1 volume, the

mic 2 volume, source volume (radio, USB,

SD, Bluetooth signal, and aux input), echo

effect, high EQ, and low EQ. The volume of

Total PA™Glow Max does not affect your

Bluetooth device volume. For the best

sound quality, set your input source volume

to 100% and use the Source and Main

Volume control of the speaker to adjust the

volume.

9. Repeat/Link: In USB or SD mode, press this button to repeat a single track, folder, or

all tracks. Press and hold this button to start stereo linking to another compatible ION

speaker (see ionaudio.com for a list of compatible speakers).

10. Mode: Press this button to select the audio source to use: USB, SD, FM radio, Aux

(available to select when the USB port and SD card slot are empty), or Bluetooth.

MIC IN 2 XLR IN MIX OUTMIC IN 1

PRESETS

LINK

11. Clip LED: The Clip LED will flash red if the signal from the input jacks or Media Panel

audio source is clipping (distortion from an overly loud signal). If this happens,

decrease the setting of the Main Volume knob or the volume for the Aux/Mic Input (if

a loud device is plugged into either).

12. Light Mode Button: Press this button to toggle between one of these five modes for

the lights on the front panel.

• Color Cycle: The lights slowly glow and cycle through colors. This is the default

mode when Total PA™Glow Max is first powered on. Press and hold the light mode

button to freeze the lights on one color. Press and release the button to unfreeze.

• Beat Sync: The lights flash and change colors according to the tempo of the music

playing on the speaker. For the best lighting effect, you may need to adjust the

volume of your device, the source volume, and/or the main volume.

• Color Wheel: The lights rotate in a wheel of all colors.

• Color Beat Sync: The lights rotate in a wheel of all colors and change direction and

speed according to the tempo of the music playing on the speaker. For the best

lighting effect, you may need to adjust the volume of your device, the source

volume, and/or the main volume.

• Off: The lights turn off.

13. Power Cable Input (IEC):Insert the included power cable here to charge the unit.

14. Power Switch: Flip this switch to toggle the speaker’s power on or off.

Note: Total PA™Glow Max will power off after 15 minutes with no audio playing.

Media Panel

Use the following buttons on the Media Panel to control the USB/SD, FM Radio, and

Bluetooth audio sources.

Mode: Press this button to switch the audio source between USB/SD, FM radio, Aux

(available to select when the USB port and SD card slot are empty) and Bluetooth. The

default mode when powering on Total PA™Glow Max is Bluetooth. The USB/SD mode is

only selectable if a USB drive or SD card is plugged into Total PA™Glow Max; otherwise, the

Mode button will toggle between Bluetooth, Aux, and FM radio only.

Note: Your USB drive or SD card cannot be more than 16 GB and it must contain playable

files in order for its data to appear properly in the Display. It can have MP3 files. When you

connect a USB drive or SD card with playable files, Total PA™ Glow Max will order the files

alphabetically by folder on the root directory and then by track name in the folder.

Play/Pause: When USB/SD is selected as the audio source, press this button to

play/pause the currently selected track. Double press this button to stop playback and

return to the beginning of the track list.

When Bluetooth is selected as the audio source, press this button to play/pause the

currently selected track or press and hold this button to turn voice prompts on/off.

Repeat: Press this button to cycle through the five repeat/shuffle options:

• Play the USB/SD folder’s tracks in order with repeat/shuffle off (OFF).

• Play the tracks in random order (Rd0).

• Play the current USB/SD track on repeat (ONE).

• Play all the tracks on the USB drive or SD card on repeat (ALL).

• Play the current folder’s tracklist on repeat (F0d). The folder used is based on what

song is playing when it is activated. For instance, if a song playing is on the root level,

selecting F0d will repeat only songs at the root level. If a song is in folder “A”, then

only songs in folder “A” will be repeated.

Previous: When USB/SD or Bluetooth is selected as the audio source, press this button to

go to the previous track in the playlist.

Next: When USB/SD or Bluetooth is selected as the audio source, press this button to go

to the next track in the playlist.

Note: In some apps on Bluetooth devices, pressing the <(Previous) or >(Next) buttons

may change the playlist or music genre rather than the track.

Remote Control

Stop: Stops the media panel source from playing.

Mode: Selects the media panel source:Aux, USB, SD, FM radio, or Bluetooth.

Mute: Silences the music playback on media panel sources. Press Mute again to un-mute

the music playback.

Prev: Goes to the previous USB or SD card track. When listening to Bluetooth sources,

pressing Prev in some apps may go to another playlist or music genre. When listening to

the FM radio, press the Prev button to tune the radio station down.

Next: Advances to the next USB or SD card track. When listening to Bluetooth sources,

pressing Next in some apps may go to another playlist or music genre. When listening to

the FM radio, press the Next button to tune the radio station up.

Play/Pause: Plays or pauses the USB, SD, or Bluetooth media panel source. Files are

played from the USB or SD source first by alphabetical order of what is on the root level,

then alphabetical by folder, and then alphabetical by the track name. In Radio Mode,

double press the Play/Pause button to toggle through radio presets.

Vol –: Decreases the Main Volume.

Vol +: Increases the Main Volume.

EQ: Press this button to toggle through EQ presets (the preset name will be shown on the

display).

100+: Jumps ahead by 100 tracks.

200+: Jumps ahead by 200 tracks.

Number Keys: Provides track selection for USB and SD card sources.

Operation

Using the Control Knob

The Control Knob defaults to controlling the Main Volume for all channels. Press the

Control Knob to toggle through different functions: Mic Channel, Source, Echo effect level,

and EQ.

• Press the Control Knob to select the Mic channel 1 or 2. Rotate the Control Knob to

raise or lower the volume of the Mic input independently of the other channels.

• Press the Control Knob again to select Source. Rotate the Control Knob to raise or

lower the volume of the Aux/BT/USB/Radio signal independently of the Mic channels.

• Press the Control Knob again to control the Echo effect level for the Mic channel.

• Press the Control Knob again to select Low EQ adjustment. Rotate the Control Knob

to raise or lower the low frequencies on all channels.

• Press the Control Knob again to select High EQ adjustment. Rotate the Control Knob

to raise or lower the high frequencies on all channels.

• Press the Control Knob again to return to Main Volume adjustment.

If there is no activity on the Control Knob for 5 seconds, the function will go back to Main

Volume.

Pairing with a Bluetooth Device

1. Power on the Total PA™Glow Max by flipping the on/off switch. Total PA™Glow Max

will automatically enter Bluetooth pairing mode.

2. Navigate to your device’s Bluetooth setup screen, find Total PA Glow Max, and

connect. Do not connect to Total PA Glow Max_BLE; this is reserved exclusively for

connecting to the ION Sound XP™app. When connected, the Bluetooth icon on the

display will flash and you will hear “Connected”.

Note: If you experience trouble in connecting, select “Forget this Device” on your

Bluetooth device and try to connect again.

3. To disconnect, turn off Bluetooth from your device’s Bluetooth settings.

Linking Two Compatible Speakers (Stereo-Link 2.0™):

1. Power on both Total PA™Glow Max speakers by flipping their on/off switches. Make

sure they are in Bluetooth pairing mode and not connected to a device.

2. Press and hold the Repeat/Link button on one speaker (the primary speaker which

will control both) to enter Stereo Link mode. Once a link has been established, the

word LINK will appear on both speaker displays.

3. Connect to the primary speaker via Bluetooth.

To disconnect, double press the Repeat/Link button.

Note: The speakers should be within 100’ (33.3 m) of each other to properly link.

Note: Total PA™Glow Max is not compatible with previous ION PA models. To link to a

previous model, use an XLR cable (not included) and link from the newer PA to the

previous one via the XLR Out on Total PA™Glow Max and the XLR Aux In on the previous

model.

SD/USB Mode

Press the Mode button to toggle through to select SD or USB mode. Total PA™Glow Max

will automatically play the first compatible file. Files are played in alphabetical order of

what is on the root level, then alphabetical by folder, and then alphabetical by track name.

Media playback will stop when all media has been played on the SD card or USB drive.

Press and hold the Next and Previous buttons to fast forward or rewind within the song.

Note: The SD card or USB drive must have playable files for it to appear on the media

panel’s display. If there is no USB drive or SD card inserted into the media panel, press

and release the Mode button will toggle through Bluetooth and radio.

Repeat settings (abbreviations will show on the display):

• ALL: Repeat all of the tracks in the folder.

• FOLd: Repeat all of the tracks in the folder.

• OnE: Repeat the current playing USB track.

• rAn: Shuffle the track order.

App Control

IMPORTANT: To ensure the best possible experience with the app, use the most

current Android OS or iOS on your device.

Follow these steps to download the free app on your device:

1. Open the Apple App Store or Google Play on your device. Then, search for the ION

Sound XP app.

2. Follow the on-screen instructions to download and install the app. Once

downloaded, the ION Sound XP app will appear on your device's home screen.

3. Connect your device to Total PA™Glow Max via Bluetooth. See the Pairing with a

Bluetooth Device to learn how to do this.

4. Open the ION Sound XPTM app. If prompted, allow the app to access your device's

Bluetooth and Location Services.

5. Tap to select Add A Product on the screen. The app will scan and find Total PA™Glow

Max.

If you are having issues connecting, tap Help with setting up? for additional tips.

6. Select the Total PA™Glow Max icon to go to the next screen, where you can use the

app to control various functions of the speaker such as:

• Radio: Play the radio, change stations, and edit presets.

• EQ: Adjust the speaker's equalization, and enable or disable Bass Boost.

• Volume: Adjust the speaker volume and microphone volume.

• Voice Prompts: Enable or disable the voice prompts.

• Support: Visit ionaudio.com, contact Technical Support, and view Warranty

information and Frequently Asked Questions.

Altri manuali per TOTAL PA GLOW

Indice

Lingue:

Altri manuali ION Sistema di altoparlanti

ION

ION TOTAL PA TITAN Manuale utente

ION

ION Game Day Lights Manuale utente

ION

ION Pathfinder Manuale utente

ION

ION Total PA Premier Manuale utente

ION

ION TOTAL PA GLOW 3 Manuale utente

ION

ION TOTAL PA PRIME Manuale utente

ION

ION TOTAL PA TITAN Manuale utente

ION

ION TAILGATER BLUETOOTH Manuale utente

ION

ION Block Rocker iPA76C Manuale utente

ION

ION Game Day Party Manuale utente

ION

ION Total PA Spartan Manuale utente

ION

ION TOTAL PA GLOW 3 Manuale utente

ION

ION EXPLORER EXTREME Manuale utente

ION

ION Sport XL Manuale utente

ION

ION BLOCK ROCKER BLUETOOTH Manuale utente

ION

ION EXPLORER EXTREME Manuale utente

ION

ION Offroad Manuale utente

ION

ION Mega Party Express Manuale utente

ION

ION ANYROOM Manuale utente

ION

ION Explorer Outback Manuale utente

ION

ION Total PA Live Manuale utente

ION

ION Total PA Premier Manuale utente

ION

ION Total PA Supreme Manuale utente

ION

ION TAILGATER BLUETOOTH Manuale utente

Manuali Sistema di altoparlanti popolari di altre marche

JVC

JVC CA-MXK5R Manuale utente

LG NB4532B Manuale utente

JVC

JVC CA-FSH100 Manuale utente

5Core

5Core Pro Series Manuale utente

EAW

EAW MQV1394e Manuale utente

Lynx

Lynx GXR-LA10A Manuale utente

iLive

iLive ITB066B Manuale utente

RDX

RDX QuickStation 4 Manuale utente

Electro-Voice

Electro-Voice S-122 Manuale utente

Sven

Sven SPS-619 GOLD Manuale utente

Pioneer

Pioneer CS-7070 Manuale utente

EAW

EAW UB82e Manuale utente

Sondpex

Sondpex Active Speaker System and Digital Music... Manuale utente

JVC

JVC NX-PN7 Manuale utente

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuale utente

Yamaha

Yamaha NX-A01 - Speaker Sys Manuale utente

SE Audiotechnik

SE Audiotechnik I-LINE Manuale utente

Gemini

Gemini WRX-843 Series Manuale utente
