ION TS Series Manuale operativo
TS Series
Technical Service Manual
Natural Choice Corporation | 4601 Interstate Blvd. | Loves Park, Illinois, 61111 USA
main or international 815.874.4444 | toll-free 800.547.7726 | [email protected] | www.naturalchoicewater.com
For ION Service Videos visit our website at www.naturalchoicewater.com
NCC1004-17-R01
COLOR CODE REVISION MONTH YEAR NOTES
REV 01 August 2017 Introductory TS Series
REV 02 April 2019 Software update to v1.6 and Booster Pump Re-routing
REV 01
REVISION COLOR CODE GUIDE
NCC1004-17-R01
For technical support contact Natural Choice at (USA) 815.874.4444
2
The ION Drinking Water appliance, introduced in 2006, has experienced several changes in response to our customer’s needs
and our ability to deliver improved features.
In August of 2017, Natural Choice released the ION TS Series. The TS Series offers many features, which include a Touch Screen user
interface and easy serviceable components.
Revision 2 was released in April of 2019, Natural Choice instituted changes to make the ION run better than ever. This included a
software update to v1.6 and booster pump re-routing to allow for better use of the internal booster pump.
To update software, please visit our website for the most up to date software version available.
Should you have any questions regarding the repair of your TS Series ION Water Cooler, please call our Technical Department at
815-874-4444.
Introduction
REV 02
REV 01 REV 02
For technical support contact Natural Choice at (USA) 815.874.4444
3
Table of Contents
Revision History Page 4–5
SKU and Label Overview Page 6
Opening the ION Page 7
System & Component Familiarization Pages 8–13
DIP Settings and Wiring Diagram
Advanced Software Functions
Troubleshooting Guide
Shutdown Error Overview
Technical Diagrams with Part Number Reference
Transporting and Storing the ION
Page 14
Pages 15–17
Pages 18–31
Pages 32
Page 33–38
Page 39
NCC1004-17-R01
REV 02REV 01
For technical support contact Natural Choice at (USA) 815.874.4444
4
ION Revision History
NCC1004-17-R01
Starting Serial Number Date (Month, Year) Description of Changes
1712-20735 December, 2017 Ice Tank Thermistor wire extended, connection moved to outside of tank, check valve on fill tubing
added
1801-21086 January, 2018 Changed to reversible inlet valve mounting plate to accommodate alternate tube routing
1803-21791 March, 2018 Changed to blue silicone Hot Tank Drain Plug O-Ring
1806-23891 June, 2018 Changed Touch Screen Assembly from Resistive to Capacitive type, implemented Software Version 1.4
1808-25245 August, 2018 Changed to Faucet Locking Plate with retention tabs at top edge to address incidental contact
disengaging lock
1902-28909 February, 2019 Changed Ice Tank Fill Valve to direct-acting p/n 8548 to address drip leaks, removed check valve
from fill tubing
1904-30652 April, 2019 Booster Pump/Filter reroute performed, implemented Software Version 1.6
1906-31554 June, 2019 Changed Faucet Cover LED Board to completely enclosed, sealed version to address corrosion over
time
1908-33606 August, 2019 Changed Dispense Valves to include additional spring to reinforce closure, improve sealing to combat
drip leaks
1909-34136 September, 2019 Added reinforcement patch to Ice Tank outer wall to seal in the event of cracking over time
1910-34879 October, 2019 Added check valve on internal tubing after inlet valve to eliminate back pressure on supply line
1911-36357 November, 2019 Implemented Software Version 1.7
2002-38955 February, 2020 Implemented Software Version 2.0, Touch Screen Version LD 22 fixes filter reset glitch requiring restart
of ION.
REV 02REV 01
For technical support contact Natural Choice at (USA) 815.874.4444
5
Software Update History
NCC1004-17-R01
Software Version Description of Changes
1.2 Initial Release
1.4 Fixed software that in some cases causes the booster pump to continuously run
Fixed software that would cause systems to lock into loop cycle
1.6 Eliminates carbonation fill error on screen and shut down error, however will still show in error log after 6 occurrences
Change in fill sequence to make ice tank level higher, mitigates probability of Ice Tank Level Error immediately after setup
Adds “Autofill” menu option and functionality (touch screen software)
Dispense will stop after 30 seconds continuous (previously 2 minutes continuous)
Low Flow Error no longer shown on dispense screen (touch screen software)
Changes screen cycle to 3 minutes idle, 3 seconds each alternating screen then dispense screen for one minute (touch screen software)
1.7 Adds usage meter functionality for SodaPro CO2 bottles
Removes “USB Upload” settings menu, replaces with “SodaPro CO2” with resettable usage meter (touch screen software)
2.0 Rewrites the software to extend life of main control board
Improves accuracy of SodaPro usage meter
REV 02REV 01
For technical support contact Natural Choice at (USA) 815.874.4444
6
NCC1004-17-R01

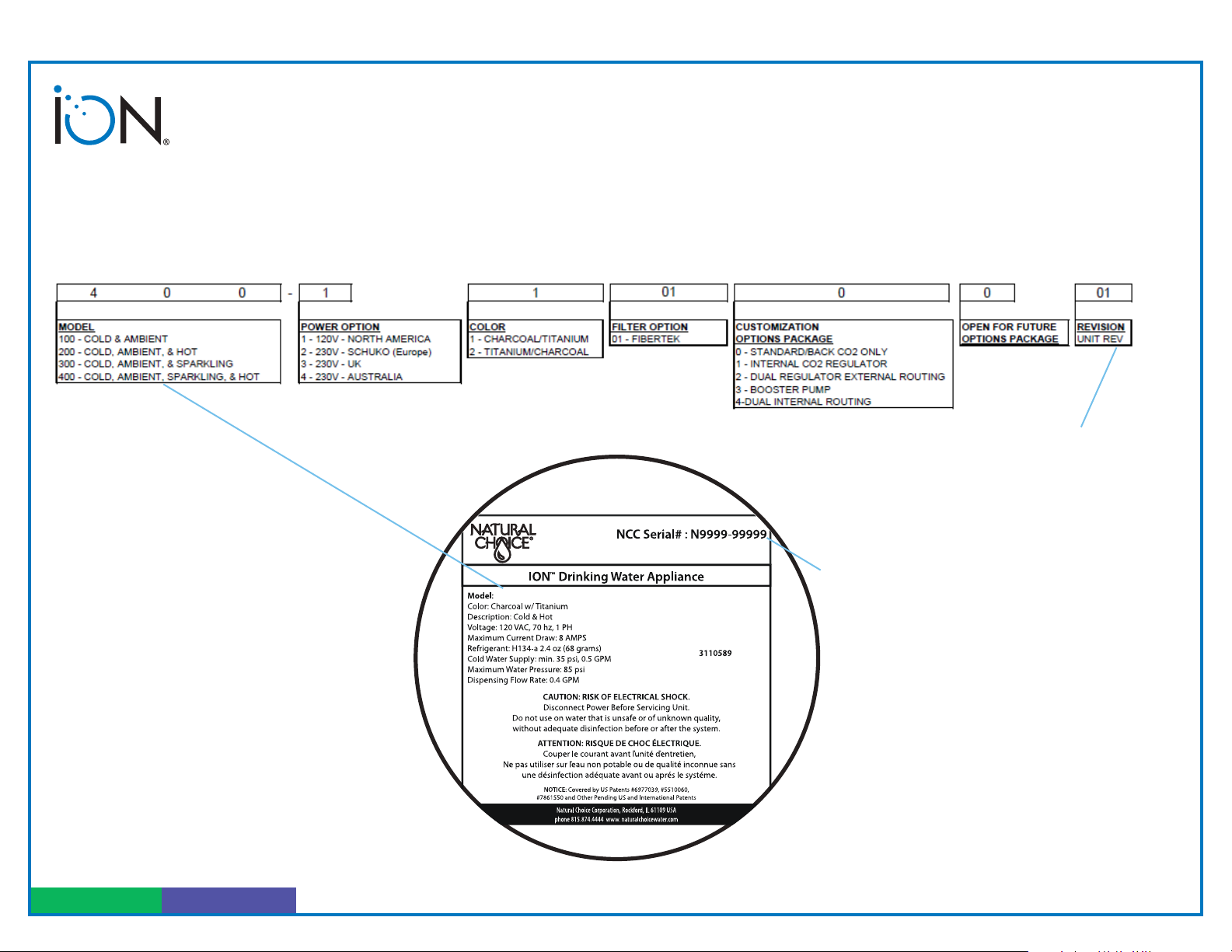

ION TS Series SKU Legend
200-XXXXXXXX
Format shows:
Manufacture Date YYMM - Unique ID
After April 2019 revision
number is listed 02
REV 02REV 01
NCC1004-17-R01
For technical support contact Natural Choice at (USA) 815.874.4444
7

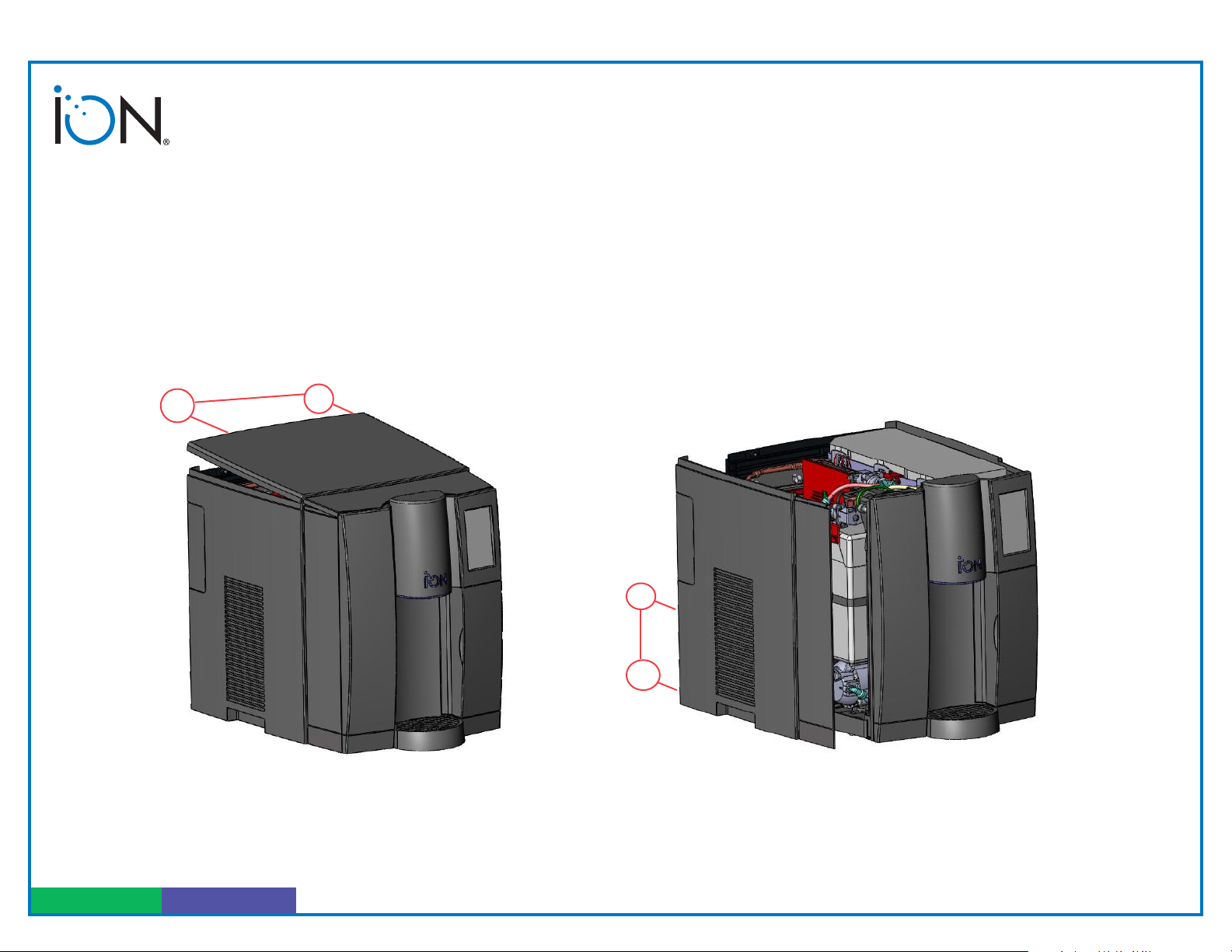

CAUTION: Turn off Power Switch and unplug from electrical outlet before servicing.
IMPORTANT: Torx 20 screwdriver required.
1. Remove Top Panel
• Remove 2 screws at top, rear.
• Pull panel up and towards rear to remove.
2. Remove Left Side Panel
• Remove bottom 2 screws left side.
• Slide back to remove.
Opening the Appliance
REV 01 REV 02
Major Components Service View
Control Board
CO2 Access Door
Filter Access Door
Compressor
Booster Pump
Touch Screen
Faucet
Power Supply Ice Tank
Hot Tank
Fan
NCC1004-17-R01
For technical support contact Natural Choice at (USA) 815.874.4444
8
REV 02REV 01
NCC1004-17-R01
For technical support contact Natural Choice at (USA) 815.874.4444
9

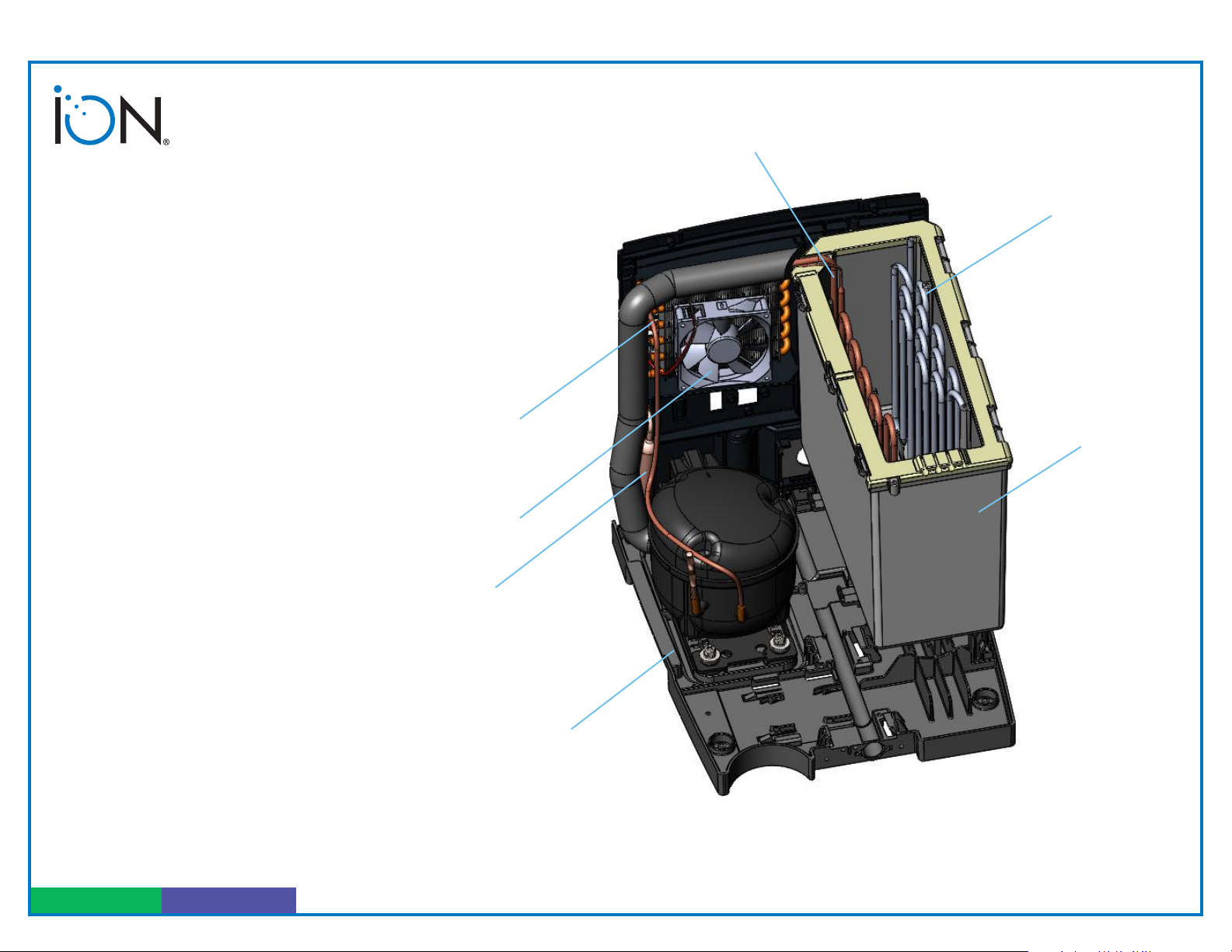

• No reservoir of drinking water
• Ice is formed around the Evaporator on
left side of Ice Tank
• Ice Tank Pump circulates water in the
Ice Tank, chilling the drinking water
inside the Water Coil
• Level Sensor at center of Ice Tank
controls the water level during the
auto-fill cycle
• Thermistor measures temperature
inside Ice Tank to control Compressor
operation
InstaChill™Cooling System
F a n
Compressor
Condenser Ice Tank
Evaporator
Water Coil
Dryer
InstaChill™Cooling System
REV 02REV 01
NCC1004-17-R01
For technical support contact Natural Choice at (USA) 815.874.4444
10

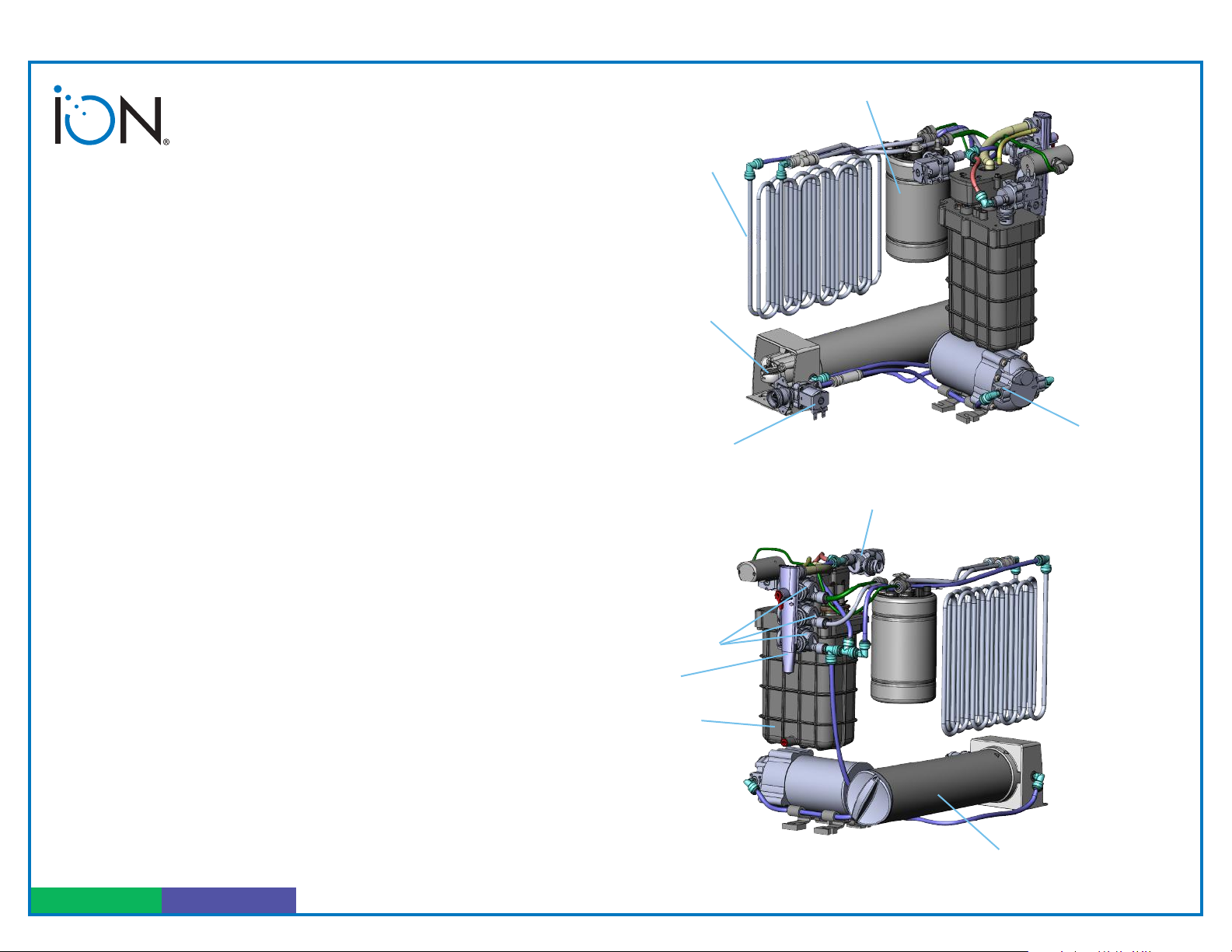

The Water Pathway inside the ION is sealed
and pressurized.
Tap Water Supply Tubing connects directly at the
rear of the appliance to an Inlet Valve.
After the Inlet Valve, the water is directed to the Manifold
Flow Meter Assembly, the Filter, and an internal pump (if
installed).
After being filtered, the water is either chilled inside the
Water Coil or Carbonation Tank, or bypasses to Ambient or
Hot Water Tubing.
Water is then directed to Dispensing Valves at the outlet of
the appliance for Cold, Ambient, Sparkling and Hot Water.
KEY LEARNING: Pressing the Cold, Ambient, or Hot
dispense button on the Touch Screen opens both the Inlet
Valve and one of the Dispensing Valves. TWO Valves open
and TWO Valves close, in quick succession. Dispensing
Sparkling water opens the Dispense Valve only; the Inlet Valve
opens when the Carbonation Tank refills.
TRANSPORTATION: In temperatures below
freezing, Filter and water must be removed from
appliance before transporting (See pages 30).
Water Pathway
Ice Tank
Fill Valve
Faucet
Water Coil
Carbonation Tank
Filter
Internal
Booster Pump
Inlet Valve
Manifold
Flow Meter
Assembly
Dispensing
Valves
Hot Tank
