Package Contents

Basics

The iZiggi-HD Wireless Document Camera captures live images with

wireless convenience so you can do even more in the classroom or at the

office:

t A Wireless Document Camera for iPad.

t Stream documents, pictures, devices and 3D objects from iZiggi-HD to

PC or Mac via Wi-Fi. A wireless Document Camera that no longer tied

up to your PC or Mac.*

t Annotate and emphasize teaching material on iPad by drawing directly

on the live feed with the free IPEVO Whiteboard app.

t Take advantage of iZiggi-HD’s dual USB ports. Stream live images from

the doc cam while sharing access to files on any connected USB storage

device.

*Please note:

In order to generate smooth live feed from iZiggi-HD, please preserve sufficient

bandwidth and system resource for iZiggi-HD. We recommend that iZiggi-HD be used

with only one device at a time. Connecting multiple devices may overload the

bandwidth and system, causing the live image to lag or freeze.

Carry case

User Manual1.2m USB extension cable

iZiggi-HD

wireless document camera

Power adapter

*Power Adapter plug may vary depending on region.

Anti-glare shield1.8m Micro-USB charging cable

iZiggi-HD

PC or Mac

iPad

Carry case

User Manual1.2m USB extension cable

iZiggi-HD

wireless document camera

Power adapter

*Power Adapter plug may vary depending on region.

Anti-glare shield1.8m Micro-USB charging cable

iZiggi-HD

PC or Mac

iPad

Notice:

iZiggi-HD’s built-in microphone is only functional when connected to computer via

USB. When using iZiggi-HD wirelessly, only video is transmitted, but not audio.

Getting to know your iZiggi-HD

iZiggi-HD is made of two parts - USB Document Camera and Wireless Base.

iZiggi-HD captures a variety of subjects, including standard letter-sized

documents, devices like smartphones and iPad. Captured high-definition

live video image is then streamed on to IPEVO Whiteboard or Presenter

software via Wi-Fi connection.

A. USB Document Camera

Focus button

Multi-Jointed Stand

to position the camera

USB Document Camera

Wireless Base

Autofocus switch

LED

Microphone

Exposure toggle

Focus button

Multi-Jointed Stand

to position the camera

USB Document Camera

Wireless Base

Autofocus switch

LED

Microphone

Exposure toggle

t Focus button: will bring the subject into sharp focus after a few

seconds.

t Autofocus switch: may be set to Single (S) or Continuous (C).

t Exposure toggle: provides on-the-fly exposure customization.

t LED: if iZiggi-HD is on and providing an image, this LED will turn white.

t Microphone: iZiggi-HD comes with a built-in microphone which is

located on the underside of the camera body next to the lens. The

microphone is on when iZiggi-HD is on. This is useful for video

conferencing and more.

Camera Elements

t LED indicators: Lights indicate various states pertaining to battery

power, attached USB devices, and Internet connection. For more

information, see Page 12.

t Power button: Press once to turn on iZiggi-HD. Another press will

power off the device.

t USB ports: Two USB ports for the iZiggi-HD camera and for a USB

storage drive, if desired.

Note: Connecting two USB drives is supported, but not two IPEVO USB

document cameras.

t LAN port: Plug in an ethernet cable (not included) to connect to your

existing Internet network.

Note: When connecting in this manner, please set iZiggi-HD's wireless

connection to “Off (Ethernet Cable)” in the “Internet Connection” setting.

See Page 9.

t Reset button: Press with a pin or paper clip to reset the device,

including SSID and password.

t Micro USB port: Connect the Micro-USB cable to power iZiggi-HD and

to charge the battery.

B. Wireless Base

Getting to know your iZiggi-HD (cont’d)

Whiteboard

www.ipevo.com/presenter

Download and install from

Presenter

Plug In

Connect Adapter to iZiggi-HD

Power Button

LED Indicators

USB Port 2

USB Port 1

Micro USB Port

LAN Port

Reset

Focus button

Multi-Jointed Stand

to position the camera

USB Document Camera

Wireless Base

Autofocus switch

LED

Microphone

Exposure toggle

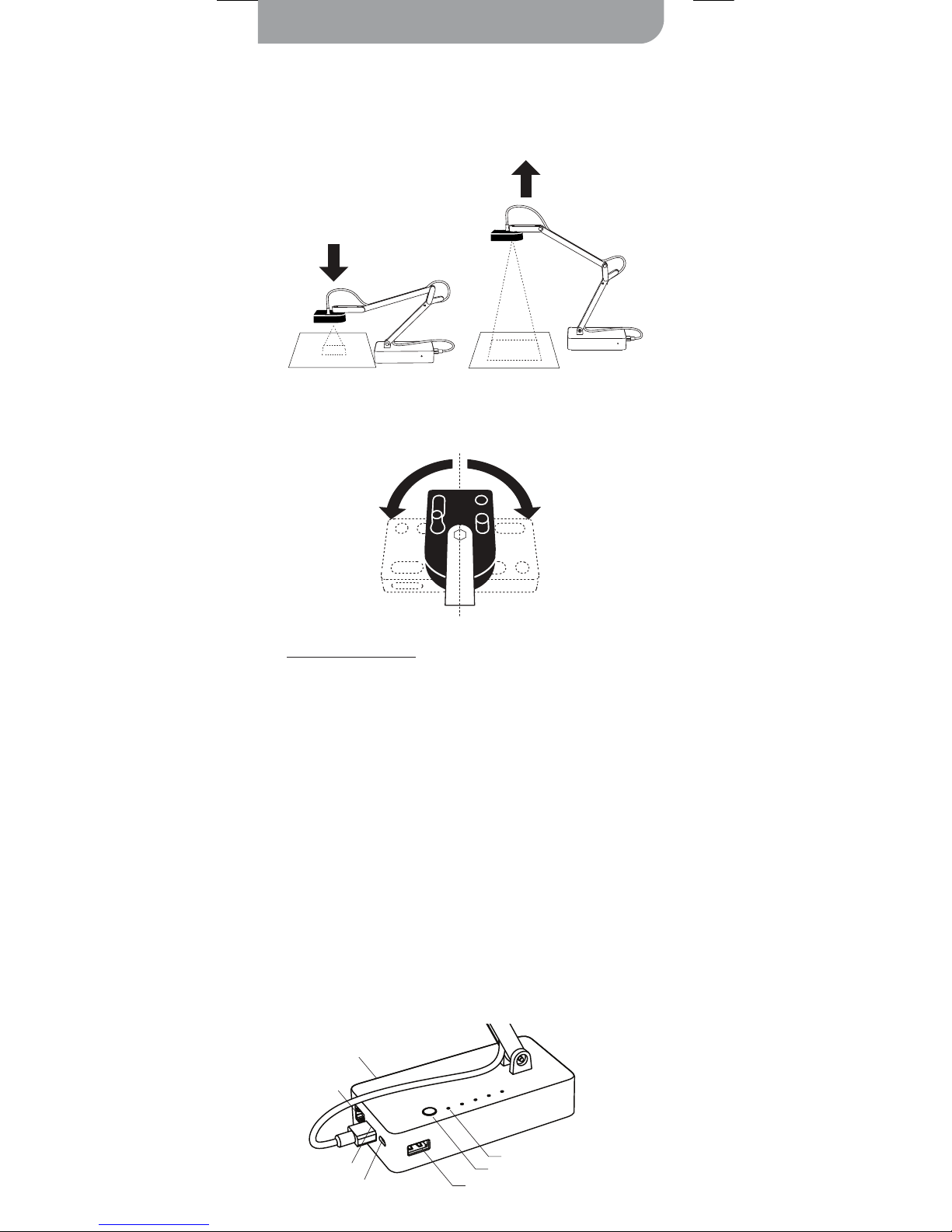

Positioning the iZiggi-HD

Focus button

Multi-Jointed Stand

to position the camera

USB Document Camera

Wireless Base

Autofocus switch

LED

Microphone

Exposure toggle

Additionally, the camera head can swivel with 270° of freedom to customize

your orientation.

The multi-jointed, weighted stand allows to quickly and easily change the

height and position of the camera to suit your subject.

Setting up your iZiggi-HD

A. Charge iZiggi-HD

B. Download and install software

Please charge iZiggi-HD and make sure sufficient battery power is available

before using the camera or performing other setup steps.

With free IPEVO software, iZiggi-HD can be used on iPad, PC or Mac. Please

find the download location for your desired platform below:

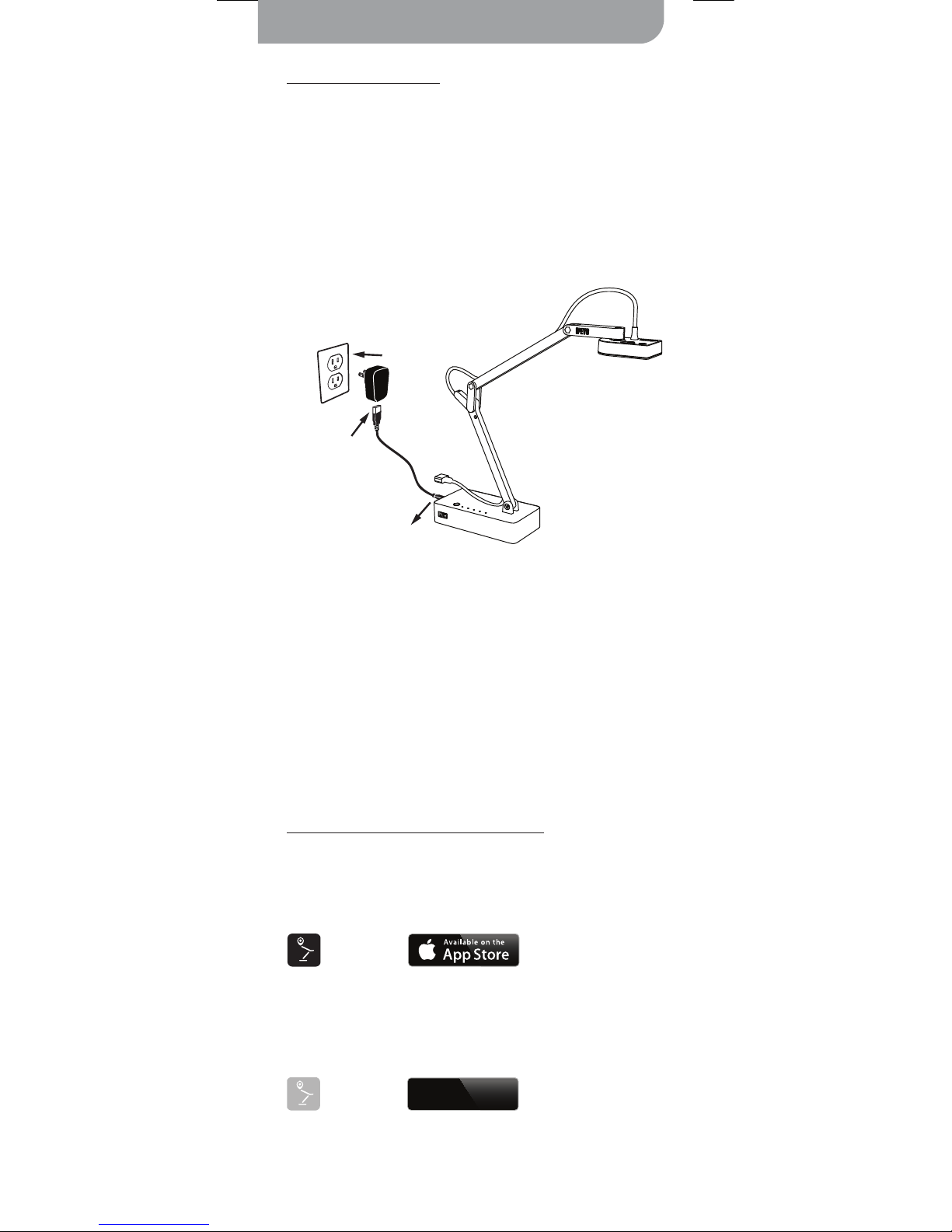

1. Connect the Micro-USB cable to the power adapter and plug the power

adapter into an outlet. Connect the other end of the Micro-USB cable to

the Micro-USB port on iZiggi-HD.

2. When iZiggi-HD is charging, the “PWR” LED will turn red. This light will

go off once iZiggi-HD is fully charged by performing step 1. Note that

iZiggi-HD is ready for use when power adapter is connected, regardless

of the battery power status.

Battery Tips:

t It takes approximately 3 hours to fully recharge iZiggi-HD on an empty

battery. This assumes iZiggi-HD is powered off during recharge.

t It will take significantly longer to fully recharge if iZiggi-HD is in use

while charging.

t iZiggi-HD can be used on battery power for about 3 hours when fully

charged.

t When the "PWR" LED blinks orange, iZiggi-HD is low on battery and

needs to be charged.

t iZiggi-HD can also be charged using a standard USB port on your

computer. Please note that it will take significantly longer to charge via

this method, since a USB port provides less power output.

PC or Mac

iPad

IPEVO Presenter can be downloaded at: www.ipevo.com/presenter

Search for “IPEVO Whiteboard” in the App store to download and install

Whiteboard for free.

Whiteboard

www.ipevo.com/presenter

Download and install from

Presenter

Plug In

Connect Adapter to iZiggi-HD

Power Button

LED Indicators

USB Port 2

USB Port 1

Micro USB Port

LAN Port

Reset

Whiteboard

www.ipevo.com/presenter

Download and install from

Presenter

Plug In

Connect Adapter to iZiggi-HD

Power Button

LED Indicators

USB Port 2

USB Port 1

Micro USB Port

LAN Port

Reset

Whiteboard

www.ipevo.com/presenter

Download and install from

Presenter

Plug In

Connect Adapter to iZiggi-HD

Power Button

LED Indicators

USB Port 2

USB Port 1

Micro USB Port

LAN Port

Reset

iPad (for Mac or PC, see Page 6)

D. Pair iZiggi-HD via Wi-Fi and start streaming

1. Tap “Settings” on your iPad and select “Wi-Fi.” Browse the available

connections and connect to iZiggi-HD’s SSID. The unique SSID can be

found on the label located on the bottom of the device.

2. Launch IPEVO Whiteboard. Follow the onscreen guide that appears to

access iZiggi-HD’s features. These features are also explained on the

next page.

C. Turn on iZiggi-HD and connect the doc cam’s USB cable

1. Press the power button to turn on iZiggi-HD. The “PWR” LED should

be green. If it is blinking orange or red, see section A on Page 4. The

“WIFI” LED should blink orange and then turn green as well.

2. Connect the iZiggi-HD camera’s USB cable to the USB port on the base.

Setting up your iZiggi-HD(cont’d)

Plug-In to Base

Wi-Fi

9:04 AM 34%

iPad

Settings

Airplane Mode

Wi-Fi

Bluetooth

Notification Center

Control Center

Off

iZiggi_8888 iZiggi_8888

Choose a Network...

Apple Network ad1d70

Apple Network ad

Wi-Fi

Bottom of iZiggi-HD

SSID

MAC Address

Serial Number

SSID:

iZiggi_XXXX

MAC Address:

0123456789ab

25123B01234

iPad

Settings

Caution:

On first time connection, it will take about 1 minute to link iPad and iZiggi-HD. Please

make sure the appears on the top left corner of iPad before launching IPEVO

Whiteboard.

1. Ensure IPEVO Presenter is installed. See Section B, Page 4.

2. Browse your available wireless networks and connect to iZiggi-HD’s

SSID. The unique SSID can be found on the label located on the bottom

of the device.

1. Launch IPEVO Whiteboard

2. If iPad is connected with iZiggi-HD’s WiFi network, Live View should

automatically appear on IPEVO Whiteboard. If not, please refer to

sections C and D on page 5.

3. Launch IPEVO Presenter and start using iZiggi-HD. For more function

and setting of IPEVO Presenter, please refer to the next section.

Setting up your iZiggi-HD(cont’d)

Bottom of iZiggi-HD

SSID

MAC Address

Serial Number

SSID:

iZiggi_XXXX

MAC Address:

0123456789ab

25123B01234

Mac or PC(for iPad, see Page 5)

9:04 AM

34%

IPEVO_NB

Wi-Fi: Searching for Internet

Apple Network ad1d70

Apple Network 70

iZiggi_8888

Using iZiggi-HD with IPEVO software

Live View

Change

Camera Resolution

Change

Camera Exposure

Focus

Reload

t Live View: View the live feed (real-time video) from your document

camera. Tapping this icon brings up a network list. Tapping iZiggi-HD’s

SSID in this list will bring up the settings page for iZiggi-HD.

t Resolution: Tap to change the image resolution. Higher resolutions

convey more image information at the possible cost of lower frame rate

(frames per second).

t Exposure: Tap to increase or decrease exposure, i.e. how bright or dark

the image is.

t Focus: Re-focus the camera. Tapping Focus will result in a sharp image

after a few seconds.

t Reload: Refresh the live video feed.

iPad: Using iZiggi-HD with IPEVO Whiteboard

IPEVO Whiteboard plays live video stream from iZiggi-HD and enables

drawing and annotation to be added on the Live View. Follow these steps to

connect IPEVO Whiteboard and iZiggi-HD:

Mac and PC: Using iZiggi-HD with IPEVO Presenter

iZiggi-HD can also be viewd on Mac or PC using IPEVO Presenter.

Please download and launch IPEVO Presenter, follow these steps to

switch to iZiggi-HD’s Live View:

On Mac OS

1. Click on IPEVO Presenter on menu bar.

2. Click “Preferences”

3. Click “Select Video device” and select iZiggi-HD’s SSID.

On Windows OS

1. Click the Wrench icon on top right of IPEVO Presenter.

2. Under ”General” tab, check “Wireless Device”

3. Select iZiggi-HD from the drop down menu if not already selected.

Live View

Change

Camera Resolution

Change

Camera Exposure

Focus

Reload

Wi-Fi

34%

8888

Live View

Change

Camera Resolution

Change

Camera Exposure

Focus

Reload

Wi-Fi

34%

8888

Using iZiggi-HD with IPEVO software (cont’d)

Please note:

Only one iZiggi-HD or other IPEVO document camera can be used with IPEVO

Presenter or Whiteboard at a time.

CAUTION: When viewing the live feed, please do not repeatedly plug and unplug the

document camera’s USB cable. This may cause iZiggi-HD to suffer a system error.

Enter IP address

1. Live View

Accessing iZiggi-HD’s Settings

On iPad

On Mac or PC

Visiting the Settings page will allow you to view Live View using your

browser, connect iZiggi-HD to the Internet, manage connected USB storage

devices, customizing login information, setup password protection, and

change advanced Internet settings. To do so, ensure your device is

connected to iZiggi-HD, then perform the following steps. More details

about settings options can be found on Pages 9 through 12.

Launch IPEVO Whiteboard. Tap the Wireless icon. Select the arrow icon in

the extended menu that appears.

1. Launch your browser and connect to the IP address of iZiggi-HD by

typing it into the address bar. The default for this IP address is 10.10.10.1.

2. Enter the login password, which by default is “admin”.

Enter IP address

1. Live View

Enter IP address

1. Live View

Indice

Altri manuali Ipevo Telecamera per documenti

Manuali Telecamera per documenti popolari di altre marche

AVer

AVer AVerVision F35 Manuale utente

Lumens

Lumens PS760 Manuale utente

Genee World

Genee World GV8100 Manuale utente

Touchboards

Touchboards Vidifox DV 480 Manuale utente

Dukane

Dukane 210 Manuale utente

TTS

TTS Easi-View Pro Manuale utente

Lumens

Lumens dc153 Manuale utente

Avermedia

Avermedia AVerVision SPB350 Manuale utente

AVer

AVer TR311V2 Manuale utente

Inswan

Inswan INS-3 Manuale utente

Genee

Genee Vision 6100 Manuale utente

Rolls

Rolls DB14 - 02/10 Manuale utente

Lumens

Lumens DC-W80 Manuale utente

AVer

AVer AVerVision SPB350+ Manuale utente

Dukane

Dukane FASTFAX AV-P750U Manuale utente

Optoma

Optoma DC554 Manuale utente

Vidifox

Vidifox PV 380 Manuale utente

Recordex

Recordex SimplicityCam SC5i+ Manuale tecnico

Ipevo iZiggi HD Manuale utente

Manuali Telecamera per documenti popolari di altre marche
