IRIDEON AR500 Manuale utente

02-9642-0002A

IRIDEON

AR500Exterior Wash Luminaire

Standard Version Installation Manual

ii I

RIDEONAR500EXTERIOR WASH LUMINAIRE INSTALLATION MANUAL

02-9642-0002A

28-Jul-00

AR500Exterior Wash Luminaire

Standard Version Installation Manual

Reporting Errors and Recommending Improvements

You can improve this manual. If you find any mistakes, or if you know of a way

to improve procedures, please let us know. Send your letter to:

IRIDEON, Inc.

201 Regal Row

Dallas, TX. 75247 USA.

attn: Service Manager

Our FAX number in Dallas is (214) 630-5867.

Patent and Trademark Notice

IRIDEON, Composer, AR5, AR6, AR50and AR500are

trademarks owned by IRIDEON, Inc., 201 Regal Row Dallas, TX 75247.

IRIDEON products and services are protected by one or more of the following

patents, and other pending patent applications worldwide: U.S. Patents No.

5,186,536; 5,073,847; 4,602,321;4,392,187; Australia Patents No. 576,400;

546,433; 649,264 Canada Patents No. 1,259,058; 1,181,795; 2,070,670,

2,050,375 Europe Patents No. 0 192 882; 0 140 994; Japan Patent No.

1,533,011; Singapore Patent No. 663/90; Spain Patent No. 548.328, Mexico

Patent No. 180,148.

Revision History

Basic 20 October 1994

Rev. A 14 June 1996

STANDARD VERSION INSTALLATION 3

02-9642-0002A

28-Jul-00

AR500Exterior Wash Luminaire

Standard Version Installation

Each AR500™ fixture is shipped in two cartons, with the stanchion in one

carton and the head assembly in another carton. Be sure that you have one

stanchion and one head assembly for each fixture to be installed.

Included in each shipment is an installation tool kit. Check to be sure the tool kit

contains the following items:

1-15/16" open-ended wrench

3/16" T-handle Allen wrench

100Ωtermination resistor

Some additional tools will also be necessary in order to complete the installation.

You will need to obtain the following item:

#2 Phillips screwdriver

#2 Straight slot screwdriver

3/4″(or 19mm) socket

9/16″(or 15mm) Socket

The installation site must provide an adequate mounting platform, sufficient

clearance for focus adjustment of the head assembly and stanchion, sufficient

access for relamping and other servicing, and provisions for power and data

cabling.

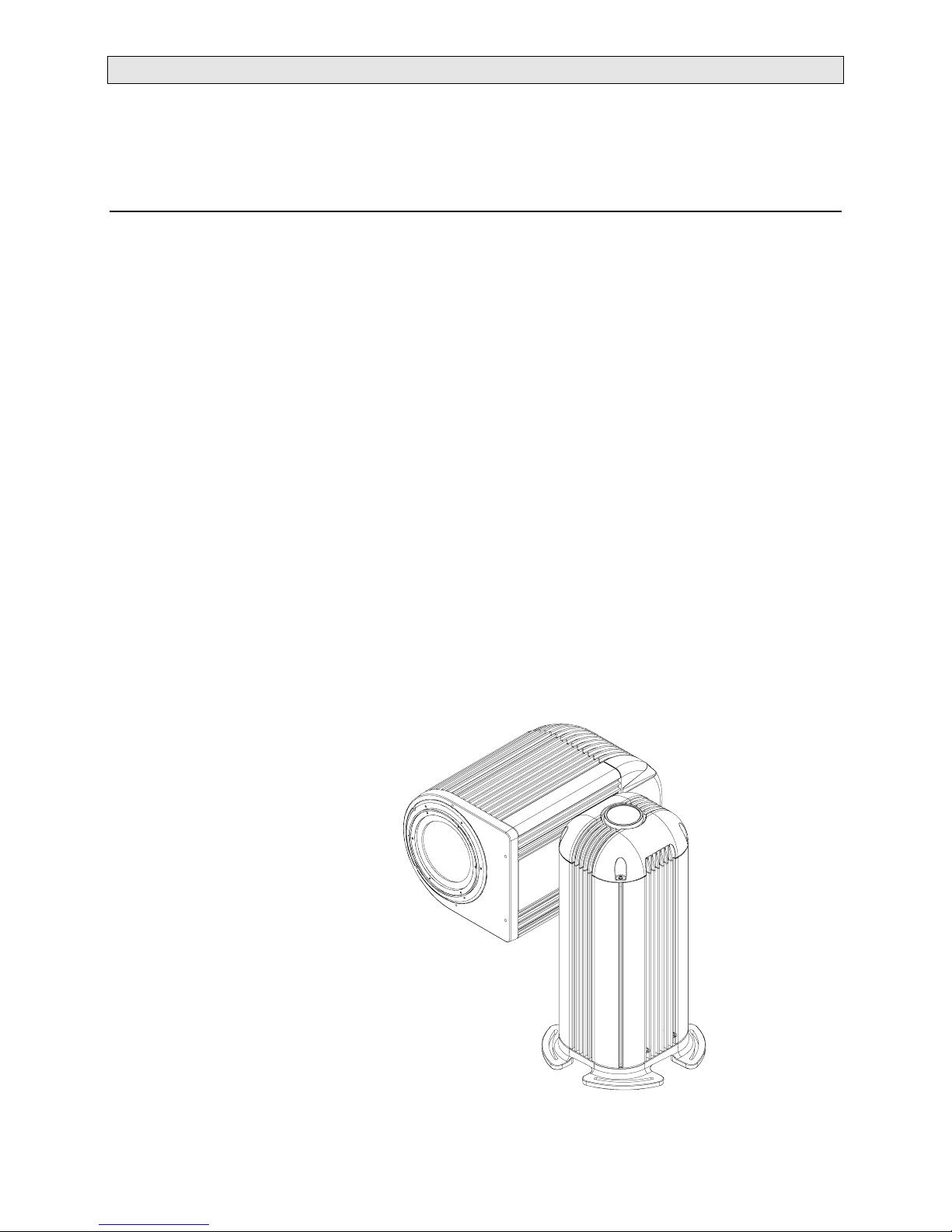

AR5ISO

AR500 Exterior Wash Luminaire, Standard Version

4IRIDEON -AR500EXTERIOR WASH LUMINAIRE INSTALLATION MANUAL

02-9642-0002A

28-Jul-00

1 Site Preparations

Note: The installation contractor is responsible for compliance with local

electrical codes.

The luminaire stanchion is provided with 10 feet (3 m) data cable and 10 feet

(3 m) power cable for external termination. To ensure proper operation, the

installation site should be equipped with waterproof junction boxes for data and

power cable termination. Data and AC power for each luminaire should be

terminated in separate junction boxes, unless a single barriered junction box is

installed. Terminal strips, not wire nuts, must be used to terminate wiring.

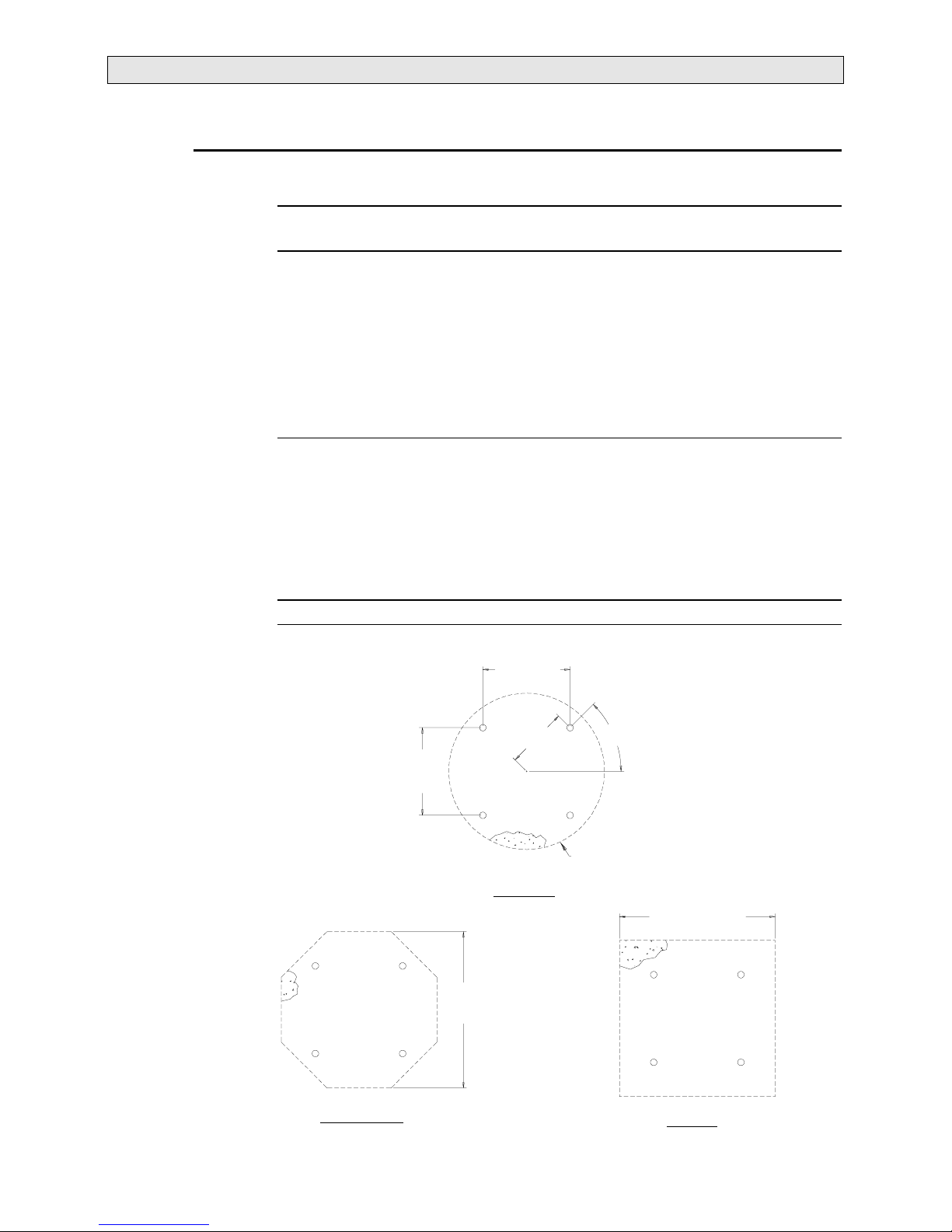

1.1 Mounting Platform for Stanchion Assembly

The stanchion mounting platform must have a diameter (or distance across flat

sides) of at least 18 inches (45.00cm). The luminaire's mounting plate includes

mounting holes sized to provide clearance for four sets of 3/8-18 (M10)

(preferably stainless steel). The hole pattern for the mounting plate is a square

that is 10.10 inch (25.65cm) on a side [or 10-7/64 inches (5.65cm)square].

Note: Be sure to use four sets of 3/8 inch (M10) hardware when installing unit.

FTPRNT2

18.00"

(45.72cm)

TYP.

18.00" DIA

(45.72cm DIA)

10.10"

(25.65cm)

TYP.

10.10"

(25.65cm)

TYP.

7.13"

(18.1cm)

TYP.

45o

TYP.

CIRCULAR

OCTANGULAR

18.00" SQR.

(45.72cm SQR.)

SQUARE

TANDARD VERSION INSTALLATION 5

02-9642-0002A

28-Jul-00

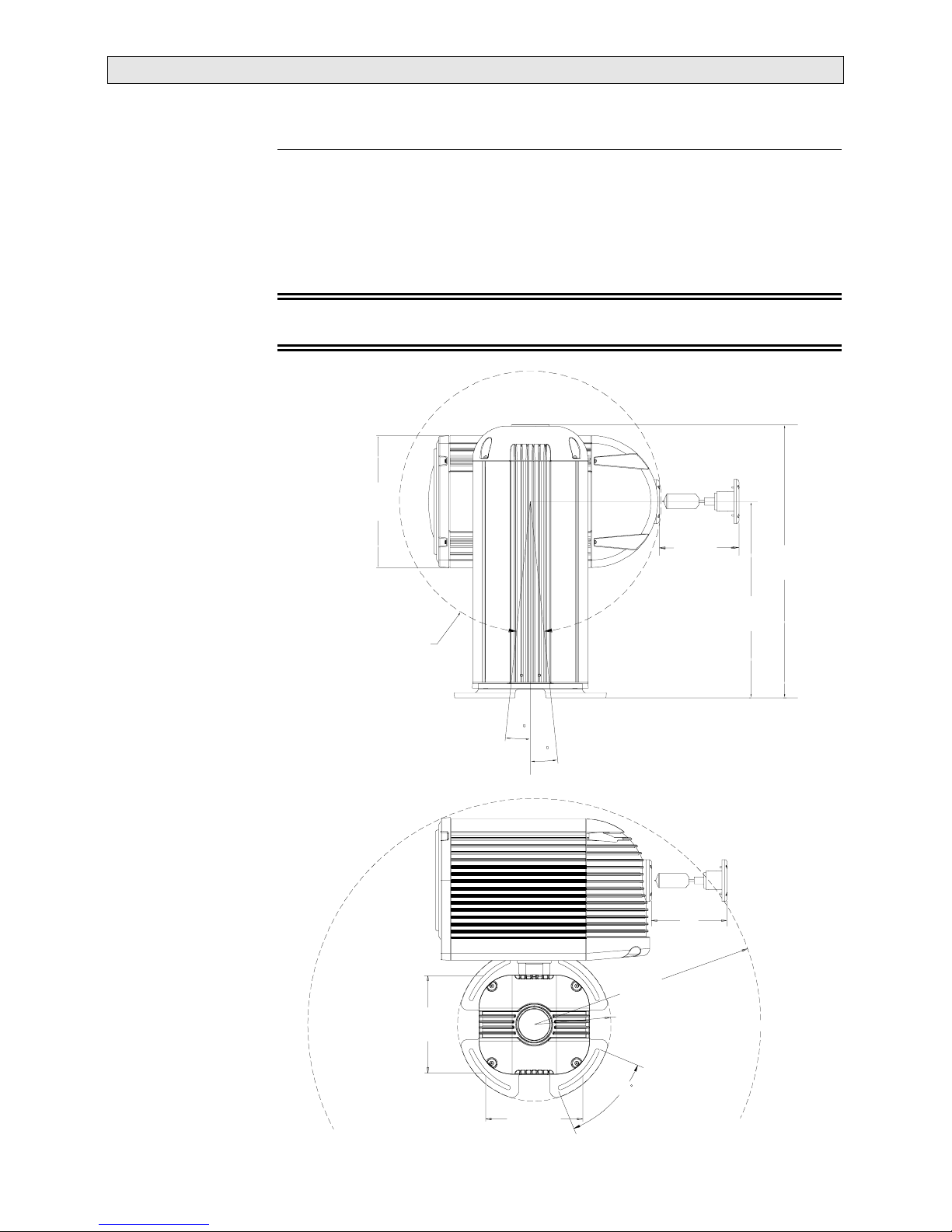

1.2 Clearance and Access

As shown, the head assembly can be rotated to any orientation thru 348°and

requires 13 inch (33 cm) radius clearance around the vertical tilt axis. The

stanchion assembly can be rotated 14°and requires 33-9/16 inches (85.3 cm)

radius clearance around the horizontal pan axis.

WARNING: This appliance must be earthed. Flammable objects must be

kept a minimum of 13′-2″(4.0 m) from lens.

10-1/8"

R33-9/16"

R8"

STDTOPVW

BDC

TILT

STOP

TILT

STOP

AR5SIDE

R13"

(R33cm)

13-1/8"

(33.4cm)

(20.3"cm) 27.5"

(69.9cm)

19.5"

(49.5"cm)

(20.3cm)

(85.3cm)

(25.7cm)

6IRIDEON -AR500EXTERIOR WASH LUMINAIRE INSTALLATION MANUAL

02-9642-0002A

28-Jul-00

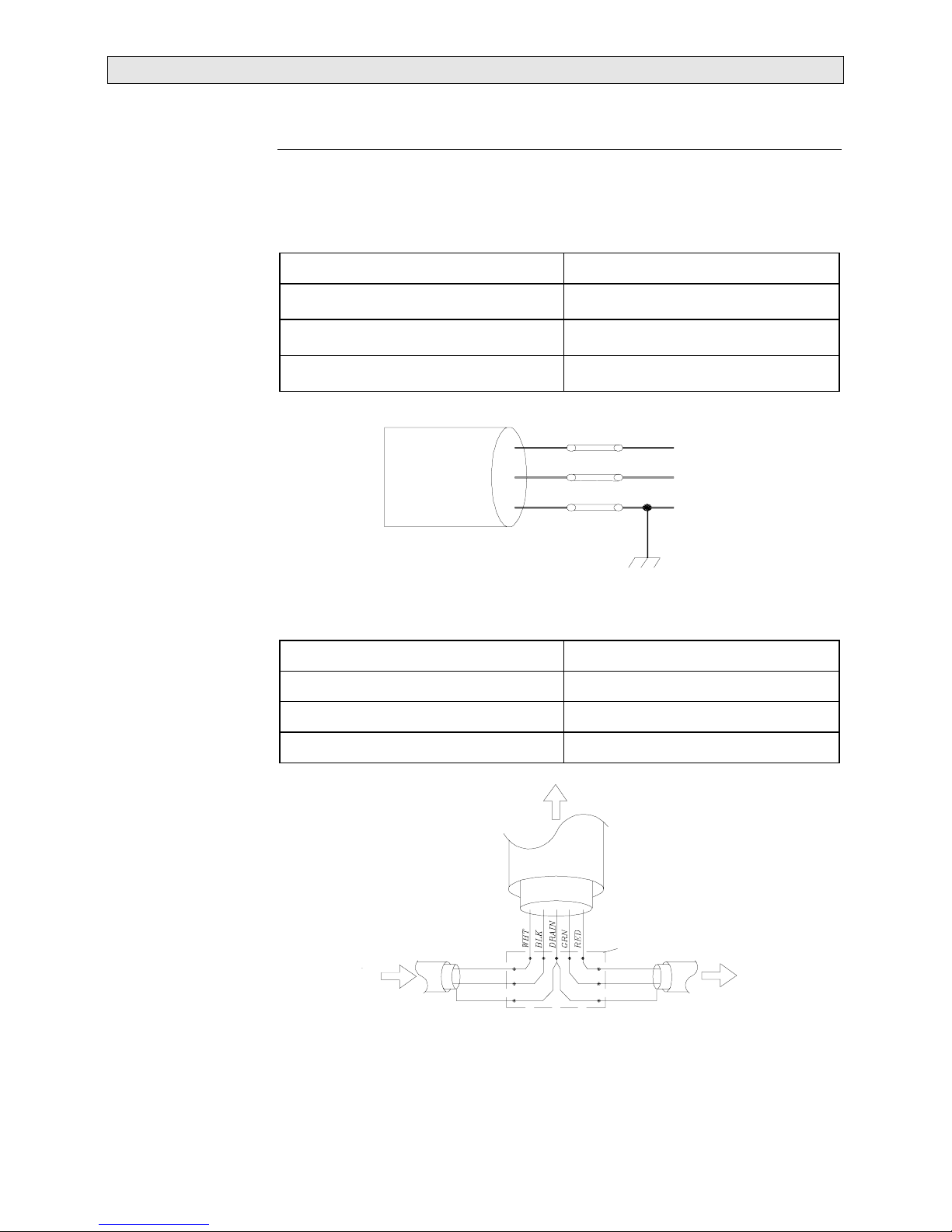

1.3 Input Power and Control Cabling

Each AR500 luminaire requires 1000 watts of power at the specified voltage and

frequency. The luminaire is provided with 10 feet (3 m) of unterminated power

cable type SJOW-A 16-3 (1.5mm2). Power wiring is to be connected as follows:

Wire Connection

Black

*(Brown) AC Line

White

*(Blue) AC Neutral

Green

*(Green/Yellow) Ground

* - European Model

GRN

WHT

BLK <LINE

<NEUT

<GND

GRN

WHT

BLK

WIRING1

The AR500 luminaire is controlled by DMX-512 data connected to the two

shielded twisted-pairs provided in the data cable. For DMX In and Thru

configuration, connect data wiring as follows:

Wire Connection

White/Red Positive Data

Black/Green Negative Data

Drain Ground

FROM PRIOR

J-BOX +DATA

-DATA

DRAIN

+DATA

-DATA

DRAIN

TAN

J-BOX TO NEXT

J-BOX

WRGDIAG3

IRIDEON, Inc recommends Belden 9729 cable for control signal distribution to

the luminaire.

TANDARD VERSION INSTALLATION 7

02-9642-0002A

28-Jul-00

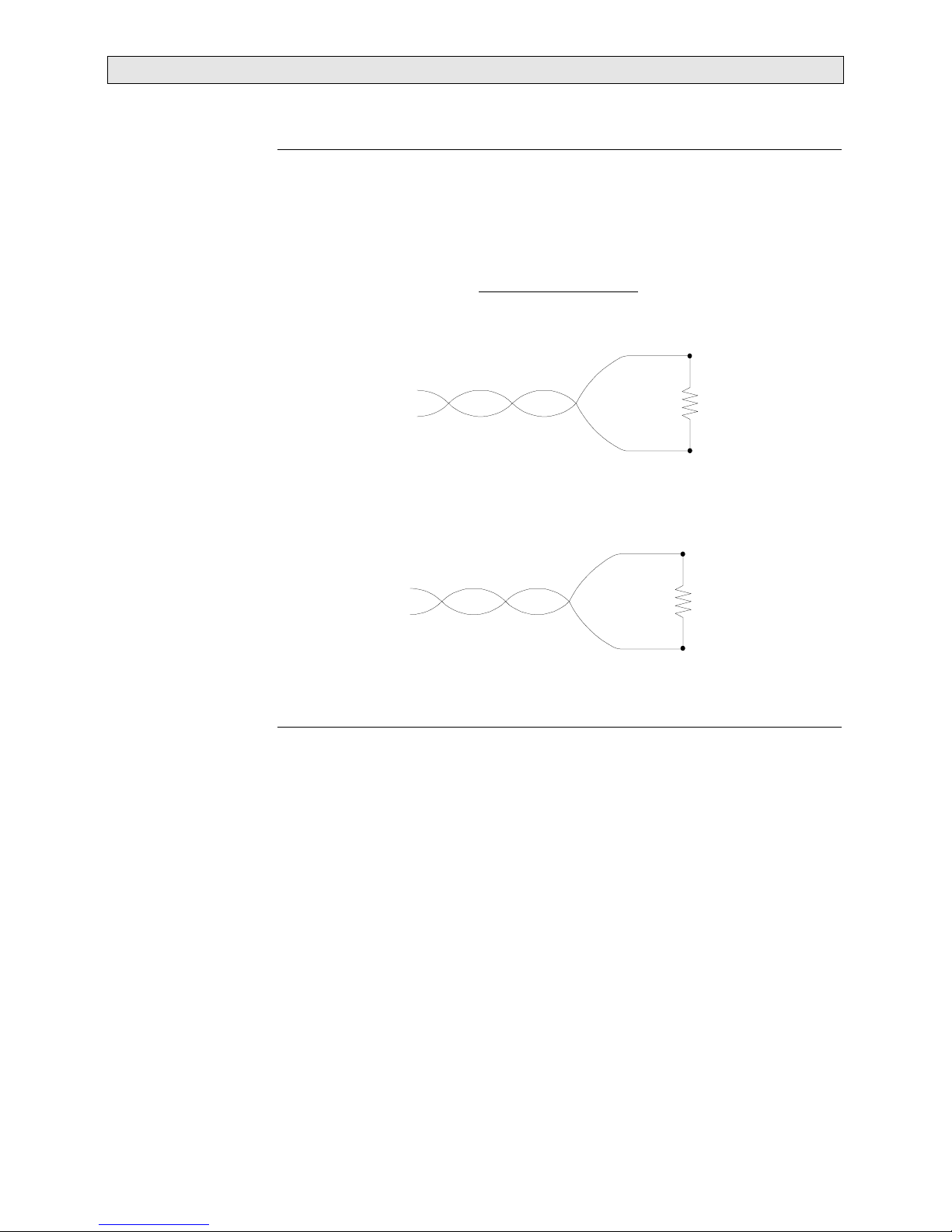

1.4 Data Wire Termination

If data cable is installed in a daisy-chain (feed-thru) configuration, install 100Ω

termination resistor (provided) at end-of-line between positive(white or red) data

line and negative(black or green) data line. If data splitter is installed, the last

luminaire on each data run, as well as the transmitter to splitter data run, must be

terminated. (See diagram in 1.7 Multiple Data Run.)

WHITE

BLACK

GREEN

RED+

CHAIN1

-OR-

1.5 Cable Specifications

AC POWER INPUT (to stanchion)

Wire Gauge: 16 AWG 3-conductor *(1.5mm2×3-conductor)

Rating: 300V / 13 Amps

O.D.: 0.345 inches(8.77cm) *[0.433inches(11mm)]

DATA INPUT (to stanchion)

Wire Gauge: 22 AWG 2-shielded-pair w/ drain wire

Shield (inner): Aluminum/mylar

Shield (outer): Tinned copper braid

Rating: 300V

O.D.: 0.280 inches(7.11cm)

* European model.

8IRIDEON -AR500EXTERIOR WASH LUMINAIRE INSTALLATION MANUAL

02-9642-0002A

28-Jul-00

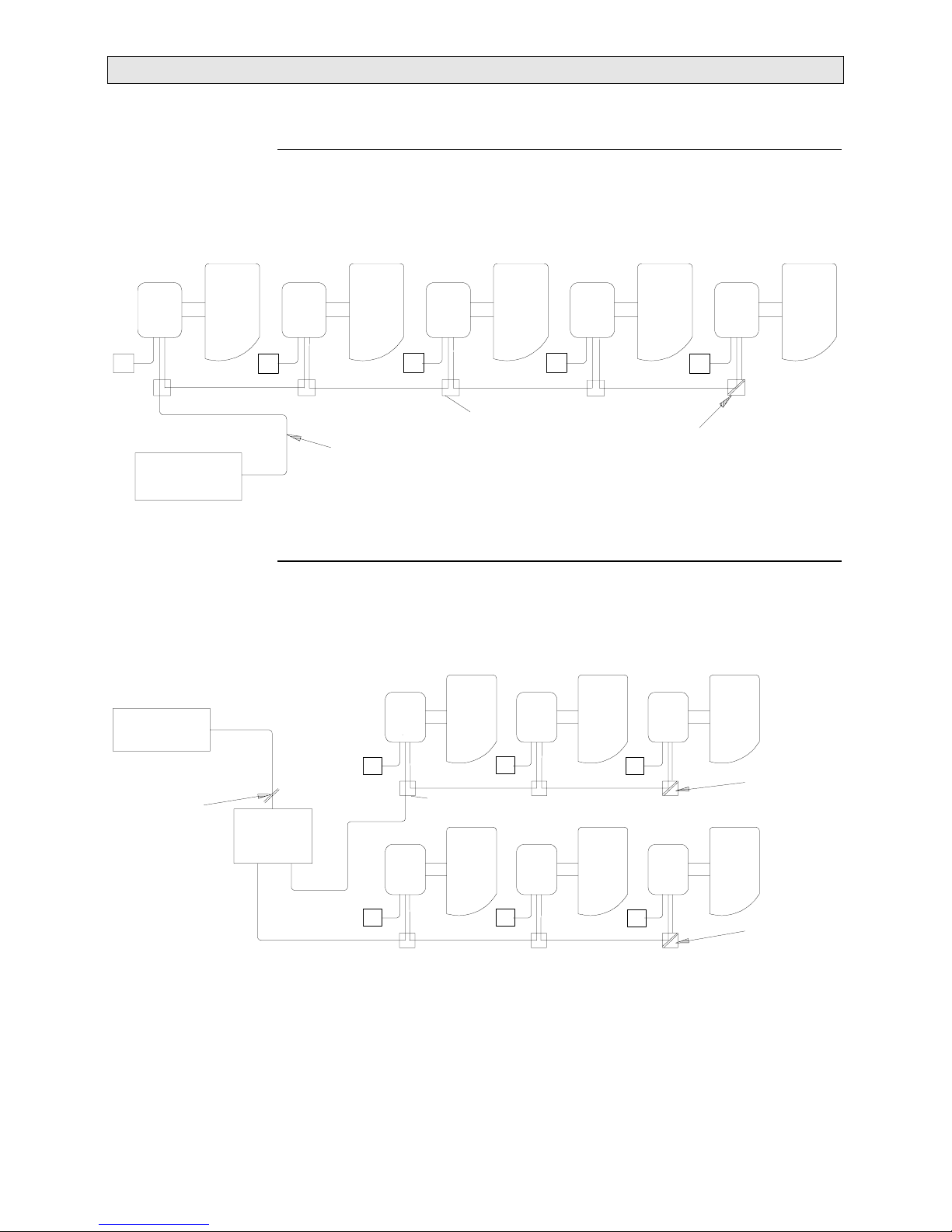

1.6 Single Data Run

The following illustration displays a five units layout with a single data run.

Notice the 100Ωresistor at the end of the data line.

DMX

TRANSMITTER

BELDEN 9729

(NOT SUPPLIED)

TERMINATING

RESISTOR

100

UNIT

NO. 5

UNIT

NO. 3

UNIT

NO. 2

UNIT

NO. 4

UNIT

NO. 1 DMX

ADDR:

DMX

ADDR:

DMX

ADDR:

DMX

ADDR:

DMX

ADDR:

AC AC AC AC

Ω

ΩΩ

Ω

AR5CTNL1

*JUNCTION BOX

(TYPICAL)

1.7 Multiple Data Run

The following illustration displays a six unit layout with a buffered DMX

splitter. Notice the three 100Ωtermination resistors.

DMX

ADDR:

DMX

ADDR:

DMX

ADDR:

DMX

ADDR:

DMX

ADDR:

DMX

ADDR:

UNIT

NO. 2 UNIT

NO. 3

UNIT

NO. 4 UNIT

NO. 5

UNIT

NO. 6

UNIT

NO. 1

DMX

TRANSMITTER

TERMINATING

RESISTOR

100Ω

ΩΩ

ΩBUFFERED

DMX

SPLITTER

AC AC

AC TERMINATING

RESISTOR

TERMINATING

RESISTOR

100Ω

ΩΩ

Ω

100Ω

ΩΩ

Ω

AR5CTNL2

*JUNCTION BOX

(TYPICAL)

TANDARD VERSION INSTALLATION 9

02-9642-0002A

28-Jul-00

2 Luminaire Installation Procedure

The following chapter describes unpacking shipping cartons, installing,

preparing, and wiring the stanchion and head unit for the AR500 luminaire. This

section also covers lamp installation and focus procedures.

2.1 Unpack Shipping Cartons

Note: Stanchion weighs 82 pounds (37.19Kg) or less, depending on voltage

configuration; head enclosure weighs 62 pounds (28.12Kg) for a total weight of

144 pounds (65.31Kg). The luminaire requires two people for installation.

1. Remove stanchion and head assembly from cartons.

2. Locate tool kit (provided).

2.2 Install Stanchion

3. Set stanchion on mounting pad in required orientation. Loosely secure

stanchion to pad using 3/8 inch (M10) hardware (not provided). Typically,

this requires four flat washers, four lock washers, and four hex nuts.

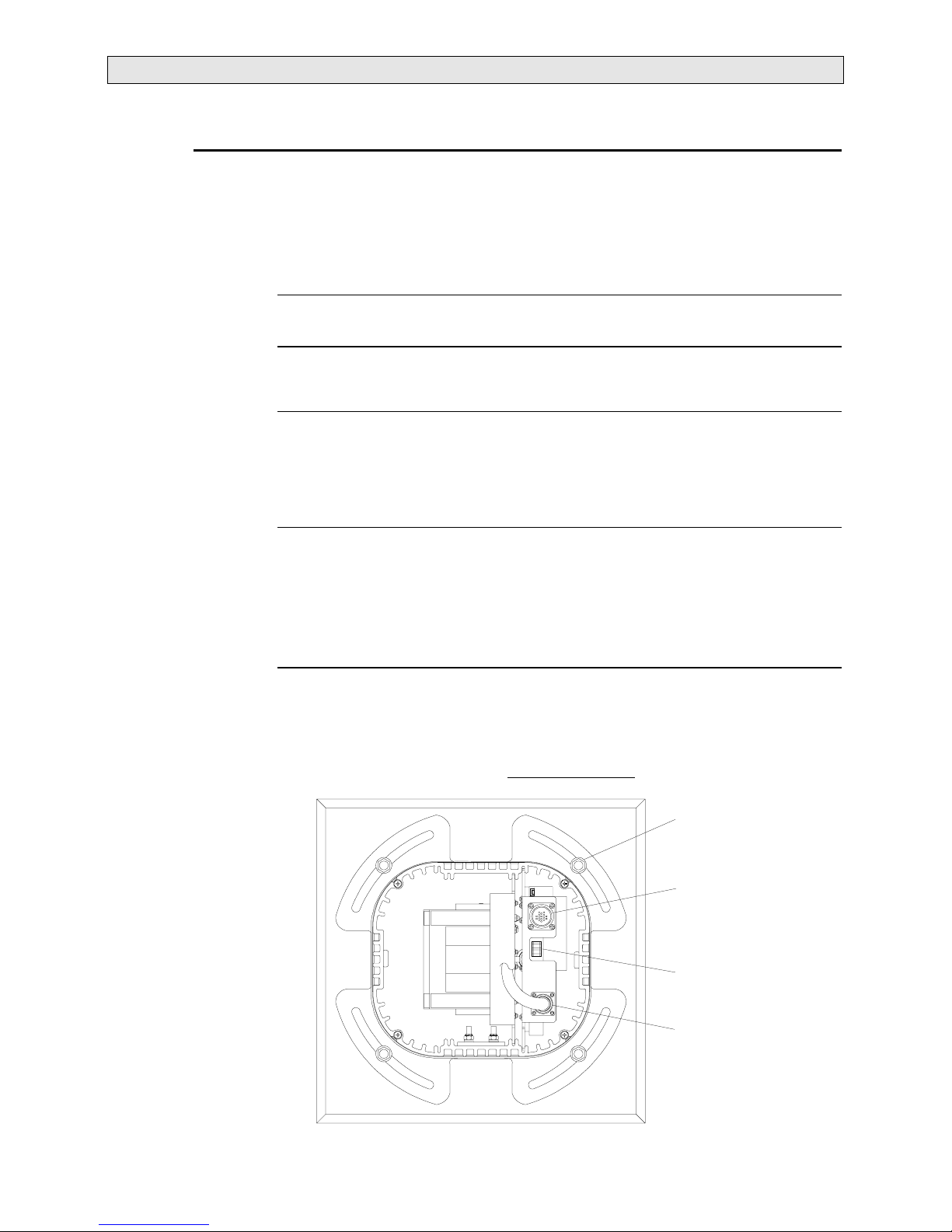

2.3 Prepare Stanchion

4. Remove stanchion cap.

5. Set thumbwheel to address desired on switch board located at top of

electronics plate (detailed in 3 Fixture Address).

MOTOR OUTPUT

16 PIN CPC

CONNECTOR

THUMBWHEEL

ADDRESS

SWITCH

DATA INPUT

9 PIN CPC

CONNECTOR

STNCHPRP

MOUNTING

HARDWARE

(4 PLACES)
