IRoom TouchDock Manuale utente

MANUAL

touchDock

EnglishDeutsch

intelligence. on.

iRoom touchDock 2020 Lineart

iRoom touchDock with device

iRoom touchDock without device

iRoom touchDock simple

ENGLISH

Page 3

for iRoom‘s touchDock

MANUAL

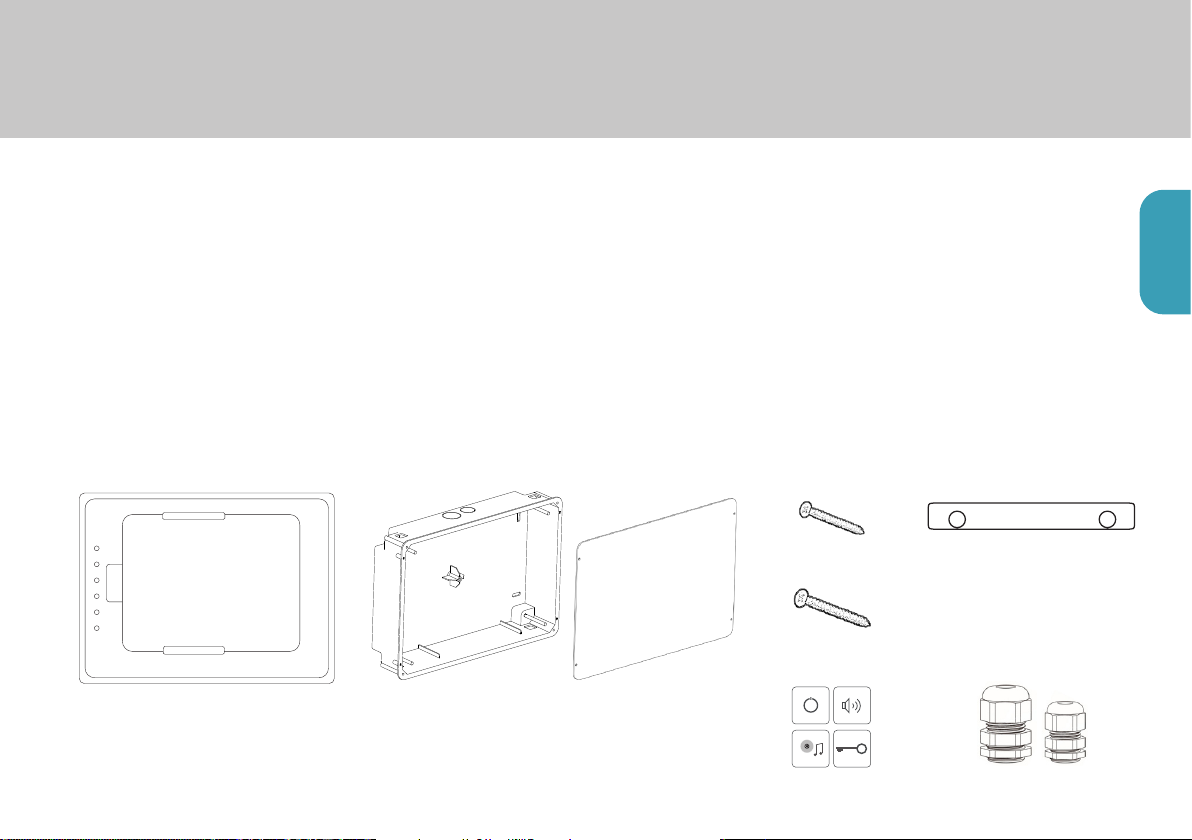

Package Content

iRoom‘s touchDock Back Box with Aluminum

Frame (1), Mounting Clamps

(4), Washers (4), Slotted

Screws 3 x 20 (4)

Protective

Cardboard Cover /

Cut-Out Template (1)

Introduction

Thank you for purchasing iRoom‘s touchDock (motorized in-wall docking station) with programmable Quick Keys.

This MANUAL is designed to guide you through the hardware installation and initial software configuration.

The warranty terms are also included in this MANUAL.

For details on configuring iRoom‘s touchDock, to download the TCP-interface description, latest drivers, latest

FAQ‘s or user manuals in other languages, please visit: www.iRoomiO.com

iRoom touchDock 2020 Lineart

iRoom touchDock with device

iRoom touchDock without device

iRoom touchDock simple

Icon Set (1) Cable Glands (2)

M3x12 Screws (6)

Flat Head, Torx 10

Alternative Guide Rails for

some iPad models (2)

Included with some

touchDock models

M3x6 Screws (4),

Flat Head, Torx 10

Page 4

intelligence. on.

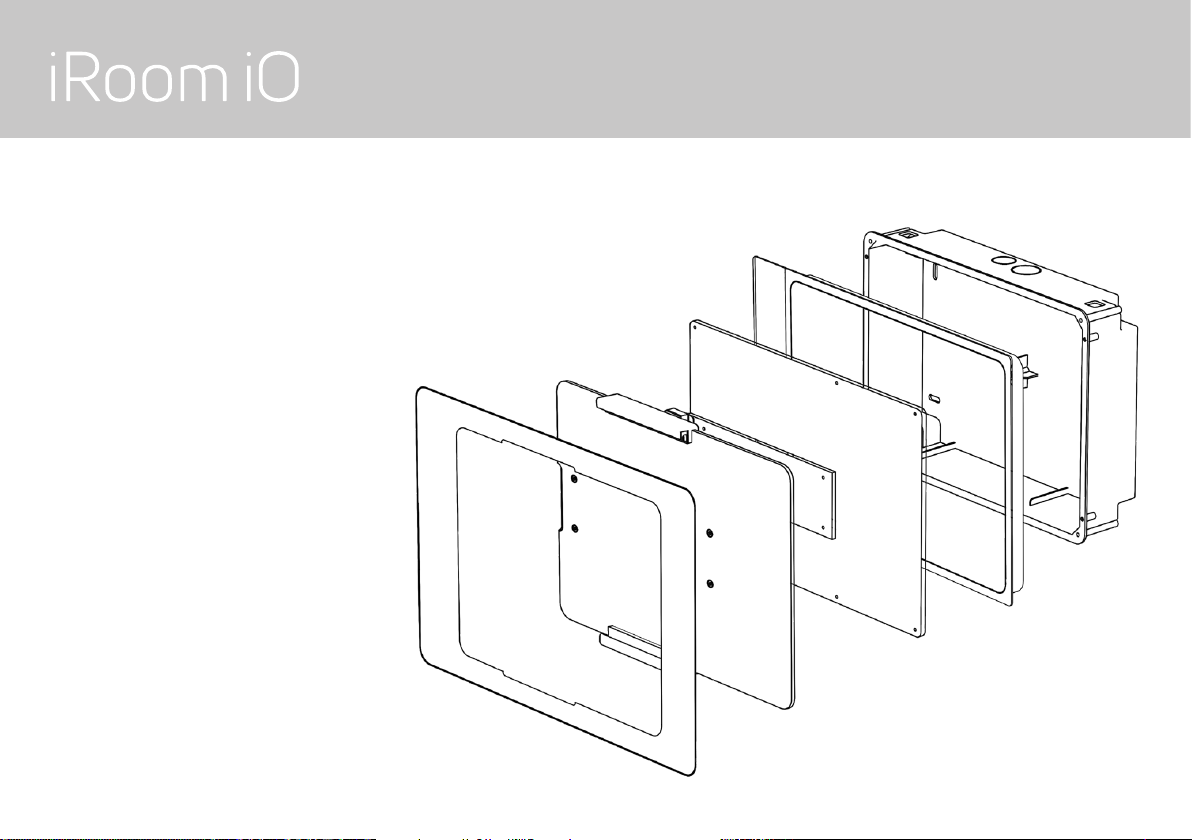

Back Box

Aluminum Frame

(attached to Back Box)

Magnetic Glass Frame

Docking Station

Glass Panel

Installation

The iRoom‘s touchDock may only be used with the included back

box! Operating the device without the back box leads to a loss of

warranty rights. Use for purposes not intended by the manufacturer

will void warranty.

The following products and tools are

mandatory for proper installation:

• Back Box with pre-assembled Aluminum

Frame. Installation without iRoom‘s

back box voids warranty!

• Prepared wiring

• Screwdriver Slotted

• Screwdriver Phillips #2

• Screwdriver Torx 10

• Wire stripper and cutter

• Free App is required to configure the

touchDock

ENGLISH

Page 5

for iRoom‘s touchDock

MANUAL

Installation Video

To have a better visual of the installation

process watch the touchDock installation

video in addition to studying this manual.

www.tinyurl.com/touchdock

Scan Me

Click Me

Page 6

intelligence. on.

1. Prepare the recess in the wall

using the included cut-out

template. See also cut-out

dimensions on page 24.

2. Unscrew the 4 screws to

detach the aluminum frame

from the plastic back box

3. Remove the knockout(s) for the

power cable from the back box.

If you use PoE+ to power

your touchDock you‘ll need

to remove only the small

knockout. If you use a regular

power cable you‘ll need

to remove both the large

knockout for the power cable

and the small knockout for the

LAN cable.

4. Feed the power cable and/

or network cable through the

openings in the back box. Use

the included cable fittings that

provide strain-relief.

Back Box Installation in Masonry

ENGLISH

Page 7

for iRoom‘s touchDock

MANUAL

5. Place and fix the back box in

the wall recess. Do not deform

the backbox. The back box

needs to align with the right

side of the wall recess for

horizontal installation or with

the top side of the wall recess

for vertical installation.

There will be a gap between

the left / top side of the wall

recess and the back box which

is going to be covered by the

aluminum frame

6. Attach the protective

cardboard cover to the back

box, using the same screws

(3x20mm) that held the

aluminum frame.

7. Fill the gap between the back

box and the recess in the wall

with a plaster-based filler to

create a mechanical bond

between back box and wall.

Make sure the back box sits

straight and flush in the wall

recess.

8. After finishing plasterwork

remove the cardboard cover.

9. Attach the aluminum frame

to the back box and using the

3x20mm screws.

Page 8

intelligence. on.

1. Prepare the recess in the wall

using the included cut-out

template. See also cut-out

dimensions on page 24.

2. Remove the knockout(s) for the

power cable from the back box.

If you use PoE+ to power

your touchDock you‘ll need

to remove only the small

knockout. If you use a regular

power cable you‘ll need

to remove both the large

knockout for the power cable

and the small knockout for the

LAN cable.

3. Feed the power cable through

the opening in the back box.

Use the included cable fitting(s)

that provide strain-relief.

4. With a cardboard knife, cut

small holes into the silver

safety strips that cover the

corner openings for the

mounting clamps.

Do not remove the safety

strips since they protect your

docking station from dust and

dirt buildup.

Back Box Installation in Drywalls

ENGLISH

Page 9

for iRoom‘s touchDock

MANUAL

5. Insert the backbox with the

attached aluminum frame into

the recess. Do not deform the

back box.

The wider side of the

aluminum frame needs to be

on the left side for horizontal

installation or on the bottom

side for vertical installation.

6. Feed the mounting clamps /

doglegs through the openings

in the corners of the back

box and and use the included

screws and washer to press

the clamps tightly against the

back of the drywall.

Make sure the back box sits

straight and flush in the wall

recess.

Page 10

intelligence. on.

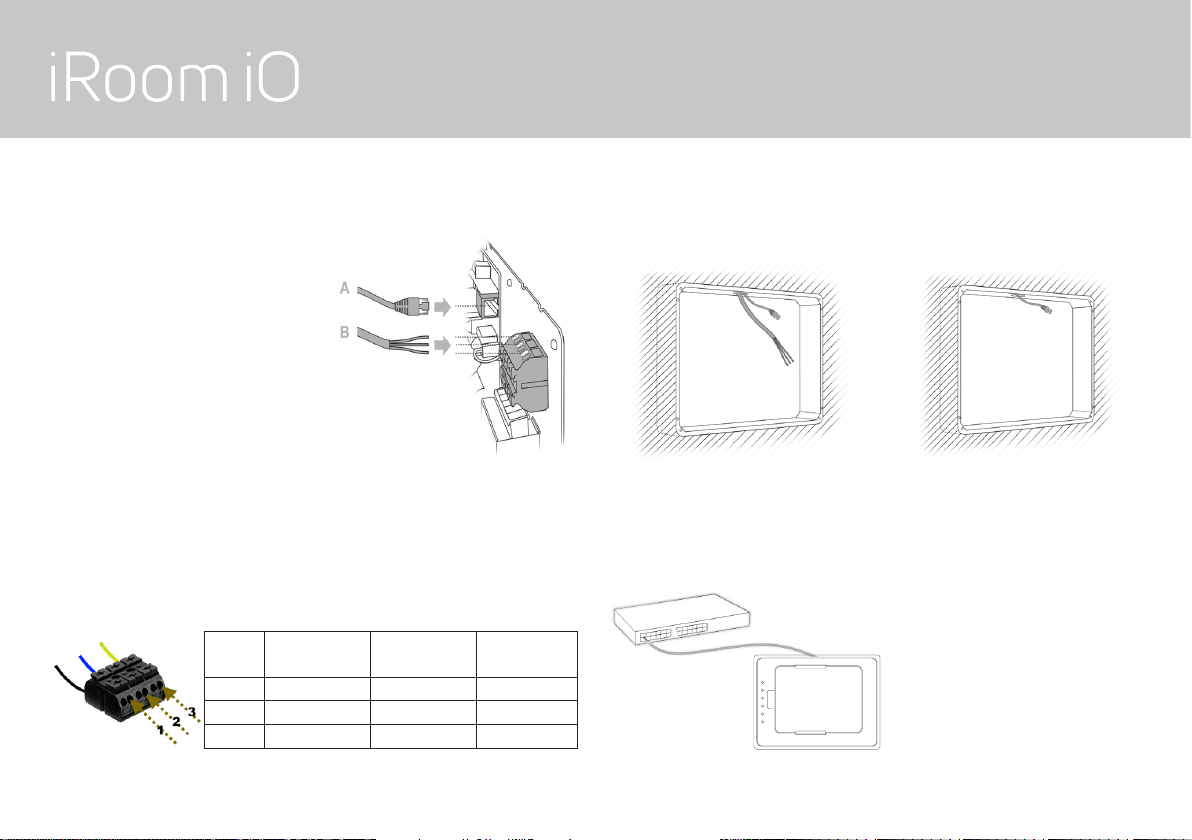

Option I: LAN & 110-240V AC Option II: PoE+ (IEEE 802.3at)

Connect network cable (A) and

optional power wires (B) to the

connectors on the mainboard of

the docking station. Power wires

are only needed if you choose to

power the unit through 110 - 240

V AC.

Important Note

If you use a managed PoE+

switch set the PoE+ port

power output for your

docking station to 30 Watts

(IEEE 802.3at). touchDock

will not work with 15 Watts

(IEEE 802.af) or passive

PoE 24V.

Number European stan-

dard color code

US standard

color code Naming

1 black/brown black hot (L)

2 blue white neutral (N)

3 yellow/green green ground (PE)

This information is supplied without liability.

Option I: Connecting 110-240VAC

Connect the wires to the terminal according to color-code.

Option II: PoE+ Switch or Injector

PoE+ (IEEE 802.3at)

Switch or Injector

iRoom‘s touchDock

PoE+ CAT5e/6

cable

iRoom touchDock 2020 Lineart

iRoom touchDock with device

iRoom touchDock without device

iRoom touchDock simple

Connect Power / Ethernet Cables to the Docking Station
