iRoom‘s miniDock
Installation instructions
Please read these operating instructions and adhere to the
content and recommendations they contain before installing,
starting up and operating the iRoom miniDock.
iPad mini® Docking Station
The miniDock backbox Page 2
Scope of delivery, Important information Page 3
Mounting Page 3
List of contents
Specications, Informations Page 4
Warranty Page 5
2
General information
Room‘s Minidock can be installed both
vertically and horizontally. iRoom‘s minidock
is only compatible with the iPad mini. For an
iPad installation, we recommend our iRoom‘s
iDock.
During installation of the backbox (ush-
mounted housing) the installer must execute
an installation without deformation. Swelling
mounting mediums should be avoided to
minimize the risk of deformation. During ins-
tallation the protective card has to be placed
into the backbox.
Description of function
The iRoom miniDock may only be used
with the ush-mounted backbox. Operation
without the backbox will void the warranty.
Missuse of the backbox is prohibited. Recess dimensions backbox (W/H/D): 215,0 / 305,0 / 75,0 mm ........ 8.46“ / 12.00“ / 2.95“
Mounting in Cavity walls

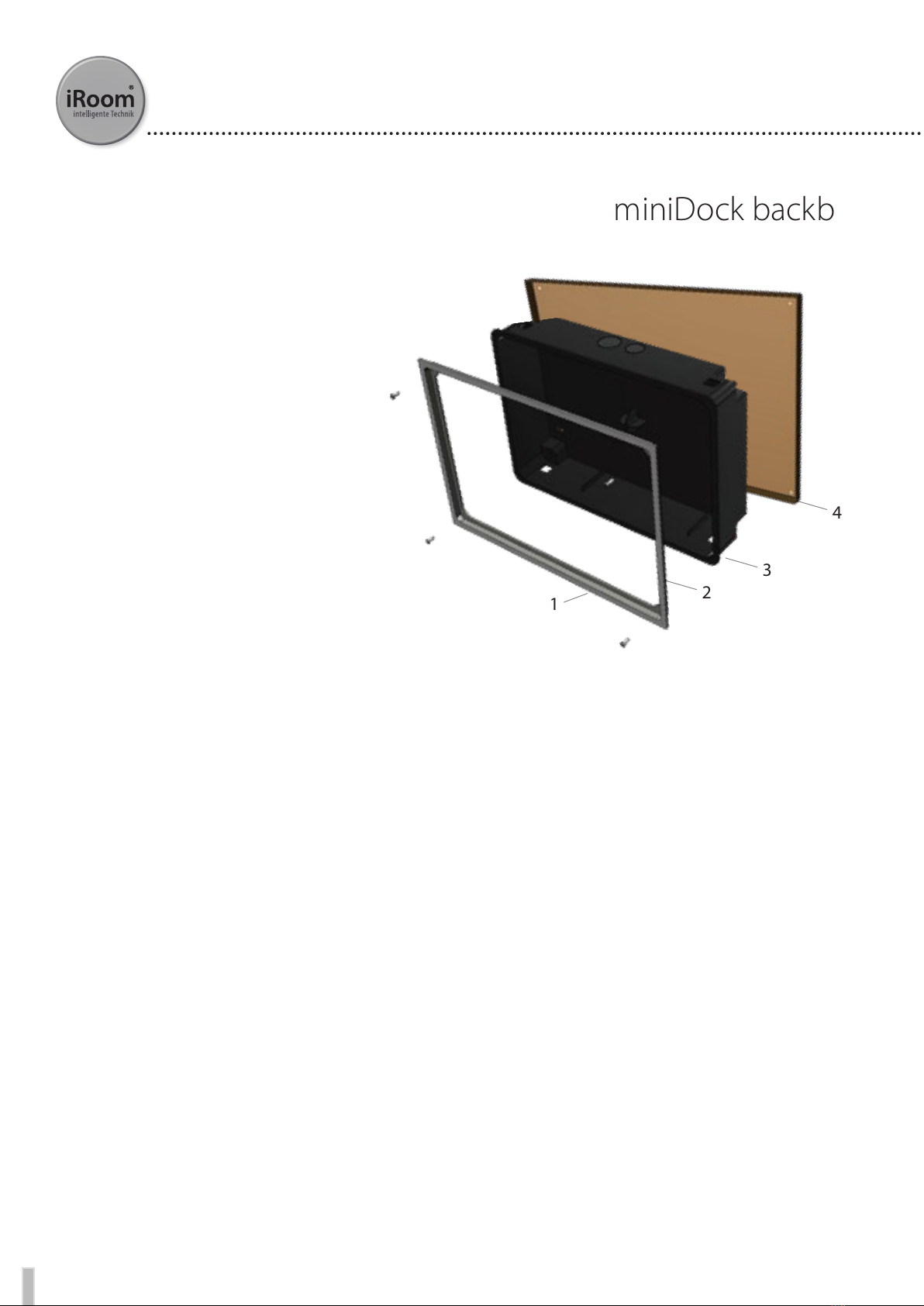

1. Attach the aluminum frame (2) to the backbox (3) and bolt
together the frame and the backbox with the included
mounting screws (1) (3 x 20mm)
2. Prepare a recess in the wall (W/H/D: 8.46“ / 12.00“ / 2.95“)
3. Remove the break-out for the cable exits on the backbox
4. Feed in the power leads through the hole in the back box .
Use a suitable cable grip sleeve.
5. Place the backbox in the recess. Do not deform the
backbox.
6. Cut some small thread gaps in the safety strips that cover
the recess spaces for the mounting clips. Do not remove
the safety strips! Feed the mounting clips into the reces-
ses and screw them tight. Ensure a straight, ush wall and
distortion-free installation of the ush box. Otherwise it
may cause mechanical problems.
Mounting in Masonry
1. Attach the cardboard frame (4) to the backbox (3) and bolt
them together with the included mounting screws (1) (3 x
20mm)
2. Prepare a recess in the wall (W/H/D: 8.46“ / 12.00“ / 2.95“)
3. Remove the break-out for the cable exits on the backbox
4. Feed in the power leads through the hole in the back box.
Use a suitable cable grip sleeve.
5. Place the backbox in the recess. Do not deform the
backbox.
6. Plaster in the backbox and ensure a straight, ush wall and
distortion-free installation of the back box. Otherwise it may
cause mechanical problems.
7. After nishing plasterwork and wall nishing remove the
cardboard frame and attach the aluminum frame (2)!
12
3
4
miniDock backbox
Installation instructions
NB: The backbox is not included in the scope of delivery and must be purchased separately.
Fo instructions of installing the back box, please refer to page 2.
1. Connect the Apple power adapter to the power supply
2. Connect the Y-USB-cable to the Apple power adapter
3. Connect the Bluetooth receiver and the original Lightning cable to the Y-USB-Cable
4. Fasten the original Lightning cable with the plug cover at the designated place of miniDock.
5. Push the iRoom‘s miniDock into the backbox. Make sure you do not damage the power lead and that the mechanisms
are not inhibited by the power lead.
6. Fix the miniDock in the Backbox using the plasfast screw 3x12. Close the mounting hole using the dummy cover.
7. Unpack the cover plate. Attach the cover plate to the frame of iRoom‘s miniDock.
8. Ensure a proper locking of the magnic mounting system.
9. Switch on main power supply
10. For information on how to operate the device correctly, please read the operating instructions.
Scope of delivery
iRoom‘s miniDock Installation instructions
iRoom’s miniDock (1x) • glass bezel (1x) • bluetooth receiver - miniD-Audio (1x) • Y-USB-Cable for installation of bluetooth receiver and
original lightning cable • adhesive base for cable tie (1x) • cable tie (1x) • operating instructions (1x) • mounting instructions (1x) • 3 x 12
plasfast mounting screw (1x)
Recommended accessories: iRoom miniDock backbox (not included)
Mounting
3
All connection and installation work must be conducted by certied electricians in compliance with the general rules and directives
for electrical installations.
The iRoom miniDock has a smooth and shiny surface which is prone to scratches. Handle with care to avoid damage. Do not clean with
liquids or uids. We recommend wearing soft cotton wool gloves during installation.
Select a suitable place to mount the device
• Do not mount or use the iRoom miniDock in wet or moist environments.
• The place chosen to mount the device must provide enough recess depth to allow use of the backbox and the entry of the leads.
• Mount the device in a place that enables reception of a suitably strong Wi-Fi signal so that the iPad™ can also be used when it is
docked.
Important information
Dimensions miniDock (W/H/T):.................................................................... 226,0 / 315,0 / 77,8 mm ........... 8.89“ / 12.40“ / 3.06“
Dimensions Installation box (W/H/T):........................................................ 226,0 / 315,0 / 77,8 mm ........... 8.89“ / 12.40“ / 3.06“
Cut out dimensions installation box (W/H/T):.......................................... 215,0 / 305,0 / 75,0 mm .......... 8.46“ / 12.00“ / 2.95“
Power supply:.................................................................................................................. Original iPad mini™ Power supply (not included)
Output:................................................................................................................................... 3,5mm Jack via Bluetooth Connector
Accessories:................................................................................................................ Installation box (required for the assembly)
Specications
4
Protection against theft
iRoom’s miniDock DOES NOT PROVIDE ANY PROTECTION against theft. Unauthorised forceful removal of an iPad mini™ can-
not be prevented. iRoom GmbH shall accept no liability whatsoever for the theft of iPads!
Safety instructions
• Protect the device from uids to avoid damage caused by re or electric shocks!
• The device must not be subject to maintenance by users! Installation and deinstallation must be conducted by certied
electrics technicians!
• Do not put any foreign objects into the device!
• Should any uids or objects enter or fall into the device, or should the device become damaged, disconnect the device
from the power supply immediately!
Important information
Warranty
5
iRoom‘s miniDock Installation instructions
Guarantee
The guarantee period shall run for two (2) years from the date of purchase made by the original end customer, unless the device has
been repaired or replaced due to the invocation of guarantee rights. In such a case the guarantee shall remain valid until the expiry of
the original guarantee period or six (6) months from the date of repair/replacement – whichever period expires rst.
Claims for defects and claim validation
Should your miniDock fail or cease to function as desired, please contact your dealer and provide the original invoice, the serial
number and a description of the error.
The dealer will arrange for the device to be inspected by the manufacturer or a technician authorised by the manufacturer.
The inspector can then conrm a defect has been identied within the guarantee period, has been caused by defective materials or
manufacturing, and is not subject to exclusion from the guarantee.
Exclusion from guarantee coverage
The following damages and sources of damage are excluded from the guarantee:
• Acts of God;
• Misuse, including (but not limited to) failure to comply with assembly, mounting or operating instructions;
• Incorrect operation;
• Connection to an unsuitable power supply;
• Repairs and attempted repairs conducted by unauthorised individuals;
• Use of the device in connection with products from other sources;
• Devices whose manufacturer serial number has been changed, deleted, removed or made illegible;
• Upgrading of devices above and beyond the specications, features or functions listed in the operating manual
Limits to liability
The above guarantee portrays the entire scope of liability applicable to iRoom GmbH. Hence, iRoom GmbH shall decline any further
claims for liability for loss or damage (except in proven cases of gross negligence) resulting from the purchase, acquisition, ownership,
possession, sale or use, of this device.
Under no circumstances shall iRoom GmbH accept any liability for subsequent consequential damages, delays, unsuitable or incorrect
information or advice, and violation of copyright. The rights of the purchaser as regards defects shall not be aected.
Various conditions
Absolutely nobody, including all sales and distribution partners, dealers, agents and sales representatives, shall have any right
whatsoever to take on responsibility for guarantee rights or to alter them in any way on behalf of iRoom GmbH.
The purchaser shall take sole responsibility for ensuring the device is suitable for the purpose for which it is to be used.
© 2010-2011 iRoomGmbH. All rights reserved. Subject to changes in technical details at any time. The technical details and specications do not equate to any form
of guarantee. All products mentioned (Apple iPad® in particular) remain the property of the respective manufacturer and are protected by international copyright and
patent laws.
iRoom‘s miniDock
Installation instructions
iRoom GmbH – intelligente Technik
Bayerhamer Str. 5
A-5020 Salzburg
Austria
Visit our website:
www.iroomidock.com
