iRZ RCA CDMA 450 Manuale utente
GSM router
iRZ RCA
CDMA 450
USER
MANUAL
GSM router iRZ RCA (CDMA 450)
User Manual
2
List of contents
1. Safety requirements .............................................................................................................................................. 3
2. General................................................................................................................................................................. 4
2.1. Purpose of the device.................................................................................................................................... 4
2.2. Typical Application ...................................................................................................................................... 4
2.3. List of parts .................................................................................................................................................. 6
2.4. Features........................................................................................................................................................ 6
2.5. Exterior view................................................................................................................................................ 8
2.6. Interfaces.................................................................................................................................................... 10
2.7. State indication........................................................................................................................................... 14
3. Connection and Settings...................................................................................................................................... 15
3.1. Connection the router to the computer to set up........................................................................................... 15
3.2. Basic Configuration.................................................................................................................................... 15
4. Web-interface Description................................................................................................................................... 17
4.1. Status and log ............................................................................................................................................. 17
4.2. Configuration ............................................................................................................................................. 26
4.3. Administration............................................................................................................................................ 46
5. Support............................................................................................................................................................... 55
GSM router iRZ RCA (CDMA 450)
User Manual
3
1. Safety requirements
Restrictions on the device use near other electronic devices:
·Turn off the router in hospitals or near medical equipment (such as pacemakers and
hearing aids). The interference with medical equipment is possible;
·Turn off the router in planes. Take precautions against accidental activation;
·Turn off the router near gas stations, chemical plants, blasting works. The interference
with technical equipment is possible;
·The router may cause interference with TVs and radios at close distance.
Protect your router from dust and moisture.
Improper use deprives you of all warranty claims.
GSM router iRZ RCA (CDMA 450)
User Manual
4
2. General
2.1.Purpose of the device
GSM router iRZ RCA, using the technology of CDMA (data transfer rate up to 2.4 Mbps),
provides reliable high-speed Internet access for individual devices or entire network. It can be used
for any distributed business, which requires transmission of large amounts of information - Internet
access for computers and networks, vending machines and ATMs, industrial equipment, security
systems and surveillance, as well as for remote monitoring and control.
High productivity of the platform and availability of two R-UIM card slots make it possible for
the device to solve additional tasks without compromising the quality of the core functions.
The device runs on Linux operational system. LEDs are used to display the router work.
It is designed in a durable aluminum housing.

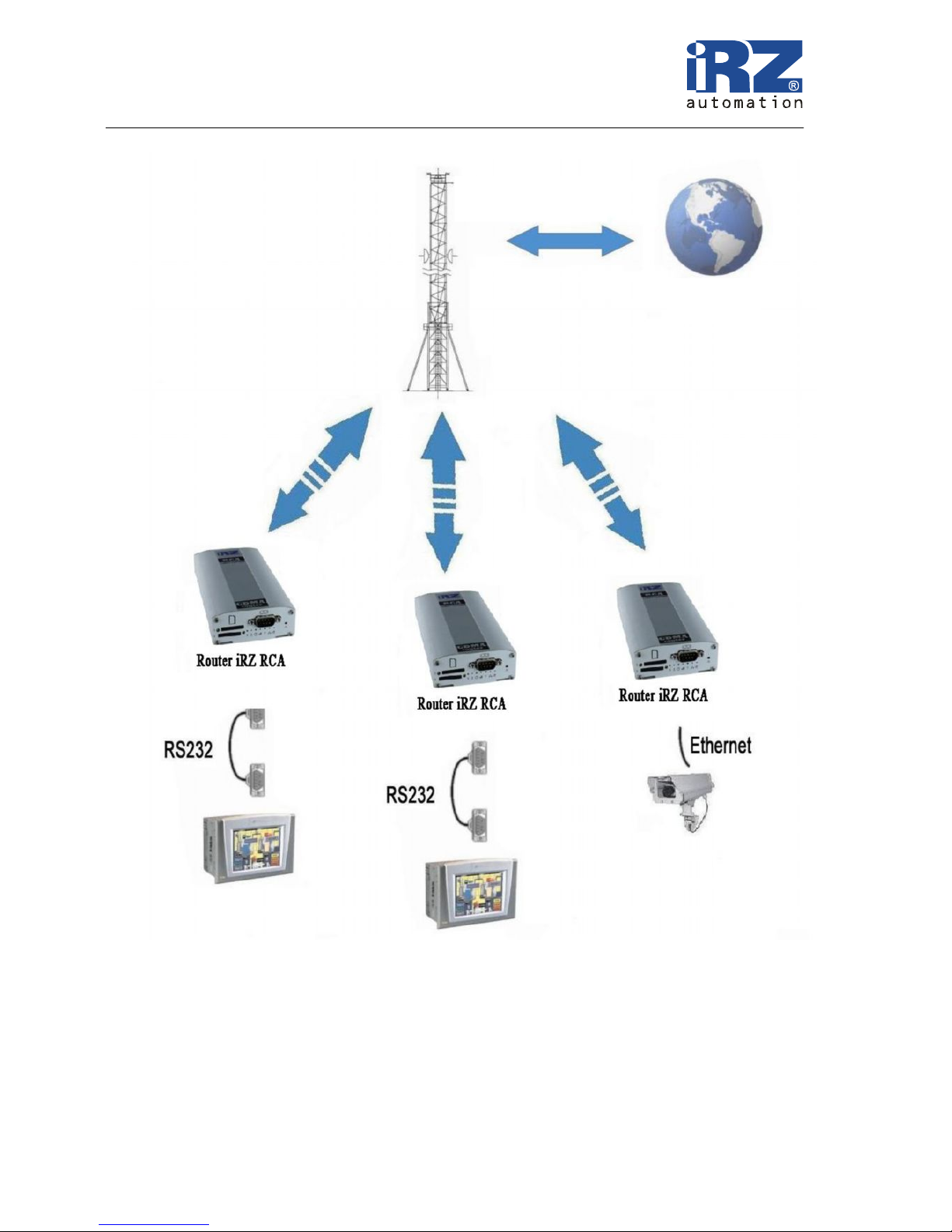

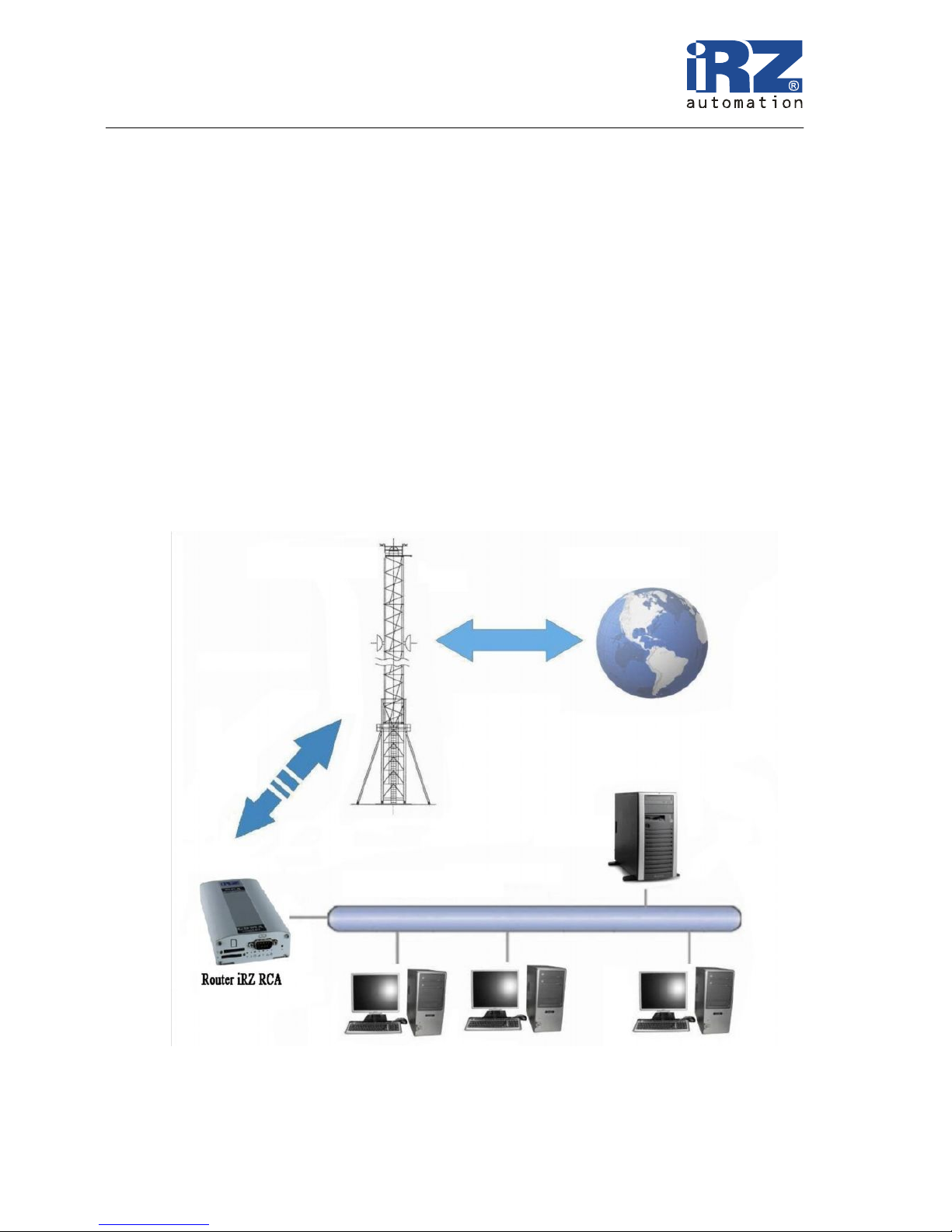

2.2. Typical Application
·Internet access for a computer or the entire network;
·Connection of vending machines and ATMs, industrial equipment and security systems
and surveillance to the Internet, as well as for remote monitoring and control.
GSM Network Internet
Server
Local network
GSM router iRZ RCA (CDMA 450)
User Manual
5
GSM Network
Internet
GSM router iRZ RCA (CDMA 450)
User Manual
6
2.3. List of parts
Parts of GSM router iRZ RCA:
·Router iRZ RCA;
·Power unit 12V/1000mA;
·GSM antenna;
·2 supply cables;
·Factory packaging.
2.4. Features
Key features:
·NAT configuration to access internal network resources from outside;
·DynDNS client to update information about a domain name when using dynamic IP
address;
·GRE, IPsec and OpenVPN tunnels;
·Internal clock synchronization with external sources;
·Two R-UIM card slots, automatic switching between them or on the command via the
web interface. Automatic switching takes place either due to the loss of connection with
the operator, or according to the schedule. In the case of switching due to the loss of
connection it can be returned to the priority R-UIM card.
Communication standards:
·CDMA,
·1xRTT,
·1xEVDO.
Hardware specifications:
·Processor ARM920T;
·Dynamic RAM 64 Mb;
·Flash-memory 8 MB;
·Ethernet 10/100Mbit.
Power supply:
·Supply voltage from 8 to 30 V;
·Current consumption not exceeding:
oat supply voltage + 12 V – 800 mA;
oat supply voltage + 24 V – 400 mA;
Physical Characteristics:
·Dimensions not exceeding 170х78х32 mm;
·Weight not exceeding 190 g;
·Operating temperature range from -30° C to 70° C;
·Storage temperature range from -50° C to 85° C.
GSM router iRZ RCA (CDMA 450)
User Manual
7
Interfaces:
·DB9 connector for connecting the data cable, RS-232:
oData collection or equipment control by means of additional software;
oConnection of two remote devices with COM-interface via the Internet.
·Connector Ethernet 10/100 Mbit;
·Connector USB A - USB Host. To connect an external device (flash-drives, USB-COM
adapters) - centralized storage of files;
·Power connector;
·SMA connector to connect the GSM antenna.
GSM router iRZ RCA (CDMA 450)
User Manual
8
2.5. Exterior view
Router iRZ RCA is produced in the industrial variant - in durable and lightweight aluminum
housing. The exterior view is presented by fig.2.5.1 and fig.2.5.2.

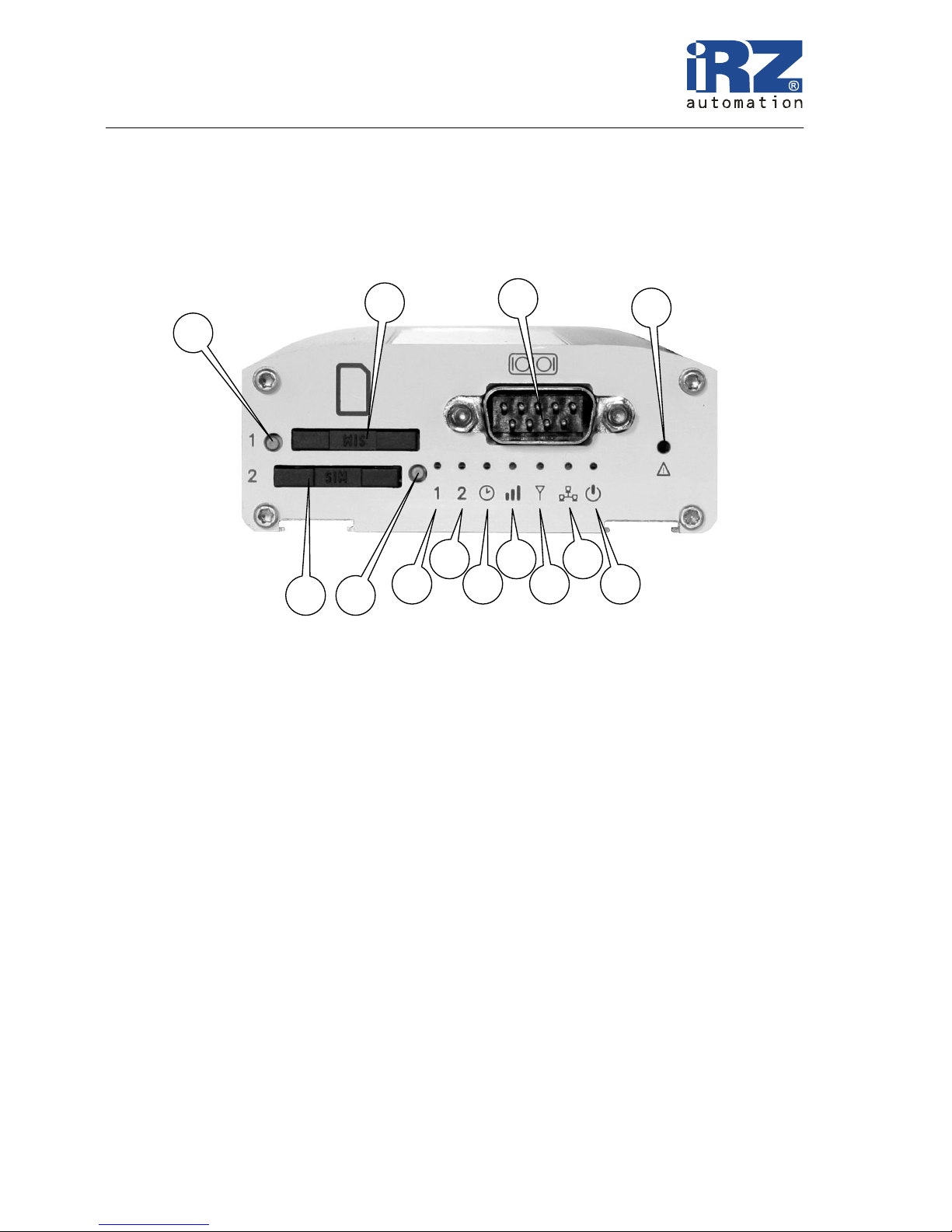

Fig. 2.5.1 Front view
The numbers in Figure 2.5.1 indicate:
1. R-UIM card №1 tray eject button;
2. R-UIM card №1 tray;
3. DB9 connector for data cable connection, RS-232;
4. Reset button;
5. Power indicator;
6. LAN indicator;
7. Connection type indicator;
8. GSM signal level indicator;
9. Router load indicator or software update;
10. R-UIM card №2 activity indicator;
11. R-UIM card №1 activity indicator;
12. R-UIM card №2 tray eject button;
13. R-UIM card №2 tray;
1
2
3
4
12
9
8
7
6
5
10
11
13
GSM router iRZ RCA (CDMA 450)
User Manual
9

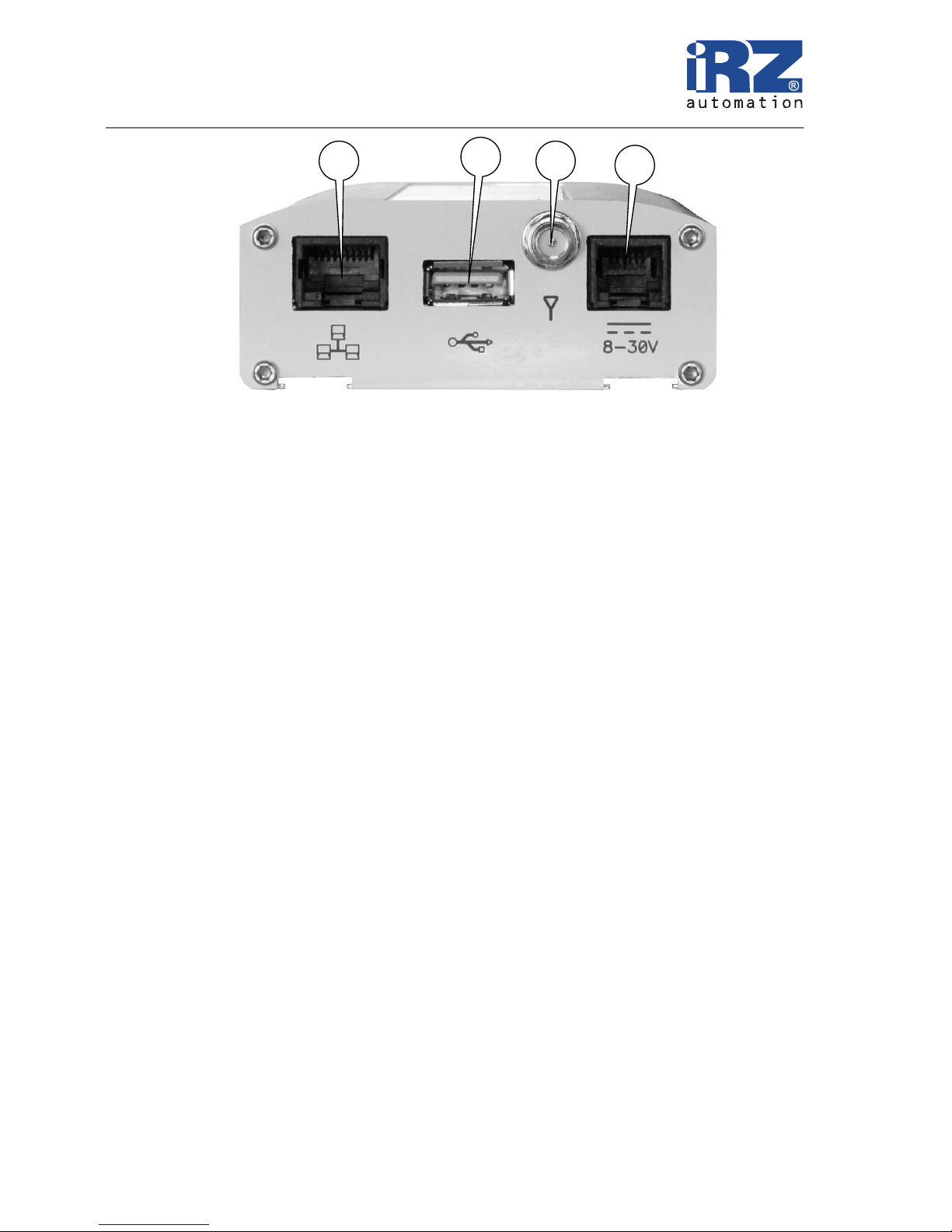

Fig. 2.5.2 Rear view
The numbers in Figure 2.5.2 indicate:
1. Ethernet network connector;
2. USB Host connector;
3. SMA connector to connect the GSM antenna;
4. Power connector.
1
2
3
4
GSM router iRZ RCA (CDMA 450)
User Manual
10
2.6. Interfaces
2.6.1. Connector DB9 (RS232)
DB9 connector for connecting the data cable, RS-232 interface.
·Data collection or equipment control by means of additional software,
·Connection of two remote devices with COM-interface via the Internet.

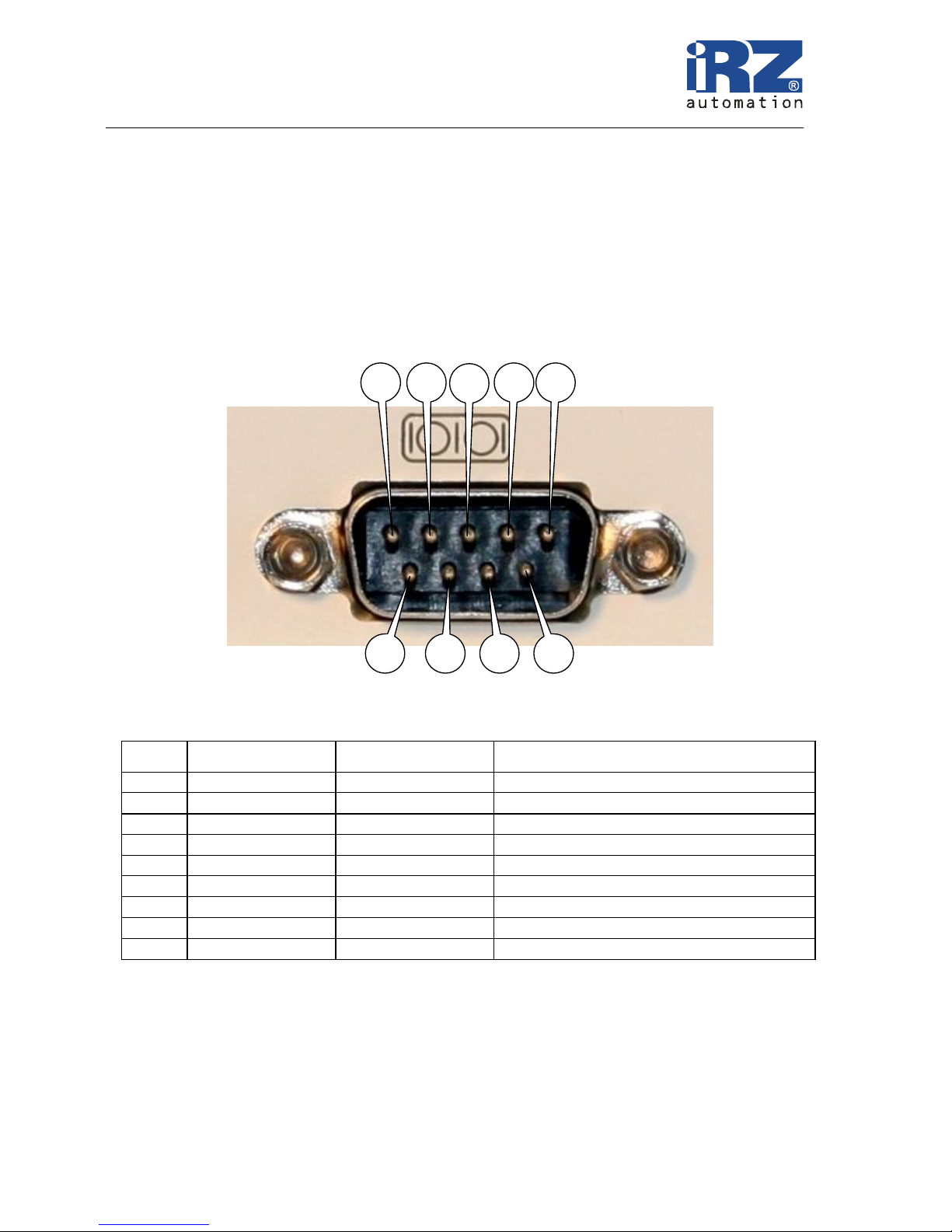

Fig. 2.5.1 Connector DB9
Table 2.6.1 DB9 connector pin functions
Pin Signal Direction Function
1
not used
-
-
2RXD Device - Router Data receiving
3
TXD
Router
-
Device
Data transmission
4not used - -
5
GND
general
System housing
6 not used - -
7 not used - -
8 not used - -
9 not used - -
5
3
4
2
1
9
8
7
6
