isel flat bed installation GFV
SW 13

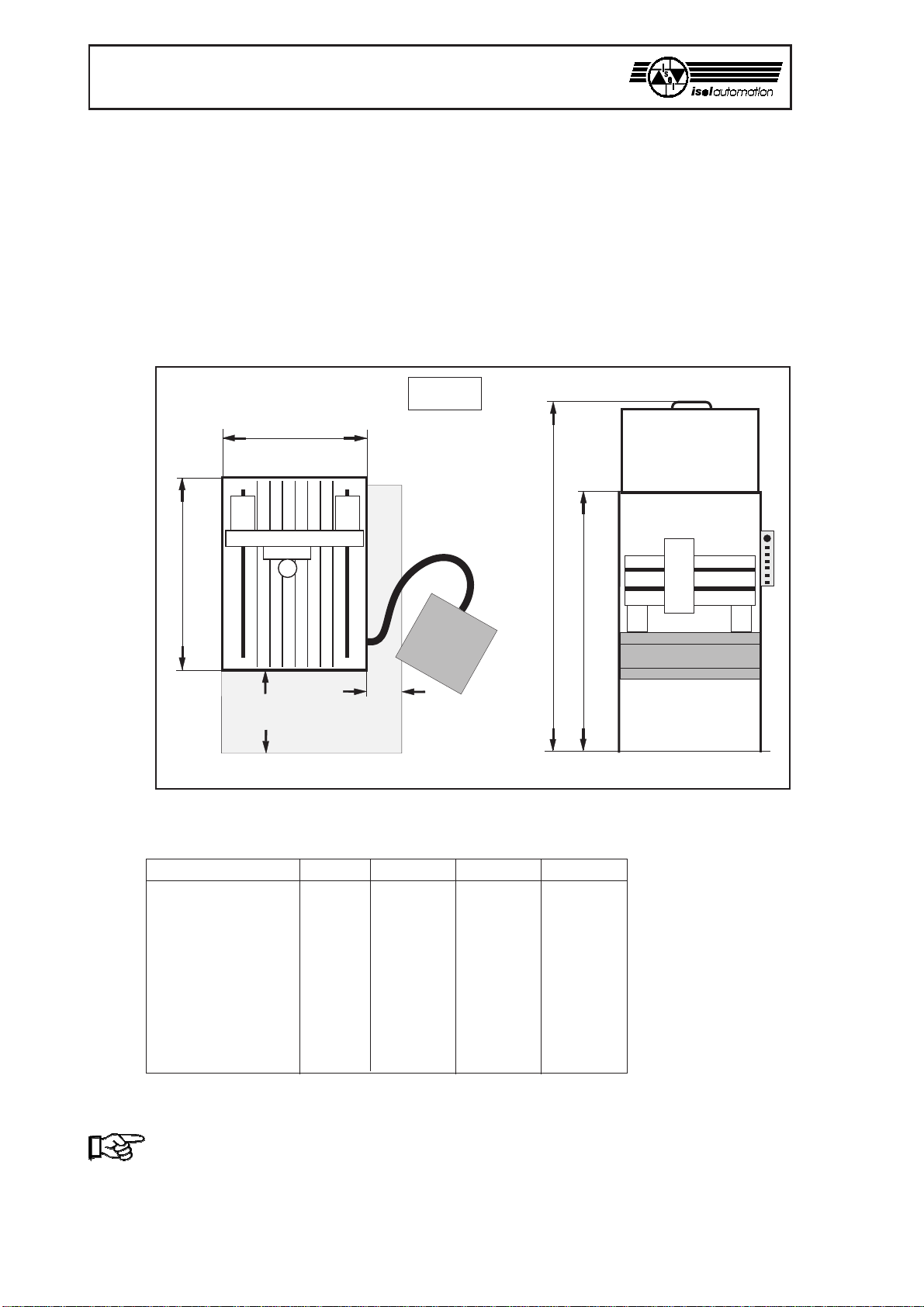

Place the machine onto a plane and solid surface. You
canbalancesmallunevennessesofthefloorusingthe
feet.
To level the machine accuratetly, you need a spirit
level with a minimal precision of 0,5 mm/m.
1. Put the spirit level onto the machine table and adjust the feet until the machine is
leveled at least 0,5 mm/m lengthwise and crosswise.
2. Fix the height of the maschine feet with the lock nut.
5.4 Enclosure
For repairs or extensive maintenance
and cleaning tasks, the enclosure can
be unscrewed separately. Every
column is fixed by a threaded rod in
the lower part. From the top, loosen
the two nuts and the threaded rod. If
you pull out the rod, the cover can be
completely removed as one part (up
to the size of 102/62). At larger
machines, the cover consists of
several parts.
Without cover, the machine must never be put into operation.
5.5 Wiring
The CNC machine is driven by an IBM compatible computer and power electronics for the
motors. Integrated into one control cabinet (Penguin II), the controller is completety wired
and connected to the machine.
You find a detailed overview of the wiring in the instruction of the CNC servo-controller.
Connect the power cable to the control cabinet (Penguin II) only if the machine is ready for
commissioning.
Route all cables exclusively through the cable tube of the penguin to the machine and
ensure that both ends are always screwed on firmly (strain relief).
bottom top
