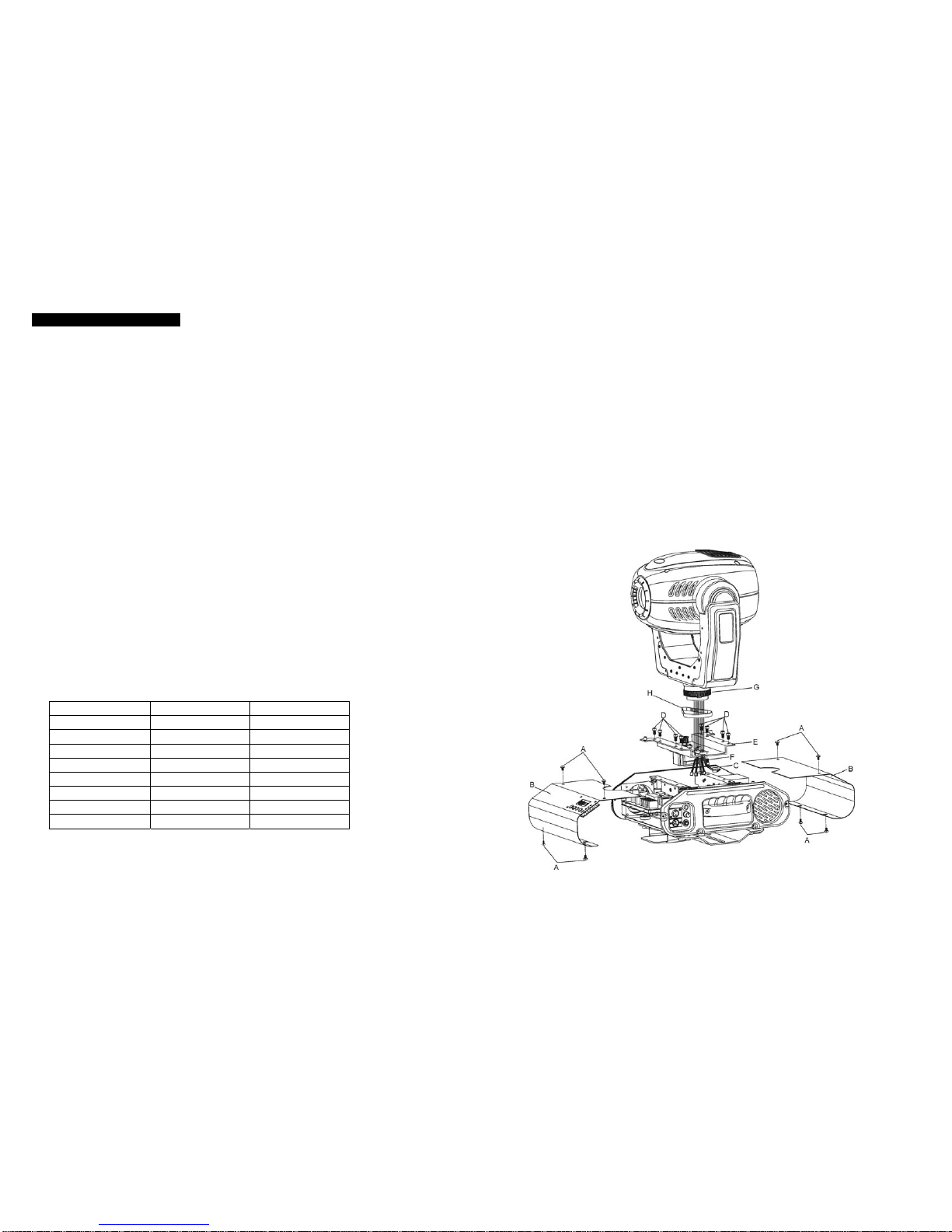

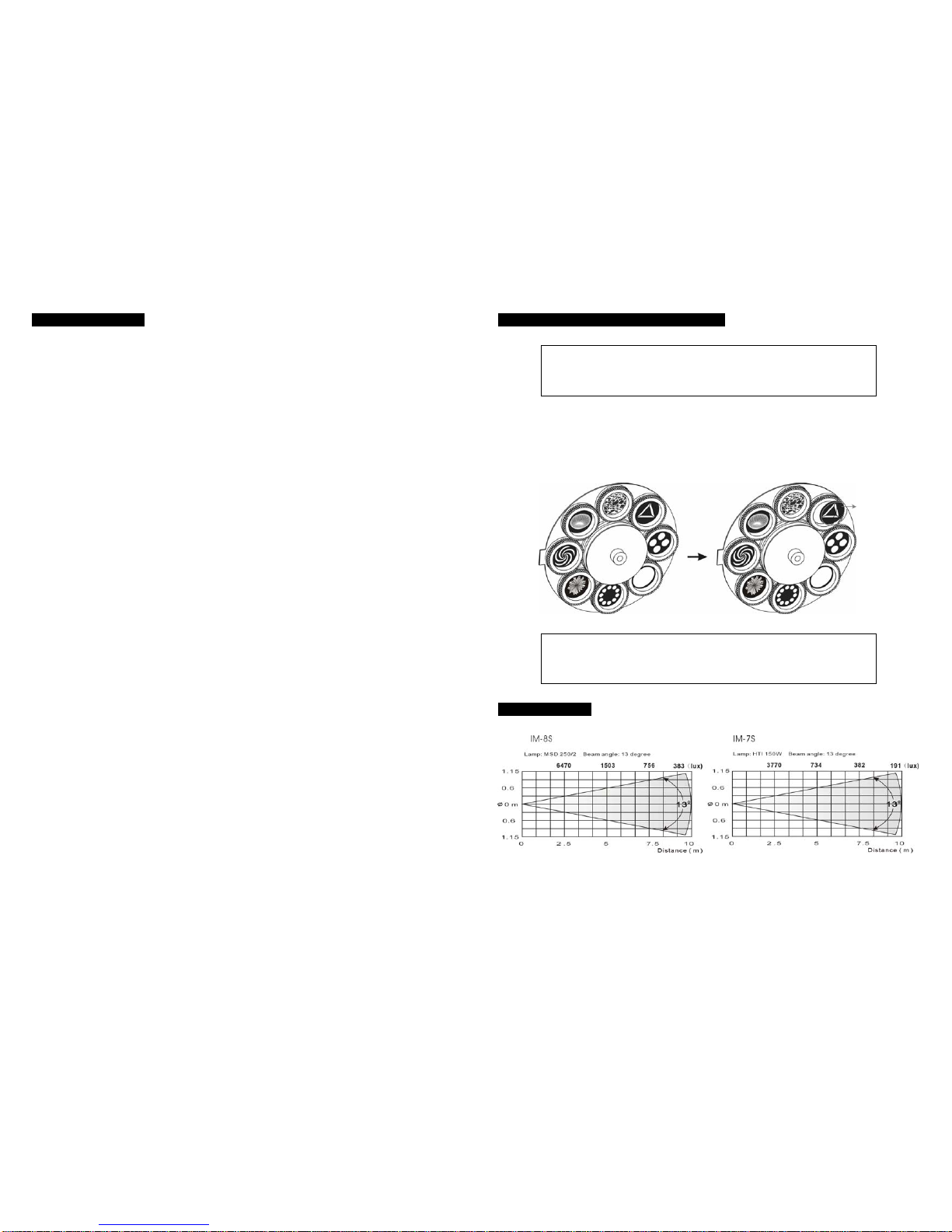

5. How To Control The Unit
You can operate the unit in three ways:
1. By master/slave built-in preprogram function
2. By easy controller
3. By iLead controller ( please refer to the user guide of iLead ) or by universal DMX
controller
No need to turn the unit off when you change the DMX address, as new DMX address setting
will be effected at once. Every time you turn the unit on, it will show IM8S / IM7S on the
display and move all the motors to their ‘home’ position and you may hear some noises for
about 20 seconds. After that the unit will be ready to receive DMX signal or run the built-in
programs.

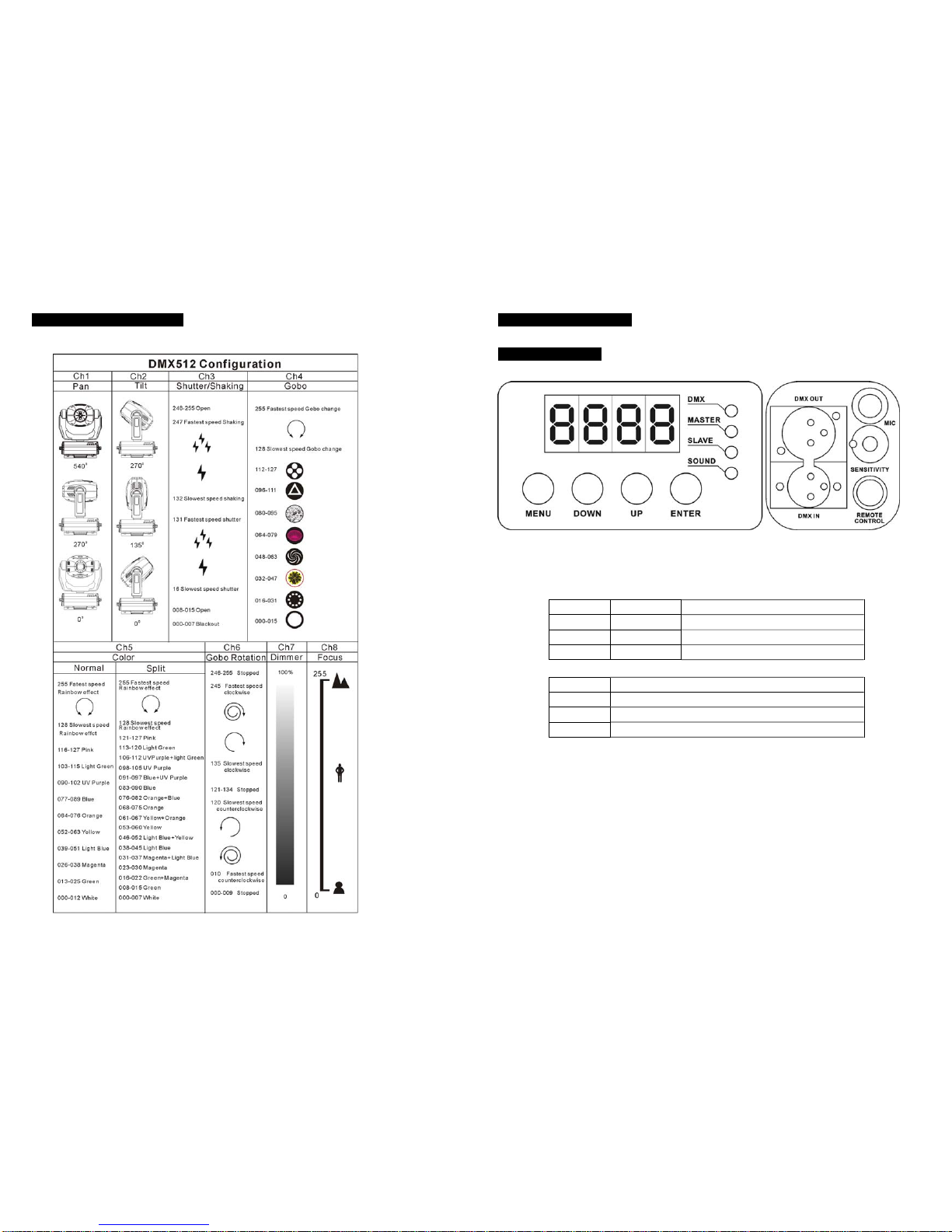

5.1 Master/Slave Built-In Preprogrammed Function
You can select blackout mode in (yes blackout) or (no blackout)
mode while the unit is turned on. By linking the units in master/slave connection, the first unit
will control the other units to give an automatic, sound activated, synchronized light show.
This function is good when you want an instant show. You have to select (show 1) or
(show 2) or (show 3) or (show 4) mode by easy controller. Its
DMX input jack will have nothing plugged into it, and Its master LED will be constantly on and
sound LED will flash to the music. The other units will have to set in slave mode and
select (normal) or (2 light show) mode, Their DMX cables plugged into the
DMX input jacks (daisy chain) and the slave LED lights will constantly on.
2-light show
In (slave mode), means the unit works normally and means 2-light
show. In order to create a great light show, you can set on the second unit to get
contrast movement to each other, even if you have two units only.
5.2 Easy Controller
The easy remote controller is used only in master/slave mode. By
connecting to the 1/4” microphone jack of the first unit, you will find that
the remote control on the first unit will control all the other units for
Stand by, Function and Mode.
Show Mode

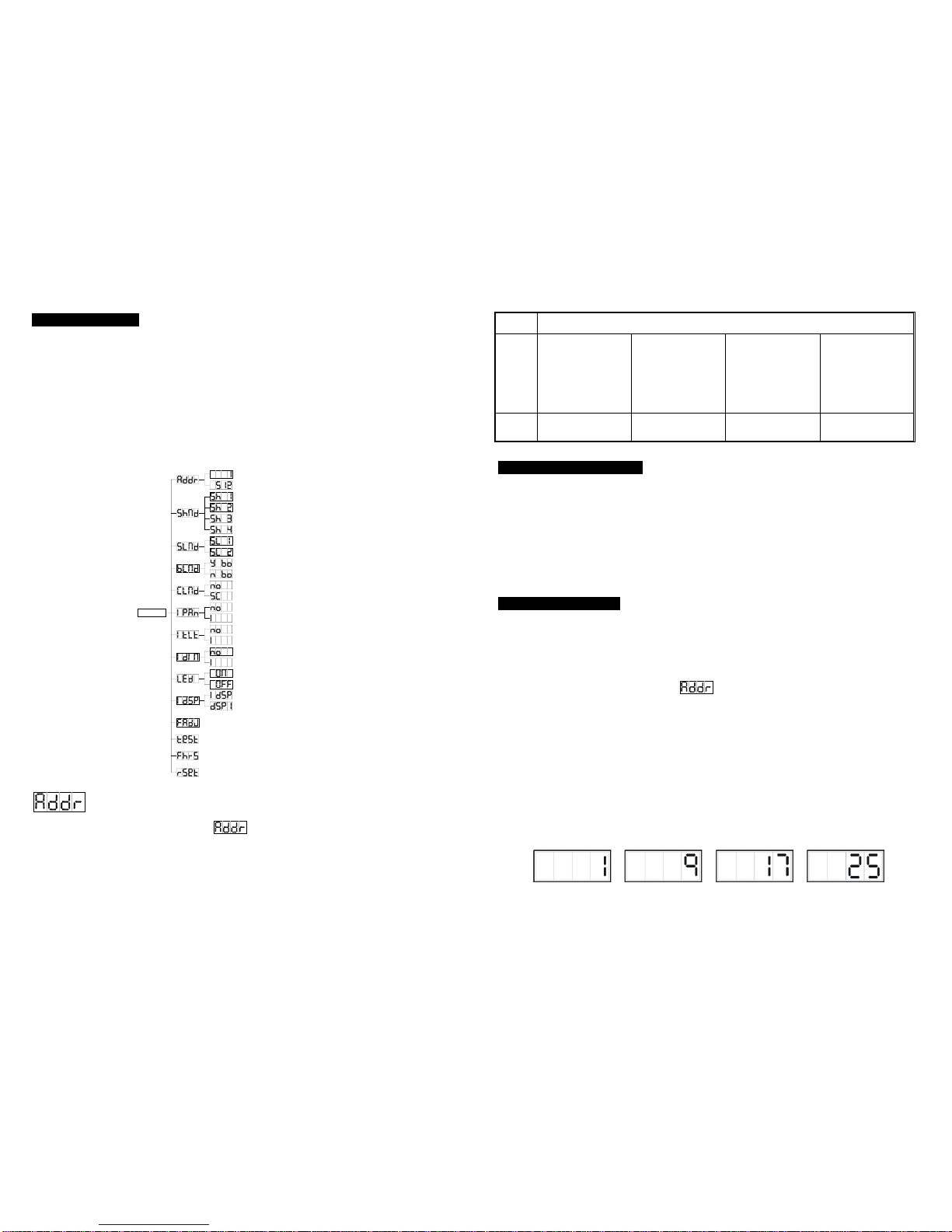

Press the MENU button up to when the is showing on the display. Pressing ENTER
button and the display will blink. Use DOWN and UP button to select the (show 1) or
(show 2) or (show 3) or (show 4) mode. Once the mode has been
selected, press the ENTER button to setup or automatically return to the main functions
without any change after 8 seconds. To go back to the functions without any change press
the MENU button again.
Show 1 mode - Fixture is placed on the floor. Tilt movement angle 210°.
Show 2 mode - Fixture is fixed under ceiling. Tilt movement angle 90°.
Show 3 mode - Fixture is placed on the speaker, The spot is always projecting to
the audience’s direction; i.e in front of the stage. Pan movement angel ( left to
right to left ): 160°. Tilt movement angel: 90° ( 60° above horizon; 30° below
horizon.)
Show 4 mode - Fixture is fixed under ceiling. The spot is mainly projecting in front
of the stage. Pan movement angel ( left to right to left ) :160°. Tilt movement
angel: 90° ( vertically, front 75°; back 15° )
Slave Mode
Press the MENU button up to when the is showing on the display. Pressing ENTER
button and the display will blink. Use DOWN and UP button to select the (normal) or
(2 light show) mode. Once the mode has been selected, press the ENTER button to
setup or automatically return to the main functions without any change after 8 seconds. To go
back to the functions without any change press the MENU button again.
Blackout Mode
Press the MENU button up to when the is showing on the display. Pressing ENTER
button and the display will blink. Use DOWN and UP button to select the (yes
blackout) or (no blackout) mode. Once the mode has been selected, press the
ENTER button to setup or automatically return to the main functions without any change after
8 seconds. To go back to the functions without any change press the MENU button again.
