Itm BM18A Manuale utente

Holemaker Portable Magnetic Drilling Machine

OPERATOR’S MANUAL

WARNING!

BEFORE USE,ENSURE EVERYONE USING THIS MACHINE READS AND UNDERSTANDS

ALL SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL .

esahcruPfoetaD#laireS

HOLEMAKER PRO 50

BEWARE OF

ROTATING

MACHINE PARTS

LINE VOLTAGE

PRESENT

NEVER PLACE

FINGERS NEAR

CUTTING AREA OR

MACHINE ARBOR

HEARING PROTECTION

REQUIRED

EYE PROTECTION

REQUIRED

Ver: 1.10 14/08/2015

ul. Elewatorska 23/1, 15-620 Białystok, Poland

Phone: +48 85 678-34-95, Fax: +48 85 662-78-77

www.promotech.eu e-mail: info@promotech.eu

OPERATOR’S MANUAL

BEVELLING MACHINE

M-

Contents

1. GENERAL INFORMATION ............................................................................................... 3

1.1. Application ................................................................................................................. 3

1.2. Technical data............................................................................................................ 3

1.3. Equipment included ................................................................................................... 4

1.4. Dimensions ................................................................................................................ 5

1.5. Design ....................................................................................................................... 5

2. SAFETY PRECAUTIONS.................................................................................................. 6

3. STARTUP AND OPERATION ........................................................................................... 8

3.1. Installing the handle ................................................................................................... 8

3.2. Installing and removing the cutting inserts.................................................................. 9

3.3. Installing and removing the milling head ...................................................................10

3.4. Adjusting the bevel width ..........................................................................................12

3.5. Adjusting the guide for bevelling with radius..............................................................13

3.6. Preparing ..................................................................................................................13

3.7. Operating ..................................................................................................................14

3.8. Replacing the rollers .................................................................................................15

3.8.1. Replacing the bevelling roller..........................................................................15

3.8.2. Replacing the radius roller ..............................................................................16

4. ACCESSORIES ...............................................................................................................17

4.1. Radius insert positioner.............................................................................................17

4.2. Anti-scratch guide sticker ..........................................................................................18

4.3. Milling tools ...............................................................................................................18

5. SPARE AND WEARING PARTS......................................................................................19

6. DECLARATION OF CONFORMITY .................................................................................20

7. WARRANTY CARD..........................................................................................................21

BM-18A

This document is protected by copyrights.

Copying, using, or distributing without permission of PROMOTECH is prohibited.

1. GENERAL INFORMATION

1.1. Application

The BM-18A is anair bevelling machine designed to bevel plates and pipes made of

steel, aluminum alloys, brass, and plastics.

Depending on the milling head used the machine allows you to bevel workpieces

at the angle of 22.5°, 30°, 37.5°, 45°, 50°, 55°, and 60°. The minimum workpiece

thickness is 2 mm (0.08″). The maximum bevel width is 18 mm (0.71″). A radius

milling head allows you to bevel with a radius of 2, 3, 4, or 5 mm. The minimum

diameter of a hole to be machined is 40 mm (1.57″).

An optional sticker protects aluminum workpieces from scratches.

1.2. Technical data

Pressure

6 bar (87 psi)

Power

2800 W

Rotational speed with no load

6000 rpm

Rotational speed with load

5700 rpm

Minimum required diameter of supply hose

19 mm (0.75″)

Air consumption

1800 L/min (64 CFM)

Maximum bevel width (b)

18 mm (0.71″, Fig. 1)

Bevel angle (ß, depends on the milling head)

22.5°, 30°, 37.5°, 45°, 50°, 55°, 60° (Fig. 1)

Minimum workpiece thickness (bevelling)

2 mm (0.08″)

Minimum workpiece thickness

(radius bevellling)

7 mm (0.28″)

Minimum hole diameter

40 mm (1.57″)

Edge radius

2 mm, 3 mm, 4 mm, 5 mm (Fig. 1)

Noise level

More than 85 dB

Vibration level

2.3 m/s

(7.5 ft/s

)

Machine harmful for health.

Take periodic breaks during work.

Required ambient temperature

0–40°C (32–104°F)

Weight

9.3 kg (20.5 lbs)

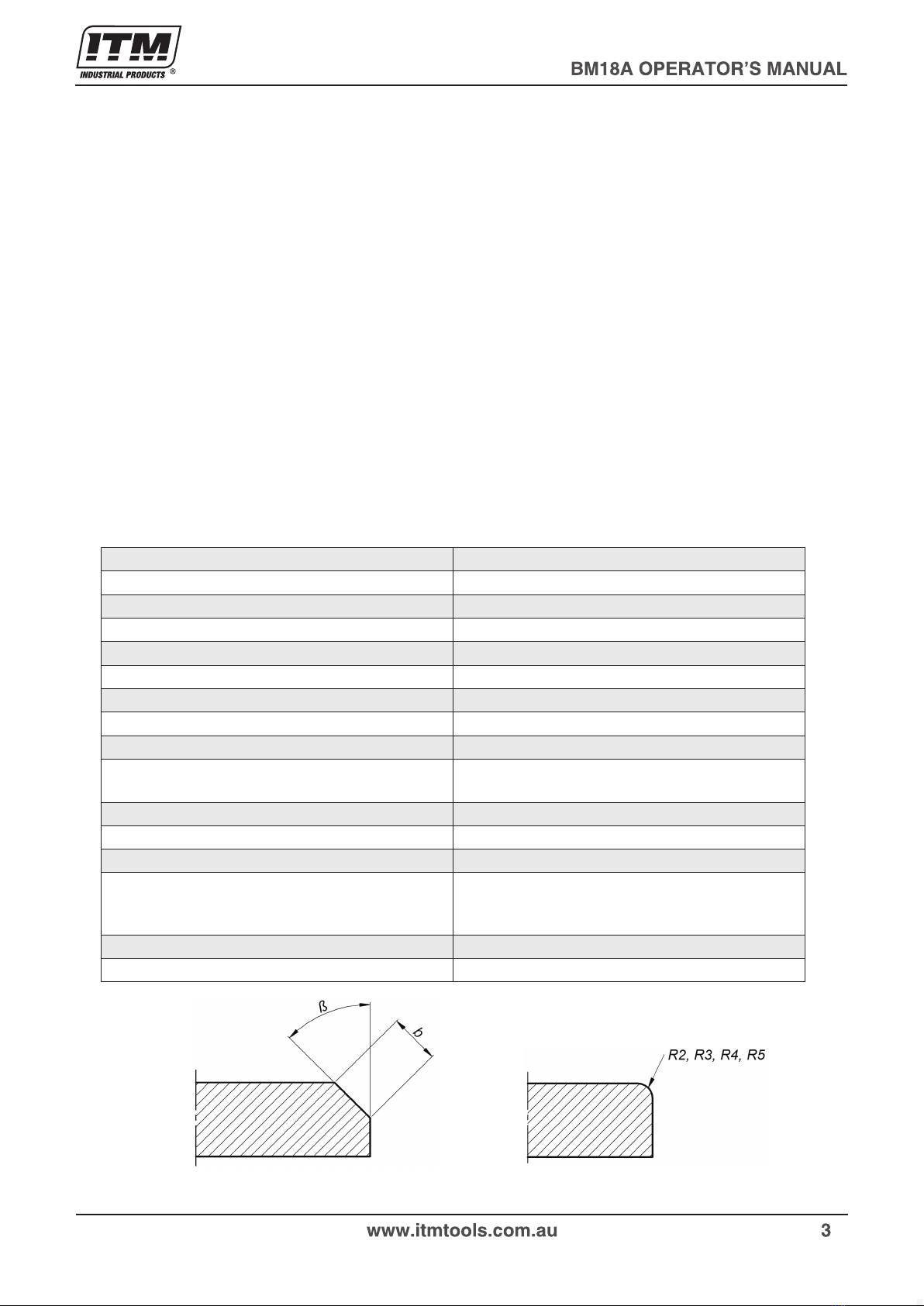

Fig. 1. Bevel dimensions

BM-18A

This document is protected by copyrights.

Copying, using, or distributing without permission of PROMOTECH is prohibited.

1.3. Equipment included

Bevelling machine (without milling head)

1 unit

Handle

1 unit

Plastic box

1 unit

Lock pin

1 unit

32 mm flat wrench

1 unit

6 mm hex wrench

1 unit

Grease for mounting screws (5 g, 0.17 oz)

1 unit

Toolbox

1 unit

–

Operator’s Manual

1 unit

BM-18A

This document is protected by copyrights.

Copying, using, or distributing without permission of PROMOTECH is prohibited.

2. SAFETY PRECAUTIONS

1. Before use read this Operator’s Manual and complete a training in occupational

safety and health.

2. Use only in applications specified in this Operator’s Manual.

3. Make sure that the machine has all parts and they are genuine and not damaged.

4. Make sure that the specifications of the air source are the same as those specified

on the rating plate.

5. Supply only with clean and lubricated air. Make sure that the air source has an air

preparation unit that contains a filter, regulator, and lubricator (FRL).

6. Keep untrained bystanders away from the machine.

7. Before each use, ensure the correct condition of the machine, air source, supply

hose, fitting, and tools.

8. Do not carry the machine by the air hose and do not pull the air hose. This can

cause damage and serious injuries.

9. Before each use, make sure that no part is cracked or loose. Make sure to main-

tain correct conditions that can have an effect on the operation of the machine.

10. Avoid accidental starts. Do not put the machine so that the motor will start. Do

not carry the machine by holding the ON/OFF lever.

11. Keep the machine dry. Do not expose the machine to rain, snow, or frost.

12. Keep the work area well lit, clean, and free of obstacles.

13. Do not use near flammable materials, or in explosive environments.

14. Use only tools specified in this Operator’s Manual.

15. Do not use tools that are dull or damaged.

16. Make sure that the cutting inserts and the milling head are correctly attached.

Remove wrenches from the work area before you connect the machine to the air

source.

17. Do not use the machine so that the milling head is up.

18. If the cutting edge of an insert is worn, rotate all inserts by 90° or 180°. If all

cutting edges are worn, replace all inserts with new ones specified in this Opera-

tor’s Manual.

19. Use eye and ear protection, non-skid footwear, and protective clothing. Do not

use loose clothing.

20. Do not touch chips or moving parts. Do not let anything catch in moving parts.

BM-18A

This document is protected by copyrights.

Copying, using, or distributing without permission of PROMOTECH is prohibited.

21. After each use, clean the machine and the milling head with a dry cotton cloth

and no chemical agents. Do not remove chips with bare hands.

22. Maintain the machine and install/remove parts and tools only after you unplug the

machine from the air source.

23. Repair only in a service center appointed by the seller.

24. If the machine falls, is wet, or has any damage, stop the work and immediately

send the machine to the service center for check and repair.

25. If you are not going to use the machine, remove it from the work area and keep it

in a safe and dry place.

26. If you are not going to use the machine for an extended period, put anti-corrosion

material on the steel parts.

BM-18A

This document is protected by copyrights.

Copying, using, or distributing without permission of PROMOTECH is prohibited.

3. STARTUP AND OPERATION

3.1. Installing the handle

Tighten the handle with the 32 mm flat wrench (1, 2).

BM-18A

This document is protected by copyrights.

Copying, using, or distributing without permission of PROMOTECH is prohibited.

3.3. Installing and removing the milling head

Unplug the machine from the air source. To remove the milling head, continue in the

sequence that follows.

6 mm
