JABLOTRON Mercury

Thank you for purchasing a JABLOTRON Mercury system. This user manual will guide you and

explain everything you need to operate the system.

PEACE OF MIND AND SAFETY

If the alarm is to truly assure protection, it must be connected to an alarm receiving centre (ARC) to

ensure professional intervention in the event of danger. If you do not utilize an ARC service, please

contact your Installation Partner.

HOW TO ARM AND DISARM THE SYSTEM

Fire, ﬂooding and tampering detection is permanent, intrusion detectors monitor only if the

system is armed.

The garage door and entrance gate may be controlled by the alarm system through the means of

additional output modules.

The doorbell function is available if the system has a doorbell button enrolled during conﬁguration.

Depending on your system setup, use:

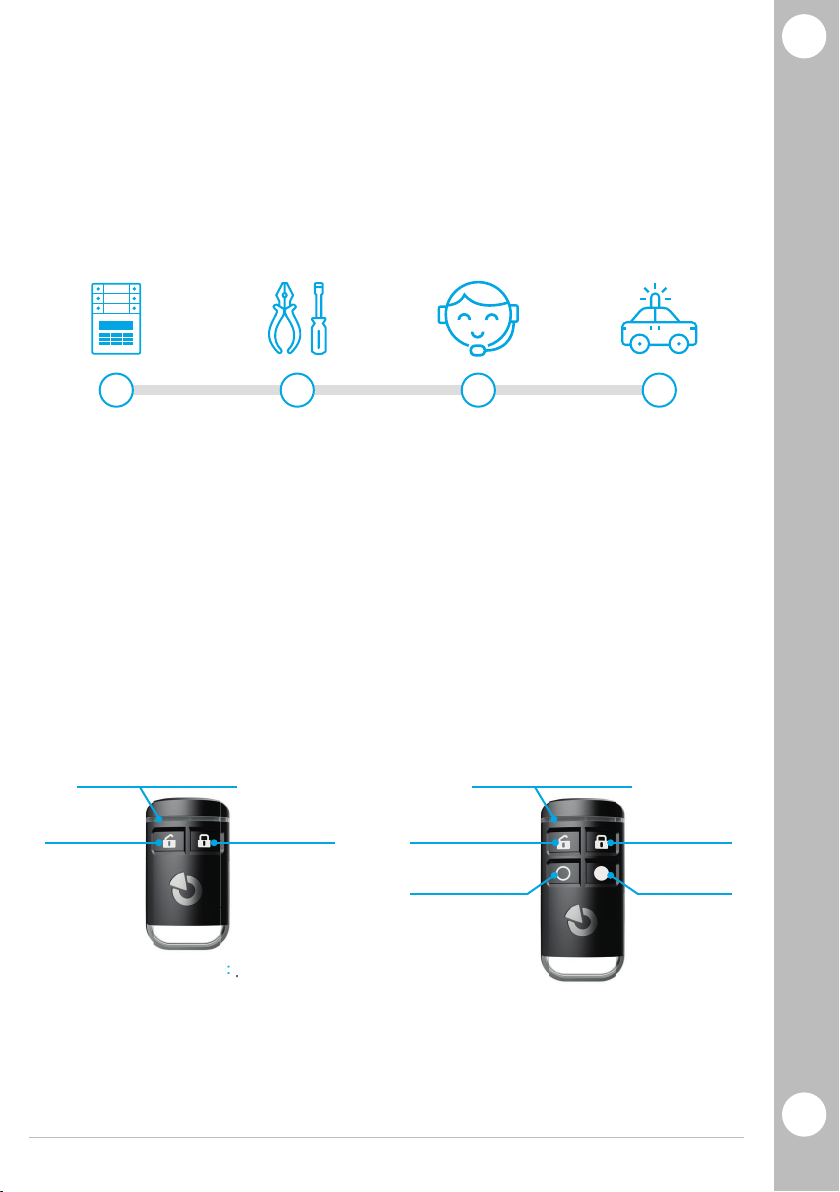

REMOTE CONTROL

Subject to how the alarm system is conﬁgured, the remote control allows the user to arm and/or

disarm the entire alarm system or its sections.

KEYPAD WITHOUT A DISPLAY

Depending on how the alarm system was conﬁgured during installation, the keypad arms or

disarms the entire alarm system or its part.

AUTHORIZATION: You must always enter your valid access code or use an RFID tag/card on the

keypad before using the ARM or DISARM buttons. The validity of the authorization is indicated by

the green ﬂashing of the indication light bar.

ALARM CANCELLATION:press DISARM

HIGH-QUALITY

ALARM

PROFESSIONAL

INSTALLATION

MONITORING

24H A DAY

ACTION IN CASE

OF AN ALARM

OPEN

THE GARAGE

OPEN

THE GATE

ELLATI

ess

Red – arm

Green – disarm

Yellow – out of range

Red – arm

Green – disarm

Yellow – out of range

DISARM DISARMARM ARM

User manual - JABLOTRON Mercury

MMD510307

PARTIAL SETTING: If your alarm has a partial setting enabled, only selected detectors are armed.

It‘s activated by authorizing and pressing the ARM button (conﬁrmed by the yellow LED indicator on

the right button). If the keypad is conﬁgured to allow full arming, it is activated by double-pressing

the ARM button after a valid authorization (conﬁrmed by the red LED indicator on the right button ).

ENTRY AND EXIT DELAY: Is indicated by the keypad beeping. Exit time is the time frame during

which you must vacate the premises of the protected area before the system becomes armed.

Entry time is the time frame during which you must disarm the alarm system, otherwise an alarm

is triggered. The speciﬁc times are conﬁgured by your JABLOTRON Installation Partner.

ALARM CANCELLATION: Authorize yourself and press the DISARM button.

ALARM MEMORY: The red LED remains ﬂashing after an alarm event. To cancel this indication,

repeat the disarming (by authorizing and pressing the DISARM button).

KEYPAD WITH A DISPLAY

It allows the user to control up to 4 independent sections of the house. In addition, it features

aMENU that can be used to view the event memory and other information.

AUTHORIZATION: You must always enter your valid access code or use an RFID tag/card on the

keypad before using the ARM or DISARM buttons. The validity of the authorization is conﬁrmed by the

green ﬂashing of the light bar.

PARTIAL SETTING: if your alarm utilizes partial setting in any section, it is activated by authorizing

and pressing the corresponding ARM button (the yellow LED on the right). Pressing the ARM

button twice after authorization will fully arm the section (red LED on the right).

ENTRY AND EXIT DELAY: Indicated by the keypad beeping. Exit time is the time frame during

which you must vacate the premises of the protected area before the system becomes armed.

Entry time is the time frame during which you must disarm the alarm system, otherwise an alarm is

triggered. The speciﬁc times are conﬁgured by your JABLOTRON Installation Partner.

ALARM CANCELLATION: Authorize yourself and press the DISARM button, which is ﬂashing red.

ALARM MEMORY: The red LED remains ﬂashing after an alarm event. To cancel this indication,

repeat the disarming (by authorizing and pressing the DISARM button).

INTERNAL KEYPAD MENU

−EVENT MEMORY – overview of the history recorded in the alarm

−SYSTEM STATUS – overview of alarm and device status

−DISPLAY OPTIONS* – display contrast and backlight

* this setting is available only to the alarm administrator.

tl t4id d t ti fthh

Green – disarmed

Green ﬂashing –

entry delay

Green – everything is OK

Green ﬂashing –

valid authorization

Red ﬂashing – alarm

(or alarm memory)

Yellow – fault

Yellow – Partial setting

Red – armed

Red ﬂashing – alarm

(or alarm memory)

DISARM button ARM button

MMD510307

Green – disarmed

Green ﬂashing –

exit delay

Green – everything is OK

Green ﬂashing –

valid authorization

Red ﬂashing – alarm

(or alarm memory)

Yellow – fault

Yellow – Partial setting

Red – armed

Red ﬂashing – alarm

(or alarm memory)

The ARM button for

individual sections

–

ing is

–

larm

)

Yello

w –

Red

ﬂ

(

or ala

The

ind

ivi

The names of the

sections, or system

status information.

The DISARM button

for individual sections

Note: in order to prolong the battery life, the wireless keypad turns off after approximately 10

seconds of inactivity.

MyJABLOTRON APP

The smartphone app allows you to control and monitor your alarm, open

your garage door and entrance gate. It contains a history of events and,

and if motion detectors with photo-veriﬁcation cameras are installed,

displays alarm photos in the Gallery tab. It also reports selected event

types. The alarm administrator can set different permissions for individual

users. Depending on the type of phone, the user is authorized by a numeric

code, ﬁngerprint or facial recognition.

The MyJABLOTRON app can be downloaded for both iOS and Android.

The access account for the alarm administrator is set by the Installation

Partner. You will receive the login details for the app on the email address

you provide to the JABLOTRON Installation Partner. The alarm administrator

then may set access to the app for other users.

The best way to familiarize yourself with the app is to browse through the options one by one.

ALARM MAINTENANCE

For reliable alarm system operation, we recommend that you arrange regular annual inspections

of your system with your JABLOTRON Installation Partner. Please contact your JABLOTRON

Installation Partner if the alarm reports a malfunction.

Warning:

1. Do not attempt to open or disassemble any component of the alarm system. A tamper alarm will

occur.

2. When cleaning, prevent damaging the alarm system components. We suggest cleaning dust

buildup from the detectors with a ﬁne ﬁber duster.

3. Use a damp cloth to clean the keypad. Make sure to avoid using organic solvents as their use could

potentially damage the keypad.

4. Battery replacement is to be carried out solely by your JABLOTRON Installation Partner.

Theaverage battery lifetime is approximately 2 years. The battery lifetime of a wireless keypad may

be signiﬁcantly shorter if the keypad is used more than twice a day.

User manual - JABLOTRON Mercury

MMD510307

CONTACT TO YOUR JABLOTRON INSTALLATION PARTNER

Digital manual

version

CONTROL PANEL TECHNICAL PARAMETERS

PARAMETER TYPE: CU2202MD

Dimensions 268 x 225 x 83 mm

Nominal control panel voltage / frequency /

fuse

~110–230 V/50–60 Hz, max. 0,28 A

with a fuse F1,6 A/250 V, protection class II

Electrical input power / current max 23 VA / 0,1 A

Classification of alarm device Security grade 2 / environment class II

@ according to standards EN50131-1, EN 50131-3, EN 50131-6,

EN 50131-5-3 (utilizing a radio module),

EN 50131-10, EN 50136-1, EN 50136-2

@ environment Indoor general

@ operational range of temperature / humidity -10 °C to +40 °C/ 75% RH w/o condensation

Number of code combinations per user, there

are no disallowed codes in the alarm

104– (The number of users within a system – 1)

Number of code combinations per user when

using access cards

109card codes

EMC EN 50130-4, EN 55032, ETSI EN 301 489-1,

ETSI EN 301 489-3

Electrical safety EN IEC 62368-1

Power supply protection Fuse T1,6 A; 250 V

Backup battery Lead 12 V / 2,6 Ah

Certification body TREZOR TEST (no. 3025)

JABLOTRON ALARMS a.s. hereby declares that the CU2202MD is in a compliance

with the relevant Union harmonization legislation: Directives No: 2014/53/EU, 2014/35/

EU, 2014/30/EU and 2011/65/EU. The original of the conformity assessment can be

found at www.jablotron.com - Section Downloads.

Note: Disposing of this product correctly will help save valuable

resources and prevent any potential negative effects on human

health and the environment, which could otherwise arise from

inappropriate waste handling. Please return the product to the

dealer or contact your local authority for further details of your

nearest designated collection point.

JABLOTRON ALARMS a.s. | Pod Skalkou 4567/33 | 46601 Jablonec n. N. | Czech Republic | www.JABLOTRON.com
