Jackson Grills Classic PG-50403SRL Manuale utente

ASSEMBLY, USE AND CARE MANUAL

MODEL

NO: PG-50403SRL

MODEL

NAME: Classic Series Pedestal Grill

FOR

OUTDOOR

USE ONLY

This manual is available on Item #:

-JSCART-2

-JCSCART-NG (with side burner)

-JCSCART-2NG

DANGER

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, keep away from the

appliance and immediately call your gas

supplier or your fire department.

WARNING

1. Do not store or use gasoline or other

flammable liquids or vapors in the

vicinity of this or any other appliance.

2. An LP cylinder not connected for use

shall not be stored in the vicinity of this

or any other appliance.

TABLE OF CONTENTS

Messages to Our Users -----------------------2 Installer Final Check List-------------------19

Important ------------------------------------------4 Grill Lighting Instructions-------------------20

Installation Safety Precautions---------------5 Operation Instructions----------------------22

Exploded View ----------------------------------6 Care & Maintenance------------------------24

Parts List------------------------------------------7 Trouble Shooting-----------------------------25

Assemble Instruction---------------------------8 Grilling Tips------------------------------------26

Gas Connections-------------------------------14 Placement of Grill----------------------------26

Leaking Test-------------------------------------18 Limited Warranty-----------------------------27

MESSAGE TO OUR USERS

Thank you for purchasing your new Jackson Grill. We hope you will have great enjoyment

in using our fine product.

Do not attempt to assemble and use this grill unless you read this entire manual thoroughly.

Keep the manual in a handy place as it has answers for questions that may occur in your

future use. Please record the serial number of your grill in your owner’s manual.

Any questions please feel free to contact our service center, we will be glad to assist you;

please refer to this model No. PG-50403SRL (Classic Series) whenever you contact us.

Thank you.

VERY IMPORTANT: ANY PROBLEM, PLEASE CONTACT OUR SERVICE CENTER AT

888-287-3333.

NOTE: THIS APPLIANCE IS NOT INTENDED TO INSTALL IN OR ON RECREATIONAL

VEHICLES OR BOATS.

THIS APPLIANCE IS FOR OUTDOOR USE ONLY.

DEAR INSTALLER / ASSEMBLER: PLEASE LEAVE THIS MANUAL WITH THE

CONSUMER.

DEAR CONSUMER: PLEASE KEEP THIS MANUAL FOR FUTURE USE.

！！！WARNING！！！

Failure to follow all manufacturer’s instructions could result in serious

body injury and/or property damage.

！！！CAUTION！！！

Someparts of this grill may have sharp edges—especiallyas mentioned

in this manual! Wear suitable protective gloves if necessary.

A special message to our customers:

Thank you for choosing the Jackson Grill for your new gas grill. This appliance is

designed with quality components and we are confident that it will provide you with years of

excellent operation. Please take the time to read the whole manual and familiarize

yourself with all of the features of the Jackson Grill. This manual also contains important

safety information and operation instructions. Ensure that this manual remains handy to

the barbeque for quick reference. If you need to obtain replacement parts for your

Jackson Grill, contact your local dealer.

NOTE: It is normal for stainless steel surfaces to discolor due to high heat given off from

the barbeque burners.

Please take the time to fill out and return the Ownership and Registration Card below. It

can be mailed to:

Jackson Grills Inc.

106-2480 Mt. Lehman Road, Abbotsford, BC

V4X 2N3

Or Fax: 1-877-533-5373

Please complete and return within 10 days. Thank you.

Mr. Mrs. Ms.Miss

First Name: Initial: Last Name:

Street:

Apt. #:

City:

State/Province:

Zip/Postal:

Phone:

Email:

Date of Purchase:

Dealer:

Model: Item #: Serial #:

Comments:

Thank you for taking the time to fill out this Ownership and Registration Card

IMPORTANT

The symbols and boxes shown below explain what each symbol means.

Read and follow every message found in this manual.

!!!DANGER !!!

DANGER: Indicates an imminently hazardous situation which will result in death or

serious body injury if not followed.

!!!WARNING !!!

WARNING: Warn the possibility of serious body injury if the instructions are not

followed strictly. Be sure to always read and follow all of the messages.

!!!CAUTION !!!

CAUTION: Indicates a potentially hazardous situation which may result in minor or

moderate body injury if not followed.

！！！WARNING！！！

FOR

YOUR

SAFETY

1. Shut off the gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, immediately call your gas supplier or your fire

department.

！！！WARNING！！！

FOR

YOUR

SAFETY

1. Do not store or use gasoline or other flammable vapors and liquids in

the vicinity of this or any other appliance.

2. An L.P. cylinder not connected for use shall not be stored in the

vicinity of this or any other appliance.

INSTALLATION SAFETY PRECAUTIONS

!!!WARNING!!!

Do not try to install this appliance without reading the “INSTALLATION

SAFETY PRECAUTIONS” section of this manual.

1. This grill is designed to operate using only the gas specified on the rating plate. Do

not attempt to operate your grill with other gases. Failure to follow this warning may

result in a fire hazard and bodily harm, and we will void your warranty.

2. The installation of this appliance must conform with local codes or, in the absence of

local codes, with the National Fuel Gas Code, ANSI Z223. 1, or CAN/CGA-B149.2

Propane Installation Code.

3. The L.P. tank used must conform with the specification for L.P.-gas cylinders of the

U.S. Department of Transportation (DOT) or the National Standard of Canada,

CAN/CSA-B339, Cylinders, Spheres and Tubes for the Transportation of

Dangerous Goods.

4. The motor must be electrically grounded in accordance with local codes or, in the

absence of local codes, with the National Electrical Code, ANSI/NFPA 70-1990, or

the Canadian Electrical Code, CSA C22.1. Keep the power cord of the motor away

from the hot surfaces of the grill while in use. Remove and store the motor in a dry

place when not in use.

5. This grill is safety certified for use in the United States and Canada only. Never

modify to use in other places. Modification may cause serious body injury or property

loss.

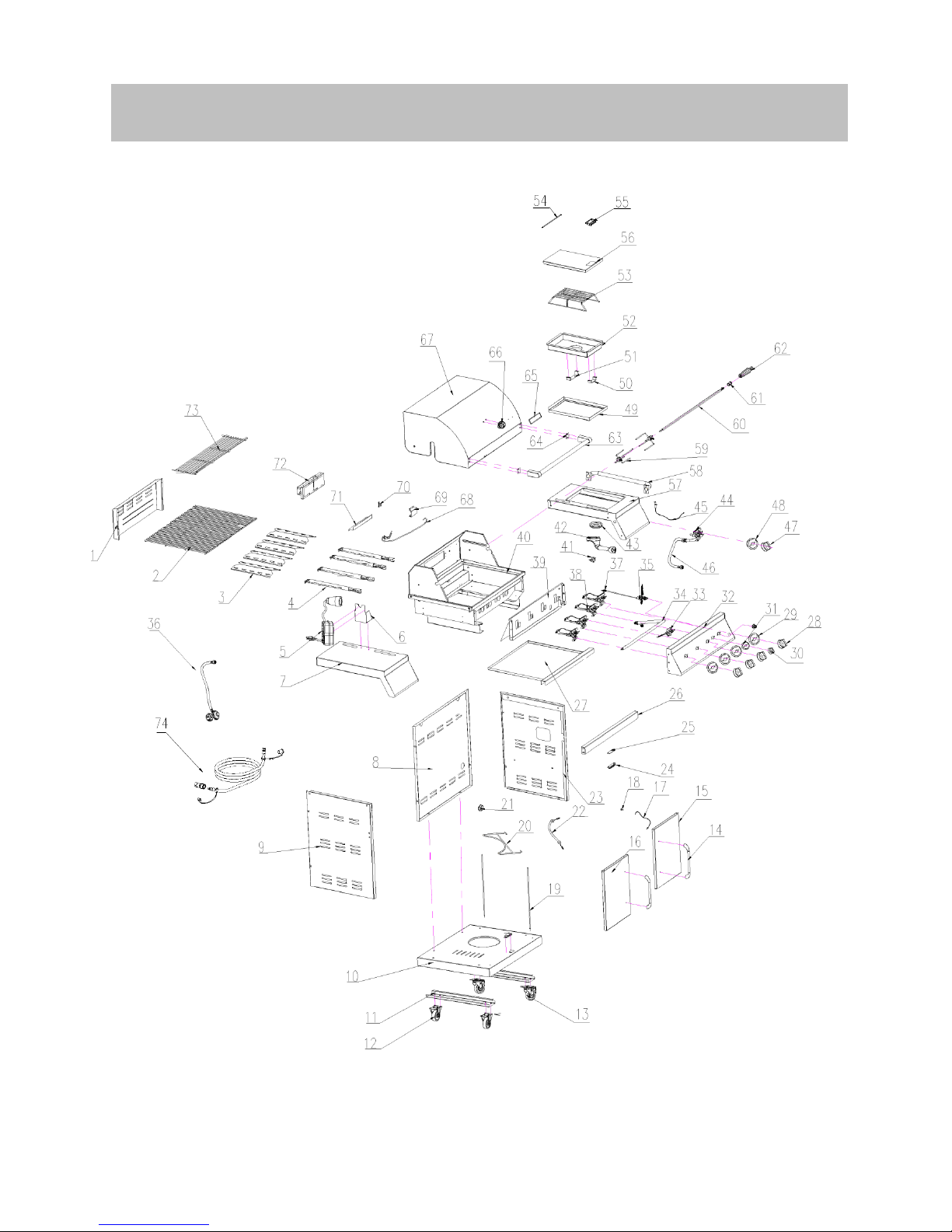

EXPLODEDVIEW

MODEL PG-50403SRL PARTS

REF#

DESCRIPTION

Q’TY

REF#

DESCRIPTION

Q’TY

Rear Panel

Gas Valves, Main Burner

Cooking Grids

Valve Bracket

FlameTamers

Firebox

Tube Main Burners

Bracket C, Side Burner

Rotisserie Motor

Side Burner

Motor Bracket

Side Burner Brass Ring

Left Side Shelf

Gas Valve, Side Burner

Back Panel, Cart

Ignition Electrode, Side Burner

Left Panel, Cart

Side Burner Hose

Bottom Panel, Cart

Knob, Side Burner

Cross Bars, Bottom Panel

Knob Seat, Side Burner

CastersWithout Brakes

Side Burner Housing

CastersWith Brakes

Bracket B, Side Burner

Door Handles

Bracket

A, Side Burner

Right Door

Side Burner Base

Left Door

Cooking Grid, Side Burner

Lighting Rod

Hinge, Side Burner Lid

Lighting Rod Screw

Handle, Side Burner Lid

Door Hinges

Lid, Side Burner

Tank Holder

Right Side Shelf

NG Hole Bushing

Push Bar

Tank Holder Rubber Strap

Prongs

Right Panel

Rotisserie Rod

Door Magnets

Shaft Collar

Welding Plate, Door Bracket

Rotisserie Handle

Door Bracket

Lid Handle

GreaseTray

Insulation Spacers

Knobs, Main Burners

Name Plate

Knob Seats, Main Burners

Temp. Gauge

Knob, Rear Burner

Lid

Knob Seat, Rear Burner

Spark Electrode, Rear Burner

Control Panel

ThermocoupleProtection Cover

Gas Valve, Rear Burner

ThermocoupleBracket

Manifold

Infrared Cover

Safety Valve, Rear Burner

Rear Burner

LP Gas Regulator

Warming Rack

Rear Burner Thermocouple

NG Gas Hose

Note:

1. Part # 41-56 and Part # 74 are not available on ITEM # JCSCART-2;

2. Part # 36 is not available on ITEM # JCSCART-NG;

3. Part # 41-56 and Part # 36 are not available on ITEM # JCSCART-2NG.

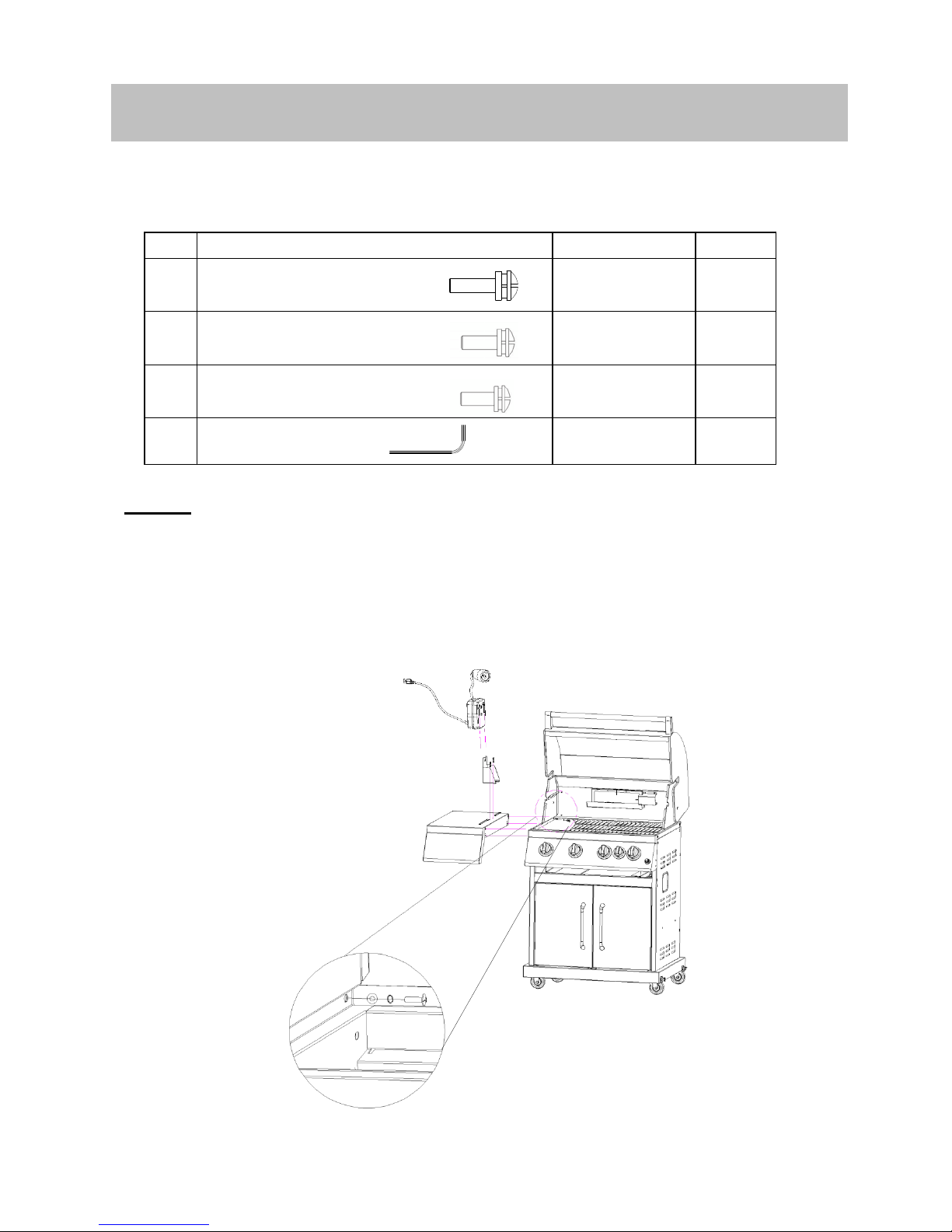

ASSEMBLY INSTRUCTION

PLEASE READ THE INSTRUCTIONS CAREFULLY AND FOLLOW STEP BY STEP.

TOOLS REQUIRED:

Philips head screwdriver (not provided), hexagon / Allen wrench (provided).

The following hardware is provided.

Item

Description

Specification

Quantity

With Split lock And Washer

1/4-20x1/2inch

14pcs

Truss head screw

With Split lock And Washer

3/16-24X3/8inch

2pcs

Truss head screw

With Split lock And Washer

5/32-32X3/8inch

2pcs

Hexagon/wrench

1pc

Step I:

1. Use 2 pcs of truss head 1/4-20 x 1/2” screws to attach the left shelf from the inside of the

firebox. Use 2 pcs of truss head 1/4-20 x 1/2” screws to attach the left shelf from the outside

of the grill firebox.

2. Use 1 pc of 5/32-32 x 3/8” screw to attach the left side shelf bracket to left side panel,

3. Behind the front panel of left side shelf, use 1 pc of 3/16-24x3/8” screw to attach the left side

shelf to control panel.

4. Use 2 pcs of truss head 1/4-20 x 1/2” screws to install the motor bracket on the left side shelf.

5. Slide the motor into the motor bracket.

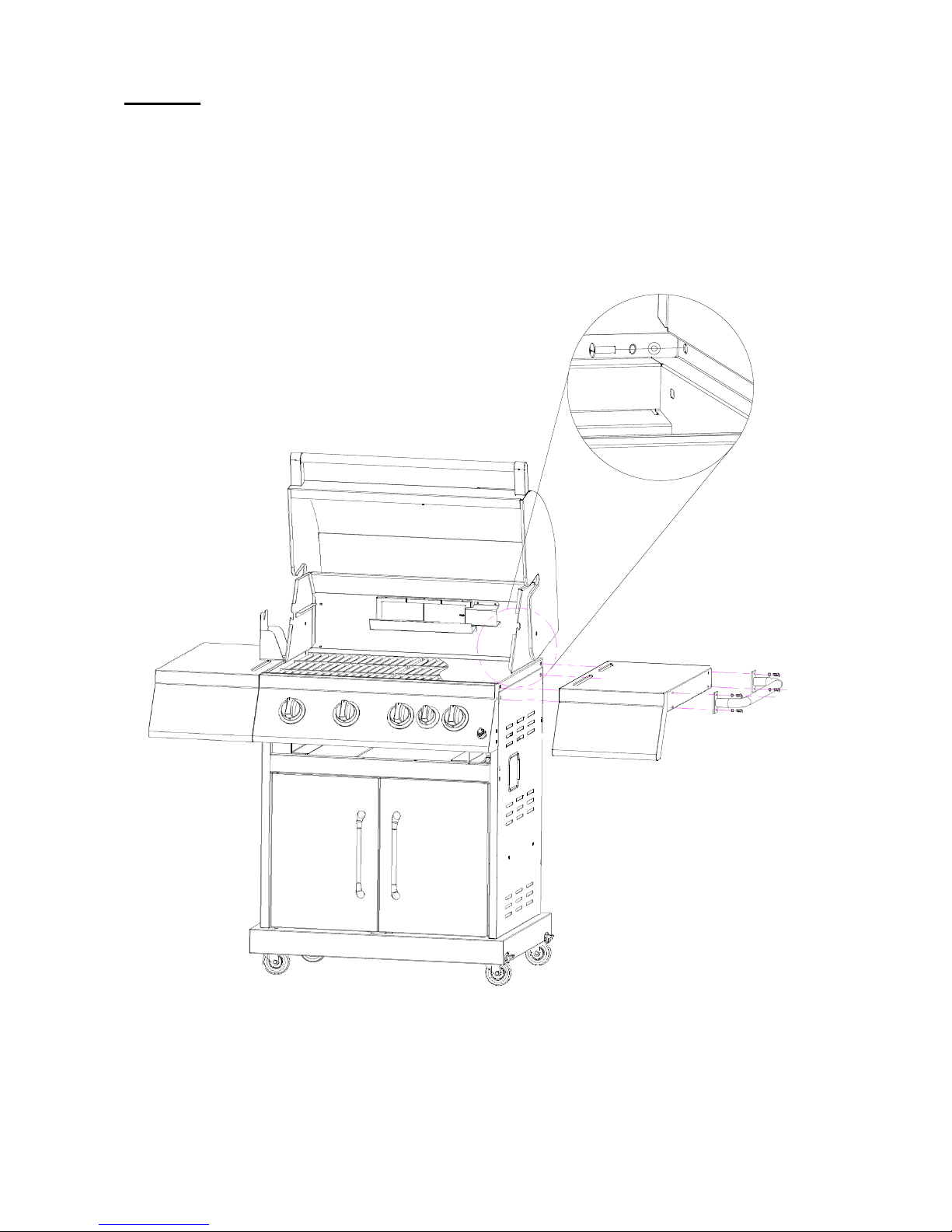

Step II:

1. Use 4 pcs of truss head 1/4-20 x 1/2” screws to attach the push bar to the right shelf.

2. Use 2 pcs of truss head 1/4-20 x 1/2” screws to attach the right shelf from the inside of the

firebox. Use 2 pcs of truss head 1/4-20 x 1/2” screws to attach the right shelf from the outside

of the grill firebox.

3. Use 1 pc of 5/32-32 x 3/8” screw to attach the right side shelf bracket to left side panel,

4. Behind the front panel of right side shelf, use 1 pc of 3/16-24x3/8” screw to attach the right side

shelf to control panel.

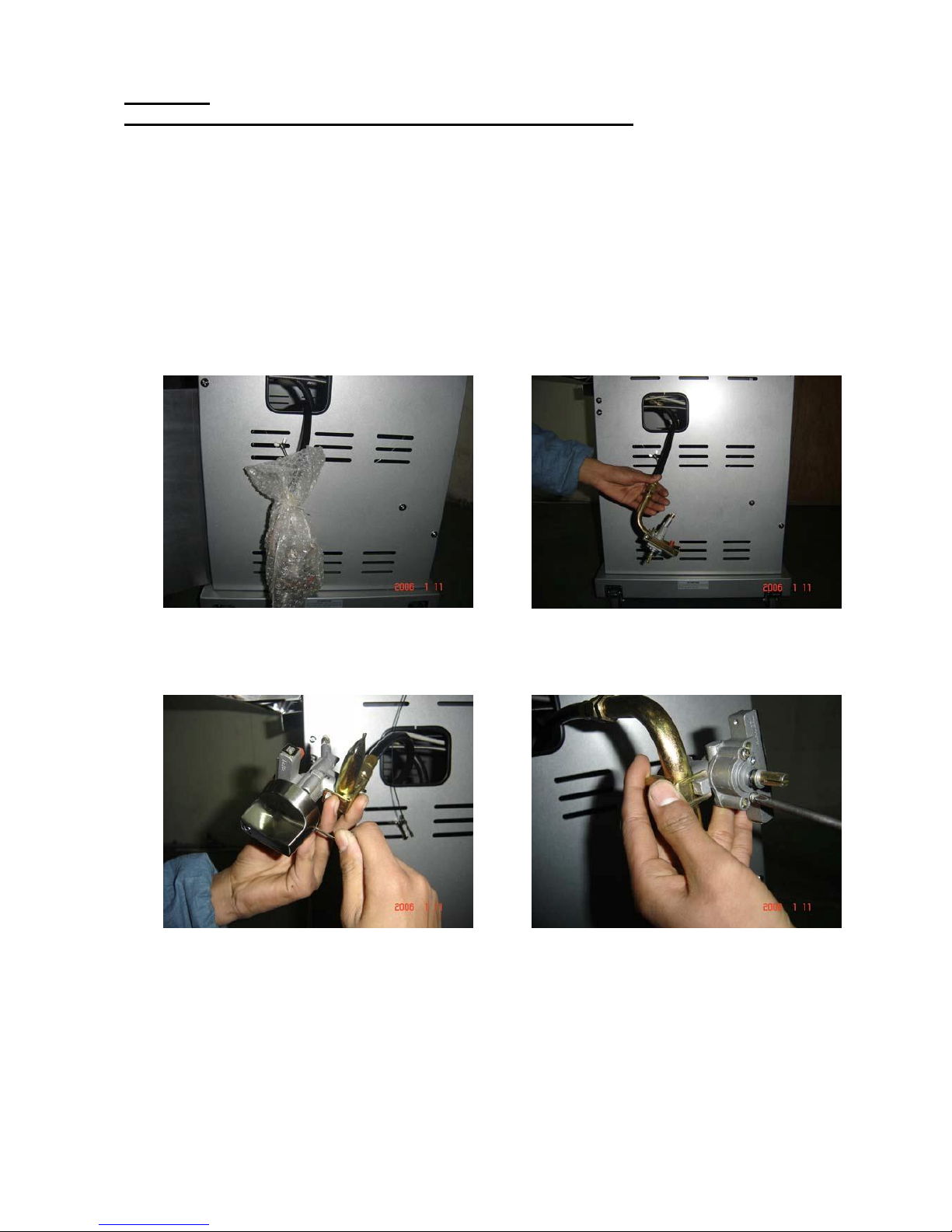

Step III:

(This step is only available for ITEM# JCSCART-NG)

1. Take out the side burner valve from the square hole of right side panel.

2. Remove the packing materials. Use the hexagon wrench to unscrew (don’t remove) the set

screw of control knob, and pull out the knob.

3. Unscrew two M4*6 screws from gas valve.

4. Unscrew the 4 screws on side burner bracketA & B which fix side burner.

5. Place side burner valve in back of side burner control panel.

6. Secure gas valve to panel using the M4*6 screws.

7. Make sure valve stem comes through large hole of the panel. Valve orifice should be in center

of burner tube.

8. Tighten the screws of side burner bracketA& B.

9. Beneath right side shelf, attach side burner igniter wire to valve electrode.

10. Press control knob onto valve stem, and tighten the set screw of knob.

1 2

3 4

Altri manuali per Classic PG-50403SRL

Indice

Altri manuali Jackson Grills Griglia

Jackson Grills

Jackson Grills LUX Series Manuale utente

Jackson Grills

Jackson Grills JGSBSEAR Manuale utente

Jackson Grills

Jackson Grills Keystone Black JKS400BLK-LP Manuale utente

Jackson Grills

Jackson Grills LUX400 Manuale utente

Jackson Grills

Jackson Grills Premier JPG700 series Manuale utente

Jackson Grills

Jackson Grills JLS550BI-LP Manuale utente

Jackson Grills

Jackson Grills Premier 700 Manuale utente

Jackson Grills

Jackson Grills JLS700-LP Lux Manuale utente

Jackson Grills

Jackson Grills PREMIER700-BI Manuale utente

Jackson Grills

Jackson Grills JLS400 Lux Manuale utente

Jackson Grills

Jackson Grills JPG50 Manuale utente

Jackson Grills

Jackson Grills LUX550 Manuale utente

Jackson Grills

Jackson Grills Keystone Series Manuale utente

Jackson Grills

Jackson Grills JPG75 Versa Manuale utente

Jackson Grills

Jackson Grills JPG850BI-2 Manuale utente

Jackson Grills

Jackson Grills Classic PG-50403SRL Guida

Jackson Grills

Jackson Grills JG3 Manuale utente

Jackson Grills

Jackson Grills Premier JPG700 series Manuale utente

Jackson Grills

Jackson Grills JLS400-NG Manuale utente

Jackson Grills

Jackson Grills Versa 100 JPG100-PKG1 Manuale utente

Jackson Grills

Jackson Grills JSS550BI-LP Manuale utente

Jackson Grills

Jackson Grills JLS400-LP Lux Manuale utente

Jackson Grills

Jackson Grills JLS700-LP Lux Manuale utente

Jackson Grills

Jackson Grills 700 Series Manuale utente

Manuali Griglia popolari di altre marche

Orbegozo

Orbegozo GR 2300 Manuale utente

bora

bora PT11 Manuale utente

Klarstein

Klarstein 10031664 Manuale utente

Garland

Garland MWE3W Manuale utente

Char-Broil

Char-Broil 463722714 Manuale utente

Nexgrill

Nexgrill 720-0830HK Manuale utente

Kenmore

Kenmore 415.16123800 Manuale utente

Camp Chef

Camp Chef PG24CLAU Manuale utente

Tucker Barbecues

Tucker Barbecues GTR Series Istruzioni per il montaggio

Monogram

Monogram ZGG540NCP1SS Manuale utente

Equipex

Equipex Sodir Savoy Manuale utente

Gaggenau

Gaggenau VR 414 610 Manuale utente

Miele

Miele KM 408-1 Manuale utente

George Foreman

George Foreman GGR50B Manuale utente

AOG

AOG T series Manuale utente

Gorenje

Gorenje TG2000CB Manuale di istruzioni

Weber

Weber Genesis Silver-B Permamount NG 051701 Manuale utente

Glen

Glen SA 3037 Manuale utente
