Installation Instructions

MODEL LS-HC

Limit -Stat™

Single Stage (1H/1C)

Non-Programmable Thermostat

1. THERMOSTAT DETAILS

2. MOUNTING AND WIRING

Electric Heat or Single Stage

Heat Pump Systems

This thermostat is configured from the factory to operate

a heat/cool, fossil fuel (gas, oil, etc.), forced air system. It

is configured correctly for any system that DOES NOT

require the thermostat to energize the fan on a call for

heat. If your system is an electric furnace that

REQUIRES the thermostat to turn on the fan set the

ELECTRIC/GAS switch to the electric position. (See

Thermostat Details) This will allow the thermostat to

energize the fan immediately on a call for heat.

WARNING

Do not use on circuits exceeding specified

voltage. Higher voltage will damage control

and could cause shock or fire hazard.

Do not short out terminals on gas valve or

primary control to test. Short or incorrect

wiring will damage thermostat and could

cause personal injury and/or property

damage.

Thermostat installation and all components of

the system shall confirm to Class II circuits

per the NEC code.

Patent Pending

Attaching Thermostat Base to Wall

1. Disrupt power to HVAC equipment.

2. Remove the packing material from the thermostat.

Gently pull the cover straight off the subbase. Forcing or

prying on the thermostat will cause damage to the unit.

Confirm that the ELECTRIC/GAS Switch is in the proper

position.

3. Connect thermostat wires to proper terminals on the

subbase (see Typical Wiring Diagrams).

4. Level and mount thermostat subbase to wall using

anchors and mounting screws provided.

5. Snap cover back in place.

6. Reapply power to HVAC equipment.

3. CONTROL AND DISPLAY FUNCTIONS

CONTROL FUNCTIONS

1 - UP ARROW – Raises temperature setting.

2 - DOWN ARROW – Lowers temperature setting.

3 - FAN SWITCH – ON, AUTO

4 - SYSTEM SWITCH – COOL, OFF, HEAT

DISPLAY.

5 – MODE – Heating symbol displayed when SYSTEM

SWITCH is set to HEAT. Cooling symbol displayed when

SYSTEM SWITCH is set to COOL.

6 – SPACE TEMPERATURE

Wire to furnace

‘W’ Terminal

LIMITER

7 – SETPOINT

4. SPECIFICATIONS

ELECTRICAL DATA

Electrical Rating:

20 to 30 VAC 50/60 Hz.

0.05 to 1.2 Amps (Load per terminal)

1.5 Amps Maximum Total Load

(All terminals combined)

THERMAL DATA

Setpoint Temperature Range: 45° to 90° F

(7° to 32° C)

Limiter: Fixed Range 73° F (22.5° C)

Operating Ambient Temperature: 32°F to 105°F

Operating Humidity Range: 0 to 90% RH (non-

condensing)

Shipping Temperature Range: -40°F to 150°F

5. OPERATION

The Model LS-HC Limit-Stat™operates like an ordinary

manual changeover heating/cooling, digital thermostat.

In normal operation, it allows full user control in selecting

mode (HEAT/COOL) and fan (ON/AUTO) as well as

adjustment of heating and cooling setpoints. However,

when the thermostat is in the heating mode of operation,

the built-in limiter will prevent the temperature from rising

above 73° F when the setpoint is adjusted above the

limit range. This unique feature greatly reduces energy

costs.

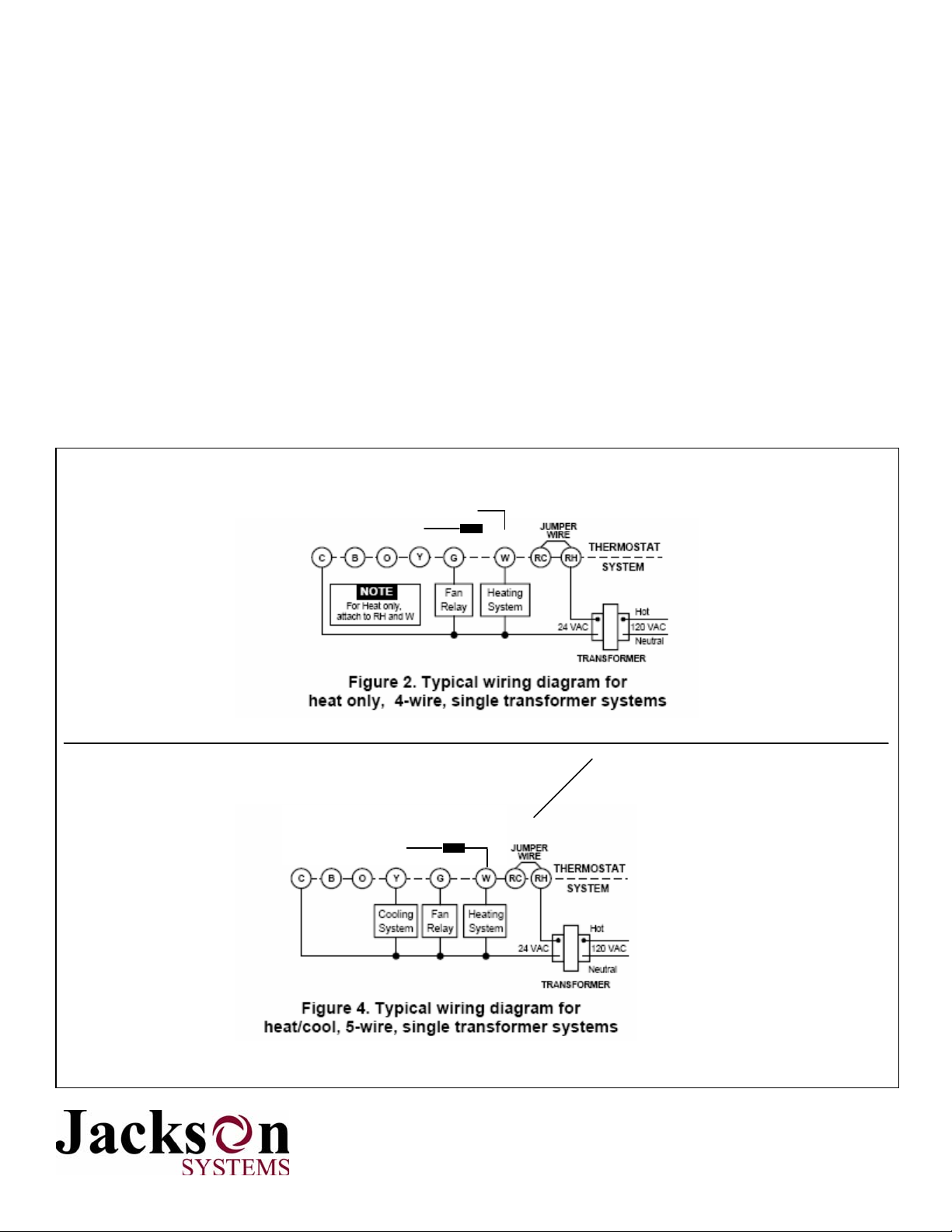

TYPICAL WIRING DIAGRAM

LIMITER

Wire to furnace ‘W’ terminal

NOTE:

RED jumper wire (provided with thermostat)

must be connected between thermostat RH

and RC terminals for proper thermostat

operation with this system.

LIMITER

Wire to furnace ‘W’ terminal

TOLL-FREE: 888-652-9663 FAX: 317-227-1034

www.jacksonsystems.com

5418 ELMWOOD AVENUE - INDIANAPOLIS, IN 46203
