Jackson Glasswashers Delta 5 Manuale utente

U s e s only 1.16 gallons ( 4.39 liters)

of wat e r per c y c l e

C l eans 40 r a cks per hou r

1,000 g l a s ses per hou r

90- s e c ond o per a t ing c y c l e

P o w e r f u l 3/4 HP w ash pump mot o r

Buil t - i n chemical pumps

A i r - g a p w a t e r i nle t

11-1/2” ( 292 mm) w a sh c hamber

clearanc e

G r a vit y d r a i n

Bui l t -in w a s t e a c cumul a t o r

Sustaining h e a t ing elemen t main -

tains  nal r i n se bet w een 120˚F

(49˚C ) and 140˚F (60˚C )

Remo v able end plugs o n l o w er w ash

a r m a n d r emo v abl e upper jets

D u r abl e 304 stainless s t eel c o n -

str u c tio n

Speciﬁcations

Standard Features

Delta 5

Models

Delta 5

Glasswashers

Project

Item

Quantity

CSI Section 11400

Approval

Date

Optional Features

50 Hz cycle

Accessory Items

Push-button start

Automatic ll, cycle and drain

Solid-state timer

Easily accessible controls

3-way dispensing system for

detergent, rinse additive and

sanitizer

Stainless steel wash pump

Lower rotary wash arm and xed

upper jets

Functions as both a glasswasher

and a dishwasher, accommodat-

ing wares up to 11-1/2”

(292 mm) high

Door-safety switch

Adjustable bullet feet

Swing-out control box for easy

service and access

Side control panel for easy access

to switches

Dial temperature gauge for con-

stant monitoring of temperature

Latch-type front (lower) panel

•

36 Compartment Racks 4-1/8”,

5-5/8”, or 7” (105 mm, 143 mm,

178 mm)

Combination Rack

Peg Rack

Flat Rack

Half Rack

Scaltrol

Water Hammer Arrestor

07610-003-61-07 (10/08)

Side skirt panels•

Energy Star® qualied•

MAILING ADDRESS

P. O. Box 1060

Barbourville, KY 40906

Tel: 606-523-9795

Tel: 1-888-800-5672

Fax: 606-523-1799

E-mail: customerservice@jacksonmsc.com

www.jacksonmsc.com

SHIPPING ADDRESS

Gray, KY 40734

6209 North U.S. Highway 25E

Delime/manual wash switch•

HOW TO SPECIF EXAMPLE:

Delta 5

APPROXIMATE TOTAL LOAD AMPS

115/60/116.0

ELECTRICAL REQUIREMENT)

Rinse Booster Tank Heater 2.0 kW

Wash Pump HP 3/4

WATER REQUIREMENTS

Gallons Per Hour 46.4 (176 liters)

Flow Rate GPM 6.33 (24 liters)

Flow Pressure (PSI)15 - 25

Waterline Size (IPS) 1/2”

Drainline Size OD 2”

SANITIZERS AVAILABLE

Sodium Hypochlorite 50 PPM

Delta 5

SHIPPING DIMENSIONS

WEIGHT CLASS CUBE HEIGHT WIDTH DEPTH

210 lbs

(95 kg)

92.5 30

cu. ft.

54”

(1372 mm)

30”

(762 mm)

32”

(813 mm)

MACHINE DIMENSIONS

INSIDE

CLEARANCE

HEIGHT

INSIDE

CLEARANCE

WIDTH

INSIDE

CLEARANCE

DEPTH

DOOR

OPEN

DEPTH

WALL

CLEARANCE

INI

11-1/2”

(292 mm)

20-1/4”

(514 mm)

20.5”

(521 mm)

36-3/4”

(933 mm)

2”

(51 mm)

OPERATING CAPACITY

Racks Per Hour 40

Dishes Per Hour1,000

Glasses Per Hour 1,000

OPERATING CYCLE

Wash Cycle (Seconds) 43

Rinse Time (Seconds) 24

Dwell Time (Seconds)18

Total Cycle (Seconds)85

OPERATING TEMPERATURES

Wash (Minimum) 120 ˚F/49˚C

Wash (Recommended)140˚F/60˚C

Tank Capacity 1.16 gals. (4.39 liters)

Wash Pump Capacity (GPM) 61 (231 liters)

21 1/4

(540 mm)

(432 mm)

(508 mm)

21 1/4

(540 mm)

7 3/4

(197 mm)

(991 mm)

6 3/4 (171 mm)

6 (152 mm)

12 1/4

(311 mm)

36 3/4

(933 mm)

24 1/2

(622 mm)

25 1/4

(642 mm)

3 (76 mm)

A - Incoming Water Connection

B - Drain Connection - 2" IPS

C - Electrical Connection Point

NOTE: All vertical dimensions are

at lowest point due to adjustable

bullet feet and may be raised an

additional 2 3/4".

11 1/2

(292 mm)

DISH

CLEARANCE

07610-003-61-07 (10/08)

MAILING ADDRESS

P. O. Box 1060

Barbourville, KY 40906

Tel: 606-523-9795

Tel: 1-888-800-5672

Fax: 606-523-1799

E-mail: customerservice@jacksonmsc.com

www.jacksonmsc.com

SHIPPING ADDRESS

Gray, KY 40734

6209 North U.S. Highway 25E

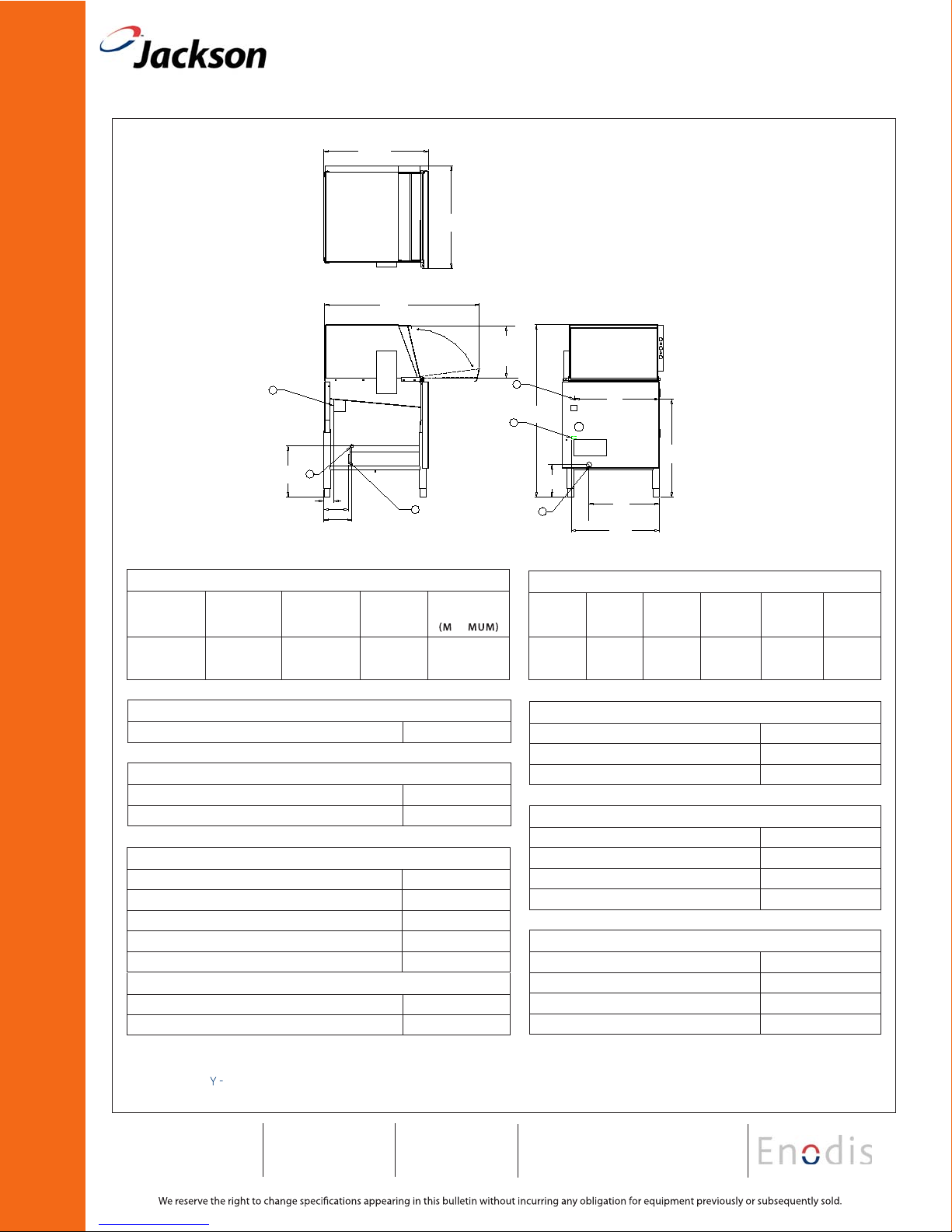

OVERHEAD

VIEW

SIDE

VIEW

FRONT

VIEW

Iodiphor 12 PPM
